Sku: Nuvo-8003
Tipo de Produto:
PCs com expansão PCIe / PCI
Fabricante:
Neousys

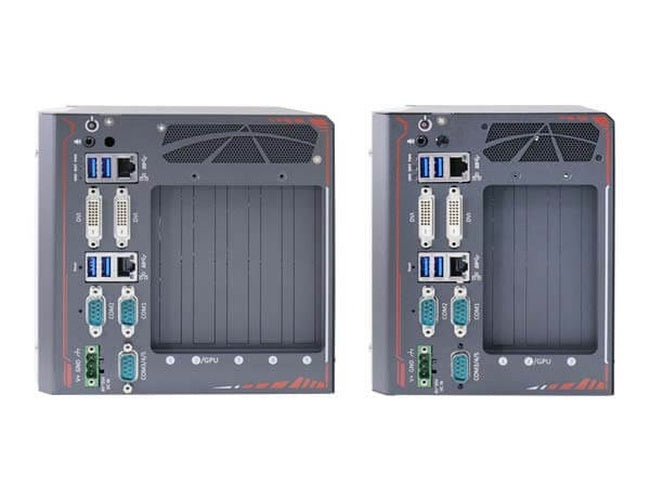

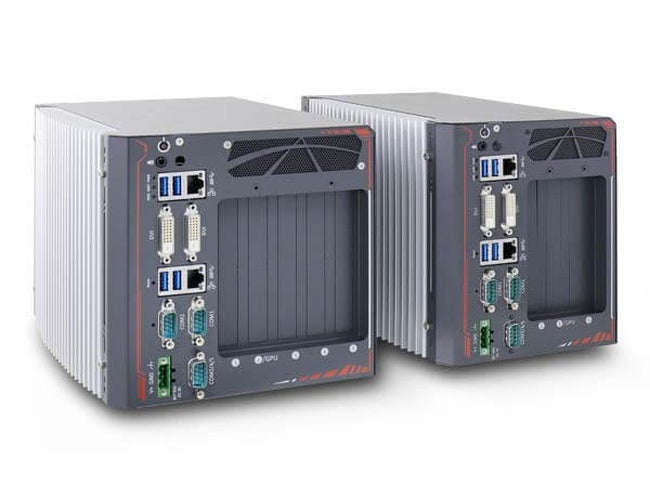

Nuvo-8003
Intel® 9th/ 8th-Gen Core™ i7/i5/i3 Expansion Industrial PC with up to 5 PCIe/ PCI slots
- Supports Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3, Pentium® and Celeron® LGA1151 CPU
- Up to five expansion slots, a mixed combination of x16 PCIe, x4 PCIe, and PCI slots
- Dedicated heat dissipation for -25°C to 60°C wide-temperature operation
- 2x GbE, 4x USB 3.1 Gen1 and 5x COM ports
- Dual DVI display outputs
- Up to 2x 2.5" SATA HDD/ SSD accommodation and 1x mSATA socket
- Wall-mounting and rack-mounting available
Caraterísticas
Especificações
Downloads
Opcionais
Caraterísticas
Nuvo-8000 series systems are cost-effective box-PCs with up to 5 expansion slots that can perfectly replace your bulky rack-mount or wall-mount IPC systems. Leveraging Intel® 9th/ 8th-Gen Core™ i desktop processor with H310 chipset, it delivers the same computing power as traditional IPCs but in a much more compact footprint with a budgetary price.
There are four models in the Nuvo-8000 series with various expansion configurations. Customers can choose from a compact 3-slot PCIe system to a 5-slot system with up to three PCIe slots or up to four PCI slots, that best suit their industrial automation or machine vision application needs. It features front-accessible I/Os including two GbE, four USB 3.1 Gen1 and five COM ports that make it easier to access when it is rack-mounted or placed inside a cabinet. Storage wise, Nuvo-8000 series systems have two 2.5” SATA SSD/ HDD and one mSATA socket to support various storage devices. The system can also support a 125W NVIDIA® GPU to offer TFLOPS computing power for modern deep-learning applications.
Nuvo-8000 series systems are designed with satisfying industrial demands in mind. Retaining traditional IPC expansion capabilities and fulfilling diverse application requirements in an extremely compact form-factor with industrial-grade reliability
Especificações
| Nuvo-8003 | Nuvo-8023 | Nuvo-8032 | Nuvo-8041 | |
| System Core | ||||
|---|---|---|---|---|
| Processor | Supporting Intel® 9th/ 8th-Gen Core™ CPU (LGA1151 socket) - Intel® Core™ i7-9700TE/ i7-8700*/ i7-8700T - Intel® Core™ i5-9500TE/ i5-8500*/ i5-8500T - Intel® Core™ i3-9100TE/ i3-8100*/ i3-8100T - Intel® Pentium® G5400T (4M Cache, 3.1GHz, 35W TDP) - Intel® Celeron® G4900T (2M Cache, 2.9GhHz, 35W TDP) |
|||
| Chipset | Intel® H310 platform controller hub | |||
| Graphics | Integrated Intel® UHD Graphics 630, or independent 125W GPU via x16 PEG port | |||
| Memory | Up to 32 GB DDR4 2666 SDRAM (one SODIMM slot) | |||
| I/O Interface | ||||
| Ethernet Port | 1x Gigabit Ethernet port by Intel® I219-LM 1x Gigabit Ethernet port by Intel® I210-IT |
|||
| Video Port | 2x DVI-D connectors, each supporting 1920x1200 resolution | |||
| Serial Port | 1x software-programmable RS-232/ 422/ 485 ports (COM1) 1x software-programmable RS-422/ 485 ports (COM2) 3x 3-wire RS-232 ports (COM3/ COM4/ COM5) |
|||
| USB | 4x USB 3.1 Gen1 (5 Gbps) ports 1x USB 2.0 port with Type-A connectors(internal) 2x USB 2.0 port with 2x8 pins box header(internal) |
|||
| Audio | 1x 3.5 mm jack for mic-in and speaker-out | |||
| Storage Interface | ||||
| SATA HDD | 2x internal SATA ports for 2.5” HDD/ SSD installation | |||
| mSATA | 1x full-size mSATA port | |||
| Nuvo-8003 | Nuvo-8023 | Nuvo-8032 | Nuvo-8041 | |
| Expansion Bus | ||||
|---|---|---|---|---|
| PCI/PCI Express |
1x PCIe x16 slot @Gen3, 16-lanes 1x PCIe x8 slot @Gen2, 4-lanes 1x PCIe x4 slot @Gen2, 1-lane |
1x PCIe x16 slot @Gen3, 16-lanes 1x PCIe x4 slot @Gen2, 2-lanes 1x PCIe x4 slot @Gen2, 1-lane |
1x PCIe x16 slot @Gen3, 16-lanes 1x PCIe x8 slot @Gen2, 4-lanes |
1x PCIe x16 slot @Gen3, 16-lanes |
| PCI | - | 2x 33MHz/ 32-bit 5V PCI slots | 3x 33MHz/ 32-bit 5V PCI slots | 4x 33MHz/ 32-bit 5V PCI slots |
| mSATA | 1x full-size mSATA socket (mux with USB 2.0 signals) | |||
| Power Supply | ||||
| DC Input | 1x 3-pin pluggable terminal block for 8~35VDC DC input | |||
| Mechanical | ||||
| Dimension | 154 mm (W) x 235 mm (D) x 174 mm (H) | 185 mm (W) x 235 mm (D) x 174 mm (H) | ||
| Weight | 3 Kg | 3.6 Kg | ||
| Mounting | Wall-mount (standard) DIN-Rail mounting (optional) Rack-mount (optional) |
|||
| Environmental | ||||
| Operating Temperature | -25°C ~ 60°C | |||
| Storage Temperature | -40°C ~ 85°C | |||
| Humidity | 10%~90% , non-condensing | |||
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 | |||
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II | |||
| EMC | CE/FCC Class A, according to EN55032 & EN55035 | |||
■ Date last revised: Oct. 5, 2020
* Due to thermal limitations, 65W CPUs will be configured to operate in 35W mode by defaultDownloads
Opcionais
Expansion PCIe Cards:
PCIe-PoE550X 10GbE PoE+
399.00€
Optional Accessories
PA-120W-OW
120W AC/DC power adapter, 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70°C
PA-160W-OW
160W AC/DC power adapter 20V/ 8A; 18AWGx4C/ 120cm, cord end terminals for terminal block, operating temperature : -30°C to 70 °C
PA-280W-ET2
280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C
Fankit-92
Fan assembly for Nuvo-8000, 92x92x25 mm
Rmkit-Nuvo6000
Rack mounting assembly for Nuvo-6000/ 8000 series
