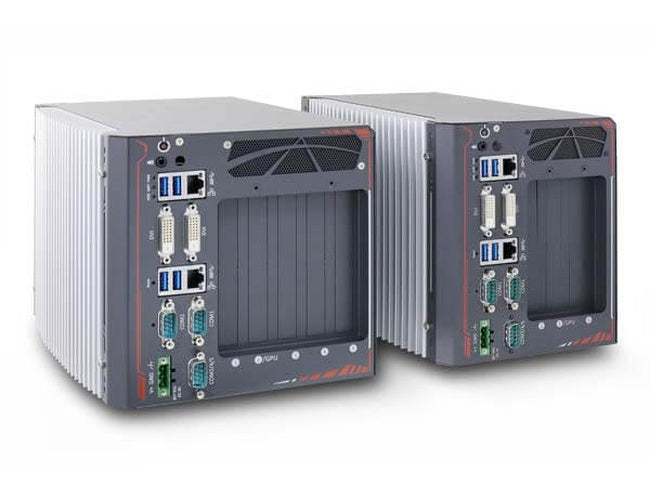

Name: Neousys Nuvo-8023 (Intel Core™ 9/ 8 Gen. i7/ i5/ i3, 3 PCIe/ 2 PCI)
Brand: Neousys
SKU: Nuvo-8023
Availability: InStock
Rating: 5 (47 reviews)

com IVA

0.00€

sem IVA

0.00€

Sku: Nuvo-8023

Tipo de Produto: PCs Industriais Robustos

Fabricante: Neousys

Descrição

Nuvo-8023

Intel® 9th/ 8th-Gen Core™ i7/i5/i3 Expansion Industrial PC with up to 5 PCIe/ PCI slots

Supports Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3, Pentium® and Celeron® LGA1151 CPU
Up to five expansion slots, a mixed combination of x16 PCIe, x4 PCIe, and PCI slots
Dedicated heat dissipation for -25°C to 60°C wide-temperature operation
2x GbE, 4x USB 3.1 Gen1 and 5x COM ports
Dual DVI display outputs
Up to 2x 2.5" SATA HDD/ SSD accommodation and 1x mSATA socket
Wall-mounting and rack-mounting available

Caraterísticas

Especificações

Downloads

Opcionais

Caraterísticas

Nuvo-8000 series systems are cost-effective box-PCs with up to 5 expansion slots that can perfectly replace your bulky rack-mount or wall-mount IPC systems. Leveraging Intel® 9th/ 8th-Gen Core™ i desktop processor with H310 chipset, it delivers the same computing power as traditional IPCs but in a much more compact footprint with a budgetary price.

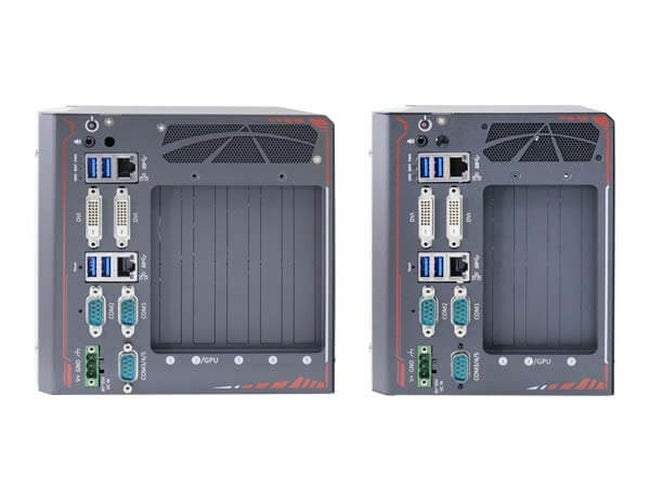

There are four models in the Nuvo-8000 series with various expansion configurations. Customers can choose from a compact 3-slot PCIe system to a 5-slot system with up to three PCIe slots or up to four PCI slots, that best suit their industrial automation or machine vision application needs. It features front-accessible I/Os including two GbE, four USB 3.1 Gen1 and five COM ports that make it easier to access when it is rack-mounted or placed inside a cabinet. Storage wise, Nuvo-8000 series systems have two 2.5” SATA SSD/ HDD and one mSATA socket to support various storage devices. The system can also support a 125W NVIDIA® GPU to offer TFLOPS computing power for modern deep-learning applications.

Nuvo-8000 series systems are designed with satisfying industrial demands in mind. Retaining traditional IPC expansion capabilities and fulfilling diverse application requirements in an extremely compact form-factor with industrial-grade reliability

Especificações

System Core
	Nuvo-8003	Nuvo-8023	Nuvo-8032	Nuvo-8041
Processor	Supporting Intel® 9th/ 8th-Gen Core™ CPU (LGA1151 socket) - Intel® Core™ i7-9700TE/ i7-8700/ i7-8700T - Intel® Core™ i5-9500TE/ i5-8500/ i5-8500T - Intel® Core™ i3-9100TE/ i3-8100*/ i3-8100T - Intel® Pentium® G5400T (4M Cache, 3.1GHz, 35W TDP) - Intel® Celeron® G4900T (2M Cache, 2.9GhHz, 35W TDP)
Chipset	Intel® H310 platform controller hub
Graphics	Integrated Intel® UHD Graphics 630, or independent 125W GPU via x16 PEG port
Memory	Up to 32 GB DDR4 2666 SDRAM (one SODIMM slot)
I/O Interface
Ethernet Port	1x Gigabit Ethernet port by Intel® I219-LM 1x Gigabit Ethernet port by Intel® I210-IT
Video Port	2x DVI-D connectors, each supporting 1920x1200 resolution
Serial Port	1x software-programmable RS-232/ 422/ 485 ports (COM1) 1x software-programmable RS-422/ 485 ports (COM2) 3x 3-wire RS-232 ports (COM3/ COM4/ COM5)
USB	4x USB 3.1 Gen1 (5 Gbps) ports 1x USB 2.0 port with Type-A connectors(internal) 2x USB 2.0 port with 2x8 pins box header(internal)
Audio	1x 3.5 mm jack for mic-in and speaker-out
Storage Interface
SATA HDD	2x internal SATA ports for 2.5” HDD/ SSD installation
mSATA	1x full-size mSATA port

Expansion Bus
	Nuvo-8003	Nuvo-8023	Nuvo-8032	Nuvo-8041
PCI/PCI Express	1x PCIe x16 slot @Gen3, 16-lanes 1x PCIe x8 slot @Gen2, 4-lanes 1x PCIe x4 slot @Gen2, 1-lane	1x PCIe x16 slot @Gen3, 16-lanes 1x PCIe x4 slot @Gen2, 2-lanes 1x PCIe x4 slot @Gen2, 1-lane	1x PCIe x16 slot @Gen3, 16-lanes 1x PCIe x8 slot @Gen2, 4-lanes	1x PCIe x16 slot @Gen3, 16-lanes
PCI	-	2x 33MHz/ 32-bit 5V PCI slots	3x 33MHz/ 32-bit 5V PCI slots	4x 33MHz/ 32-bit 5V PCI slots
mSATA	1x full-size mSATA socket (mux with USB 2.0 signals)
Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35VDC DC input
Mechanical
Dimension	154 mm (W) x 235 mm (D) x 174 mm (H)	185 mm (W) x 235 mm (D) x 174 mm (H)
Weight	3 Kg	3.6 Kg
Mounting	Wall-mount (standard) DIN-Rail mounting (optional) Rack-mount (optional)
Environmental
Operating Temperature	-25°C ~ 60°C
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/FCC Class A, according to EN55032 & EN55035

■ Date last revised: Oct. 5, 2020

* Due to thermal limitations, 65W CPUs will be configured to operate in 35W mode by default

Downloads

Nuvo-8023 Datasheet

Opcionais

Expansion PCIe Cards:

PCIe-PoE354at (Intel I350-AM4 GbE PoE+)

299.00€

PCIe-PoE550X 10GbE PoE+

399.00€

PCIe-PoE312M (Intel I350 GbE PoE+ M12)

425.00€

Optional Accessories

PA-120W-OW

120W AC/DC power adapter, 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70°C

PA-160W-OW

160W AC/DC power adapter 20V/ 8A; 18AWGx4C/ 120cm, cord end terminals for terminal block, operating temperature : -30°C to 70 °C

PA-280W-ET2

280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C

Fankit-92

Fan assembly for Nuvo-8000, 92x92x25 mm

Rmkit-Nuvo6000

Rack mounting assembly for Nuvo-6000/ 8000 series
