Sku: Nuvo-8108GC
Tipo de Produto: AI Edge box PC
Fabricante: Neousys

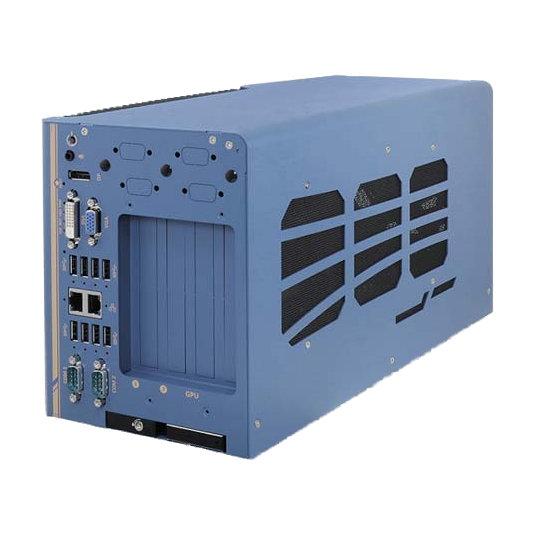

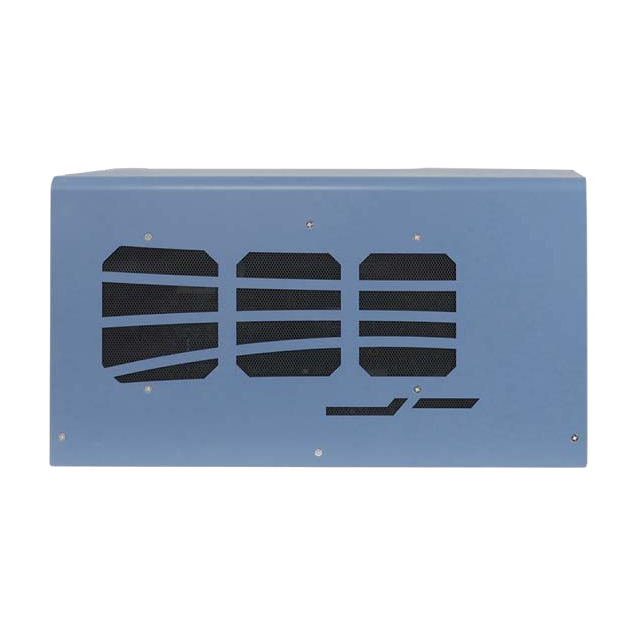

Nuvo-8108GC

Industrial-grade GPU Computing Edge AI Platform Supporting an NVIDIA® RTX 30 Series Graphics Card, Intel® Xeon® E or 9th/ 8th-Gen Core ™ Processor

  • Supports an NVIDIA RTX 30 series graphics card
  • Supports Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5 LGA1151 CPU
  • Up to 128GB ECC/ non-ECC DDR4 2133 (4x SODIMM)
  • 2x PCIe x16 slot@Gen3, 8-lanes, 2x PCIe x8 slots@Gen3, 4-lanes*
  • 1x M.2 M key, 1x M.2 B key and 2x full-size mini-PCIe sockets.
  • 8~48V wide-range DC input with built-in ignition power control
  • Patented thermal design for -25°C to 60°C rugged operation*
  • Patented damping brackets* to withstand 3 Grms vibration
Caraterísticas

Nuvo-8108GC is a rugged GPU Computing edge AI platform with industrial-grade design and in-vehicle features. Designed specifically to support a high-end 250W NVIDIA® graphics card, it offers tremendous GPU power up to 14 TFLOPS in FP32 for emerging GPU-accelerated edge computing, such as autonomous driving, vision inspection and surveillance/ security.

Nuvo-8108GC is powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPUs coupled with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory. The system incorporates an internal 2.5" HDD/ SSD tray and one hot-swappable 2.5" HDD/ SSD tray for easy replacement. There is also an M.2 2280 NVMe socket for the fast read/ write performance. Its front-accessible GbE and USB 3.1 Gen1/ Gen2 ports feature screw-lock mechanisms for securing cable connections. In addition to the x16 PCIe slot (8-lanes) for GPU installation, Nuvo-8108GC has other two x8 PCIe slots (4-lanes) and one x16 PCIe slot (8-lanes) for expansion cards to extend function sets like data collection,analytics and communication.

Nuvo-8108GC has a brand new power delivery design to accept 8~48V wide-range DC input and to handle heavy power requirements from 250W GPU. Along with built-in ignition control, it's feasible to deploy it on a vehicle and directly power it via the car's power system. Mechanical wise, Nuvo-8108GC incorporates Neousys' patented heat dissipation design*, damping brackets* and patent-pending GPU press bar, making it steady and rock-solid in various conditions. The Nuvo-8108GC is Neousys' response to the never-ending demand of TFLOPS in industrial GPU platforms. With industrial-grade power, thermal and mechanical design, it pushes versatile AI inference applications from laboratories to field applications, where reliability matters.

■ NEOUSYS MARKETING TEAM

Especificações
System Core
Processor Supporting Intel® Xeon® E and 8th/ 9th-Gen CPU (LGA1151 socket)
- Xeon E 2176G/ 2278GE (8C/16T) / 2278GEL (8C/16T)
- i7-8700, i7-8700T, i7-9700E, i7-9700TE
- i5-8500, i5-8500T, i5-9500E, i5-9500TE
- i3-8100, i3-8100T, i3-9100E, i3-9100TE
Memory Up to 128 GB ECC/ non-ECC DDR4 2133 SDRAM(four SODIMM slots)
Graphics Independent GPU via x16 PEG port, or integrated Intel® UHD Graphics 630
Chipset Intel® C246 Platform Controller Hub
AMT Supports AMT 12.0
TPM Supports TPM 2.0
I/O Interface
Ethernet 1x Gigabit Ethernet port by Intel® I219-LM
1x Gigabit Ethernet port by Intel® I210-IT
Native Video Port 1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2)
USB 4x USB 3.1 Gen2 (10 Gbps) ports
4x USB 3.1 Gen1 (5 Gbps) ports
1x USB 2.0 ports (internal for dongle use)
Audio 1x 3.5 mm jack for mic-in and speaker-out
Expansion Bus/ Internal I/O Interface
PCI Express 2x PCIe x16 slot@Gen3, 8-lanes
2x PCIe x8 slots@Gen3, 4-lanes*
M.2 1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module
mini-PCIe 2x full-size mini PCI Express socket
Storage Interface
SATA 1x hot-swappable HDD tray for 2.5" HDD/ SSD installation
1x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
M.2 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
mSATA 2x full-size mSATA port (mux with mini-PCIe)
Power Supply
DC Input 2x 4-pin pluggable terminal block for 8~48V DC input with ignition control
Mechanical
Dimension 170 mm (W) x 360 mm (D) x 198 mm (H)
Weight 5 Kg
Mounting Neousys' patented damping brackets (standard)
Environmental
Operating Temperature with 35W CPU and one NVIDIA® 250W GPU
-25°C ~ 60°C ***
with >= 65W CPU and one NVIDIA® 250W GPU
-25°C ~ 60°C **/ *** (configured as 35W TDP mode)
-25°C ~ 50°C **/ *** (configured as 65W TDP mode)
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4; and 3 Grms, 5-500 Hz, 3 Axes
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC CE/ FCC Class A, according to EN 55024 & EN 55032
■ Date last revised: Dec. 9, 2021


* With an RTX graphics card installed, a PCIe x8 slot may be blocked and rendered unusable.
** For i7-8700 and i7-9700E running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
*** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
