Sku: Nuvo-8108GC-QD
Tipo de Produto: AI Edge box PC
Fabricante: Neousys

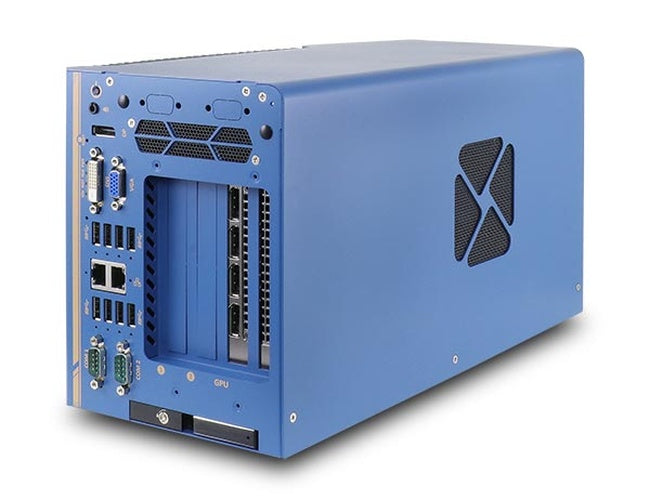

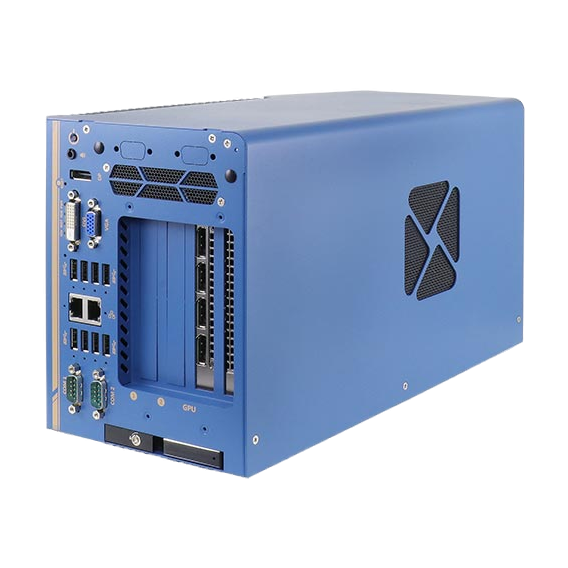

Nuvo-8108GC-QD

Industrial-grade Edge AI Platform Supporting NVIDIA® RTX A6000/ A4500 GPU, Intel® Xeon® E and 9th/ 8th-Gen Core™ Processor

  • Supports NVIDIA® RTX A6000/ A4500 GPU cards
  • Supports Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5 LGA1151 CPU
  • Up to 128GB ECC/ non-ECC DDR4 2133 (4x SODIMM)
  • One x16 (8-lanes), one x8 (4-lanes), Gen3 PCIe slots for add-on cards
  • Dedicated GPU card bracket
  • 8~48V wide-range DC input with built-in ignition power control
  • Patented thermal design for -25°C to 60°C rugged operation*
  • Patented damping brackets* to withstand 3 Grms vibration
Caraterísticas

Nuvo-8108GC-QD, the latest member of the well-received Nuvo-8108GC series, is a rugged edge AI platform specially designed for NVIDIA® RTX A6000 and RTX A4500 Ampere GPU cards. The GPUs offer tremendous computing power and product longevity, to take GPU-accelerated edge AI applications such as autonomous driving, vision inspection and intelligent video analytics to the next level of reliability and availability.

Powered by an Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPU with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory, it has a strong foundation for building a powerful AI edge computing platform. It has a refined thermal dissipation design to optimize GPU performance in high-temperature environments. Additionally, Nuvo-8108GC-QD comes with a dedicated mounting bracket for RTX A6000/ A4500 to keep the GPU card firmly secured in the PCIe slot. Along with Neousys’ patented damping brackets*, it ensures rock-solid operation in intensive shock and vibration conditions.

The addition of RTX A6000/ A4500 to Neousys’ GPU computer portfolio realizes an edge AI platform with system-level longevity and up to 28 TFLOPS computing power. Combining proven power design, guaranteed thermal performance, and superior mechanical ruggedness, Nuvo-8108GC-QD brings unprecedented longevity, computing power, flexibility and reliability to edge AI computing.

■ NEOUSYS MARKETING TEAM

Especificações
System Core
Processor Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket)
- Xeon E 2176G/ 2278GE (8C/16T) / 2278GEL (8C/16T)
- i7-9700E, i7-9700TE, i7-8700, i7-8700T
- i5-9500E, i5-9500TE, i5-8500, i5-8500T
- i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset Intel® C246 Platform Controller Hub
Graphics Independent NVIDIA® RTX A6000/ A4500 GPU via x16 PEG port,or integrated Intel® UHD graphics 630
Memory Up to 128 GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)
AMT Supports AMT 12.0
TPM Supports TPM 2.0
I/O Interface
Ethernet 1x Gigabit Ethernet port by Intel® I219-LM
1x Gigabit Ethernet port by Intel® I210-IT
Video Port 1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/ 422/ 485 ports(COM1/ COM2)
USB 4x USB 3.2 Gen2 (10 Gbps) ports
4x USB 3.2 Gen1 (5 Gbps) ports
1x USB 2.0 ports (internal for dongle use)
Audio 1x 3.5 mm jack for mic-in and speaker-out
Storage Interface
SATA 1x hot-swappable HDD tray for 2.5" HDD/ SSD installation
1x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
M.2 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
mSATA 2x full-size mSATA port (mux with mini-PCIe)
Expansion Bus
PCI Express 2x PCIe x16 slot@Gen3, 8-lanes
2x PCIe x8 slots@Gen3, 4-lanes
M.2 1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module
mini-PCIe 2x full-size mini PCI Express socket
Power Supply
DC Input 2x 4-pin pluggable terminal block for 8~48V DC input with ignition control
Mechanical
Dimension 170.2 mm (W) x 360 mm (D) x 201.8 mm (H)
Weight 5.8 Kg
Mounting Neousys' patented damping brackets
Environmental
Operating Temperature with 35W CPU and one NVIDIA® RTX A6000/ A4500 GPU
-25°C ~ 60°C ***
with >= 65W CPU and one NVIDIA® RTX A6000/ A4500 GPU
-25°C ~ 60°C **/ *** (configured as 35W TDP mode)
-25°C ~ 50°C **/ *** (configured as 65W TDP mode)
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC CE/ FCC Class A, according to EN 55024 & EN 55032
■ Date last revised: Jan. 20, 2022


** For i7-9700/ 8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading is applied. Users can configure CPU power in the BIOS to obtain higher operating temperatures.
*** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

Downloads
Opcionais

Expansion PCIe Cards:

Optional Accessories:

PA-480W-DIN

480W AC-DC power Adapter(SDR-480-24) DIN-rail mount, 24V 20A, 90~264VAC/127~370VDC, Terminal Block, -20~+70°C, Meanwell SDR-480-24

PA-600W-ENC

600W AC/DC power adapter 24V/25A; cord end terminals for terminal block, operating temperature : -20°C to 70°C.
