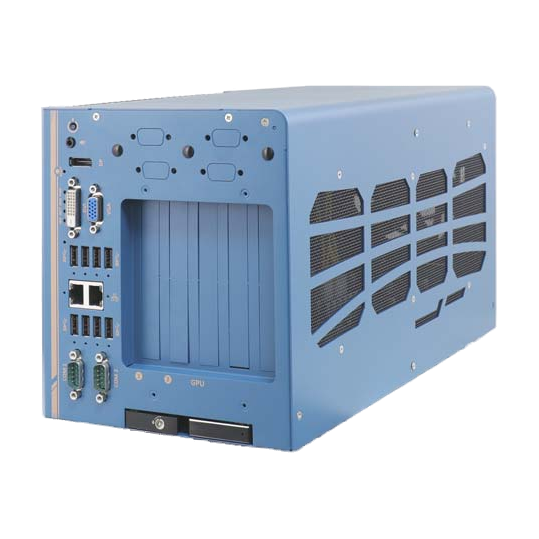

Nuvo-8108GC-XL is one of the first rugged edge AI GPU computing platforms to support an NVIDIA® RTX 30 series graphics card up to RTX 3080. Together, the system offers tremendous GPU power up to 29.8 TFLOPS in FP32 to take GPU-accelerated edge computing such as autonomous driving, vision inspection and intelligent video analytics to the next level.
Powered by an Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPU with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory, the system is a strong foundation to built a powerful AI edge computing platform on. Featuring a brand new mechanical design that is optimized to bring out the best in the latest RTX 30 series GPU cards and its parallel operation of heterogeneous computing architecture. In addition to the x16 PCIe slot (8-lanes) for RTX 30 series GPU installation, Nuvo-8108GC-XL has other one x8 PCIe slots (4-lanes) and one x16 PCIe slot (8-lanes) for users to add on high performance or bandwidth-hungry expansion cards to extend function sets, such as data collection, analytics and communication.
Nuvo-8108GC-XL incorporates Neousys' patented heat dissipation design*, damping brackets* and enhanced GPU stabilizing bar, steadying it for reliable and rock-solid operation in shock or vibration conditions. Continuing the heritage of Neousys' proven power and thermal design, the Nuvo-8108GC-XL accepts 8~48V wide-range DC input to handle heavy power requirements from RTX 30 series GPU under wide temperature operation. Incorporating the built-in ignition control, it can be deployed on a vehicle and directly power it via the car's power system. Nuvo-8108GC-XL is Neousys' response to the never-ending demand for TFLOPS performance in industrial GPU platforms. With proven industrialgrade power, guaranteed thermal performance, and new mechanical design, it takes edge AI computing to the next level.
■ NEOUSYS MARKETING TEAM
|Processor||Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket)
- Xeon E 2176G/ 2278GE (8C/16T) / 2278GEL (8C/16T)
- i7-9700E, i7-9700TE, i7-8700, i7-8700T
- i5-9500E, i5-9500TE, i5-8500, i5-8500T
- i3-9100E, i3-9100TE, i3-8100, i3-8100T
|Chipset||Intel® C246 Platform Controller Hub|
|Graphics||Independent GPU via x16 PEG port, or integrated Intel® UHD Graphics 630|
|Memory||Up to 128 GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)|
|AMT||Supports AMT 12.0|
|TPM||Supports TPM 2.0|
|Ethernet||1x Gigabit Ethernet port by Intel® I219-LM
1x Gigabit Ethernet port by Intel® I210-IT
|Video Port||1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution
|Serial Port||2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2)|
|USB||4x USB 3.1 Gen2 (10 Gbps) ports
4x USB 3.1 Gen1 (5 Gbps) ports
1x USB 2.0 ports (internal for dongle use)
|Audio||1x 3.5 mm jack for mic-in and speaker-out|
|SATA||1x hot-swappable HDD tray for 2.5" HDD/ SSD installation
1x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
|M.2||1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation|
|mSATA||2x full-size mSATA port (mux with mini-PCIe)|
|Expansion Bus/ Internal I/O Interface|
|PCI Express||2x PCIe x16 slot@Gen3, 8-lanes
2x PCIe x8 slots@Gen3, 4-lanes*
|M.2||1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module|
|mini-PCIe||2x full-size mini PCI Express socket|

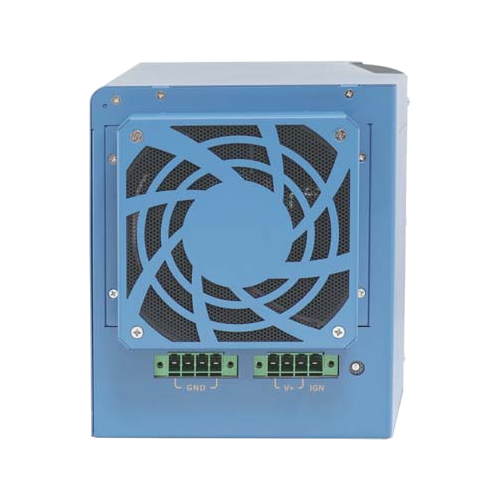

|DC Input||2x 4-pin pluggable terminal block for 8~48V DC input with ignition control|
|Dimension||193 mm (W) x 388 mm (D) x 198 mm (H)|
|Mounting||Wall-mount with damping brackets|
with 35W CPU and one NVIDIA® 250W GPU
-25°C ~ 60°C ***
with >= 65W CPU and one NVIDIA® 250W GPU
-25°C ~ 60°C **/ *** (configured as 35W TDP mode)
-25°C ~ 50°C **/ *** (configured as 65W TDP mode)
|Storage Temperature||-40°C ~ 85°C|
|Humidity||10%~90% , non-condensing|
|Vibration||Operating, MIL-STD-810G, Method 514.6, Category 4; and 3 Grms, 5-500 Hz, 3 Axes|
|Shock||Operating, MIL-STD-810G, Method 516.6, Procedure I,Table 516.6-II|
|EMC||CE/ FCC Class A, according to EN 55024 & EN 55032|
* With an RTX graphics card installed, a PCIe x8 slot may be blocked and rendered unusable.
** For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
*** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
480W AC-DC power Adapter(SDR-480-24) DIN-rail mount, 24V 20A, 90~264VAC/127~370VDC, Terminal Block, -20~+70°C, Meanwell SDR-480-24
