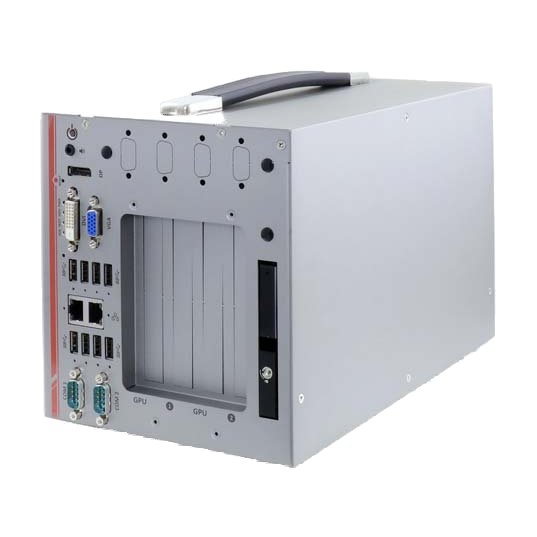

Nuvo-8240GC is a rugged edge AI GPU computing platform designed specifically to support dual NVIDIA® Tesla T4s for advanced inference acceleration applications.
It features NVIDIA multi-precision Turing Tensor Cores and new RT Cores while offering tremendous GPU power up to 130 TFLOPS in FP16 and 520 TOPS in INT4 for emerging GPU-accelerated edge computing and advanced AI inference. In addition, Nuvo-8240GC is powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU up to 8-core/ 16-thread coupled with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory.
The system incorporates one internal 2.5" SATA HDD/ SSD slot and one hot-swappable 2.5" tray for easy HDD/ SSD replacement. There is also an M.2 2280 socket for the ultimate PCIe NVMe SSD. Its front-accessible GbE and USB 3.1 Gen1/ Gen2 ports feature screw-lock mechanisms for secure cable connections. In addition to the dual x16 PCIe slots (8-lanes) for graphics card installation, Nuvo-8240GC has other two x8 PCIe slots (4-lanes)for expansion cards to extend function sets, making it that much more flexible for specific applications such as data collection, analytics and communication.
Nuvo-8240GC has a brand new power delivery design to accept 8~48V wide-range DC input with built-in ignition control. Mechanical wise, Nuvo-8240GC incorporates Neousys' proven heat dissipation design, damping brackets* for withstanding 3 Grms vibration, making it steady and rocksolid in various conditions. The Nuvo-8240GC is Neousys' response to the never-ending performance demand in industrial edge AI platforms and now with double the inference power, Nuvo-8240GC is ready to take it to the next level.
■ NEOUSYS MARKETING TEAM
|Processor||Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket)
- Xeon E 2176G (6C/12T) / 2278GE (8C/16T) / 2278GEL (8C/16T)
- i7-9700E, i7-9700TE, i7-8700, i7-8700T
- i5-9500E, i5-9500TE, i5-8500, i5-8500T
- i3-9100E, i3-9100TE, i3-8100, i3-8100T
|Chipset||Intel® C246 Platform Controller Hub|
|Graphics||Integrated Intel® UHD Graphics 630|
|Memory||Up to 128 GB ECC/ non-ECC DDR4 2133 SDRAM (four SODIMM slots)|
|AMT||Supports AMT 12.0|
|TPM||Supports TPM 2.0|
|Ethernet||1x Gigabit Ethernet port by Intel I219-LM
1x Gigabit Ethernet port by Intel I210-IT
|Video Port||1x VGA, supporting 1920 x 1200 resolution
1x DVI-D, supporting 1920 x 1200 resolution
1x DisplayPort, supporting 4096 x 2304 resolution
|Serial Port||2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2)|
|USB 3.1||4x USB 3.1 Gen2 (10 Gbps) ports
4x USB 3.1 Gen1 (5 Gbps) ports
|USB 2.0||1x USB 2.0 ports (internal for dongle use)|
|Audio||1x 3.5 mm jack for mic-in and speaker-out|
|SATA||1x hot-swappable HDD tray for 2.5" HDD/ SSD installation
1x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/1
|M.2||1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation|
|mSATA||2x full-size mSATA port (mux with mini-PCIe)|
|PCI Express||2x PCIe x16 slot@Gen3, 8-lanes
2x PCIe x8 slots@Gen3, 4-lanes
|M.2||1x M.2 2242 B key socket supporting dual SIM mode with selected M.2 LTE module|
|mini-PCIe||2x full-size mini PCI Express socket|
|DC Input||1x 4-pin pluggable terminal block for 8~48V DC input with ignition control|
|Dimension||190 mm (W) x 271 mm (D) x 198.5 mm (H)|
|Mounting||Wall-mount with damping brackets|
with 35W CPU
-25°C ~ 60°C ***
with 65W CPU
-25°C ~ 60°C **/ *** (configured as 35W TDP mode)
-25°C ~ 50°C **/ *** (configured as 65W TDP mode)
In compliance with NVIDIA®
Tesla T4 warranty policy, an operating temperature of 0°C~50°C is required for systems with Tesla T4 installed
|Storage Temperature||-40°C ~ 85°C|
|Humidity||10%~90% , non-condensing|
|Vibration||Operating, MIL-STD-810G, Method 514.6, Category 4 & 3Grms|
|Shock||Operating, MIL-STD-810G, Method 516.6, Procedure I,Table 516.6-II|
|EMC||CE/FCC Class A, according to EN 55032 & EN 55024|
* For i7-9700E and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; cord end terminals for terminal block, operating temperature: -30°C to 60°C
