Sku: PCIe-PoE425bt
Tipo de Produto: Placa Visão Artificial
Fabricante: Neousys

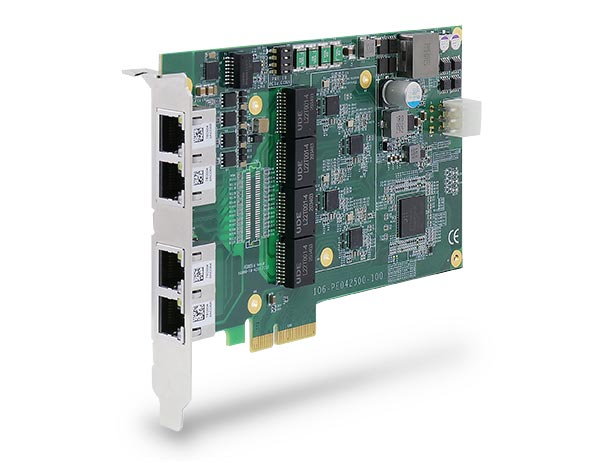

PCIe-PoE425bt

4-port 2.5GBASE-T Network Adapter with IEEE 802.3bt PoE++ Capability

  • Compliant with IEEE 802.3bt PoE++ PSE, provides up to 90W on a single port
  • 4x IEEE 802.3bz 2.5GBASE-T Ethernet ports by Intel® I225-IT controller
  • Supports 2.5G/ 1G/ 100M/ 10M link speed
  • x4, Gen2 PCI Express interface
  • Supports 9.5 kB jumbo frame, teaming and IEEE 1588
  • Per-port PoE+ power on/ off control by software API
Caraterísticas

Introducing one of the world's first 2.5G Ethernet card featuring IEEE 802.3bt PoE++ PSE capability! The PCIe-PoE425bt is a 4-port 2.5GBASE-T PoE++ card leveraging the cutting-edge Intel® I225 controller. It complies with IEEE 802bz standard to provide 2.5 Gbps bandwidth and is backward-compatible with 1000BASE-T, 100BASE-TX, and 10BASE-TE Ethernet.

In addition to the increase in bandwidth, the PCIe-PoE425bt also features IEEE 802.3bt PSE capability. IEEE 802.3bt, or PoE++, is the latest addition to Power over Ethernet specifications, allowing a single port to provide up to 90W of power supplied to a PD over a standard CAT-5e or CAT-6 Ethernet cable. While COTS high PoE PTZ cameras and outdoor WIFI access points may require higher power than 30W, the PCIe-PoE425bt is particularly useful for directly connecting and powering these devices without an external PoE++ injector.

By incorporating 2.5GBASE-T and PoE++ technologies, the PCIe-PoE425bt is the ideal choice for machine vision and surveillance applications with advanced PoE devices, such as PTZ camera, high-performance WIFI access point and industrial NBASE-T camera.

■ NEOUSYS MARKETING TEAM

Especificações
PCIe-PoE425bt
Bus Interface x4, Gen2 PCI Express
# of 2.5G Port 4x 2.5G Ethernet ports by four Intel® I225-IT controllers, supporting 9.5 kB jumbo frame, teaming and IEEE 1588
Network Interface IEEE 802.3 Ethernet interface for 2500BASE-T (802.3bz), 1000BASE-T (802.3ab), 100BASE-TX (802.3u), and 10BASE-TE (802.3)
PoE Capability In compliant with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, maximal 90W output on a single PoE++ port
Compatible with 802.3at (PoE+) and 802.3af (PoE) PD
Ethernet Connector 4x RJ-45 connectors
Cable Requirement 100 meters over CAT-5e or better Ethernet cable
Power Requirement Jumper-select 12VDC input
Maximum 5.5A@12V (66W) from PCIe gold finger connector
Maximum 12A@12V (144W) from on-board 6-pin PCIe power connector
EMC CE Class A, according to EN 55032/55035
FCC Class A, according to FCC Part 15, Subpart B
Operating Temperature 0°C ~ 55°C with airflow
Dimension 167.7mm (L) x 111.2mm (H) x 18.2mm (W)
■ Date last revised: Apr. 19, 2022
