Modulo IoT de Expansão

NORVI EX-ANI01 (4x Digital I/O 0-20mA ADS1115 16 bit ADC, I2C)

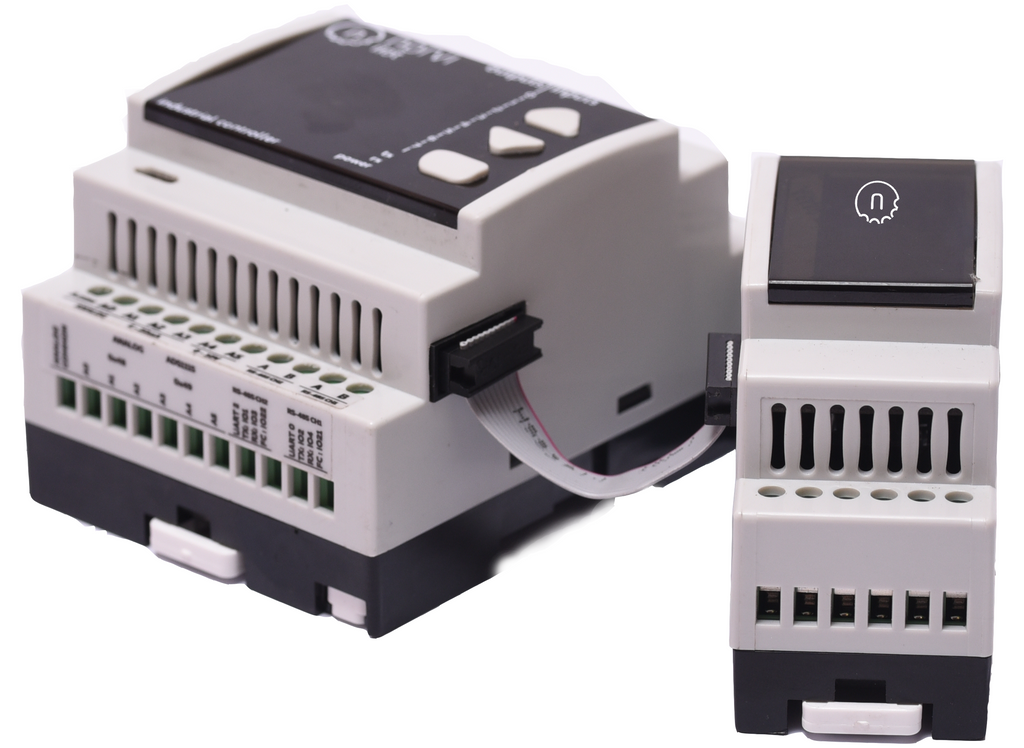

Expansion Module Adding functions for controllers NORVI is always about on connectivity and expandability. This is the time to make use of Expansion port of NORVI Controllers. The series of expansion modules connects to NORVI IoT controllers via its I2C and UART connections. You can add more features to the NORVI Controller without huge customizations. NORVI provides true technology with reliability for industrial applications being worlds iot hardware manufacturer. We have included NB-IoT, LoRa and analog modules as expansions.

  • 4 channel 0 – 10V inputs with ADS1115 16 bit ADC
  • I2C Interface with controller
  • Maximum current 25 mA
  • Voltage up to 35 V
  • 10 Ohm Low impedance
NORVI-EX-ANI01_communications
Caraterísticas

Até 6 Módulos de Expansão

NORVI-expansion

Portas de Expansão

  1. TXD0
  2. IO33
  3. RXD0
  4. Not Connected
  5. IO32
  6. IO0 BOOT
  7. IO17 SCL
  8. Not Connected
  9. IO16 SDA
  10. Ground
Portas-de-Expansao

Recursos

NORVI-EX-ANI01

Expansão NORVI EX-ANI01

EX-ANI01

Expansão de Comunicação

EX-LR4XX
EX-NB95X

Aplicações

  • LoRa communications
  • NB-IoT communications
  • Simple process controller
  • Analog input
  • Temperature measurement
Especificações
Main
Range of product NORVI Expansion
Product type Expansion Module - NORVI-EX-ANI01
Rated supply voltage 12 - 24V DC
Field of Application Analog current input
Applicable Devices NORVI IIOT / NORVI Arita
Aquistition 0 - 20 mA / 4 - 20mA
ADC Chip ADS1115
Module Address I2C - 0x48 / 0x49
Resolution 16bit

Complementary
Local signalling 1 LED green for PWR
Electrical connection Removable screw terminal block for inputs and outputs (pitch 5.08 mm)
Mounng support Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
Height 86.00 mm
Depth 59.00 mm
Width 35.00 mm
Product weight 0.12 Kg

Environment
Relave humidity 10 ...95% without condensation in operation
IP degree of protecon IP20
Operating altitude 0...2000m
Storage altitude 0...3000m
Shock resistance 15 gn for 11 ms
Operating temperature -40 to +85 'C

Analog Module communication
Module Type ADS1115
Communication I2C
Module Address 0x48
Command set Refer datasheet
