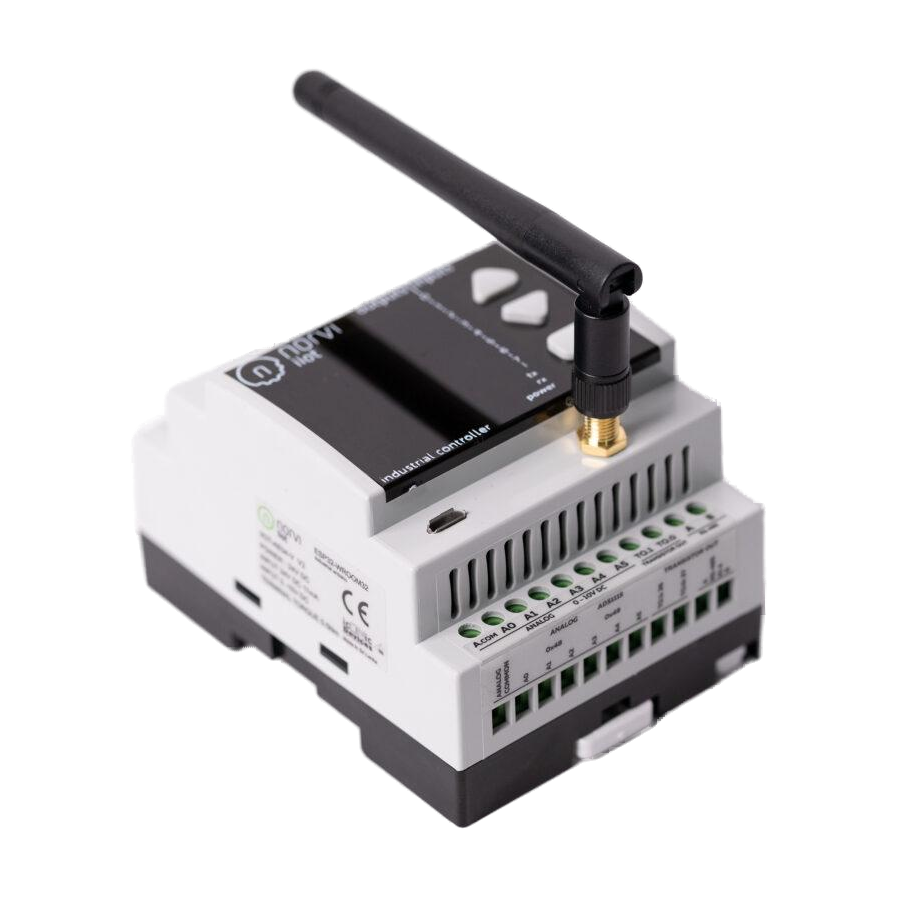

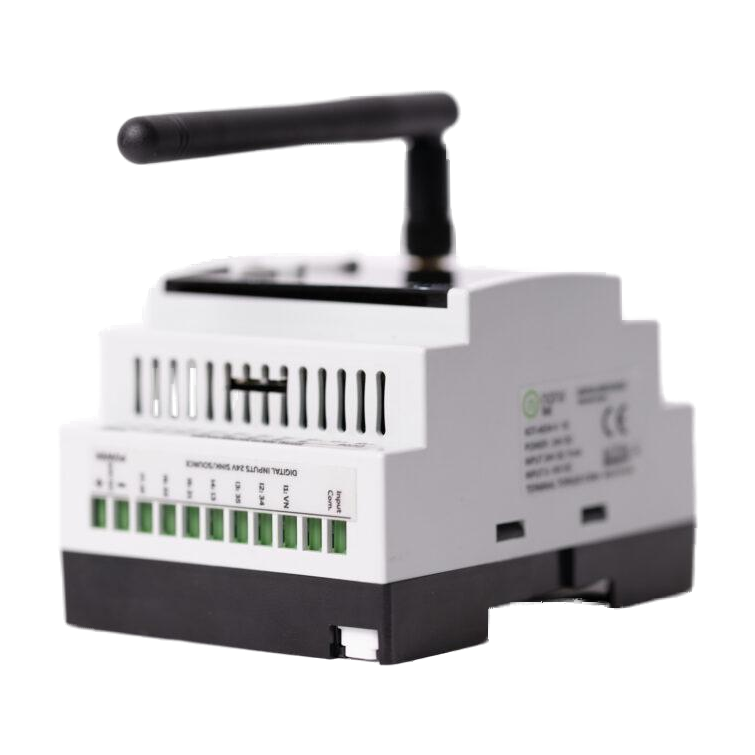

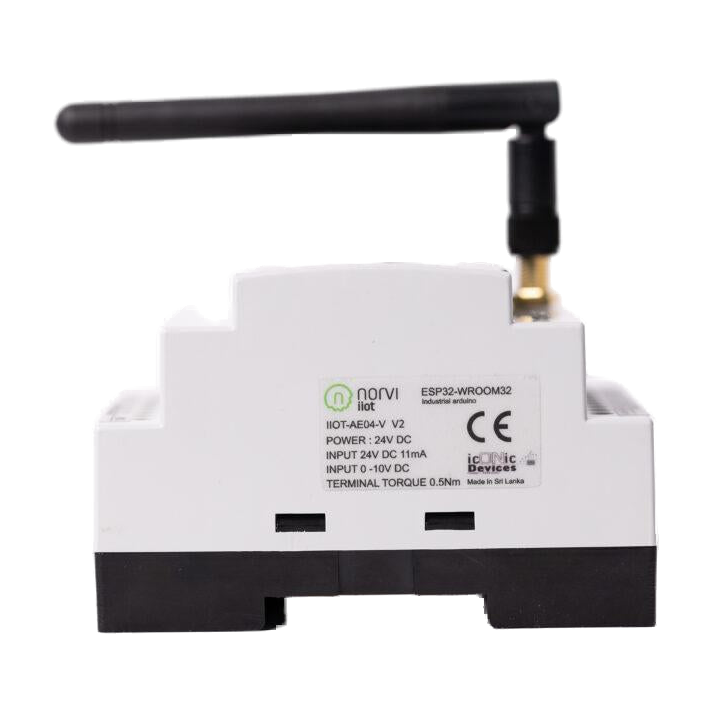

USB Programmable Controller with multiple connectivity channels. Ideal for a IoT gateway or data transmission applications.
The device is based on ESP32-WROOM32 SoC with GSM Connectivity.
It has I/O Compatible with industrial voltage levels, and with added protection. Models are available with different variations on Inputs and Output options. Moreover NORVI GSM Industrial ESP32 is expandable with Expansion modules.
| Main | |
| Range of product | NORVI GSM |
| Product type | Programmable Controller |
| Certifications | EN 61131-2:2007 EN 61010-1:2010+A1:2019 EN IEC 61010-2-201:2018 2014/30/EU- Electromagnec Compability (EMC) Annex III, Part B, Module C |
| Rated supply voltage | 24V DC |
| Communication | WiFI / Bluetooth LTE / EDGE - Quectel EC21 RS485 |
| OLED Display protocol | I2C |
| Transistor Output Rating | 500mA 300mW |
| Complementary | |
| Number of Expansions | ----- |
| Supply voltage limits | 20.4....28.8V |
| Inrush current | <=50A |
| Power consumption in W | 32.6......40.4 with all outputs ON |
| Discrete logic input | Sink or source |
| Discrete input voltage | 24V |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | >=15 V for input |
| Voltage state 0 guaranteed | <=5 V for input |
| Discrete input current | 5 mA for input |
| Input impedance | 4.7k Ohm for input |
| Memory | microSD Card Support |
| Battery type | ----- |
| Backup time | ----- |
| Local signalling | 1 LED green for PWR |
| Electrical connection | Removable screw terminal block for inputs and outputs (pitch 5.08 mm) |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
| Height | 90.50 mm |
| Depth | 56.60 mm |
| Width | 60.60 mm |
| Product weight | 0.43 Kg |
| Environment | |
| Resistance to electrostatic discharge | 4kV on contact 8kV on air |
| Resistance to electro magnetic fields | 10 V/m (80 MHz ...... 1GHz) 3 V/m (1.4 MHz ...... 2 GHz) 1 V/m (2 MHz ...... 3 GHz) |
| Immunity to microbreaks | 10 ms |
| Relative humidity | 10....95% without condensation in operation |
| IP degree of protection | IP20 |
| Operating Temperature | –10 … +85° C (14...185 °F) |
| Storage Temperature | –25 … +85° C (–13...185 ° F) |
| Operating altitude | 0...2000m |
| Storage altitude | 0...3000m |
| Shock resistance | 15 gn for 11 ms |
