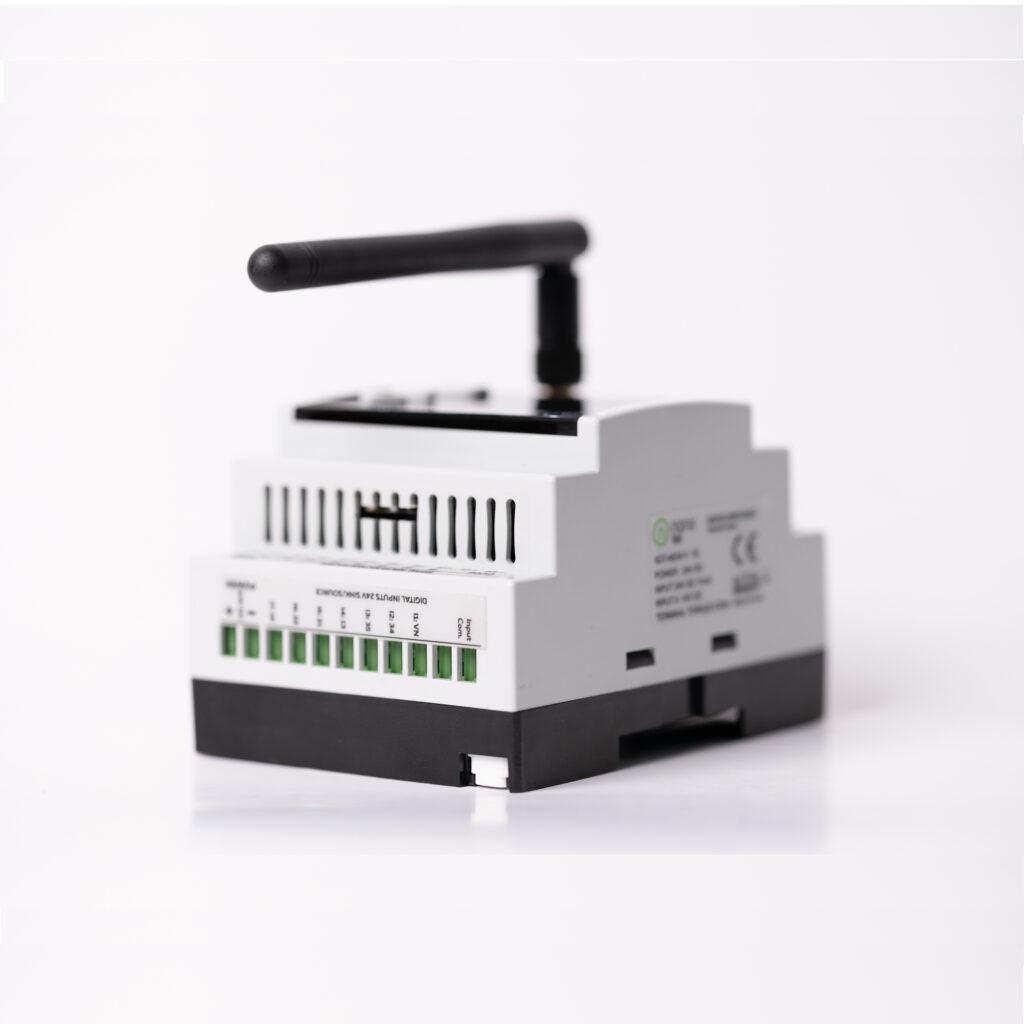

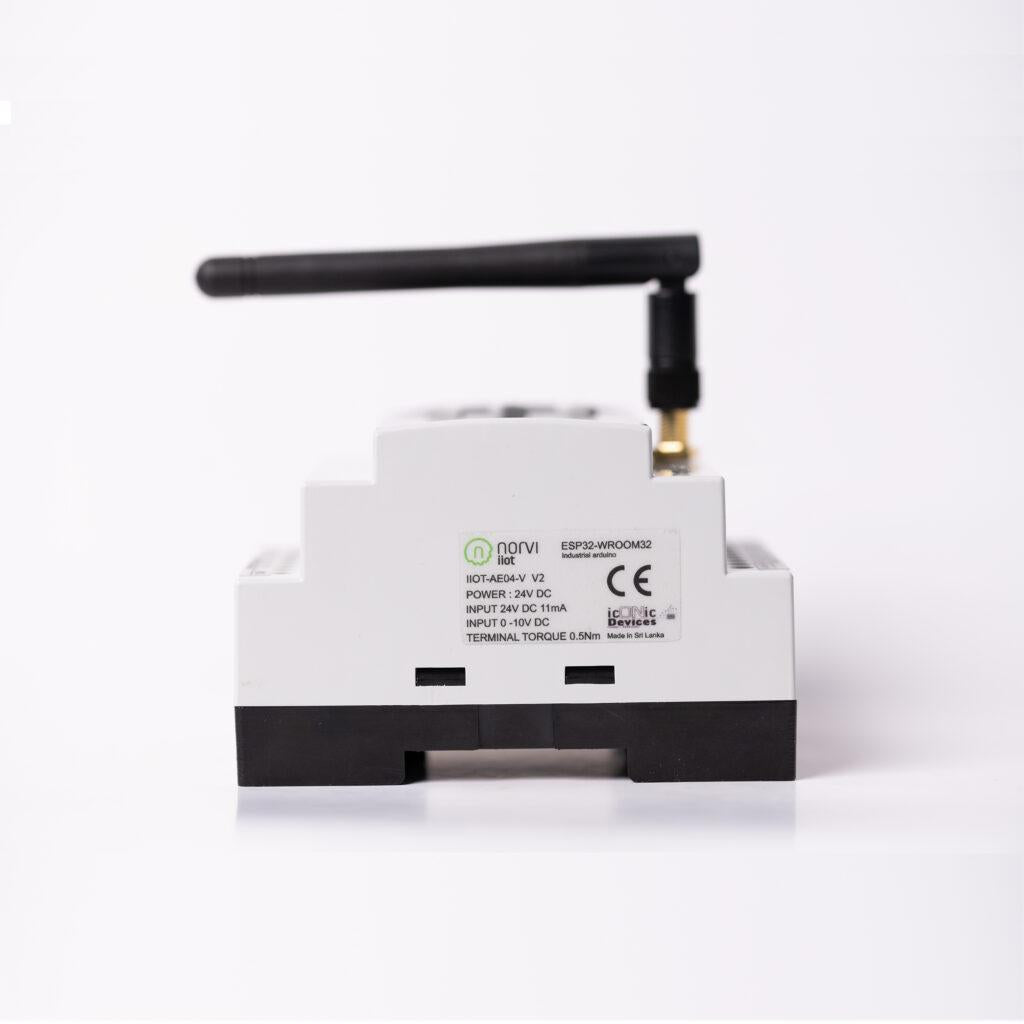

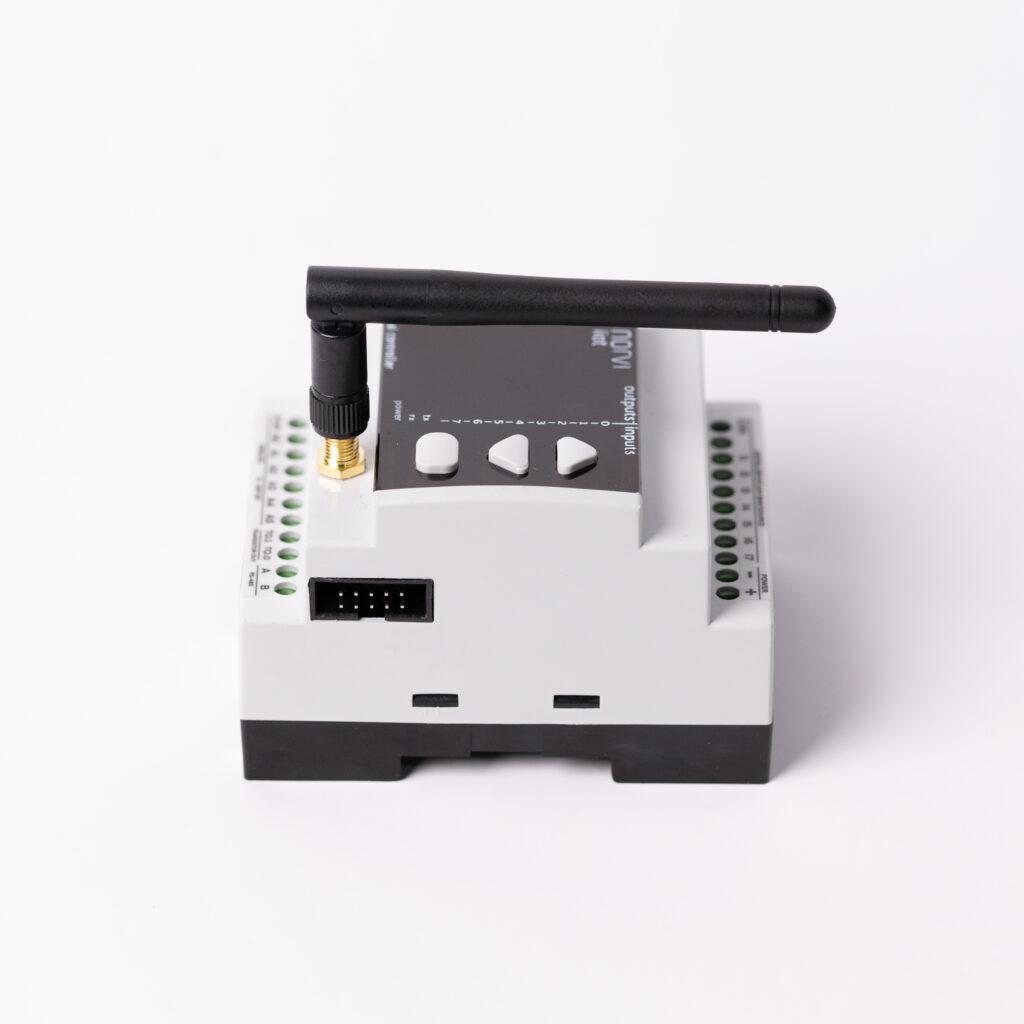

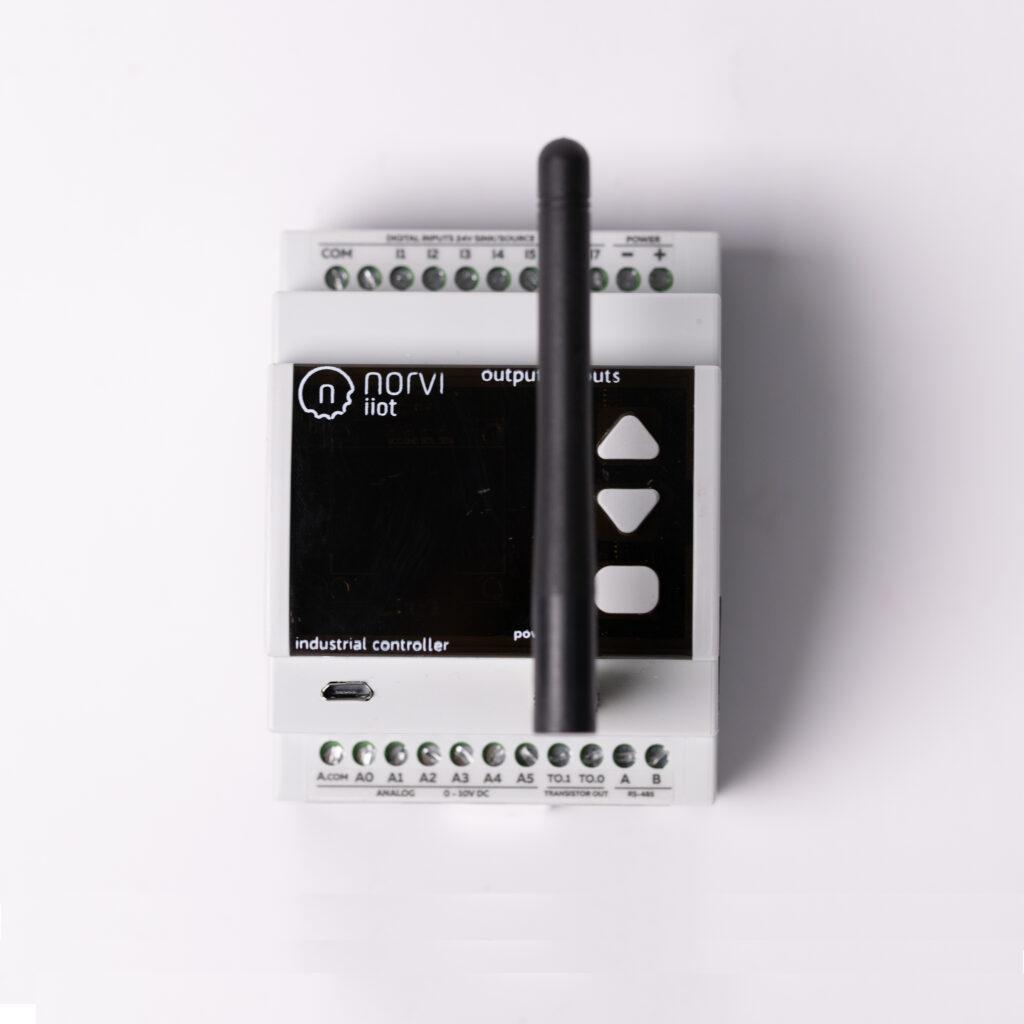

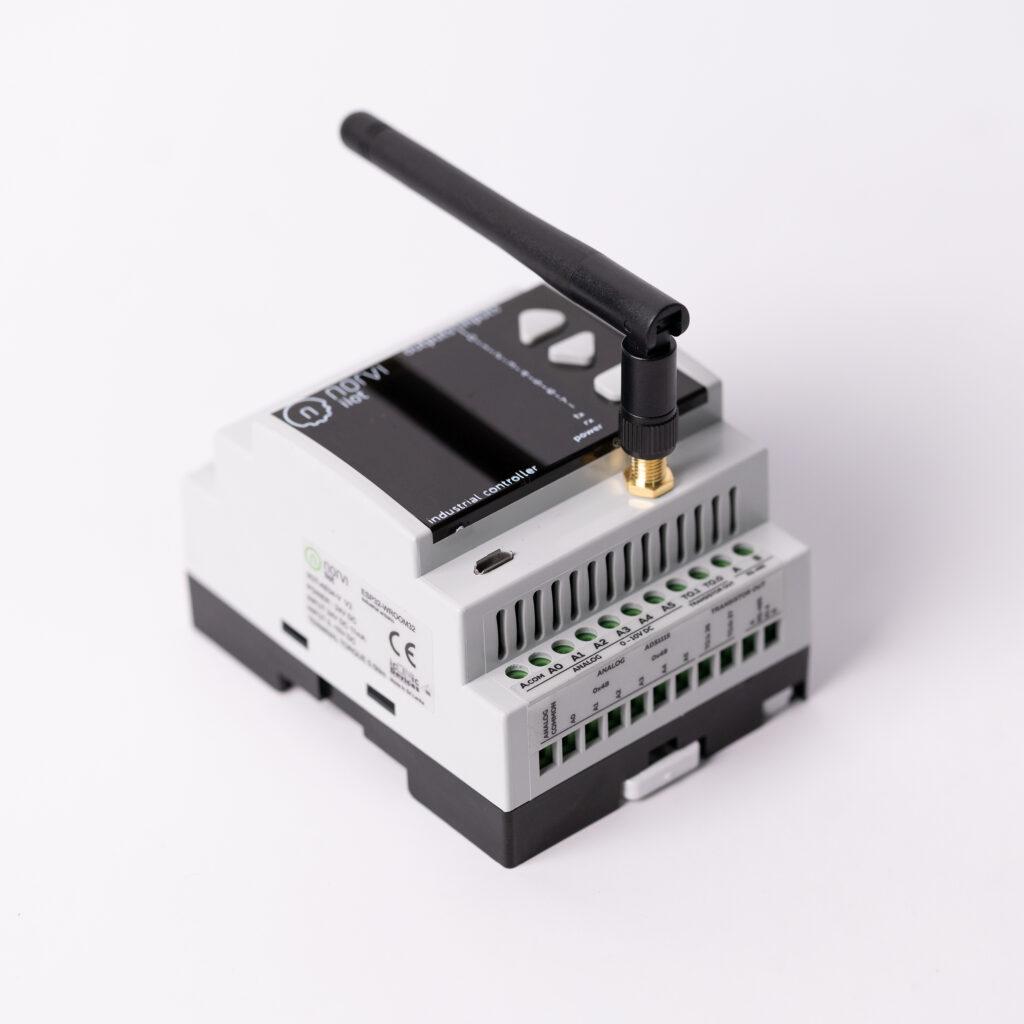

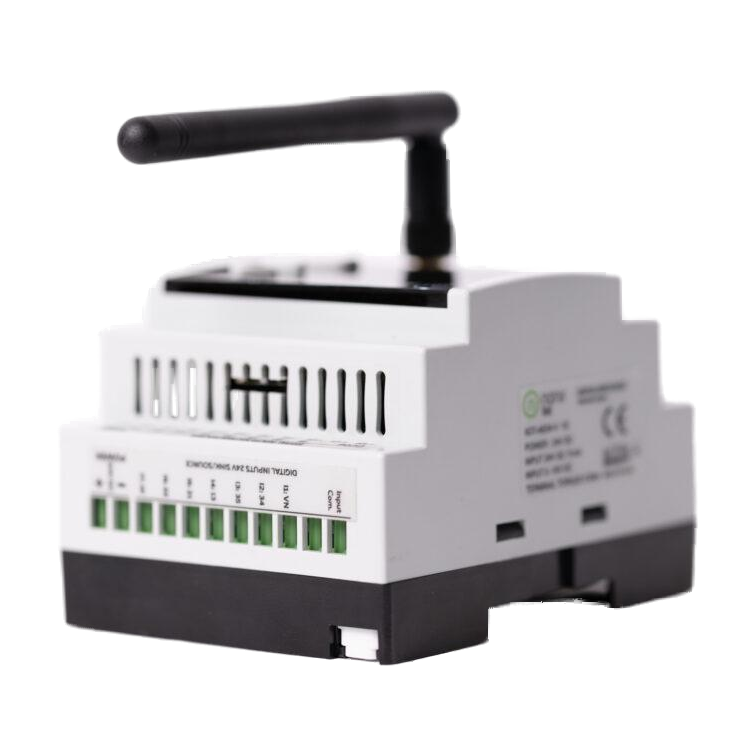

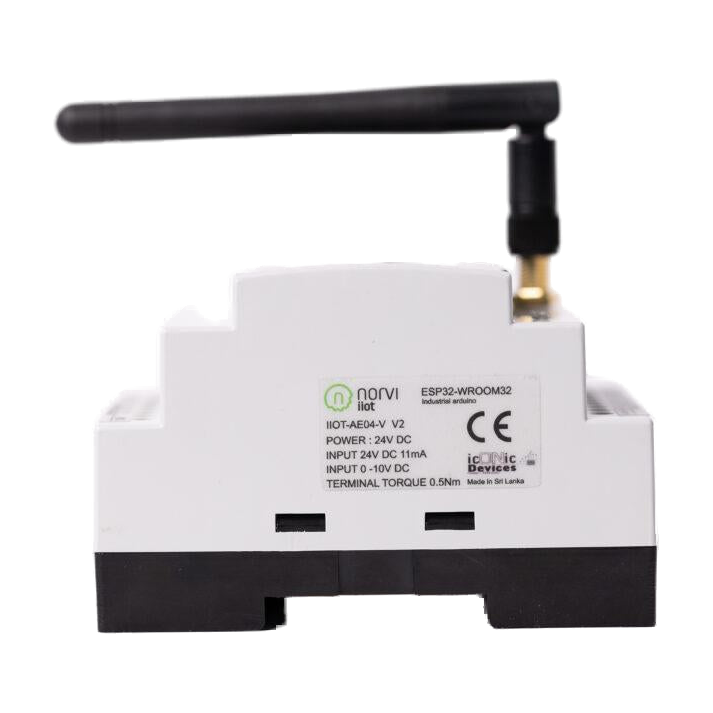

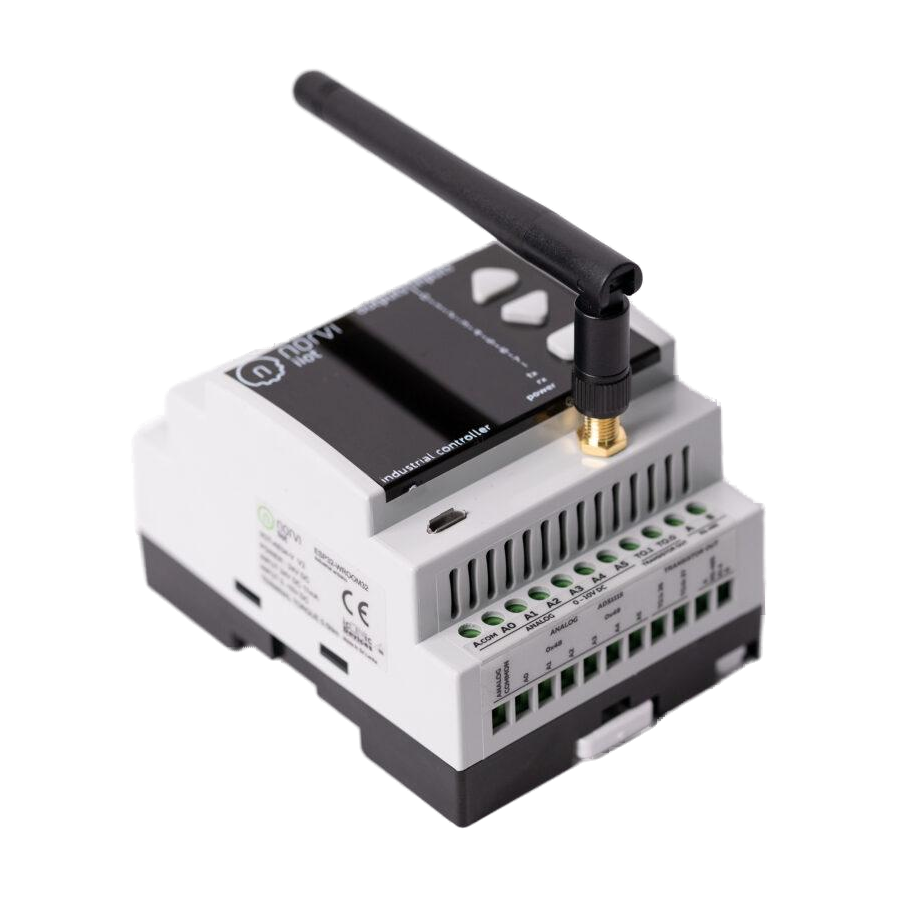

GSM-AE08-V
Controlador Industrial com GSM + WiFi
- GSM
- 4x Analog Inputs
- 6x Digital Inputs
- OLED Display
ESP32 industrial, pronto para ambientes industriais: Arduino e ESP-IDF
- ESP32-WROOM32 Module
- GSM / LTE Connection
- Built-in 0.96 OLED Display
- Built-in Button on front panel
- Digital Inputs
- Analog Inputs
- Relay Outputs
- Ethernet Connectivity
- DIN-Rail mount
Aplicações
- Wireless IoT Gateways
- Data transmission over cellular network
- WiFi to GSM Bridge
- MQTT Gateway
Caraterísticas
Especificações
Downloads
Caraterísticas
USB Programmable Controller with multiple connectivity channels. Ideal for a IoT gateway or data transmission applications.
The device is based on ESP32-WROOM32 SoC with GSM Connectivity.
It has I/O Compatible with industrial voltage levels, and with added protection. Models are available with different variations on Inputs and Output options. Moreover NORVI GSM Industrial ESP32 is expandable with Expansion modules.
ESP32-WROOM32
- Dual Core 32bit 160-Mhz CPU
- 520 Kbytes SRAM / 4 Mb Flash
- WIFI 802.11 b/g/n Bluetooth v4.2
- Two timer groups, including 2 x 64-bit timers and 1 x main
- watchdog in each group
SIM800L
- Quad-band GSM/GPRS module
- DTMF, MMS, MUX Fuctions
- Embedded TCP/UDP protocols
- Frequency Bands: 850/900/1800/1900MHz
- GPRS multi-slot class: 12/10
QUECTEL EC21
- Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE
- DTMF, MMS, MUX Fuctions
- Embedded TCP/UDP protocols
- Frequency Bands: 850/900/1800/1900MHz
- GPRS multi-slot class: 12/10
Especificações
| Main | |
| Range of product | NORVI GSM |
| Product type | Programmable Controller |
| Certifications | EN 61131-2:2007 EN 61010-1:2010+A1:2019 EN IEC 61010-2-201:2018 2014/30/EU- Electromagnec Compability (EMC) Annex III, Part B, Module C |
| Rated supply voltage | 24V DC |
| Communication | WiFI / Bluetooth LTE / EDGE - Quectel EC21 RS485 |
| OLED Display protocol | I2C |
| Analog input range | 0 - 10V |
| Analog input resolution | 16 bit |
| Complementary | |
| Number of Expansions | ----- |
| Supply voltage limits | 20.4....28.8V |
| Inrush current | <=50A |
| Power consumption in W | 32.6......40.4 with all outputs ON |
| Discrete logic input | Sink or source |
| Discrete input voltage | 24V |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | >=15 V for input |
| Voltage state 0 guaranteed | <=5 V for input |
| Discrete input current | 5 mA for input |
| Input impedance | 4.7k Ohm for input |
| Memory capacity | Refer datasheet of ESP32-WROOM32 |
| Battery type | ----- |
| Backup time | ----- |
| Local signalling | 1 LED green for PWR |
| Electrical connection | Removable screw terminal block for inputs and outputs (pitch 5.08 mm) |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
| Height | 90.50 mm |
| Depth | 56.60 mm |
| Width | 60.60 mm |
| Product weight | 0.43 Kg |
| Environment | |
| Resistance to electrostatic discharge | 4kV on contact 8kV on air |
| Resistance to electro magnetic fields | 10 V/m (80 MHz ...... 1GHz) 3 V/m (1.4 MHz ...... 2 GHz) 1 V/m (2 MHz ...... 3 GHz) |
| Immunity to microbreaks | 10 ms |
| Relative humidity | 10....95% without condensation in operation |
| IP degree of protection | IP20 |
| Operating Temperature | –10 … +85° C (14...185 °F) |
| Storage Temperature | –25 … +85° C (–13...185 ° F) |
| Operating altitude | 0...2000m |
| Storage altitude | 0...3000m |
| Shock resistance | 15 gn for 11 ms |
