Sku: NUC8CCHKR2
Tipo de Produto: PCs NUC
Fabricante: Intel

ENVIOS RÁPIDOS

SUPORTE 24/7

PAGAMENTO ONLINE

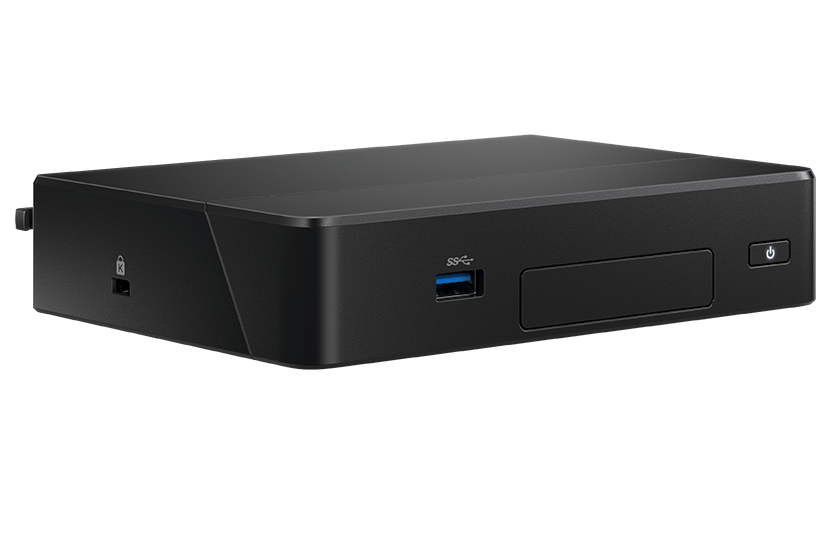

Intel® NUC 8 Rugged Kit NUC8CCHKR

INTEL® NUC 8 RUGGED. WORKS WHERE YOU NEED IT TO.

  • 24x7 — The Intel® NUC 8 Rugged is built to last and qualified for 24x7 sustained operations—a critical feature for most IoT and commercial operations.1

  • 80% — Executives who say IoT is critical to business success.2

  • 64B — IoT devices predicted to be in operation by 2025.2

  • 15% — Increase in customers for quick service restaurants who install digital signage.3

Intel® NUC 8 Rugged Kit NUC8CCHKR
Caraterísticas

Intel® NUC 8 Rugged is a PC kit that’s small on size but not on toughness or reliability. It features a fanless, ventless design to minimize particle intrusion, so it’s built to survive environments most PCs can’t—from a busy factory floor to a dusty warehouse. And even without a fan, it can operate in temperatures from 0-40˚C to thrive in severe in-the-field conditions.

Housed in a small chassis that’s slim enough to fit almost anywhere, the NUC 8 Rugged is also available as a board-only option that can be easily integrated into your own digital solutions. It’s powered by an Intel® Celeron® processor, making it the ideal PC solution to keep edge analytics, digital signage, or surveillance cameras up and running around the clock. And with a 3-year warranty, it’s performance that’s designed to last.


Features
  • Intel® Celeron® processor
  • Fanless and ventless design
  • Minimal dust intrusion
  • Qualified for 24x7 operation
  • Multiple mounting options
  • Dual HDMI*
  • 2 USB 3.0 ports
  • 2 USB 2.0 ports
  • Internal 4-lane eDP connector
  • Intel® Wireless-AC
  • Bluetooth® technology
  • Intel® Gigabit LAN
  • 3-Year limited warranty

Usages
  • Digital signage
  • Hospitals
  • Medical clinics for mobile pedestal computing
  • IoT
  • Operator consoles in manufacturing environments
  • Quick service restaurants
  • Edge analytics
nuc8rugged
Especificações
Processor
  • Intel® Celeron® processor N33501.1 GHz to 2.4 GHz Burst, Dual Core, 2 MB cache, 6W TDP
Graphics
  • Intel® HD Graphics 500
  • Dual HDMI* (1x HDMI* 2.0a, 1x HDMI* 1.4)
Storage Capabilities
  • 64 GB eMMC soldered-down
  • M.2 2280 key M slot for PCIe* x4 NVMe* or SATA SSD
System Memory
  • 4 GB RAM, dual-channel (soldered-down)
Peripheral Connectivity
  • Intel® i211-AT 10/100/1000 Mbps
RJ45 Ethernet
  • Two USB 3.0 ports (one front panel port and one back panel port)
  • Two USB 2.0 ports (back panel)
  • 1x internal USB 3.0 header
  • 2x internal USB 2.0 headers
  • EDID emulation
  • Internal 4-lane eDP connector
  • Intel® Wireless-AC 3268 M.2 card pre-installed w/internal antennas (kit SKUs only)
System Bios
  • 64 Mb Flash EEPROM with Intel® Platform Innovation Framework for EFI Plug and Play
  • Advanced configuration and power interface V5.0b, SMBIOS2.5
  • Intel® Visual BIOS
  • Intel® Express BIOS Update support
Hardware Management Features
  • Voltage and temperature sensing
  • ACPI-compliant power management control
Expansion Capabilities
  • 1x internal USB 3.0 header
  • 2x internal USB 2.0 headers
  • 1x RS232 serial port header
  • Dual HDMI* with built-in CEC
  • External 3rd party antennae capability through back panel cut-outs (cables provided)
Audio
  • Up to 7.1 multichannel digital audio via HDMI*
  • Analog audio stereo output jack
Front Panel Header
  • Vcc5/1A, 5Vsby/2A, 3.3Vsby/1A
Mechanical Chassis
  • 6.06" x 4.25" x 1.25"
  • 154 mm x 108 mm x 32 mm
  • Kensington Lock ready
  • 4 mounting options including VESA
  • Antennae punch out panels
  • DC cable strain relief attachment
Mechanical Board Size
  • 5.74" x 4.01"
  • 146 mm x 102 mm
Baseboard Capabilities
  • 19VDC 65W power supply adapter with geo-specific AC cords
  • 12 – 24VDC rear jack, internal 2x2 connector
  • 5 year 24x7 sustained operation qualified4
  • Delayed AC start
  • DC transient voltage suppression
Environment Operating Temperature
  • 0° C to +40 C
Storage Temperature
  •  -20° C to +40° C
Safety Regulations and Standards
  • IEC/EN/UL 60950-1
  • IEC/EN/UL 62368-1
EMC/RF Regulations and Standards
  • FCC Part 15B/15C/15E
  • CISPR/EN 55032/55024
  • ICES-003
  • VCCI 32
  • BSMI CNS 13438
  • KN 32/35
  • AS/NZS CISPR 32
  • EN 300 328
  • EN 301 893
  • EN 300 440
  • EN 301 489-1/3/17
  • EN 62311
  • AS/NZS 4268
  • AS/NZS 2772.2
  • ARPANSA
Environmental Regulations
  • EU RoHS
  • China RoHS
  • Taiwan BSMI RoHS
  • REACH
