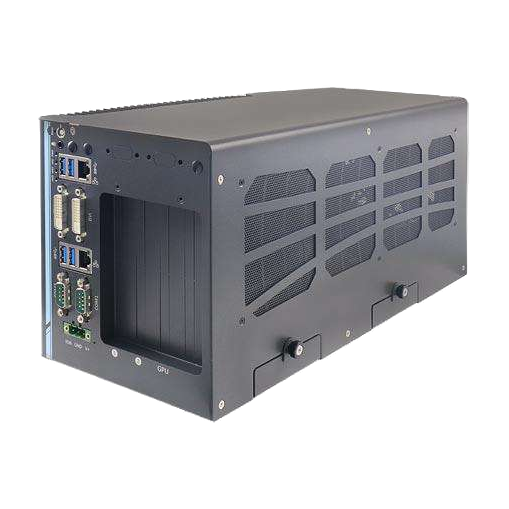

Nuvo-6108GC-IGN

GPU Computing Edge AI In-vehicle Platform Supporting up to an NVIDIA® RTX 3070 Graphics Card, Intel® Xeon® E3 v5 & 6th-Gen Core™ Processor

  • Supports Intel® Xeon® E3 v5 or 6th-Gen Core™ i7/ i5 LGA1151 CPU
  • Supports up to an NVIDIA RTX 3070 graphics card
  • Patented thermal design for -25 °C to 60 °C rugged operation*
  • Two x8, Gen3 PCIe slots for add-on cards
  • Dual GbE ports and four USB 3.1 Gen1 ports
  • Three 2.5" SATA hard drives with RAID 0/ 1/ 5 support
  • Patented easy-swap trays* for HDD replacement
  • Automatic temperature sensing and fan control
  • Patented damping brackets* to withstand 1 Grms vibration
  • Built-in ignition control
Vista Rápida

Nuvo-6108GC-IGN is one of the world's first industrial-grade in-vehicle edge AI GPU computing platform supporting high-end graphics cards. It's designed to fuel emerging GPU-ccelerated applications, such as AI(artificial intelligence) inference, VR, autonomous driving and CUDA computing by accommodating 250W NVIDIA® GPU.

Leveraging Intel® C236 chipset, Nuvo-6108GC-IGN in-vehicle edge AI computing platform supports Xeon® E3 v5 or 6th-Gen Core™ i7/ i5 CPU with up to 32 GB ECC/ non-ECC DDR4 memory. It incorporates general computer I/O like Gigabit Ethernet, USB 3.1 Gen1 and serial ports. In addition to the x16 PCIe port for GPU installation, Nuvo-6108GC series also has two x8 PCIe slots so you can install additional high performance expansion card with high bandwidths for data collections/ analytics and communication.

Nuvo-6108GC-IGN comes with sophisticated power design to handle heavy power consumption and power transient of a 250W GPU. Furthermore, to have reliable GPU performance for industrial environments, Nuvo-6108GC series utilizes Neousys' patented design*, a tuned cold air intake to effectively dissipate the heat generated by GPU. This unique design guarantees operation at 60°C under 100% GPU loading, making Nuvo-6108GC series extremely reliable for demanding field (such as in-vehicle condition) applications.

The new Nuvo-6108GC-IGN in-vehicle GPU computer features built-in ignition power control and two of its three 2.5" drives come with Neousys' patented easy-swap trays for simple HDD/ SSD replacement.

■ NEOUSYS MARKETING TEAM

Caraterísticas

Wide temperature range edge AI GPU computing platform

Nuvo-6108GC-IGN supporting 250W nVidia® GPU & features wide temperature range operation from -25°C to 60°C under 100% GPU load.

wide-temperature

Award Winning Design

Winner of Vision Systems Design 2018 Innovators Awards Program and Best Choice Award 2018

 nuvo-6108gc-inc-vision-system-innovator-award2018-and-best-choice-award2018

Patented damping brackets to withstand 1 Grms vibration

 nuvo-6108gc-ign-patented-damping-bracket-1grms-vibration

Patented easy-swap trays for HDD replacement

 neousys-easy-swap-trays-HDD-replacement
Especificações
System Core
Processor Supports Intel® Xeon® E3 V5 and 6th-Gen Core™ LGA 1151 CPU
-Intel® Xeon® Processor E3-1275 v5 (8M Cache, 3.6/ 4.0 GHz)*
-Intel® Xeon® Processor E3-1268L v5 (8M Cache, 2.4/ 3.4 GHz)
-Intel® Core™ i7-6700 (8M Cache, 3.4/ 4.0 GHz)*
-Intel® Core™ i5-6500 (6M Cache, 3.2/ 3.6 GHz)*
-Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz)
-Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz)
Memory Up to 32 GB ECC/ non-ECC DDR4-2133
Graphics Independent GPU via x16 PEG port, or integrated Intel® HD 530 controller
Chipset Intel® C236 Platform Controller Hub
I/O Interface
Ethernet 1x Gigabit Ethernet port by Intel I219-LM
1x Gigabit Ethernet port by Intel I210-IT
Native Video Port 2x DVI-D connectors for DVI outputs,supporting 1920x1200 resolution
Serial Port 2x Software-programmable RS-232/ 422/ 485 ports
USB 4x USB 3.1 Gen1 ports
Audio 1x Speaker-out
Expansion Bus/ Internal I/O Interface
PCI Express 1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals for GPU
2x PCIe x8 slot @ Gen3, 4-lanes PCIE signals
M.2 1x M.2 B key socket for 3G/4G options with SIM socket
mini-PCIe 1x full-size mini PCI express socket
Remote Ctrl. & Status Output 1x 2x6-pin 2.0mm pin-header connector for remote on/off control and status LED output
Storage Interface
SATA 2x easy-swap HDD trays for 2.5" HDD/SSD installation
1x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1/ 5
Power Supply
DC Input 24 VDC
Input Connector 3-pin pluggable terminal block for DC input (IGN/ GND/ V+)
Mechanical
Dimension 178 mm (W) x 360 mm (D) x 174 mm (H)
Weight 4.7 kg (incl. CPU, GPU, memory and HDD)
Mounting Wall-mounting with damping brackets
Environmental
Operating Temperature -25°C ~ 60°C with 100% CPU/GPU loading */**
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ GPU, fan and HDD), according to IEC60068-2-64)
Shock -
EMC CE/ FCC Class A, according to EN 55022, EN 55024 & EN 55032
■ Date last revised: Jul. 9, 2018

* The CPU and GPU loading are applied using Passmark® BurnInTest 8.0 with 35 TDP CPU. Operating Temperature degrades with higher TDP CPU. For detail testing criteria, please contact Neousys Technology
** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.

Downloads
Acessórios

PA-280W-OW

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; Cord end terminals for terminal block, operating temperature : -30 to 60 °C

PA-480W-DIN

480W AC-DC power adapter DIN-rail mount, 24V 20A, 90~264VAC/127~370VDC, terminal block, -20 to70°C, Meanwell SDR-480-24
