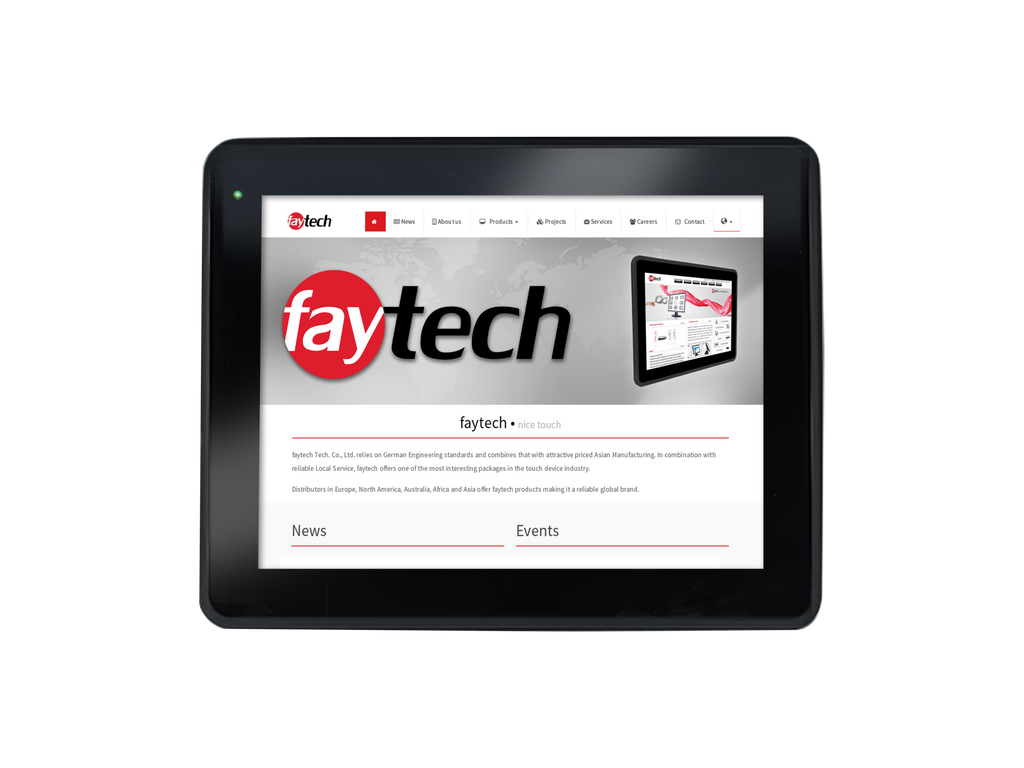

| Product name | 10" Resistive Touch PC |
| Model number / EAN number | FT10N3350RES / 6920734009718 |
| CPU | Intel® Celeron™ DualCore N3350 |
| Graphic GPU | Intel® HD Graphics |
| Audio | Realtek ALC3236 Audio CODEC |
| Memory | 1x 4GB DDR3L non-ECC |
| Storage | faytech Industrial 128GB SSD |
| Network | 2x Realtek PCIe GB LAN 8111G (1x optional with POE); W-LAN |
| Driver Support | Win10; Linux Ubuntu; 32Bit/64Bit |
| Pre-installed OS | Linux Ubuntu |
| IP65 Front / IP40 Back |
| Screen diagonal (Inch/cm) | 9.7/24.64 |
| Display active screen size | 19.70×14.70 |
| Aspect ratio | 4:3 |
| Physical resolution | 1024×768 |
| External Maximum showable resolution - DP, HDMI | 1920×1200 |
| Colours displayed | 16.7M |
| Brightness (cd/m²) | 350 |
| Contrast | 800:1 |
| Typical reaction time Tr/ Tf (ms) | 10/15 |
| Visual Angle horizontal/vertical (°) | 170/170 |
| Backlight / Backlight Lifetime (hours) | LED / 20,000 |
| Touch Technology | 5-Wire Resistive |
| Touch Connector | USB |
| Touch Life (Contacts) | 10 million in 1 location without failure |
| Surface Hardness | 3H |
| Surface Treatment | Anti-glare (chemical etched) |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% - 90% |
| Net weight (kg) | 2.30 |
| Gross weight (kg) | 3.00 (incl. cartonage) |
| Housing material | Aluminum |
| Housing (cm) L × W × H | 25.90 × 20.60 × 5.35 |
| Mounting | VESA 100 |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 14 |
| Stand-By Consumption (W) | <1 |
| 1x SO-DIMM, max. 4GB, DDR3L 1333/1600/1867 non-ECC Single channel memory |
| 3x RS232/RS485 COM connectors, switchable in BIOS |
| 2x LCD Backlight control/LCD panel voltage box |
| 1x 5V/12V SATA power connector |
| 1x 12V DC power connector (2-pin) |
| 1x 4-pin SATA power connector |
| 1x S/PDIF output pin header |
| 1x 8-bit Digital I/O interface |
| 1x Line-out / Mic-in header |
| 1x Front Panel box header |
| 1x Serial ATA 6Gb/s |
| 1x MIPI CSI connector |
| 1x LVDS box header |
| 2x USB 3.0 box header |
| 1x 12V DC-In (screwable) |
| 1x 12V 3-Pin DC-In (screwable) |
| 1x W-LAN antenna connector (RP-SMA male) |
| 1x HDMI |
| 1x DisplayPort |
| 2x USB 3.0 ports |
| 2x USB 2.0 ports |
| 1x MIC-In & EAR-Out |
| 2x COM port Full-PIN - RS232/485; 5V/12V |
| 2x 10/100/1000Mbit RJ45 Ports |
| 1x 2.5" module slot, changeable SSD included |
| 1x mSATA full size (occupied by SSD) |
| 1x M.2 E-Key Slot (occupied by Wifi card) |
| 1x SATA connector |
| 1x External PCIe x1 Straddle connector |
| Power Supply (see Power section) |
| W-LAN antenna (RP-SMA female) |
| Short Installation Manual |
