2,152.50€
sem IVA
1,750.00€
Sku: D151-11TGS-UP3i7
Tipo de Produto:
Panel-PC Capacitivo
Fabricante:
MiTAC

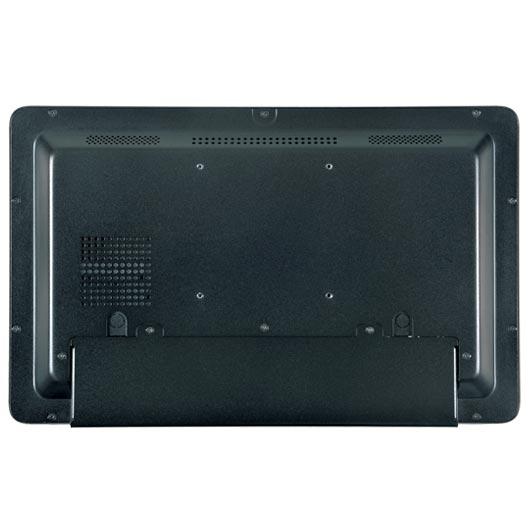

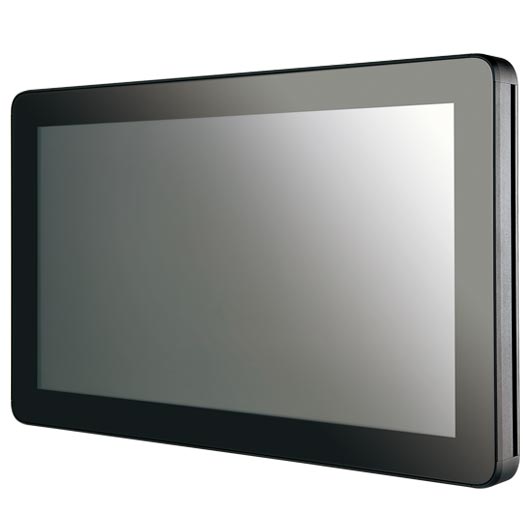

D151-11TGS
Panel PC Industrial
- LCD TFT Industrial 15.6" com 50,000 horas de vida útil
- Processadores de 11ª Ger. Intel® Tiger Lake UP3
- Proteção IP65 frontal, design fanless
- Suportar vários módulos (webcam, NFC/RFID, código de barras)
D151-11TGS-UP3i7
PanelPC 15.6'' com Intel® Tiger Lake UP3 de 11ª Geração
Caraterísticas
Especificações
Downloads
Periféricos
Caraterísticas
Slim & Sleek Design
with Powerful Performance
Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors Up to 28W
Iris Xe iGPU brings the AI revolution
- 5X better AI performance
- AI/DL Instruction Set including VNNI (Vector Neural Network Instruction) and CV/AI applications, improves inferencing workload performance
- Intel Deep Link offers additive AI, hyper encode, dynamic power share, and common software framework for Iris Xe iGPU
Computing Capability
Intel Iris® Xe Subvert Your Image about Built-in Graphics
- New Iris® Xe(Gen12) Graphic Engine with up to 96 EU
- 4 Independent Display Units in 4K resolution
5G cellular network
M.2 3042/3052 + SIM slot
- M.2 3042/3052 slot with built-in SIM slot for LTE/*5G network expansion
- Speed upgrades and lower latency
- More possibilities for deployment in different scenarios and business models
Versatile Peripherals
Easy install peripherals (webcam, RFID, barcode, MSR..)
Fast & Easy Assembling
Low Power Consumption & Fanless Design
Atom & Core-I fanless design in slim system
Dust & Water Resistant Design
Display & Touch
P-cap Multi Touch
Scratch resistance: 7H
FHD 16:9 natural viewing experience

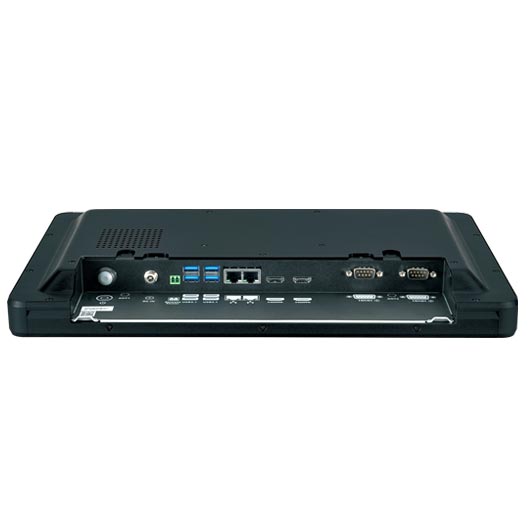

Rich I/O
Especificações
D151-11TGS (D151-11TGS) |
|||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ordering Information |
|||||||||||||||||||
| Model | CPU | HDMI | USB 3.2 / 2.0 | RS232 | LAN | Wifi / BT | Power | ||||||||||||
| D151-11TGS-UP3Ce | Celeron 6305E | 2 | 4 / 0 | 2 | 2 | Optional | DC-in 8~24V | ||||||||||||
| D151-11TGS-UP3i3 | i3-1115G4E | 2 | 4 / 0 | 2 | 2 | Optional | DC-in 8~24V | ||||||||||||
| D151-11TGS-UP3i5 | i5-1145G7E | 2 | 4 / 0 | 2 | 2 | Optional | DC-in 8~24V | ||||||||||||
| D151-11TGS-UP3i7 | i7-1185G7E | 2 | 4 / 0 | 2 | 2 | Optional | DC-in 8~24V | ||||||||||||
| D151-11TGS (D151-11TGS) Specifications | |||
|---|---|---|---|
| LCD | DISPLAY TYPE | 15.6" TFT-LCD | |
| MAX. RESOLUTION | 1366 x 768 | ||
| MAX. COLORS | 16.2M (8 bit / color) | ||
| LUMINANCE (cd/m2) | 500 | ||
| VIEWING ANGLE (H/V) | 170° / 160° | ||
| LED BACKLIGHT LIFETIME (hrs) | 50,000 | ||
| TOUCH SCREEN | TYPE | P-CAP | |
| TOUCH SCREEN | True-flat 10 points | ||
| SYSTEM | PROCESSOR | 11th Gen Intel® Tiger Lake-UP3 i3-1115G4E (Dual Core, 6MB Cache, up to 3.90 GHz) / option: 11th Gen Tiger Lake-UP3 Celeron 6305E / i5-1145G7E / i7-1185G7E | |
| CHIPSET | Intel® SoC Integrated | ||
| SYSTEM MEMORY | 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) | ||
| ETHERNET | Intel® I219-LM Giga LAN + Intel® I225V 2.5 Giga LAN | ||
| I/O PORT | 2 x RJ45 / 1 x RS232 / 1 x RS232 / 422 / 485 / 1 x 2-pin remote power on/off / 2 x HDMI 1.4 / 4 x USB 3.1 Gen 2 / 1 x DC Jack |
||
| EXPANSION SLOT | Wireless: 1 x M.2 2230 E key (PCIeX1, USB2.0) / Storage/LTE/5G Slot: 1 x M.2 2280/2260/2242/3042/3052 B Key (USB2.0/*PCIeX1/SATAIII) *Not support M.2 M Key NVMe SSD / **5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if you have any request |
||
| STORAGE | 1 x SATA 2.5” HDD / SSD bay | ||
| STEREO SPEAKER | 2 x 2W | ||
| OS SUPPORT | Windows 10 64bit | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| POWER REQUIREMENT | POWER INPUT | DC-in 8~24V | |
| POWER ADAPTER | AC to DC / DC19V / 3.4A / 65W adapter | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0~ 40°C (32 ~ 104°F) | |
| STORAGE TEMPERATURE | -20 ~ 60°C (-4 ~ 140°F) | ||
| STORAGE HUMIDITY | 10% ~ 95% @40°C non-condensing | ||
| VIBRATION RESISTANCE | Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD | ||
| SHOCK RESISTANCE | Operating 50 G peak (3 ms duration) | ||
| EMC | CE / FCC Class B | ||
| FRONT PANEL PROTECTION | IP65 Compliant | ||
| MECHANICAL | MOUNTING | VESA 100 / Stand | |
| DIMENSIONS (W X D X H) | 401.6 x 250.9 x 44 mm | ||
| WEIGHT | 4.8kg (10.58 lb) | ||
| PACKING LIST | PACKAGE | 1 x Quick Installation Guide / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC / 1 x Cable Cover / 1 x Screws kit / 2 x Antenna | |
Downloads
Periféricos
Accessory Information |
||
| Model Name | Part Number | Description |
|---|---|---|
| MSRD151210-R10 | 5412D7680002 | Compact Intelligent MagStripe Swipe Reader |
| MSRSC151210-R10 | 5412D7680007 | Secure EMV Chip Card and Magnetic Stripe Reader |
| NRFID151210-R10 | 5412D7680006 | HF RFID / 13.56MHz NFC reader |
| CAM50P151210-R10 | 5412D7680005 | 5M webcam |
| BS151210-R10 | 5413D7680002 | 2D barcode Scanner |
| FLST210 | 452D86500001 | Triangle shape floor stand |
Magnetic Stripe Card Reader
PERIF-01
Magnetic Stripe Card Reader
| Interface | USB |
|---|---|
| Track Configuration | three tracks support |
| Media Formats | ISO 7811, AAMVA, and other F2F formats |
| Read Speed | 5 to 65 ips (7.6 to 165 cm/s) |
| Magnetic Head Life | 1,000,000 times |
| OS Support | Windows 7/10 |
| Dimensions | 90 x 52 x 35mm |
| Operating Temperature | 0 ~ 40°C |
Magnetic Stripe + Smart Card 2-in-1 Reader
PERIF-02
Magnetic Stripe Card + Smart Card 2-in-1 Reader
| Interface | USB |
|---|---|
| EMV Card Reader / Reliability | 500,000 cycles |
| Media Formats |
MSR: ISO 7811, AAMVA EMV: ISO 7816 |
| MSR Read Speed | 3 to 60 inches per second, bidirectional |
| Magnetic Head Life | 1,000,000 times |
| OS Support | Windows 7/10 |
| Dimensions | 128 x 54 x 50mm |
| Operating Temperature | 0 ~ 40°C |
RFID Reader
PERIF-03
RFID Reader
| Interface | USB |
|---|---|
| Frequency | 13.56MHz |
| NFC R/W Mode |
NFCIP-1 (ISO/IEC 18092) / NFCIP-2 (ISO/IEC21481) |
| HF RFID R/W |
ISO15693, ISO14443A/B, Felica, Mifare, Tag-it,ST LRI 1K, ST M24LRXX |
| Reading Range | 4cm ± 1cm |
| OS Support | Windows 7/10 |
| Dimensions | 119 x 48 x 40mm |
| Operating Temperature | 0 ~ 40°C |
5M Camera Module
PERIF-06
5M Camera Module
| Interface | USB |
|---|---|
| Image Resolution | 2592 (H) x 1944 (V) |
| Focusing Range | 10 cm ~ ∞ ; support auto focus |
| Frame Rate |
640 x 480 @ 30 fps max 1024 x 768 @ 30 fps max 1920 x 1080 @ 30 fps max 1600 x 1200 @ 15 fps max |
| Video Format | MJPEG |
| OS Support | Windows 7/10 |
| Dimensions | 119 x 48 x 40mm |
| Operating Temperature | 0 ~ 40°C |
1D/2D Barcode Reader
PERIF-07
1D/2D Barcode Reader
| Interface | USB | |||
|---|---|---|---|---|
| Scanning Performance |
Scan angle: 42.0° (horizontal), 28.0° (vertical) Image Resolution: 640 (h) X 400 (v) pixels Optical Resolution: 5.0 mil (Code 39), 6.6 mil (PDF417) |
|||
| Typical Reading Distances Standard | Symbology | Density | Min.Dist. | Max.Dist. |
| Code 39 | 5.0 mil | 2.0 in / 5.1 cm | 6.4 in / 16.2 cm | |
| PDF417 | 6.6 mil | 2.5 in / 6.3 cm | 6.3 in / 16.0 cm | |
| UPC | 13 mil | 2.0 in / 5.0 cm* | 12.5 in / 31.7 cm | |
| Data Matrix | 20 mil | 1.5 in / 3.8 cm | 13.5 in / 34.3 cm | |
| QR Code | 20 mil | 1.5 in / 3.8 cm | 11.0 in / 27.9 cm | |
| *Limited by width of bar code in field of view. | ||||
| Symbologies |
1D Symbologies: UPC-A; UPC-E; EAN-8/JAN 8;EAN-13/JAN 13; GS1 DataBar-14;GS1 DataBar Limited; GS1 DataBar Expanded 2D Symbologies: PDF417; Data Matrix;QR Code; MicroQR; Aztec; Postal Codes: Transmit US Postal Check Digit;Transmit UK Postal Check Digit;Australia Post Format |
|||
| OS Support | Windows 7/10 | |||
| Dimensions | 119 x 48 x 40mm | |||
| Operating Temperature | 0 ~ 40°C | |||
Floor Stand
Floor Stand
| Description | Triangle shape floor stand |
|---|---|
| VESA Mounting Patterns | 75 x 75 mm; 100 x 100mm |
| Height | 120cm |
| Dimension | Ø660mm |
| Weight | 10kg |
| Weight Capacity | 20KG |
