| SYSTEM | |
| PROCESSOR | Intel® Core™ i7-6600U |
| SYSTEM MEMORY | DDR4 SO-DIMM x 2, up to 16GB |
| LCD/CRT CONTROLLER | — |
| ETHERNET | Intel® i211 x 1, i219 x 1 |

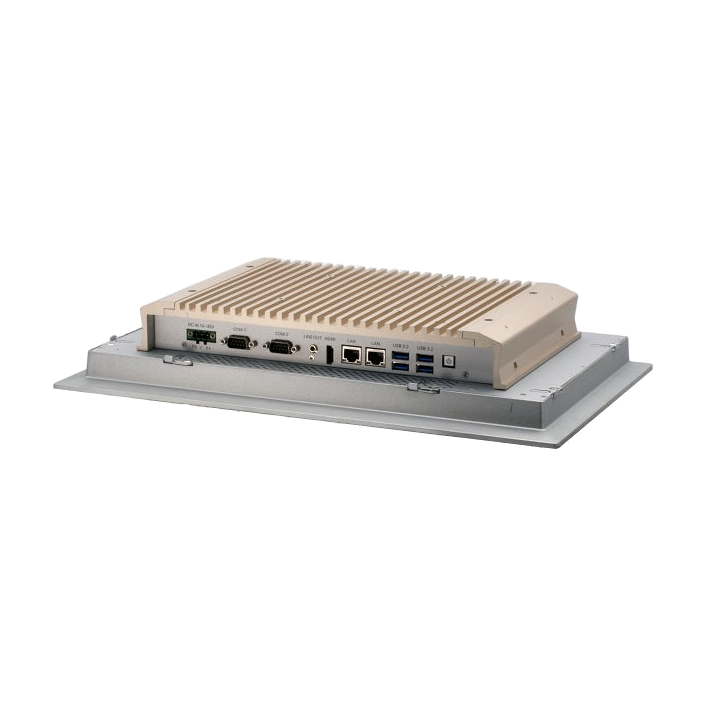

| I/O PORT | USB 3.2 Gen 2 x 4 RJ-45 x 2 for GbE LAN (i211-AT x 1, i219-LM x 1) HDMI x 1 Line out x 1 DB-9 x 2 for RS-232/422/485 3 pin 10~35V Power Input x 1 Power Button with LED x 1 |
| STORAGE DISK DRIVE | M.2 2280 slot x 1 (PCIex4), 2.5” SATA SSD/HDD bay x 1 |
| EXPANSION SLOT | M.2 2230 E Key x 1, M.2 2280 B Key x 1, Full-Size Mini Card x 1 (mSATA/PCIe switch by BIOS, default PCIe), SIM x 1 |
| OS SUPPORT | Windows® 10 IoT Enterprise 64-bit, Linux Ubuntu 20.04 |
| MECHANICAL | |
| CONSTRUCTION | Aluminum Design (IP65 Front Frame) |

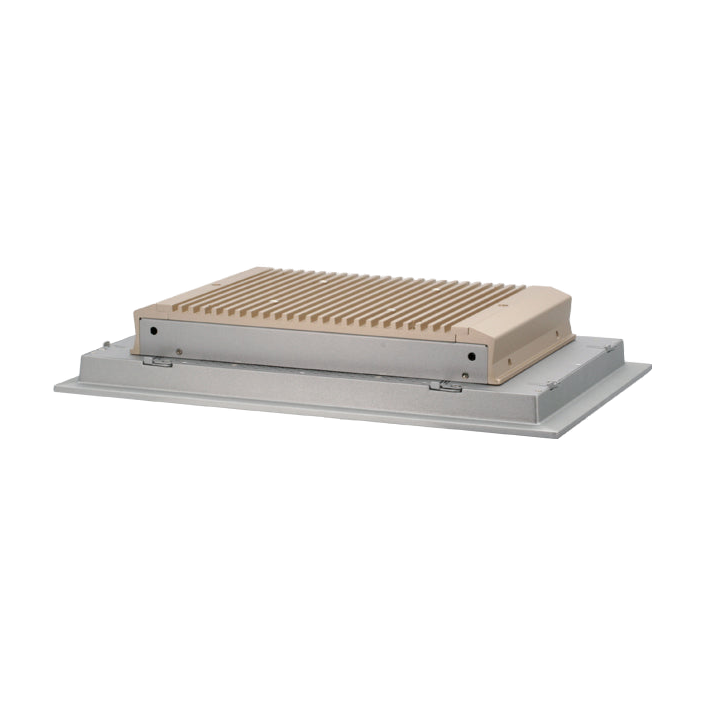

| MOUNTING | VESA 100 / Panel Mount |
| DIMENSION | 420.14mm x 264.47mm x 73.6mm |
| GROSS WEIGHT | 6.75 kg |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 113°F (0°C ~ 45°C) (35W CPU), according to IEC68-2-14 with 0.5 m/s AirFlow |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 90% @40°C; non-condensing |
| ANTI-VIBRATION | 1 Grms/ 5~500Hz/random operation |
| ANTI-SHOCK | 15 G peak acceleration (11 msec. duration |
| CERTIFICATION | CE/FCC class A |
| POWER SUPPLY | |
| DC INPUT | 10-35V DC-in with 3-pin terminal block |
| LCD | |

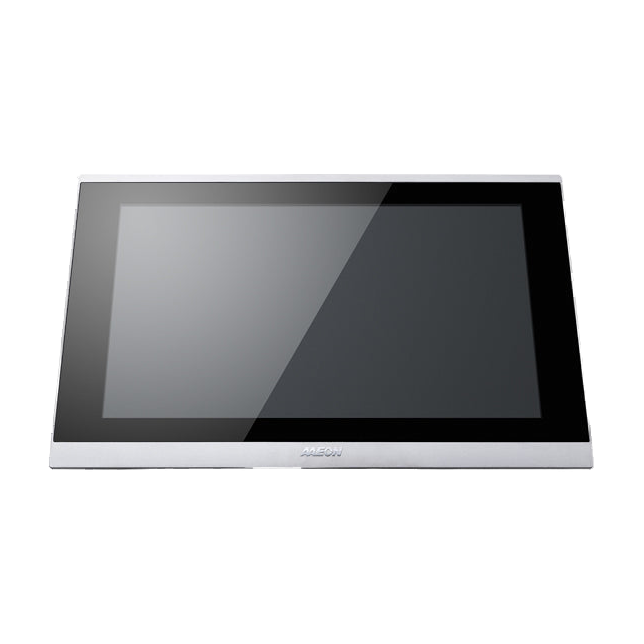

| DISPLAY TYPE | 15.6” TFT-LCD, LED |
| MAX. RESOLUTION | 1366 (H) x 768 (V) |
| MAX. COLORS | 16.7M (8 bit/color) |
| LUMINANCE | 400 cd/m2 |
| VIEWING ANGLE | 170° (H), 130° (V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | 50000 |
| TOUCHSCREEN | |
| TYPE | Flat 5-wire Resistive |
| LIGHT TRANSMISSION | 80% ± 3% / 88%± 2% |
| PART NUMBER | OMNI-2155HTT-SKU-A7-1014 |
|---|---|
| DISPLAY TYPE | 15.6” TFT LCD |
| MAX RESOLUTION | 1366 x 768 |
| LUMINANCE | 400 cd/m2 |
| VIEW ANGLE | 170°(H) 130°(V) |
| BACKLIGHT MTBF (HOURS) | 50000 |
| CPU | Intel® Core™ i6-6600U |
| LAN | 2 |
| USB | USB 3.2 Gen 2 x 4 |
| RS-485/422/232 | 2 |
| STORAGE | M.2 2280 slot x 1 (PCIex4), 2.5” SATA SSD/HDD bay x 1 |
| RAM | DDR4 SODIMM x 2, up to 16GB |
| DISPLAY | HDMI x 1 |
| EXPANSION | M.2 2230 E Key x 1 Full-Size Mini Card x 1 |
| MOUNTING | VESA 100 / Panel Mount |
| POWER | 10-35V DC-in with 3-pin terminal block |
| TEMP | 0°C ~ 45°C with 0.5m/s airflow |
| TOUCH | Flat 5-wire Resistive |
| AP-OT9789LA1000 | LCD Monitor Stand 230mm, LA-100 |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| 125590120B | 120W Power Adapter |
| 1255302300 | 230W Power Adapter |
