Sku: P156-11TGS-UP3i7
Tipo de Produto:
Panel-PC Capacitivo
Fabricante:
MiTAC
P156-11TGS
Panel PC Industrial
- Slim Panel PC PCAP touch
- Processadores de 11ª Ger. Intel® Tiger Lake UP3
- Proteção IP65 frontal, design fanless
- LCD TFT 15.6" com 50,000 horas de vida útil

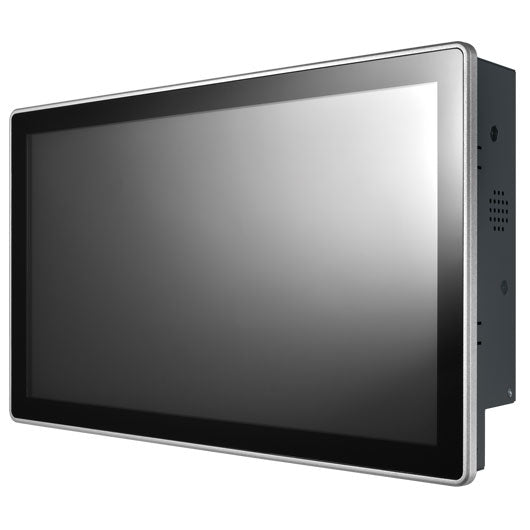

P156-11TGS-UP3i7
PanelPC 15.6'' com Intel® Tiger Lake UP3 de 11ª Geração
Caraterísticas
Especificações
Downloads
Montagem
Caraterísticas
P156-11TGS is a 15.6 inch all in one panel pc system with Intel Tiger Lake based platform for power-efficiency and fanless condition.
For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front.
All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.
Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors Up to 28W
Outstanding Graphic Computing Capability
Intel Iris® Xe Subvert Your Image about Built-in Graphics
- New Iris® Xe(Gen12) Graphic Engine with up to 96 EU
- 4 Independent Display Units in 4K resolution
Iris Xe iGPU brings the AI revolution
- 5X better AI performance
- AI/DL Instruction Set including VNNI (Vector Neural Network Instruction) and CV/AI applications, improves inferencing workload performance
- Intel Deep Link offers additive AI, hyper encode, dynamic power share, and common software framework for Iris Xe iGPU
5G cellular network
M.2 3042/3052 + SIM slot
- M.2 3042/3052 slot with built-in SIM slot for LTE/*5G network expansion
- Speed upgrades and lower latency
- More possibilities for deployment in different scenarios and business models
Slim & Sleek Design
Display & Touch
P-cap Multi Touch(Option: Resistive Single Touch)
Scratch resistance: 7H
FHD 16:9 natural viewing experience
Sunlight Readable Display
Triple Display
Support triple independent displays (LVDS, 2x HDMI ).
The HDMI up to 4K high resolution. The enhance visual quality responses the demand of being high precise.
HDMI 1.4 2 x HDMI 1.4 4K@30Hz.
-20 ∼ 55ºC Wide Temperature
P series Panel PC is design for fan-less application in extreme temperature condition from -20ºC to 55ºC
IP65 Dust & Water proof
Front IP65
Sealing to prevent dust even protected against splash of waters
(within certain limits)
Dimension (mm)
Rich I/O
Advanced Power Protection
Wide Power Range
8V ∼ 24V
Protection
ESD Protection: +/-8kV (air), +/- 4kV (contact)
Surge Immunity: 2kV
Especificações
Ordering Information |
|||||||
| Model | CPU | HDMI | USB 3.1 / 2.0 | RS232 | LAN | Wifi / BT | Power |
|---|---|---|---|---|---|---|---|
| P156-11TGS-UP3Ce | Celeron 6305E | 2 | 4 / 0 | 4 | 2 | Optional | DC-in 8~24V |
| P156-11TGS-UP3i3 | i3-1115G4E | 2 | 4 / 0 | 4 | 2 | Optional | DC-in 8~24V |
| P156-11TGS-UP3i5 | i5-1145G7E | 2 | 4 / 0 | 4 | 2 | Optional | DC-in 8~24V |
| P156-11TGS-UP3i7 | i7-1185G7E | 2 | 4 / 0 | 4 | 2 | Optional | DC-in 8~24V |
| P156-11TGS (P156-11TGS) Specifications | |||
|---|---|---|---|
| LCD | DISPLAY TYPE | 15.6" TFT-LCD | |
| MAX. RESOLUTION | 1920 x 1080 | ||
| MAX. COLORS | 16.2M (8 bit / color) | ||
| LUMINANCE (cd/m2) | 450 | ||
| VIEWING ANGLE (H/V) | 176° / 176° | ||
| LED BACKLIGHT LIFETIME (hrs) | 50,000 | ||
| HIGH BRIGHTNESS | Option | ||
| TOUCH SCREEN | TYPE | P-CAP / 5-wire Resistive(Option) | |
| TOUCH | True-flat 10 points / single point | ||
| AR/AG/AF COATING | Option | ||
| SYSTEM | PROCESSOR | 11th Gen Intel® Tiger Lake-UP3 i3-1115G4E (Dual Core, 6MB Cache, up to 3.90 GHz) / option: 11th Gen Tiger Lake-UP3 Celeron 6305E / i5-1145G7E / i7-1185G7E | |
| CHIPSET | Intel® SoC Integrated | ||
| SYSTEM MEMORY | DDR4 3200 MHz / 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) |
||
| ETHERNET | Intel® I219-LM Giga LAN / Intel® I225-LM 2.5GbE LAN | ||

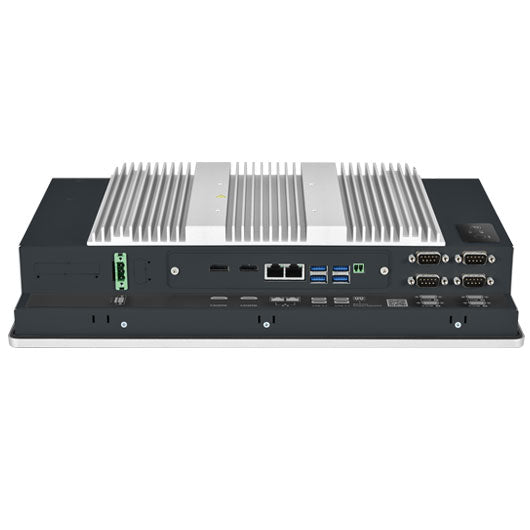

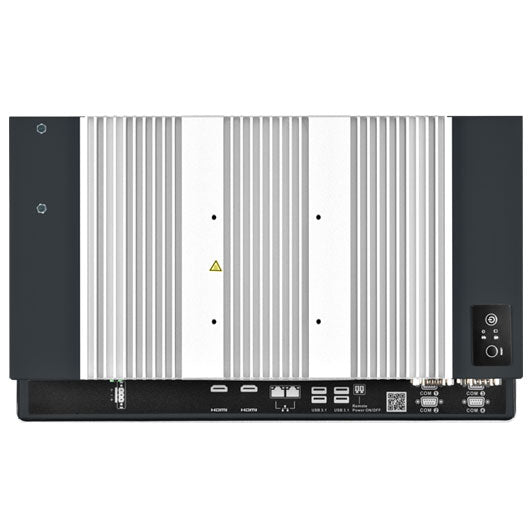

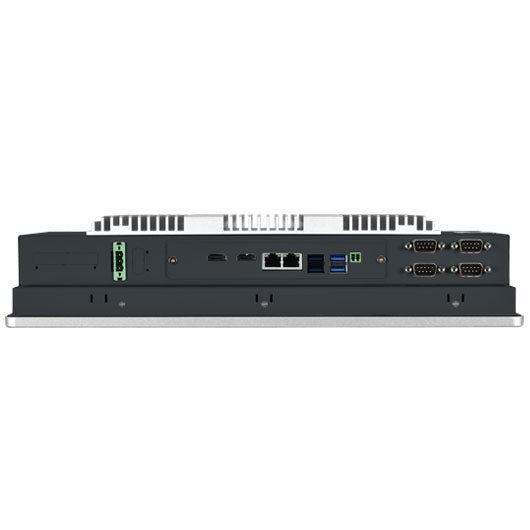

| I/O PORT | 1 x 3-pin Phoenix type terminal block DC input / 2 x RJ45 / 1 x 2-pin remote power on/off / 3 x RS232 / 1 x RS232 / 422 / 485 / 2 x HDMI 1.4 / 4 x USB 3.1 Gen 2 |
||
| EXPANSION SLOT | Wireless: 1 x M.2 2230 E key (PCIeX1, USB2.0) / Storage/LTE/5G Slot: 1 x M.2 2280/2260/2242/3042/3052 B Key (USB2.0/*PCIeX1/SATAIII) *Not support M.2 M Key NVMe SSD / **5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if you have any request |
||
| STORAGE | 1 x SATA 2.5” HDD / SSD bay | ||
| STEREO SPEAKER | 2 x 3W | ||
| OS SUPPORT | Windows 10 64bit | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| POWER REQUIREMENT | POWER INPUT | DC-in 8~24V | |
| POWER ADAPTER | AC to DC / DC19V / 3.4A / 65W adapter | ||
| MECHANICAL | MOUNTING | VESA 75/100mm / Panel Mount | |
| DIMENSIONS (W X D X H) | 386.2 x 235.6 x 83 mm | ||
| WEIGHT | 5kg (11.1 lb) | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | -20 ~ 55°C (-4 ~ 131°F) | |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | ||
| STORAGE HUMIDITY | 10% ~ 90% @40°C non-condensing | ||
| VIBRATION RESISTANCE | Operating: 5Hz~500Hz / 2Grms / 3Axis (w/ SSD, according to IEC60068-2-64) | ||
| SHOCK RESISTANCE | Operating 10 G peak acceleration (11 ms duration) / follow IEC 60068-2-27 | ||
| EMC | CE / FCC Class B | ||
| FRONT PANEL PROTECTION | IP65 Compliant | ||
| PACKING LIST | PACKAGE | 1 x Quick Installation Guide / 1 x 3 pin Terminal Block Power Connector / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC / 1 x Screws kit / 1 x Mounting kit / 1 x 2 pin Terminal Block Male Connector | |
Downloads
Montagem
Mounting Design
STEP 1
- Make a cutout on the fixture (ex. wall) according to the cutout Dimensions of the Panel PC
STEP 2
- Place the Panel PC on the fixture from the front side
- The sides of the bezel should be visible from outside
STEP 3
- Use mounting kit to secure the Panel PC to the fixture
- First install mounting clamp to the Panel PC, and then fasten the screw to fix the clamp to the fixture
STEP 4
-
Installation complete
