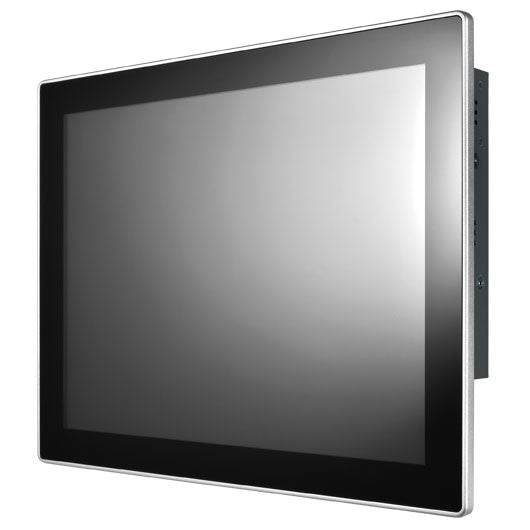

P150-11TGS is a 15 inch all in one panel pc system with Intel Tiger Lake based platform for power-efficiency and fanless condition.
For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front.
All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.
Support triple independent displays (LVDS, 2x HDMI ).
The HDMI up to 4K high resolution. The enhance visual quality responses the demand of being high precise.
P series Panel PC is design for fan-less application in extreme temperature condition from -20ºC to 55ºC
ESD Protection: +/-8kV (air), +/- 4kV (contact)
Surge Immunity: 2kV
Ordering Information |
|||||||
| Model | CPU | HDMI | USB 3.1 / 2.0 | RS232 | LAN | Wifi / BT | Power |
|---|---|---|---|---|---|---|---|
| P150-11TGS-UP3Ce | Celeron 6305E | 2 | 4 / 0 | 3 | 2 | Optional | DC-in 8~24V |
| P150-11TGS-UP3i3 | i3-1115G4E | 2 | 4 / 0 | 3 | 2 | Optional | DC-in 8~24V |
| P150-11TGS-UP3i5 | i5-1145G7E | 2 | 4 / 0 | 3 | 2 | Optional | DC-in 8~24V |
| P150-11TGS-UP3i7 | i7-1185G7E | 2 | 4 / 0 | 3 | 2 | Optional | DC-in 8~24V |
| P150-11TGS (P150-11TGS) Specifications | |||
|---|---|---|---|
| LCD | DISPLAY TYPE | 15" TFT-LCD | |
| MAX. RESOLUTION | 1024 x 768 | ||
| MAX. COLORS | 16.7M (8 bit / color) | ||
| LUMINANCE (cd/m2) | 300 | ||
| VIEWING ANGLE (H/V) | 176° / 176° | ||
| LED BACKLIGHT LIFETIME (hrs) | 70,000 | ||
| HIGH BRIGHTNESS | Option | ||
| TOUCH SCREEN | TYPE | P-CAP / 5-wire Resistive(Option) | |
| TOUCH | True-flat 10 points / single point | ||
| AR/AG/AF COATING | Option | ||
| SYSTEM | PROCESSOR | 11th Gen Intel® Tiger Lake-UP3 i3-1115G4E (Dual Core, 6MB Cache, up to 3.90 GHz) / option: 11th Gen Tiger Lake-UP3 Celeron 6305E / i5-1145G7E / i7-1185G7E | |
| CHIPSET | Intel® SoC Integrated | ||
| SYSTEM MEMORY | DDR4 3200 MHz / 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) |
||
| ETHERNET | Intel® I219-LM Giga LAN / Intel® I225-LM 2.5GbE LAN | ||

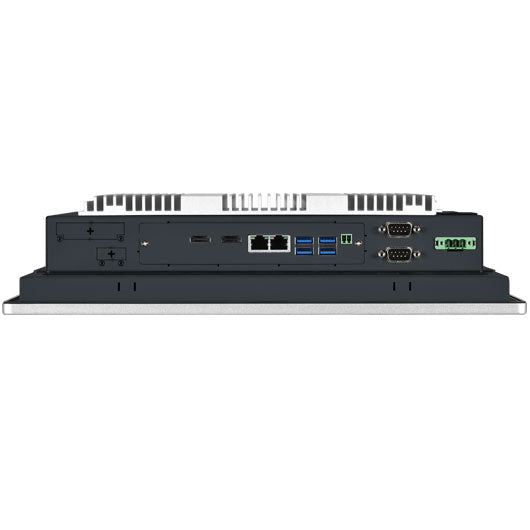

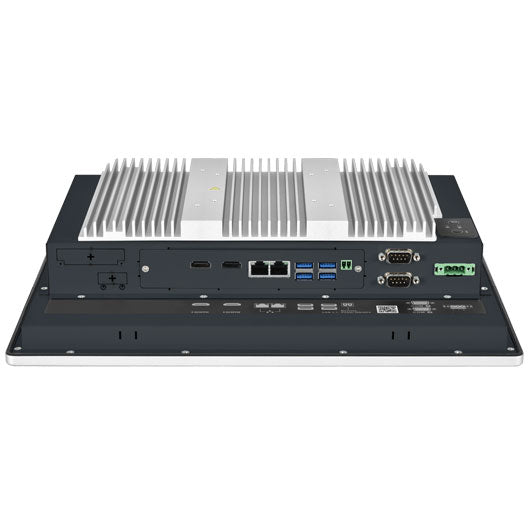

| I/O PORT | 1 x 3-pin Phoenix type terminal block DC input / 2 x RJ45 / 1 x RS232 / 1 x 2-pin remote power on/off / 1 x RS232 / 422 / 485 / 2 x HDMI 1.4 / 4 x USB 3.1 Gen 2 |
||
| EXPANSION SLOT | Wireless: 1 x M.2 2230 E key (PCIeX1, USB2.0) / Storage/LTE/5G Slot: 1 x M.2 2280/2260/2242/3042/3052 B Key (USB2.0/*PCIeX1/SATAIII) *Not support M.2 M Key NVMe SSD / **5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if you have any request |
||
| STORAGE | 1 x SATA 2.5” HDD / SSD bay | ||
| STEREO SPEAKER | 2 x 3W | ||
| OS SUPPORT | Windows 10 64bit | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| POWER REQUIREMENT | POWER INPUT | DC-in 8~24V | |
| POWER ADAPTER | AC to DC / DC19V / 3.4A / 65W adapter | ||

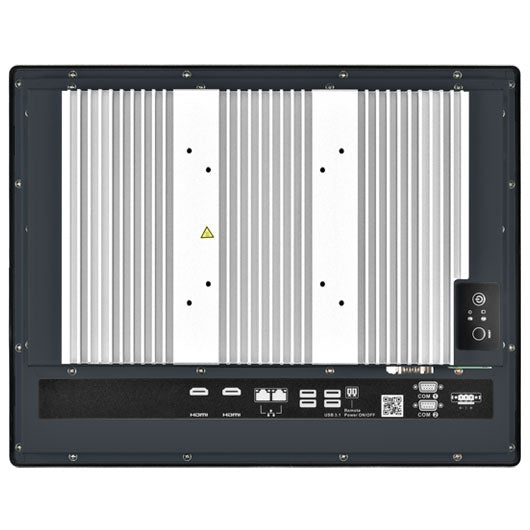

| MECHANICAL | MOUNTING | VESA 75/100mm / Panel Mount | |
| DIMENSIONS (W X D X H) | 360.4 x 283.4 x 81.7mm | ||
| WEIGHT | 5kg (11.1 lb) | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | -20 ~ 55°C (-4 ~ 131°F) | |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | ||
| STORAGE HUMIDITY | 10% ~ 90% @40°C non-condensing | ||
| VIBRATION RESISTANCE | Operating: 5Hz~500Hz / 2Grms / 3Axis (w/ SSD, according to IEC60068-2-64) | ||
| SHOCK RESISTANCE | Operating 10 G peak acceleration (11 ms duration) / follow IEC 60068-2-27 | ||
| EMC | CE / FCC Class B | ||
| FRONT PANEL PROTECTION | IP65 Compliant | ||
| PACKING LIST | PACKAGE | 1 x Quick Installation Guide / 1 x 3 pin Terminal Block Power Connector / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC / 1 x Screws kit / 1 x Mounting kit / 1 x 2 pin Terminal Block Male Connector | |
