• Intel® Celeron® N3350 DC
  • 4GB RAM / 128GB SSD
  • 17" Resistive Touch Panel
  • Proteção IP65
  • DC 12V
com IVA
1,228.77€

sem IVA
999.00€
Sku: FT17N3350W4G128G
Tipo de Produto: Panel-PC Resistivo
Fabricante: Faytech

FT17N3350W4G128G

FT17N3350RES

  • CPU Intel® Celeron® N3350 DualCore
  • 4 GB de memória RAM, SSD industrial de 128 GB
  • Suporta Windows 10 e Linux (32 bits, 64 bits)
  • Painel antir-reflexo com dureza superficial de 3H
  • Touchscreen resistivo de 5 toques
  • Estrutura em alumínio preto de alta qualidade
  • Conector de Alimentação padrão de 3 pinos com rosca
  • WLAN integrado
  • Garantia de 2 anos
Specs
Caraterísticas
IP Rating
Protection
IP40 Front/ IP40 Back
PC System
CPU
Intel Celeron N3350 Apollo Lake
RAM
4GB
Memory
128GB
Operating System
Ubuntu
LCD Panel
Display Size
17"
Display Format
5:4
Physical Resolution
1280x1024
Optical Bonding
Air Gap
Operation / Mechanical
Housing

Backlight Type
Edge Backlight
Touch Panel
Touch Technology
resistive
Coverglass Surface

Power
Power Supply
12V
External connections
HDMI
1
VGA

DP
1
USB 2.0

USB 3.0
Especificações

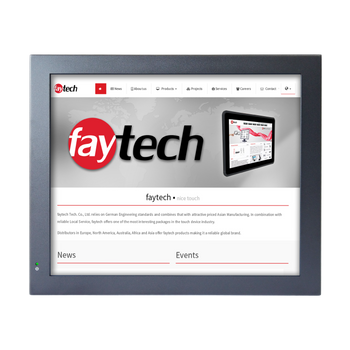

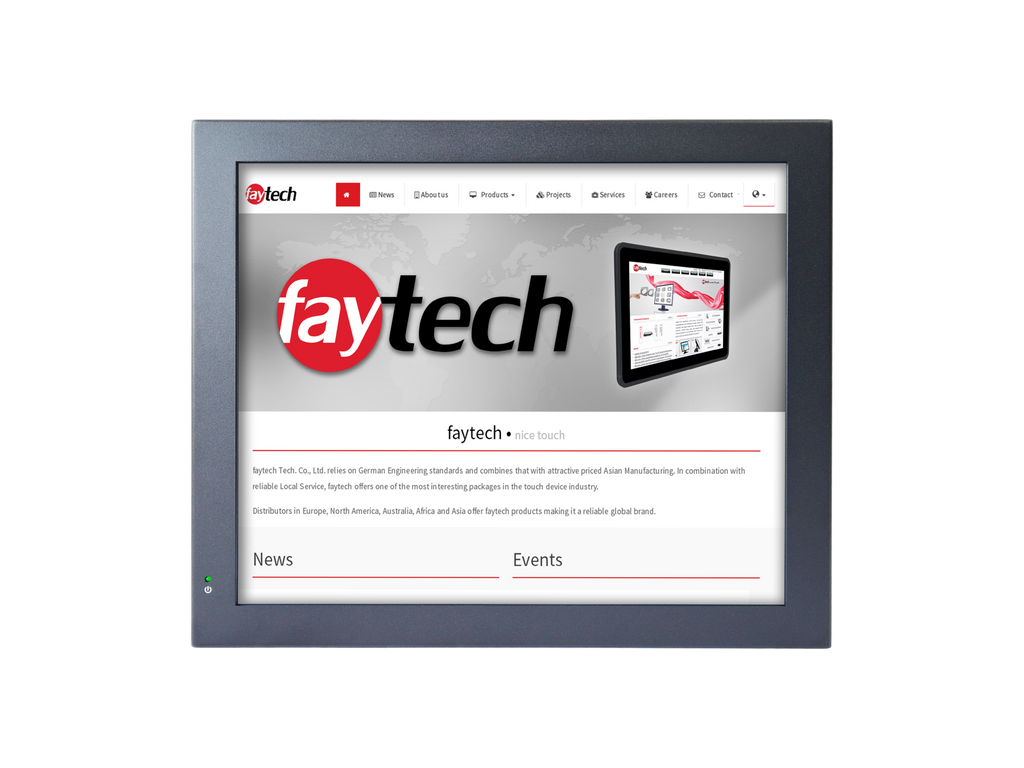

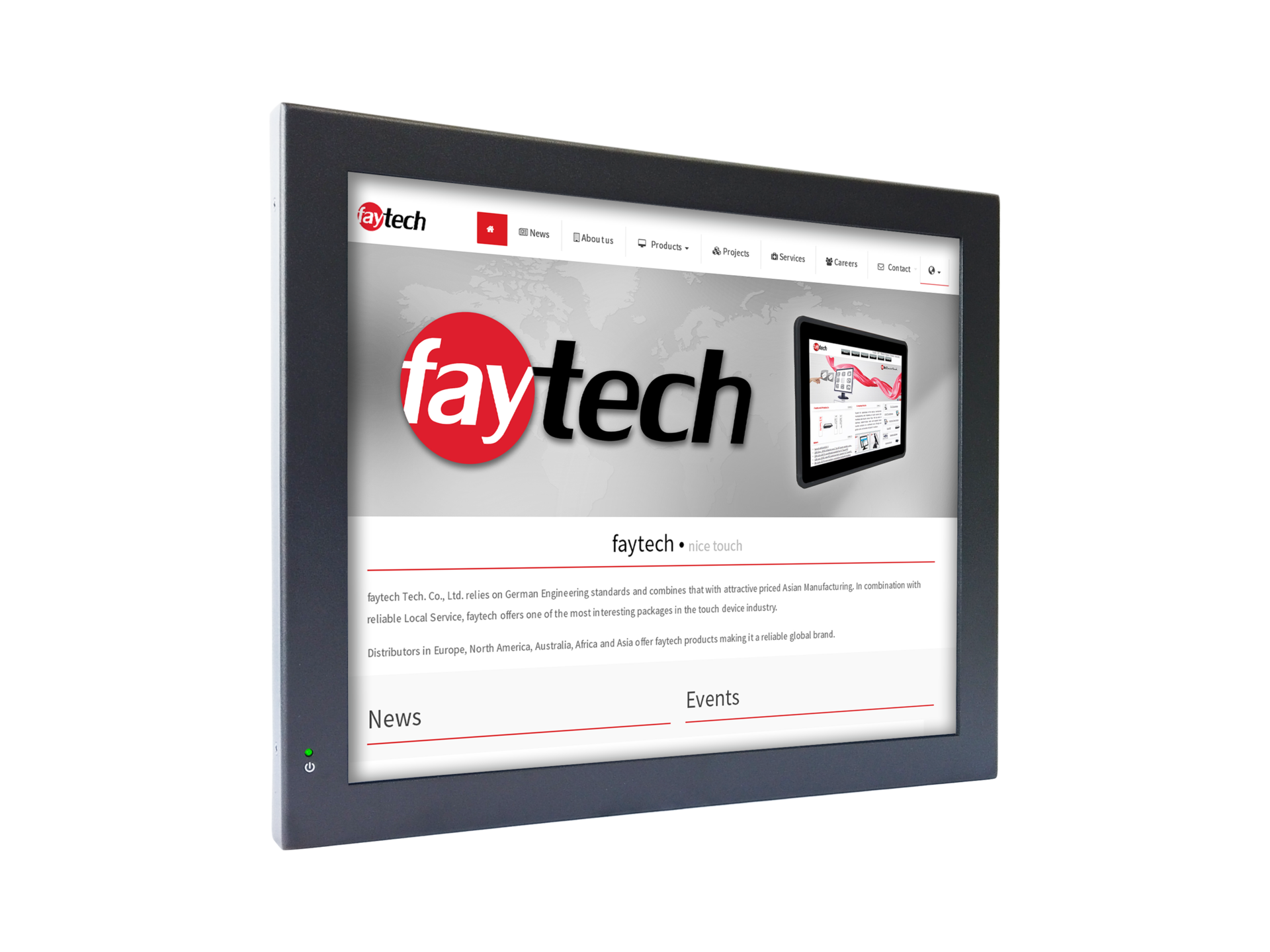

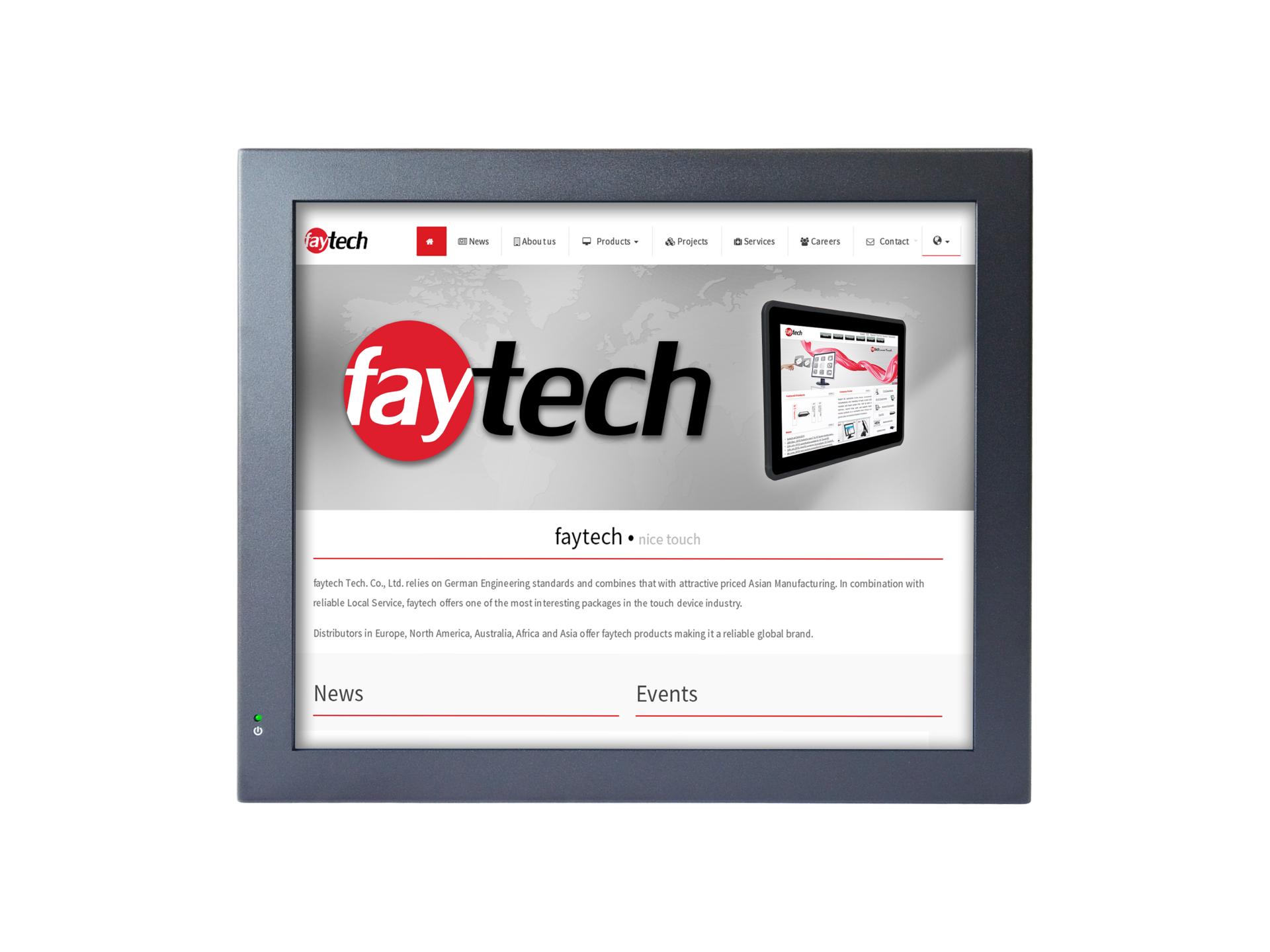

Product name  17" Resistive Touch PC
Model number / EAN number FT17N3350RES / 6920734001705



CPU Intel® Celeron DualCore N3350
Graphic GPU Intel® HD Graphics
Audio Realtek ALC3236 Audio CODEC
Memory 1x 4GB DDR3L non-ECC
Storage faytech Industrial 128GB SSD
Network 2x Realtek PCIe GB LAN 8111G (1x optional with POE); W-LAN
Driver Support Win10; Linux Ubuntu; 32Bit/64Bit
Pre-installed OS Linux Ubuntu



IP65 Front / IP40 Back



Screen diagonal (Inch/cm) 17/43.18
Display active screen size 33.79×27.04
Aspect ratio 5:4
Physical resolution 1280×1024
External Maximum showable resolution - DP, HDMI 1920×1200
Colours displayed 16.7M
Brightness (cd/m²) 250
Contrast 1000:1
Typical reaction time Tr/ Tf (ms) 3.8/1.2
Visual Angle horizontal/vertical (°) 170/160
Backlight / Backlight Lifetime (hours) LED / 30,000



Touch Technology 5-Wire Resistive
Touch Connector USB
Touch Life (Contacts) 10 million in 1 location without failure
Surface Hardness 3H
Surface Treatment Anti-glare (chemical etched)



Operating Temperature (°C) -10 ~ +60
Humidity Range (RH) 10% - 90%
Net weight (kg) 4.10
Gross weight (kg) 5.80 (incl. cartonage)
Housing material Aluminum
Housing (cm) L × W × H 39.70 × 32.50 × 6.09
Mounting VESA 100



Power Indicator Green LED
Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 12
Power Consumption (W) 17
Stand-By Consumption (W) <1



1x SO-DIMM, max. 4GB, DDR3L 1333/1600/1867 non-ECC Single channel memory
3x RS232/RS485 COM connectors, switchable in BIOS
2x LCD Backlight control/LCD panel voltage box
1x 5V/12V SATA power connector
1x 12V DC power connector (2-pin)
1x 4-pin SATA power connector
1x S/PDIF output pin header
1x 8-bit Digital I/O interface
1x Line-out / Mic-in header
1x Front Panel box header
1x Serial ATA 6Gb/s
1x MIPI CSI connector
1x LVDS box header
2x USB 3.0 box header

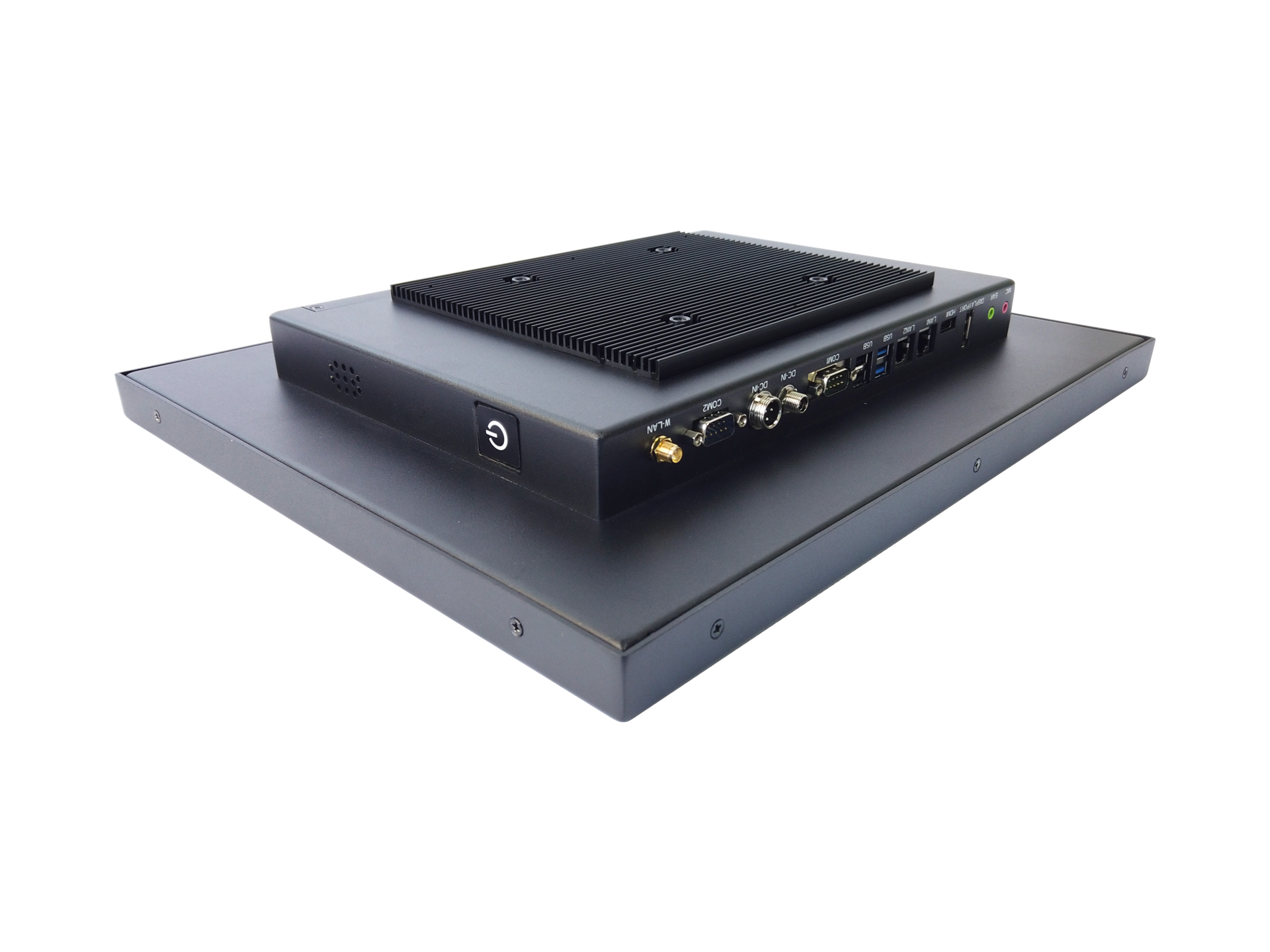

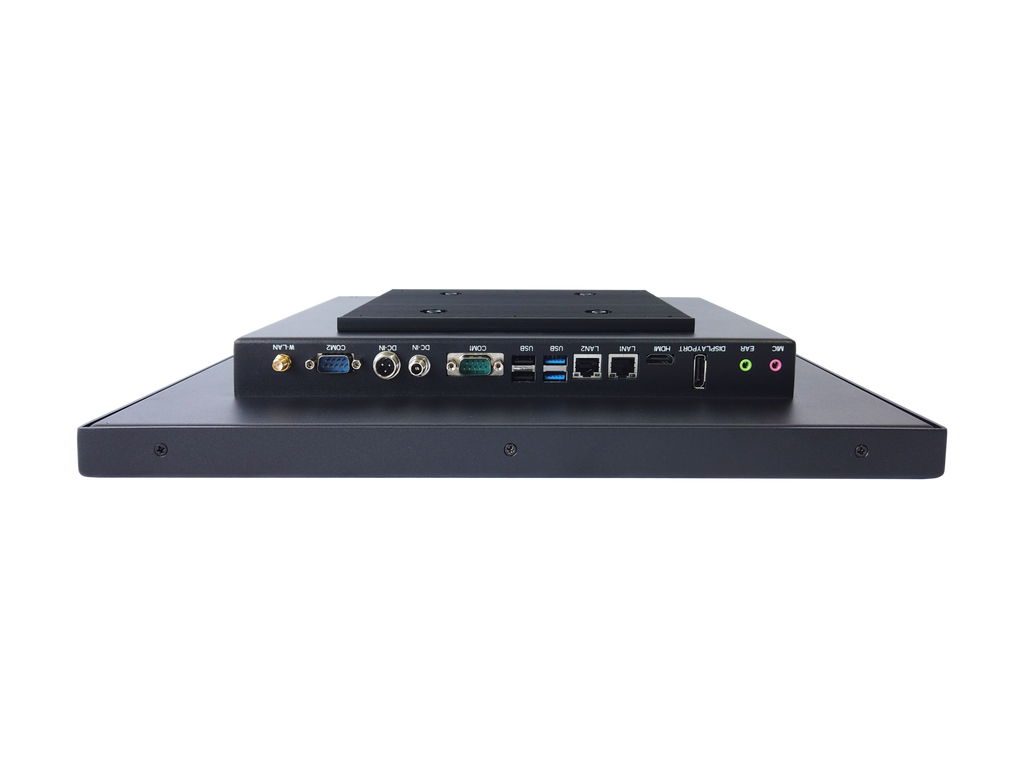

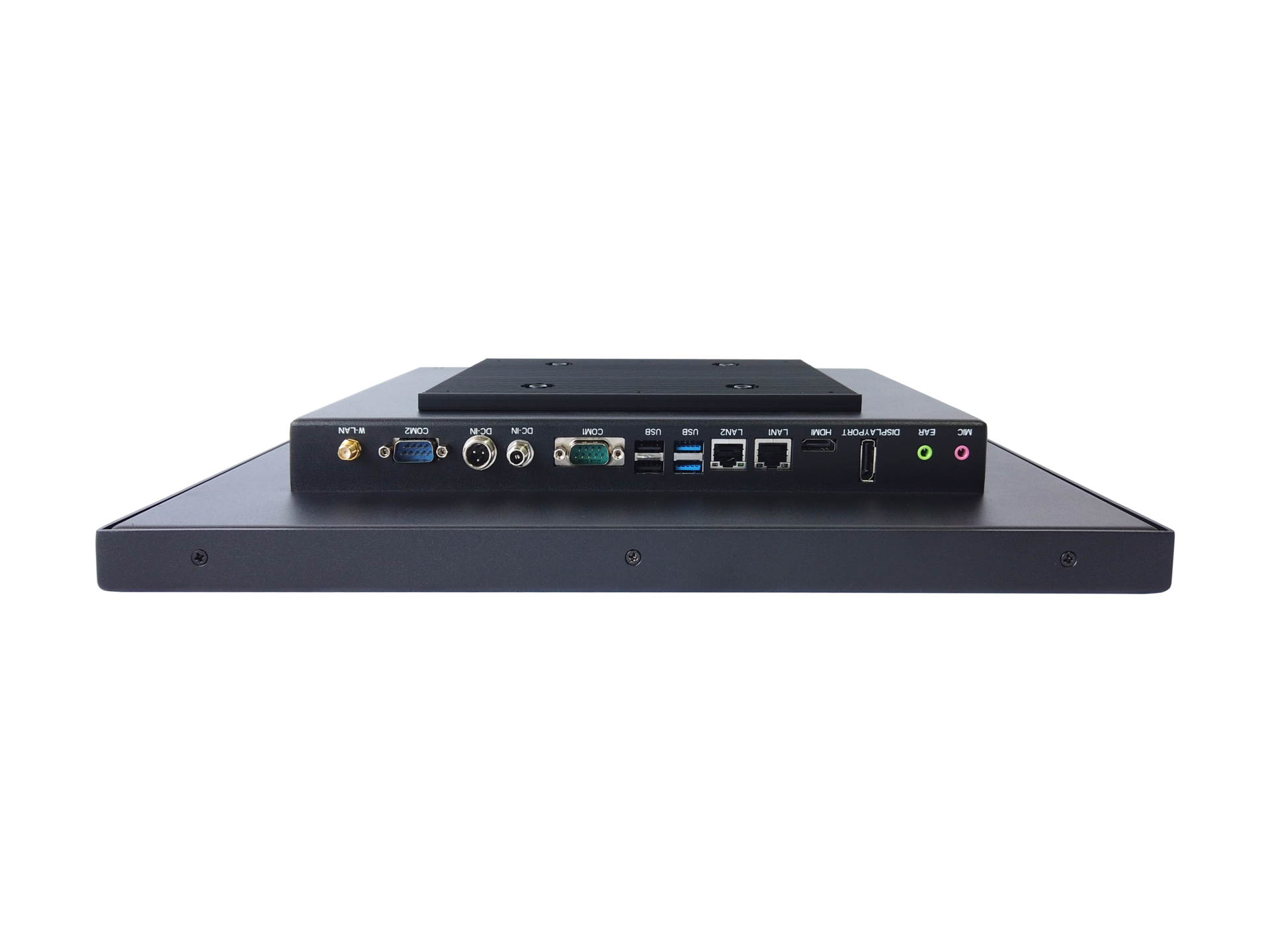

1x 12V DC-In (screwable)
1x 12V 3-Pin DC-In (screwable)
1x W-LAN antenna connector (RP-SMA male)
1x HDMI
1x DisplayPort
2x USB 3.0 ports
2x USB 2.0 ports
1x MIC-In & EAR-Out
2x COM port Full-PIN - RS232/485; 5V/12V
2x 10/100/1000Mbit RJ45 Ports
1x 2.5" module slot, changeable SSD included



1x mSATA full size (occupied by SSD)
1x M.2 E-Key Slot (occupied by Wifi card)
1x SATA connector
1x External PCIe x1 Straddle connector



Power Supply (see Power section)
W-LAN antenna (RP-SMA female)
Short Installation Manual
