• Tiger Lake-UP3 6305E
  • GbE + 2.5 GbE LAN
  • 21.5" Capacitive Touch Panel
  • Proteção IP65
  • DC 8-24V
com IVA
1,353.00€

sem IVA
1,100.00€
Sku: P210-11TGS-UP3Ce
Tipo de Produto: Panel-PC Capacitivo
Fabricante: MiTAC

P210-11KS

Panel PC Industrial

  • Processadores de 11ª Ger. Intel® Tiger Lake UP3
  • Proteção IP65 frontal, design fanless
  • LCD TFT 21.5" com 30,000 horas de vida útil

FCC Clasee B  alta faixa de temperaturas  4 portas COM  Pcap_touch  FC/CE  2x 2.5G LAN

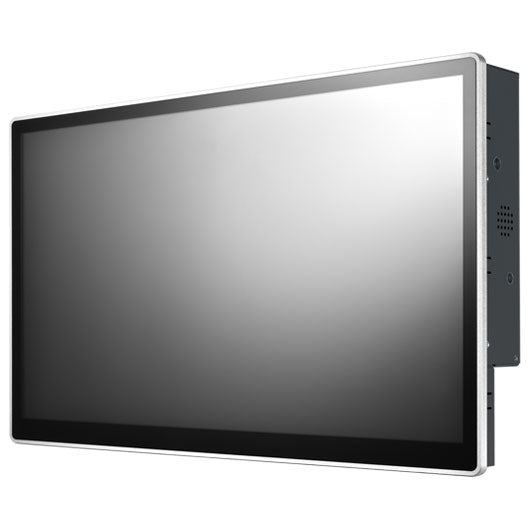

P210-11TGS-UP3Ce

PanelPC 21.5'' com Intel® Tiger Lake UP3 de 11ª Geração

Intel Core i3  Intel Core i5  Intel Core i7  Intel Iris® Xe  Intel celeron tiger lake

Caraterísticas
intel

P210-11TGS is a 21.5 inch all in one panel pc system with Intel Tiger Lake based platform for power-efficiency and fanless condition.

IP65

For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front.

HMI-applications

All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.

Industrial-Automation

Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors Up to 28W

Tyger-Lake

Outstanding Graphic Computing Capability

Intel Iris® Xe Subvert Your Image about Built-in Graphics

  • New Iris® Xe(Gen12) Graphic Engine with up to 96 EU
  • 4 Independent Display Units in 4K resolution
Graphic-Computing
Consumption

Iris Xe iGPU brings the AI revolution

  • 5X better AI performance
  • AI/DL Instruction Set including VNNI (Vector Neural Network Instruction) and CV/AI applications, improves inferencing workload performance
  • Intel Deep Link offers additive AI, hyper encode, dynamic power share, and common software framework for Iris Xe iGPU
Consumption

5G cellular network

M.2 3042/3052 + SIM slot

  • M.2 3042/3052 slot with built-in SIM slot for LTE/*5G network expansion
  • Speed upgrades and lower latency
  • More possibilities for deployment in different scenarios and business models
5G-cellular-network

Slim & Sleek Design

Slim-Design

Display & Touch

P-cap-Multi-Touch

P-cap Multi Touch(Option: Resistive Single Touch)

Scratch-resistance-7H

Scratch resistance: 7H

Scratch-resistance-7H

FHD 16:9 natural viewing experience

Sunlight Readable Display

Sunlight-Readable-Display

Triple Display

Support triple independent displays (LVDS, 2x HDMI ).
The HDMI up to 4K high resolution. The enhance visual quality responses the demand of being high precise.



HDMI 1.4   2 x HDMI 1.4 4K@30Hz.

Triple-Display

0 ∼ 50ºC Wide Temperature

P series Panel PC is design for fan-less application in extreme temperature condition from 0ºC to 50ºC

Wide-Temperature

IP65 Dust & Water proof

IP65
Front-IP65

Front IP65
Sealing to prevent dust even protected against splash of waters
(within certain limits)

Dimension (mm)

P210-11TGS_dimension

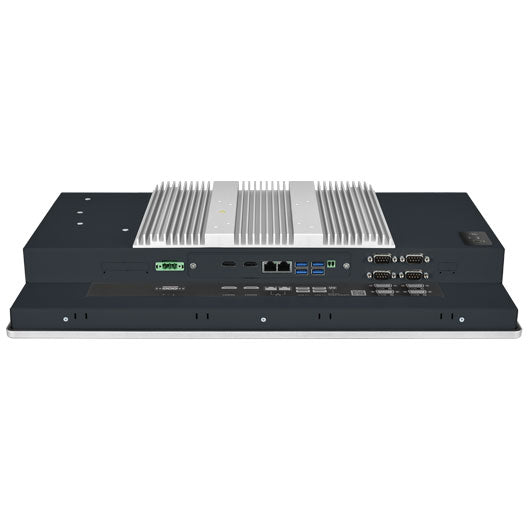

Rich I/O

P210-11TGS-IO

Advanced Power Protection

8V-24V

Wide Power Range

8V ∼ 24V

Protection

Protection

ESD Protection: +/-8kV (air), +/- 4kV (contact)
Surge Immunity: 2kV

Especificações

P210-11TGS (P210-11TGS)

Ordering Information

Model CPU HDMI USB 3.0 / 2.0 RS232 LAN Wifi / BT Power
P210-11TGS-UP3Ce Celeron 6305E 2 4 / 0 4 2 Optional DC-in 8~24V
P210-11TGS-UP3i3 i3-1115G4E 2 4 / 0 4 2 Optional DC-in 8~24V
P210-11TGS-UP3i5 i5-1145G7E 2 4 / 0 4 2 Optional DC-in 8~24V
P210-11TGS-UP3i7 i7-1185G7E 2 4 / 0 4 2 Optional DC-in 8~24V
P210-11TGS (P210-11TGS) Specifications
LCD   DISPLAY TYPE 21.5" TFT-LCD
  MAX. RESOLUTION 1920 x 1080
  MAX. COLORS 16.7M (8 bit / color)
  LUMINANCE (cd/m2) 250
  VIEWING ANGLE (H/V) 170° / 160°
  LED BACKLIGHT LIFETIME (hrs) 30,000
  HIGH BRIGHTNESS Option
TOUCH SCREEN   TYPE P-CAP / 5-wire Resistive(Option)
  TOUCH True-flat 10 points / single point
  AR/AG/AF COATING Option
SYSTEM   PROCESSOR 11th Gen Intel® Tiger Lake-UP3 i3-1115G4E (Dual Core, 6MB Cache, up to 3.90 GHz) / option: 11th Gen Tiger Lake-UP3 Celeron 6305E / i5-1145G7E / i7-1185G7E
  CHIPSET Intel® SoC Integrated
  SYSTEM MEMORY DDR4 3200 MHz
/ 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
  ETHERNET Intel® I219-LM Giga LAN / Intel® I225-LM 2.5GbE LAN
  I/O PORT 1 x 3-pin Phoenix type terminal block DC input
/ 2 x RJ45
/ 1 x 2-pin remote power on/off
/ 3 x RS232
/ 1 x RS232 / 422 / 485
/ 2 x HDMI 1.4
/ 4 x USB 3.1 Gen 2
  EXPANSION SLOT Wireless: 1 x M.2 2230 E key (PCIeX1, USB2.0)
/ Storage/LTE/5G Slot: 1 x M.2 2280/2260/2242/3042/3052 B Key (USB2.0/*PCIeX1/SATAIII) *Not support M.2 M Key NVMe SSD
/ **5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if you have any request
  STORAGE 1 x SATA 2.5” HDD / SSD bay
  STEREO SPEAKER 2 x 3W
  OS SUPPORT Windows 10 64bit
  WATCHDOG TIMER 1~255 steps by software program
POWER REQUIREMENT   POWER INPUT DC-in 8~24V
  POWER ADAPTER AC to DC / DC19V / 3.4A / 65W adapter
MECHANICAL   MOUNTING VESA 75/100mm / Panel Mount
  DIMENSIONS (W X D X H) 508.3 x 308 x 83 mm
  WEIGHT 8kg
ENVIRONMENTAL   OPERATING TEMPERATURE 0 ~ 50°C (32 ~ 122°F)
  STORAGE TEMPERATURE -20 ~ 60°C (-4 ~ 140°F)
  STORAGE HUMIDITY 10% ~ 90% @40°C non-condensing
  VIBRATION RESISTANCE Operating: 5Hz~500Hz / 2Grms / 3Axis (w/ SSD, according to IEC60068-2-64)
  SHOCK RESISTANCE Operating 10 G peak acceleration (11 ms duration) / follow IEC 60068-2-27
  EMC CE / FCC Class B
  FRONT PANEL PROTECTION IP65 Compliant
PACKING LIST   PACKAGE 1 x Quick Installation Guide / 1 x 3 pin Terminal Block Power Connector / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC / 1 x Screws kit / 1 x Mounting kit / 1 x 2 pin Terminal Block Male Connector
Montagem

Mounting Design

STEP 1
  • Make a cutout on the fixture (ex. wall) according to the cutout Dimensions of the Panel PC
Front-View
STEP 2
  • Place the Panel PC on the fixture from the front side
  • The sides of the bezel should be visible from outside

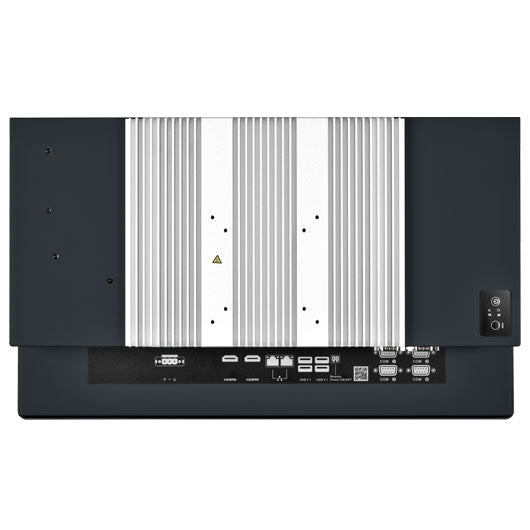

Rear-View
STEP 3
  • Use mounting kit to secure the Panel PC to the fixture
  • First install mounting clamp to the Panel PC, and then fasten the screw to fix the clamp to the fixture
mounting
STEP 4
  • Installation complete

Installation-complete
