300.00€
Sku: PCIe-PoE334LP
Placa de Rede
Neousys

> Entrega Normal | 3 a 5 dias úteis

> Entrega Urgente | 1 a 2 dias úteis

*salvo ruptura de stock

ENVIOS RÁPIDOS

SUPORTE 24/7

PAGAMENTO ONLINE

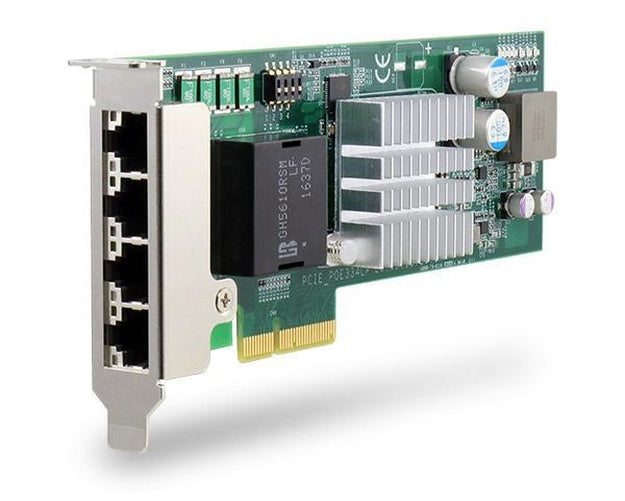

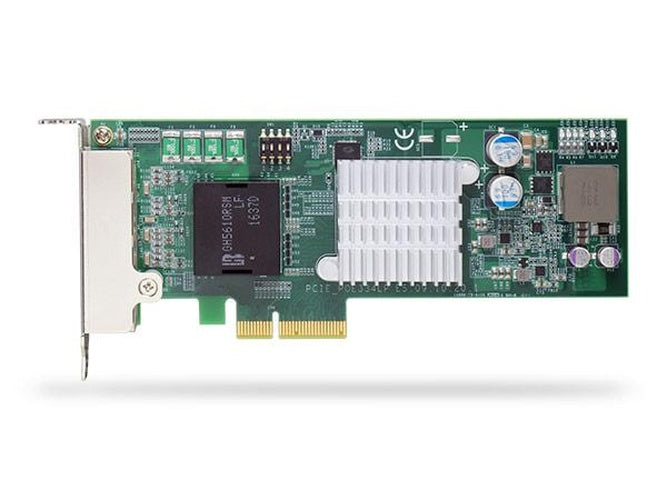

Low-profile 4-port server-grade gigabit mobile surveillance PoE+ NIC card with 1kV surge protection

  • Low-profile form-factor for installation in 2U server
  • 4x ports by Intel® I350-AM4 server-grade GigE controller
  • Compliant with IEEE 802.3at to deliver 25.5 W each port
  • IEC 6100-4-5 Class 2 surge immunity
  • Supports 9.5 kB jumbo frame, teaming and IEEE 1588
  • Per-port PoE+ power on/off control by software API
Caraterísticas

PCIe-PoE334LP is the latest member of Neousys’ well-acclaimed PoE NIC card family. It’s world’s first PoE card integrates 4-port, server-grade GigE controller and 802.3at PoE+ capability into a low-profile PCIe card. The low-profile form-factor makes PCIe-PoE334LP perfectly fit with commercial off-the-shelf 2U server computers.

PCIe-PoE334LP is designed with state-of-the-art Intel® I350-AM4 GigE controller to offer extraordinary Ethernet performance. It inherits Neousys’ proven PoE technology to power your machine vision cameras and mobile surveillance IP cameras. In addition, PCIe-PoE334LP features solid surge protection design compliant with IEC 61000-4-5 Class 2. It is capable of withstanding 1 kV surge and 8 kV ESD on signal lines. This is particularly valuable for outdoor surveillance system or factory automation equipment where power surge may happen and damage the system though the Ethernet connection.

Incorporating low-profile form-factor and robust surge protection, PCIe-PoE334LP defines a new category of PoE card - a small yet strong one for server computers and the tough world.

■ NEOUSYS MARKETING TEAM

Applications

Surveillance & security

PCIe-PoE334LP-surveillance

Medical imaging

PCIe-PoE334LP-medical-imaging

Machine vision & AOI

PCIe-PoE334LP-machine-vision

Field communication

PCIe-PoE334LP-field-communication
Especificações
PCIe-PoE334LP
Bus Interface x4, Gen2 PCI Express
Gigabit Ethernet Port 4x GigE ports by Intel® I350-AM4 controller,
supporting 9.5 kB jumbo frame, teaming and IEEE
1588
PoE Capability In compliant with IEEE 802.3at-2009 (PoE+), each port
delivers up to 25.5 W of power 75W total power
budget (due to power limitation of PCI Express bus)
Cable Requirement CAT-5e or CAT-6 cable, 100 meters maximal
Power Requirement Maximal 1.2 A @ 3.3 V from PCI Express bus
Maximal 6.2A @ 12 V from PCI Express bus
EMC CE Class A, according to EN 55022, EN55032 & EN 55024
FCC Class A, according to FCC Part 15, Subpart B
EMS IEC 61000-4-x Class/Level 2
Environmental
Operating Temperature 0°C ~ 55°C with air flow
Environmental
Dimension 167.7 mm (W) x 68.9 mm (H)
