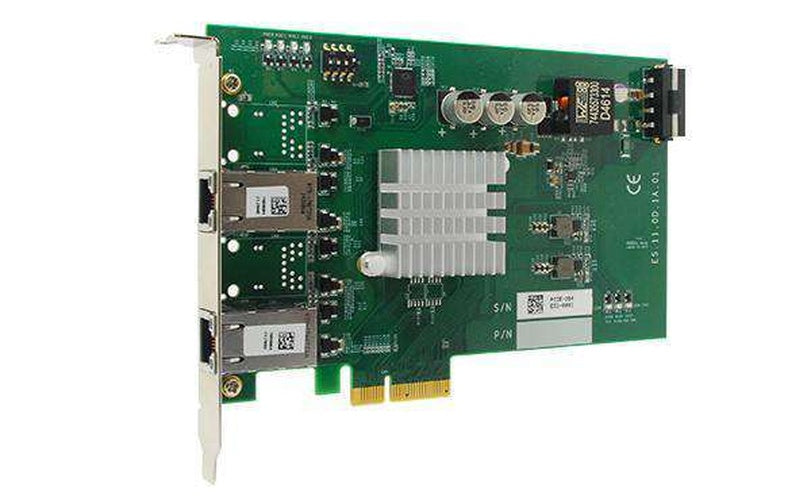

Placa de Rede Neousys PCIe-PoE352at (Intel I350-AM2 GbE PoE+)
Placa de Rede Neousys PCIe-PoE352at (Intel I350-AM2 GbE PoE+)

Placa de Rede Neousys PCIe-PoE352at (Intel I350-AM2 GbE PoE+)

  • Intel® I350 server-grade Gigabit
  • Gen2 PCI Express x4
  • 2x GigE Intel® I350-AM2
  • IEEE 802.3at até 25.5W p/ porta
  • Per-port PoE+ power on/off
com IVA
0.00€

sem IVA
0.00€
Sku: PCIe-PoE352at
Tipo de Produto: Placa de Rede
Fabricante: Neousys

2-port server-grade gigabit 802.3at PoE+ machine vision frame grabber card

  • x4, Gen2 PCI Express interface offering 2GB/s total bandwidth
  • Intel® I350 server-grade Gigabit Ethernet controller
  • Supports two independent GigE Ports
  • Compliant with IEEE 802.3at to deliver 25.5 W each port
  • Supports 9.5 kB jumbo frame, teaming and IEEE 1588
  • Per-port PoE+ power on/off control
Caraterísticas

PCIe-PoE352at is world’s first PoE frame grabber card combing server-grade GigE controller and 802.3at PoE+ capability. Inheriting Neousys' expertise on PoE technology, PCIe-PoE352at further implements the updated 802.3at-2009 standard and offers up to 25.5W of power each port.

PCIe-PoE352at is designed with state-of-the-art Intel® I350 Gigabit Ethernet controller. This server-grade GigE controller incorporates advanced features, such as checksum offloading, segmentation offloading and intelligent interrupt generation/moderation, to increase overall Ethernet performance and reduce CPU utilization. In addition, its single-bus, multi-port topology minimizes the compatibility issue with off-the-shelf motherboards when installing multiple cards.

Machine vision applications can be benefited by PCIe-PoE352at’s server-grade network performance. Its 25.5W PoE+ can now power PTZ (pan-tilt-zoom) cameras for surveillance applications. PCIe-PoE352at presents the best cost/performance ratio for your Power over Ethernet solution.

Aplicações

PCIE-POE-APP

Especificações

PCIe-PoE352at
Bus Interface x4, Gen2 PCI Express
Gigabit Ethernet Port 2x GigE ports by Intel® I350-AM2 controller,
supporting 9.5 kB jumbo frame, teaming and IEEE
1588
PoE Capability In compliant with IEEE 802.3at-2009 (PoE+), each port
delivers up to 25.5 W of power
Cable Requirement CAT-5e or CAT-6 cable, 100 meters maximal
Power Requirement Maximal 0.9 A @ 3.3 V from PCI Express bus
Maximal 4.8 A @ 12 V from PCI Express bus
Operating Temperature 0°C ~ 55°C with air flow
Dimension 167.7 mm (W) x 111.2 mm (H)

** PCIe-PoE352at is designed to obtained 12 VDC for PoE devices directly from PCI Express bus. No external 12 VDC is needed.

Downloads

Datasheet
