299.00€
Sku: PCIe-PoE354at
Placa de Rede
Neousys

> Entrega Normal | 3 a 5 dias úteis

> Entrega Urgente | 1 a 2 dias úteis

*salvo ruptura de stock

ENVIOS RÁPIDOS

SUPORTE 24/7

PAGAMENTO ONLINE

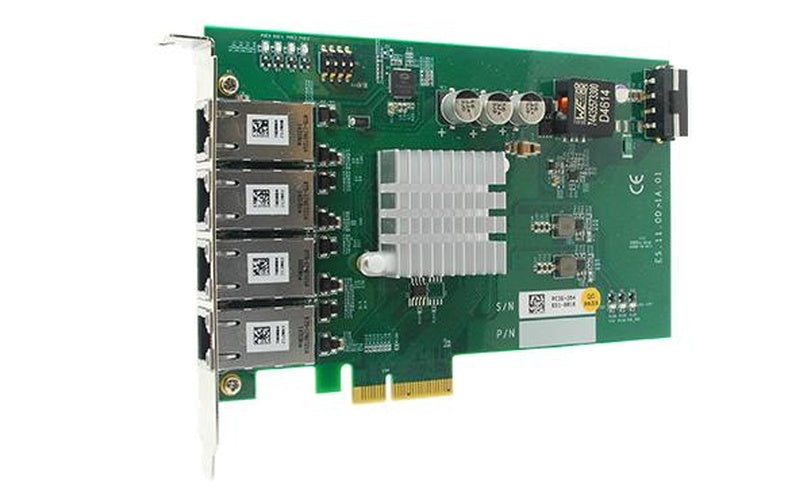

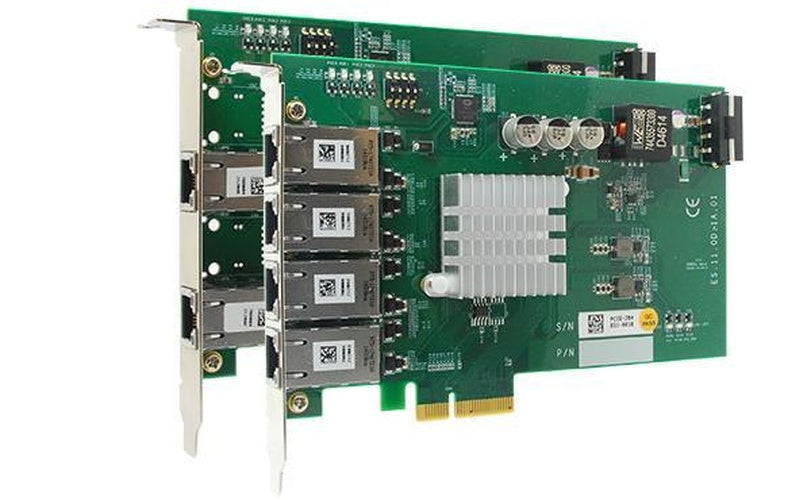

4-port server-grade gigabit 802.3at PoE+ machine vision frame grabber card

  • x4, Gen2 PCI Express interface offering 2GB/s total bandwidth
  • Intel® I350 server-grade Gigabit Ethernet controller
  • Supports four independent GigE Ports
  • Compliant with IEEE 802.3at to deliver 25.5 W each port
  • Supports 9.5 kB jumbo frame, teaming and IEEE 1588
  • Per-port PoE+ power on/off control
Caraterísticas

PCIe-PoE354at is world’s first PoE frame grabber card combing server-grade GigE controller and 802.3at PoE+ capability. Inheriting Neousys' expertise on PoE technology, PCIe-PoE354at further implements the updated 802.3at-2009 standard and offers up to 25.5W of power each port.

PCIe-PoE354at is designed with state-of-the-art Intel® I350 Gigabit Ethernet controller. This server-grade GigE controller incorporates advanced features, such as checksum offloading, segmentation offloading and intelligent interrupt generation/moderation, to increase overall Ethernet performance and reduce CPU utilization. In addition, its single-bus, multi-port topology minimizes the compatibility issue with off-the-shelf motherboards when installing multiple cards.

Machine vision applications can be benefited by PCIe-PoE354at’s server-grade network performance. Its 25.5W PoE+ can now power PTZ (pan-tilt-zoom) cameras for surveillance applications. PCIe-PoE354at presents the best cost/performance ratio for your Power over Ethernet solution.

Aplicações

PCIE-POE-APP

Especificações

PCIe-PoE354at
Bus Interface x4, Gen2 PCI Express
Gigabit Ethernet Port 4x GigE ports by Intel® I350-AM4 controller,
supporting 9.5 kB jumbo frame, teaming and IEEE
1588
PoE Capability In compliant with IEEE 802.3at-2009 (PoE+), each port
delivers up to 25.5 W of power
Cable Requirement CAT-5e or CAT-6 cable, 100 meters maximal
Power Requirement Maximal 1.2 A @ 3.3 V from PCI Express bus
Maximal 9.6 A @ 12 V from PCI Express bus
or on-board 4-pin power connector
Operating Temperature 0°C ~ 55°C with air flow
Dimension 167.7 mm (W) x 111.2 mm (H)

* PCIe-PoE354at is designed to obtain 12 VDC for PoE devices from either PCI Express bus or on-board 4-pin power connector according to a user-configurable jumper.
