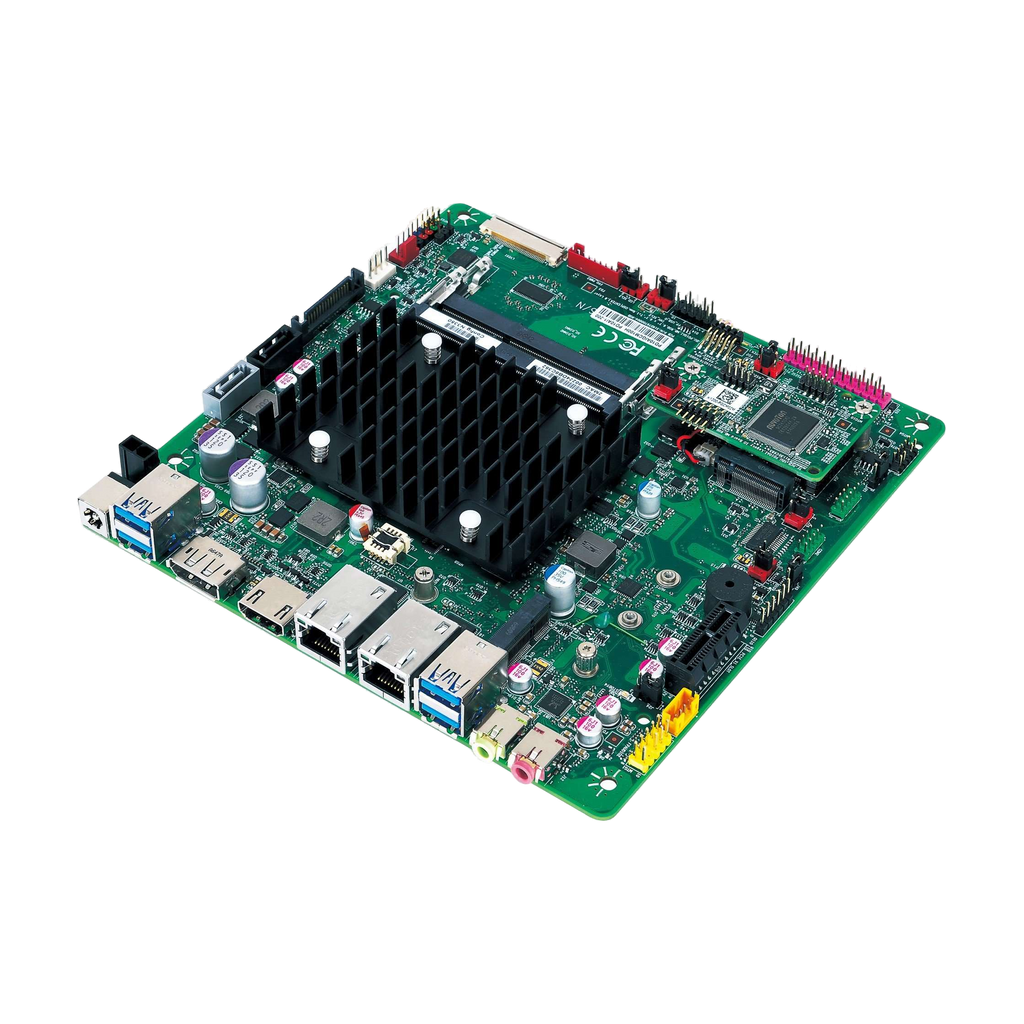

PD10AI-N4200 | ||
|---|---|---|
| MECHANICAL | FORM FACTOR | Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm) |
| SYSTEM | PROCESSOR | Intel® Apollo Lake-M N4200 Processor |
| CHIPSET | Intel® SoC Integrated | |
| SYSTEM MEMORY | DDR3L 1866 MHz / 2 x 204-pin SO-DIMM / Max. 8GB (Non-ECC) | |
| GRAPHICS | Intel® HD Graphics | |
| ETHERNET | 2 x Intel® I211-AT Giga LAN | |
| AUDIO | Realtek® ALC283 | |
| I/O CHIPSET | Nuvoton NCT6793D | |
| TPM | Nuvoton NPCT650AAAWX TPM2.0 (Optional) | |
| EXPANSION SLOT | PCIe 2.0 X1 slot / M.2 2280 / 2260 / 2242 B key (USB, SATA) / M.2 2230 E key (PCIe, USB 2.0) | |
| BIOS | AMI BIOS | |
| H/W MONITOR | Temperature Monitor / Voltage Monitor / Fan Monitor | |
| WATCHDOG TIMER | 1~255 steps by software program | |
| SMART FAN CONTROL | CPU Fan / System Fan | |
| GRAPHICS | VGA | - |
| DVI | - | |
| HDMI | Up to 4K (3840 x 2160) @30 Hz | |
| DISPLAYPORT | Up to 4K (4096 x 2160) @60 Hz | |
| LVDS | Up to 1920 x 1200 @60 Hz | |
| eDP (Option) | Up to 4K (3840 x 2160) @60 Hz | |

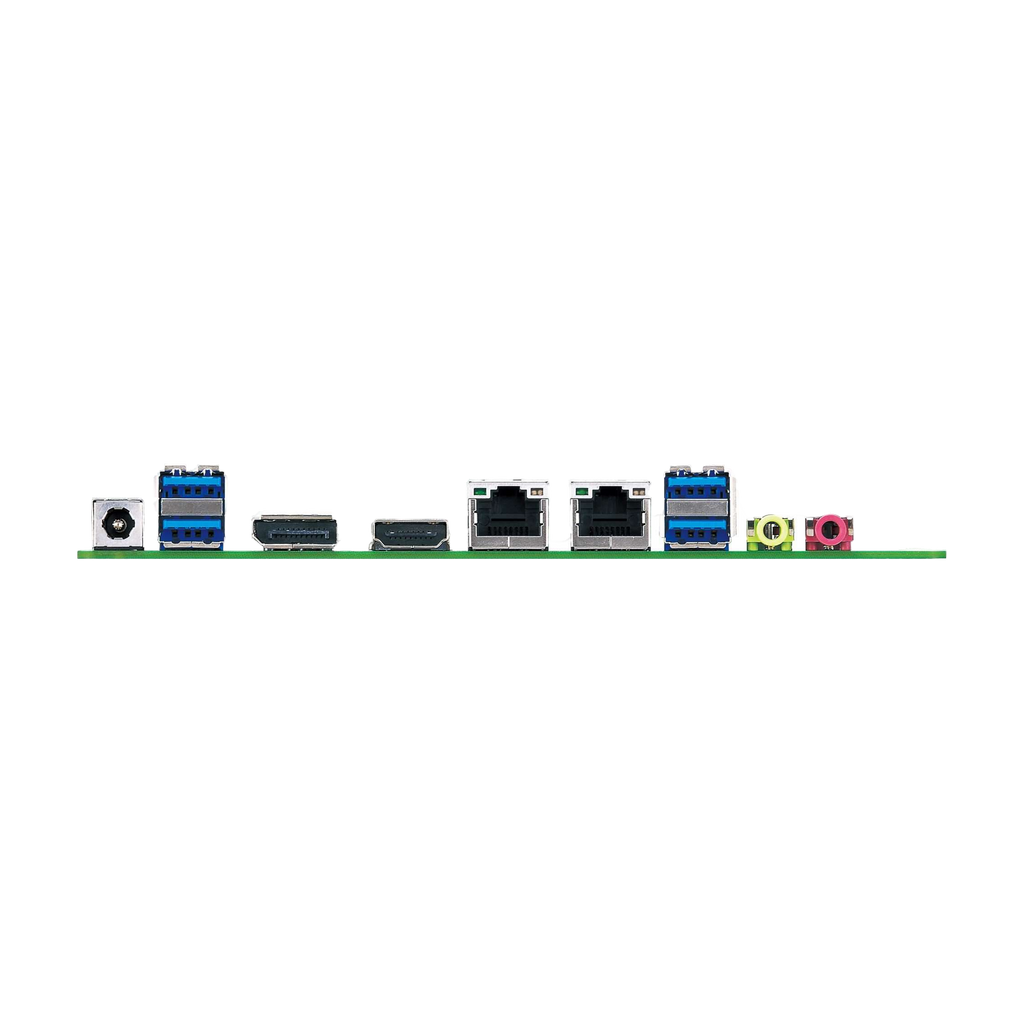

| REAR I/O | USB | 4 x USB 3.0 |
| DISPLAY I/O | 1 x HDMI 1.4 / 1 x DisplayPort 1.2 | |
| AUDIO I/O | 1 x Mic-in / 1 x Line-out | |
| LAN I/O | 2 x RJ-45 | |
| SERIAL PORT | - | |
| PS/2 PORT | - | |
| OTHERS | DC-in Jack 8-24V (2.5 mm / ID, 5.5 mm / OD) | |
| INTERNAL CONNECTORS | STORAGE | 2 x SATAIII (1 x SATA is multiplexed with M.2 port) |
| USB | 2 x USB 2.0 | |
| DISPLAY I/O | 1 x Backlight Connector / 1 x LVDS / 1 x eDP | |
| AUDIO I/O | 1 x Stereo Speaker Header / 1 x Audio Header (Front Panel Mic-in & Line-out) | |
| SERIAL PORT | 2 x RS232 | |
| PARALLEL PORT | 1 x Parallel Port Header (Default); Option change to MiAPI Header | |
| GPIO | - | |
| FAN | 1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header | |
| POWER | 1 x AT / ATX Mode Select Jumper / 1 x 2-pin Power Connector | |
| OTHERS | 1 x CMOS Jumper / MiAPI: Programmable header (support 10 x GPIO, 1 x SMBUS, 1 x UART, 1 x Watchdog) with API library supported for Windows OS / 1 x Legacy I/O Board Header (Optional Legacy I/O Board for extra 2 x RS232 and 2 x RS232 / 422 / 485 expansion) | |
| POWER REQUIREMENT | POWER INPUT | DC-in 8~24V / 2-pin Internal Power Connector + DC Jack |
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 60°C (32 ~140°F) |
| STORAGE TEMPERATURE | -20 ~ 80°C (-4 ~176°F) | |
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | |
| CERTIFICATION | CE / FCC Class B | |
| OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) |
| PACKING LIST | PACKAGE | 1 x Motherboard / 1 x 50 cm SATA Cable / 1 x 45 cm SATA Power Cable / 2 x I/O Bracket (Half and Full Height) / 1 x Driver CD / 1 x Quick Installation Guide |
