6X longer lifespan
Ordering Information | ||||||||||
| Model | Chipset | PCIe x16 / PCIe x8 / PCI | M.2 2280 / M.2 2230 | LAN | SATA | DP / HDMI / DVI-D / DIV-I | eDP | USB 3.1 / 2.0 | COM Port | Power |
|---|---|---|---|---|---|---|---|---|---|---|
| PH10CMU-H420E | H420E | 1/0/0 | 1/1 | 2 | 4 | 1/1/1/0 | 0 | 5/4 | 3 | ATX Power (24-pin + 4-pin) |
| PH10CMU-Q470 | Q470E | 1/1/0 | 1/1 | 2 | 6 | 1/1/1/0 | 0 | 6/4 | 3 | ATX Power (24-pin + 4-pin) |
| PH10CMU-Q470-3LAN | Q470E | 1/1/1 | 1/1 | 3 | 6 | 1/1/0/1 | 1 | 6/4 | 4 | ATX Power (24-pin + 4-pin) |
| PH10CMU-W480-3LAN | W480E | 1/1/1 | 1/1 | 3 | 6 | 1/1/0/1 | 1 | 6/4 | 4 | ATX Power (24-pin + 4-pin) |

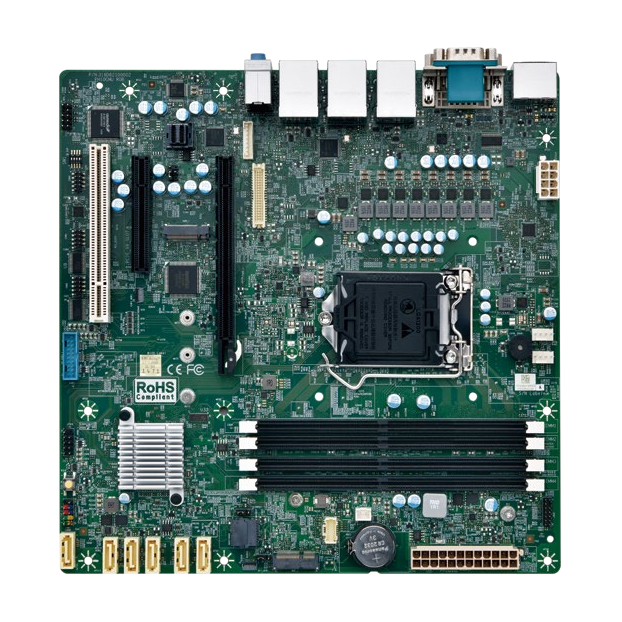

| PH10CMU (PH10CMU) Specifications | |||
|---|---|---|---|
| MECHANICAL | FORM FACTOR | Micro-ATX: 9.6” x 9.6” (244 mm x 244 mm) | |
| SYSTEM | PROCESSOR | 10th Gen Intel® Comet Lake LGA1200 Socket Processor, Core i9/i7/i5/i3 up to 10-core TDP Max. 125W | |
| CHIPSET | Intel® Q470E / W480E (Support RAID 0 / 1 / 5 / 10) | ||
| SYSTEM MEMORY | DDR4 2933MHz / Max. 64 GB (Non-ECC: H420E/Q470E, ECC: W480E) / 4 x 288-pin U-DIMM | ||
| GRAPHICS | Intel® HD Graphics | ||
| ETHERNET | Intel® I219-LM Giga LAN + 2 x Intel® I210-AT Giga LAN | ||
| AUDIO | Realtek® ALC662 / ALC888 | ||
| I/O CHIPSET | Nuvoton NCT6126D(eSPI) | ||
| TPM | TPM Header / (support optional TPM module board NPCT750) | ||
| BIOS | 256 Mbit SPI | ||
| EXPANSION SLOT 1 | PCIe 3.0 X16 slot / PCIe x16 support 3 options of PCIe switch: / #1: 1 x PCIe X16, #2: 2 x PCIe X8, #3: 1 x PCIe X8 + 2 x PCIe X4 |
||
| EXPANSION SLOT 2 | PCIe 2.0 X8 slot (X4 Lanes) / PCIe x4 lanes is switched with M.2 2242/2260/2280 slot |
||
| EXPANSION SLOT 3 | PCI slot | ||
| EXPANSION SLOT 4 | M.2 2242 / 2260 / 2280 M key (PCIe x4 ,SATA) / M.2 2280 for H420E support SATA only |
||
| EXPANSION SLOT 5 | M.2 2230 E key (PCIe x1, USB2.0, CNVi) | ||
| H/W MONITOR | Temperature Monitor / Voltage Monitor / Fan Monitor | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| SMART FAN CONTROL | CPU Fan / System Fan | ||
| GRAPHICS | VGA | - | |
| DVI | Up to 1920 x 1200 @60 Hz | ||
| HDMI | Up to 4K (4096 x 2160) @30 Hz | ||
| DISPLAYPORT | Up to 4K (4096 x 2304) @60 Hz | ||
| LVDS | - | ||
| eDP (Option) | Up to 4K (4096 x 2304) @60 Hz | ||

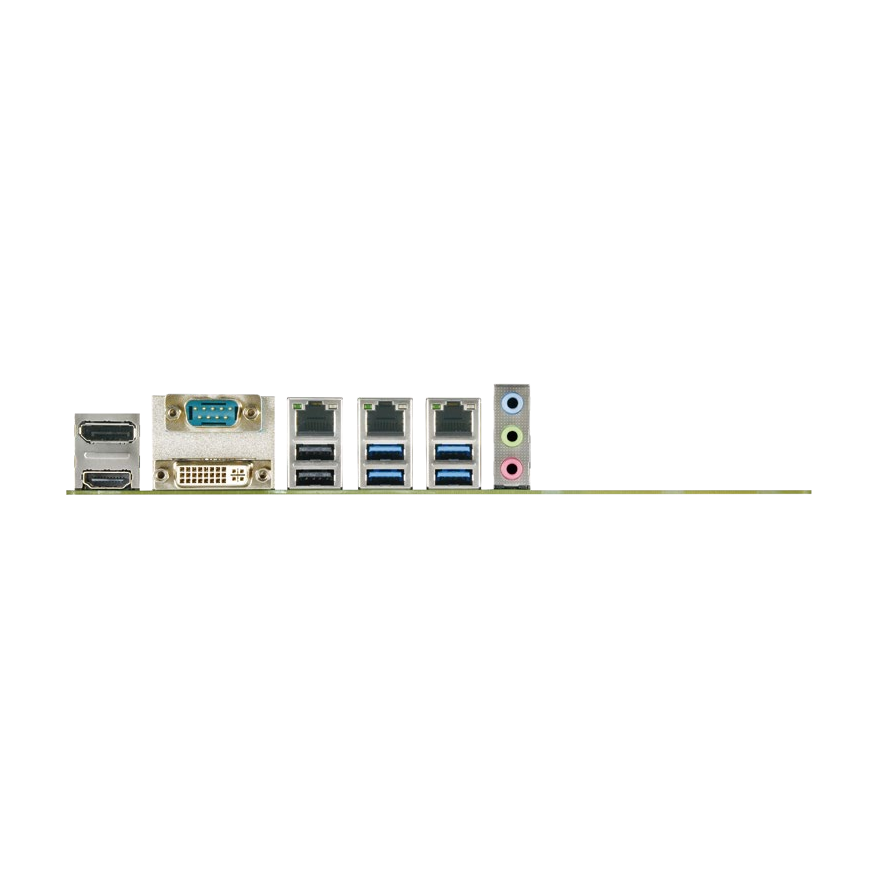

| REAR I/O | USB | 2 x USB 2.0 / 4 x USB 3.1 Gen1 (Q470E / W480E) / 3 x USB 3.1 Gen1 (H420E) | |
| DISPLAY I/O | 1 x HDMI 1.4 / 1 x DisplayPort 1.2 / 1 x DVI-I | ||
| AUDIO I/O | 1 x 3-stack Audio Jack (Mic-in, Line-in, and Line-out) | ||
| LAN I/O | 3 x RJ-45 (1 x Optional) | ||
| SERIAL PORT | 1 x RS232 | ||
| PS/2 PORT | - | ||
| OTHERS | - | ||
| INTERNAL CONNECTORS | STORAGE | 6 x SATAIII (Q470E / W480E) / 4 x SATAIII (H420E) | |
| USB | 2 x USB 3.1 / 2 x USB 2.0 | ||
| DISPLAY I/O | 1 x Backlight Connector / 1 x eDP | ||
| AUDIO I/O | - | ||
| SERIAL PORT | 2 x RS232 / 1 x RS232 / 422 / 485 | ||
| PS/2 PORT | - | ||
| PARALLEL PORT | - | ||
| GPIO | 1 x MiAPI Header (Programmable. Support 10-bit GPIO) | ||
| FAN | 1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header | ||
| POWER | 1 x 8-pin ATX Power Connector / 1 x 24-pin ATX Power Connector / 1 x AT / ATX Mode Select Jumper | ||
| POWER REQUIREMENT | POWER INPUT | ATX 8-pin + ATX 24-pin | |
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 60°C (32 ~140°F) | |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | ||
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | ||
| CERTIFICATION | CE / *Class B by request for customization SKU / FCC Class A | ||
| OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) | |
| PACKING LIST | PACKAGE | 1 x Motherboard / 1 x 50 cm SATA Cable / 1 x I/O Bracket | |
