PH10LU |
||
|---|---|---|
| MECHANICAL | FORM FACTOR | Micro-ATX: 9.6” x 9.6” (244 mm x 244 mm) |
| SYSTEM | PROCESSOR | 4th Gen Intel® Haswell LGA1150 Socket Processor, TDP Max. 95W |
| CHIPSET | Intel® Q87 (Support RAID 0 / 1 / 5 / 10) | |
| SYSTEM MEMORY | DDR3 1600 MHz / 4 x 240-pin U-DIMM / Max. 32GB (Non-ECC) | |
| GRAPHICS | Intel® HD Graphics | |
| ETHERNET | 2 x Realtek® RTL8111G Giga LAN | |
| I/O CHIPSET | Nuvoton NCT6104D | |
| AUDIO | Realtek® ALC662 / AL888 | |
| TPM | Nuvoton NPCT420AA0WX (Optional) | |
| EXPANSION SLOT | PCIe 3.0 X16 slot / PCIe 2.0 X4 slot / PCIe 2.0 X1 slot | |
| BIOS | 64 Mbit SPI / AMI BIOS | |
| H/W MONITOR | Temperature Monitor / Voltage Monitor / Fan Monitor | |
| WATCHDOG TIMER | - | |
| SMART FAN CONTROL | CPU Fan / System Fan | |
| GRAPHICS | VGA | - |
| DVI | Up to 1920 x 1200 @60 Hz | |
| HDMI | - | |
| DISPLAYPORT | Up to 2560 x 1600 @60 Hz | |
| LVDS | - | |
| eDP (Option) | - | |

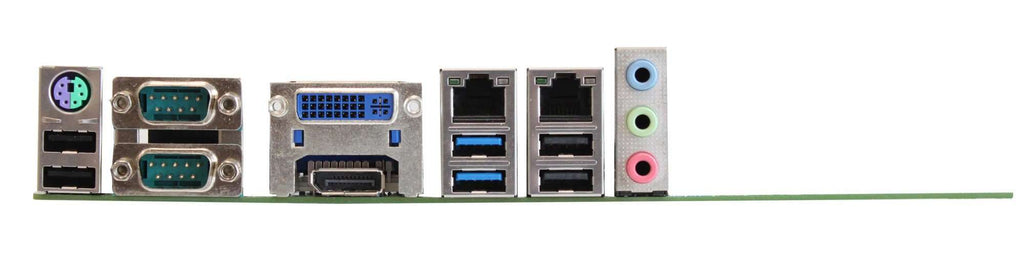

| REAR I/O | USB | 2 x USB 3.0 / 4 x USB 2.0 |
| DISPLAY I/O | 1 x DisplayPort 1.2 / 1 x DVI-I | |
| AUDIO I/O | ||
| LAN I/O | 2 x RJ-45 | |
| SERIAL PORT | 2 x RS232 | |
| PS/2 PORT | 1 x PS/2 (MS / KB Combo) | |
| OTHERS | - | |
| INTERNAL CONNECTORS | STORAGE | 6 x SATAIII |
| USB | 2 x USB3.0 / 4 x USB 2.0 | |
| DISPLAY I/O | - | |
| AUDIO I/O | 1 x Audio Header (Front Panel Mic-in & Line-out) / 1 x S/PDIF Out Audio Header (4-pin) | |
| SERIAL PORT | 2 x RS232 | |
| PARALLEL PORT | 1 x Parallel Port Header | |
| GPIO | - | |
| FAN | 1 x 4-pin CPU Fan Header / 2 x 4-pin System Fan Header | |
| POWER | 1 x 24-pin ATX Power Connector / 1 x 4-pin ATX Power Connector | |
| OTHERS | 1 x CMOS Jumper / 1 x Chassis Front Panel Header (2 x 5-pin) | |
| POWER REQUIREMENT | POWER INPUT | ATX 24-pin + 4-pin |
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 60°C (32 ~140°F) |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | |
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | |
| CERTIFICATION | CE / FCC Class B / UL | |
| OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) |
| PACKING LIST | PACKAGE | 1 x Motherboard / 1 x 50 cm SATA Cable / 1 x Driver CD / 1 x Quick Installation Guide / 1 x I/O Bracket |
