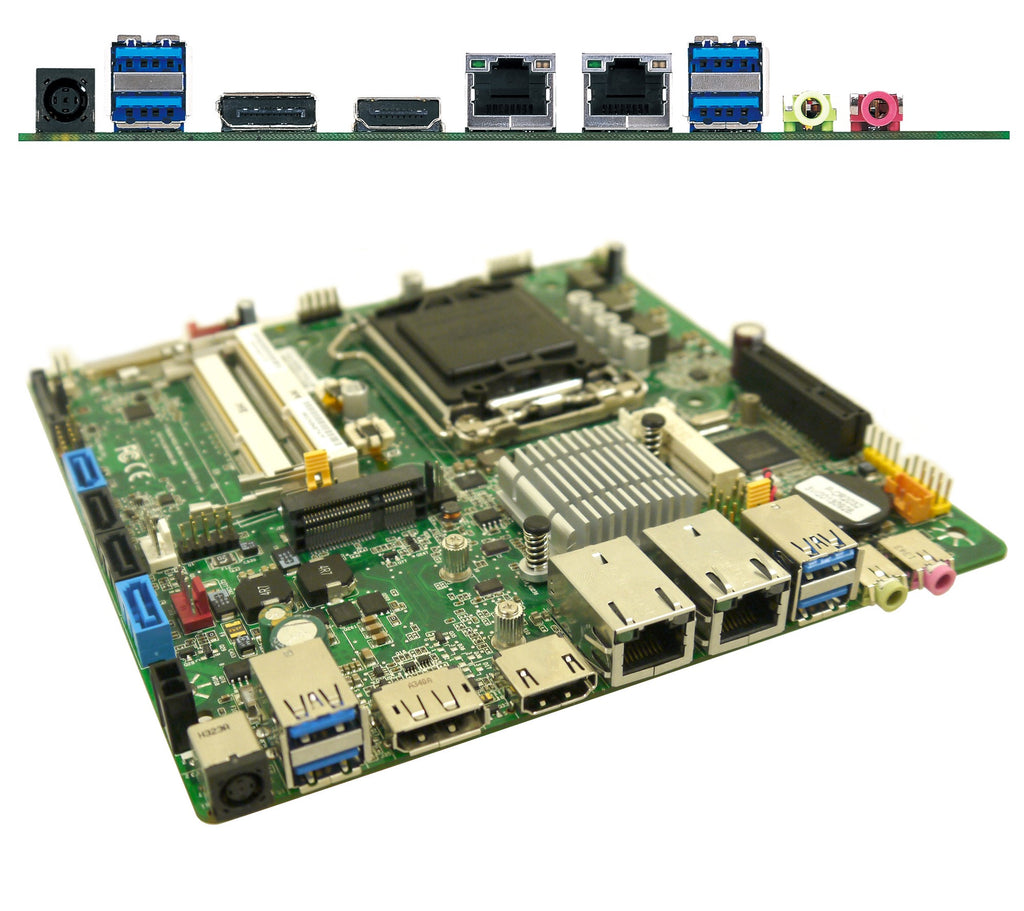

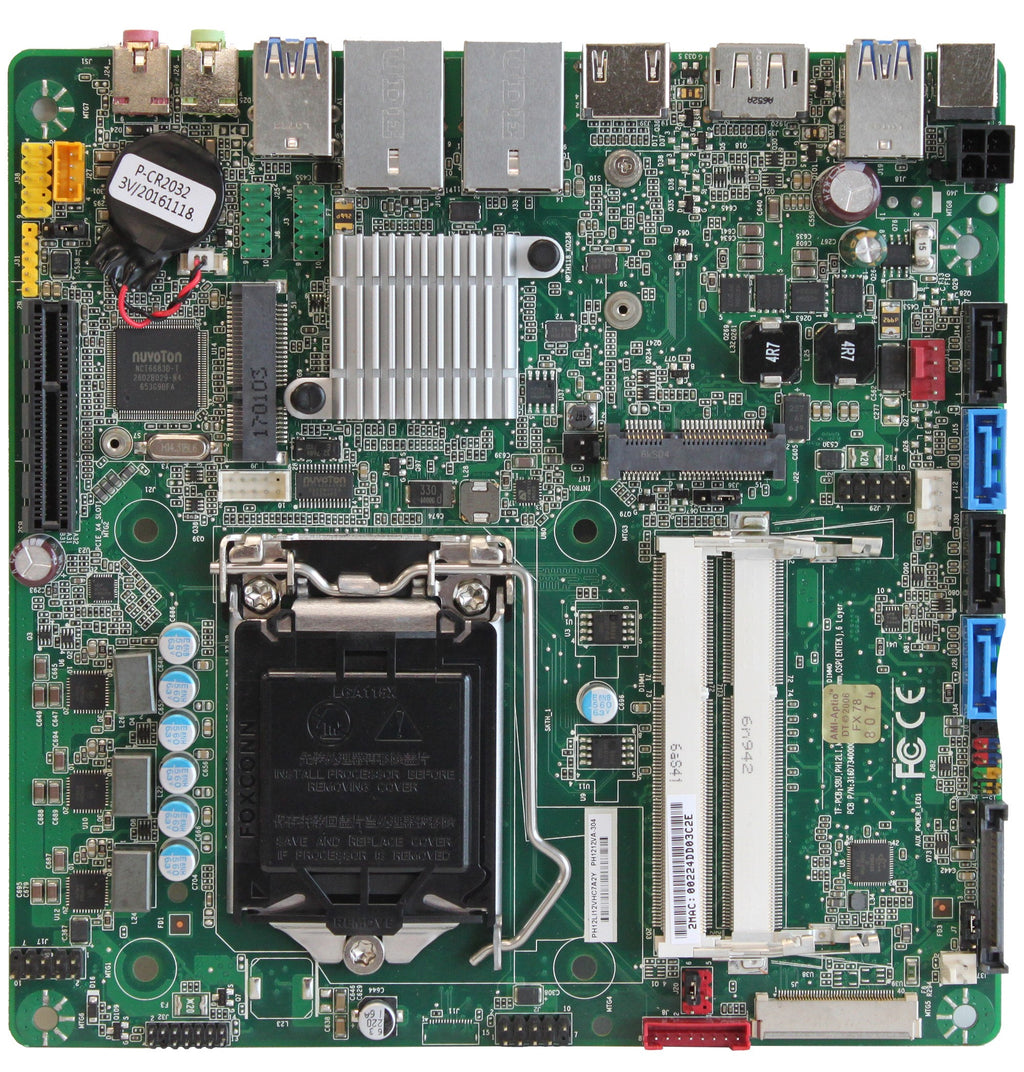

PH12LI | |||
|---|---|---|---|
| MECHANICAL | FORM FACTOR | Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm) | |
| SYSTEM | PROCESSOR | 4th Gen Intel® Haswell LGA1150 Socket Processor, TDP Max. 65W | |
| CHIPSET | Intel® Q87 (Support RAID 0 / 1 / 5 / 10) | ||
| SYSTEM MEMORY | DDR3 1333MHz / 2 x 204-pin SO-DIMM / Max. 16GB (Non-ECC) | ||
| GRAPHICS | Intel® HD Graphics | ||
| ETHERNET | Intel® I217-LM Giga LAN + Intel® I210-AT Giga LAN | ||
| AUDIO | Realtek® ALC888 | ||
| I/O CHIPSET | Nuvoton NCT6683D | ||
| TPM | Nuvoton NPCT420AA0WX (Optional) | ||
| EXPANSION SLOT | PCIe 3.0 X4 slot / Mini PCIe Half size (PCIe / USB) / Mini PCIe Full / Half size (PCIe / USB / SATA) | ||
| BIOS | AMI BIOS / 128 Mbit SPI | ||
| H/W MONITOR | Temperature Monitor / Voltage Monitor / Fan Monitor | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| SMART FAN CONTROL | CPU Fan / System Fan | ||
| GRAPHICS | VGA | - | |
| DVI | - | ||
| HDMI | Up to 4K (4096 x 2160) @24 Hz | ||
| DISPLAYPORT | Up to 4K (4096 x 2304) @60 Hz | ||
| LVDS | Up to 1920 x 1200 @60 Hz | ||
| eDP (Option) | Up to 4K (4096 x 2304) @60 Hz | ||
| REAR I/O | USB | 4 x USB 3.0 | |
| DISPLAY I/O | 1 x HDMI 1.4 / 1 x DisplayPort 1.2 | ||
| AUDIO I/O | 1 x Mic-in / 1 x Line-out | ||
| LAN I/O | 2 x RJ-45 | ||
| SERIAL PORT | - | ||
| PS/2 PORT | - | ||
| OTHERS | 1 x DC Jack | ||
| INTERNAL CONNECTORS | STORAGE | 4 x SATAIII | |
| USB | 3 x USB 2.0 | ||
| DISPLAY I/O | 1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector | ||
| AUDIO I/O | 1 x Audio Header (Front Panel Mic-in & Line-out) | ||
| SERIAL PORT | 2 x RS232 | ||
| PARALLEL PORT | - | ||
| GPIO | - | ||
| FAN | 1 x 4-pin CPU Fan Header | ||
| POWER | 1 x ATX Power Connector / 1 x AT / ATX Mode Select Jumper | ||
| OTHERS | 1 x CMOS Jumper | ||
| POWER REQUIREMENT | POWER INPUT | DC-in 19V (5.1 mm / ID, 7.4 mm / OD) / ATX 2-pin 19V / DC-in 12V (2.5 mm / ID, 5.5 mm / OD) / ATX 4-pin 12V | |
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 60°C (32 ~140°F) | |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | ||
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | ||
| CERTIFICATION | CE / FCC Class B | ||
| OS | OS SUPPORT | Windows® 7 32 / 64bit, Windows® 10 64bit, Linux (support by request) | |
| PACKING LIST | PACKAGE | 1 x Motherboard / 2 x I/O Bracket (Half and Full Height) / 1 x Driver CD / 1 x Quick Installation Guide / 1 x 45 cm SATA Cable / 1 x 50 cm SATA&ODD Y Power Cable | |
