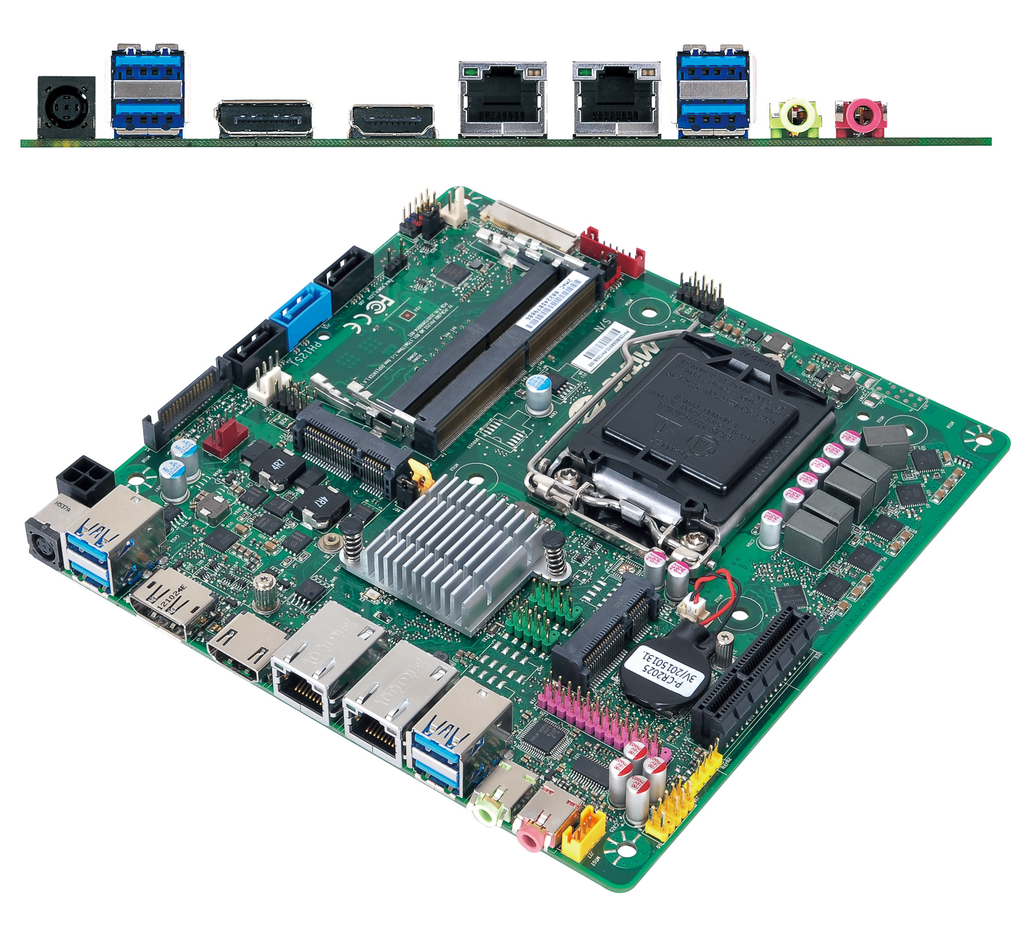

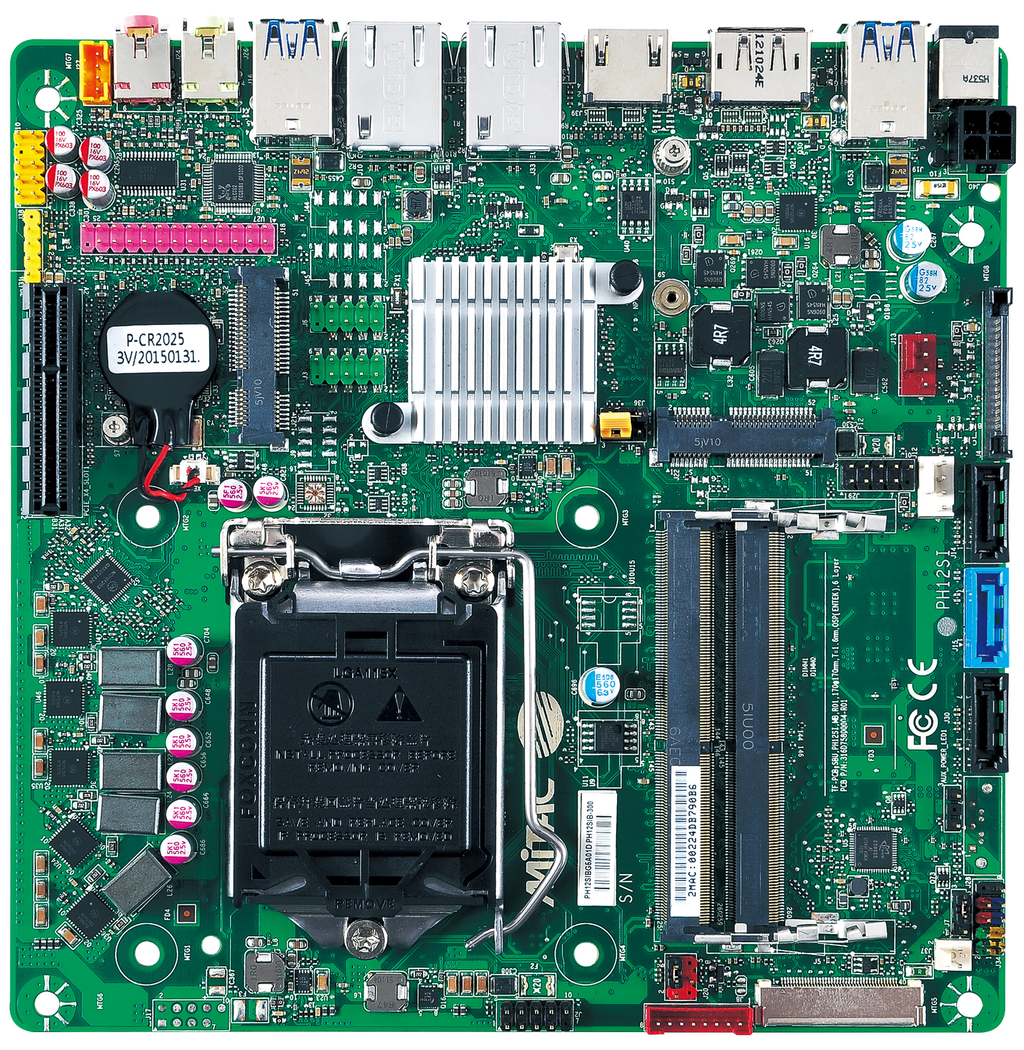

Board PH12SI Thin Mini-ITX

  • Processador Skylake/Kaby Lake Core i7/i5/i3/Pentium/Celeron LGA1151

  • Intel H110 / Q170 Chipset

  • Intel vPro technology support (Q170)

  • 2 memórias DDR4 SO-DIMM até 32GB

  • Suporta tripla exibição independente: HDMI, DisplayPort e LVDS/eDP

  • 1 slot PCIe x4 (Gen 3) e slot mini PCIe

  • 4 x SATA III com RAID 0,1,5, 10

  • 2 x Intel®Gigabit Ethernet

  • 6 x USB 2.0, 4 x USB3.0, 4 x COM e 1 x MiAPI (digital I/O)

  • DC-in 12/19V

Caraterísticas

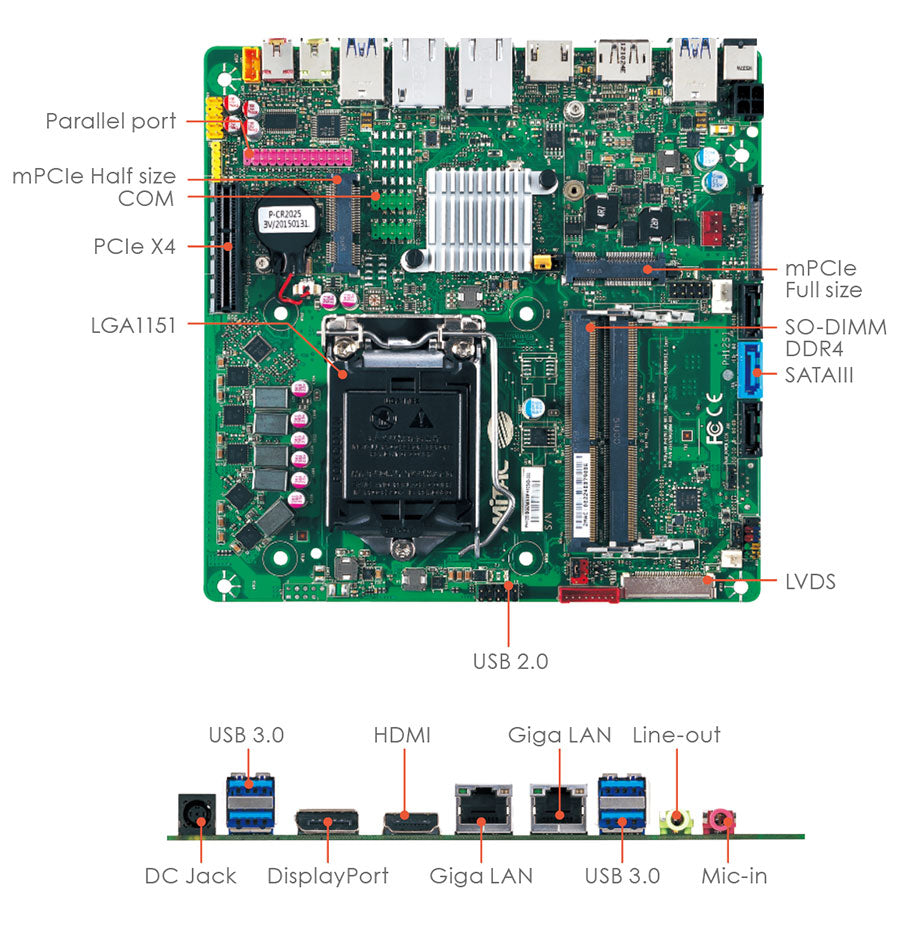

PH12SI-overview
Especificações

PH12SI

MECHANICAL   FORM FACTOR Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm)
SYSTEM   PROCESSOR 7 / 6th Gen Intel® Kaby Lake / Skylake LGA1151 Socket Processor, TDP Max. 65W
  CHIPSET Intel® Q170 (Support RAID 0 / 1 / 5 / 10)
  SYSTEM MEMORY DDR4 1866 / 2133MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
  GRAPHICS Intel® HD Graphics
  ETHERNET Intel® I219-LM Giga LAN + Intel® I210-AT Giga LAN
  AUDIO Realtek® ALC662
  I/O CHIPSET Nuvoton NCT6104D
  TPM Nuvoton NPCT650AAAYX TPM2.0 (Optional)
  EXPANSION SLOT Mini PCIe Half size (PCIe / USB) / Mini PCIe Full / Half size (PCIe / USB / SATA)
  BIOS 128 Mbit SPI
  H/W MONITOR Temperature Monitor / Voltage Monitor / Fan Monitor
  WATCHDOG TIMER 1~255 steps by software program
  SMART FAN CONTROL CPU Fan / System Fan
GRAPHICS   VGA -
  DVI -
  HDMI Up to 4K (3840 x 2160) @30 Hz
  DISPLAYPORT Up to 4K (4096 x 2304) @60 Hz
  LVDS Up to 1920 x 1200 @60 Hz
  eDP (Option) Up to 4K (4096 x 2304) @60 Hz
REAR I/O   USB 4 x USB 3.0
  DISPLAY I/O 1 x HDMI 1.4 / 1 x DisplayPort 1.2
  AUDIO I/O 1 x Mic-in / 1 x Line-out
  LAN I/O 2 x RJ-45
  SERIAL PORT -
  PS/2 PORT -
  OTHERS 1 x DC Jack
INTERNAL CONNECTORS   STORAGE 4 x SATAIII (Q170)
  USB 6 x USB 2.0 (Q170)
  DISPLAY I/O 1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector
  AUDIO I/O 1 x Line-out
  SERIAL PORT 4 x RS232
  PS/2 PORT -
  PARALLEL PORT 1 x Parallel Port Header
  GPIO 1 x MiAPI Header (Programmable. Support 10-bit GPIO)
  FAN 1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
  POWER 1 x ATX Power Connector / 1 x AT / ATX Mode Select Jumper
  OTHERS 1 x CMOS Jumper / 1 x Front Audio Header (Mic-in & Line-out)
POWER REQUIREMENT   POWER INPUT DC-in 19V (5.1 mm / ID, 7.4 mm / OD) / ATX 2-pin 19V / DC-in 12V (2.5 mm / ID, 5.5 mm / OD) / ATX 4-pin 12V
ENVIRONMENTAL   OPERATING TEMPERATURE 0 ~ 60°C (32 ~140°F)
  STORAGE TEMPERATURE -20 ~ 70°C (-4 ~158°F)
  OPERATING HUMIDITY 10% ~ 95% R/H (Non-condensing)
  CERTIFICATION CE / FCC Class B
OS   OS SUPPORT Kaby Lake: Windows® 10 64bit, Linux (support by request) / Skylake: Windows® 7 32 / 64bit, Windows® 10 64bit, Linux (support by request)
PACKING LIST   PACKAGE 1 x Motherboard / 2 x I/O Bracket (Half and Full Height) / 1 x Driver CD / 1 x Quick Installation Guide / 1 x 45 cm SATA Cable / 1 x 50 cm SATA&ODD Y Power Cable
