6X longer lifespan
Ordering Information | |||||||||||
| Model | Chipset | DP | HDMI | LVDS / eDP | USB 3.2 / 2.0 | Mic-in / Line-out / Line-in | RS-232 | LAN | M.2 2230 E key / M.2 2280 M key / mPCIE | PCIe x16 | Power |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PH13CMI-H420E-12V | Intel H420E | 1 | 1 | 1 / 0 | 5 / 6 | 1 / 1 / 1 | 2 | 2 | 1 / 1 / 1 | 1 | DC-in 12V |
| PH13CMI-Q470-12V | Intel Q470E | 1 | 1 | 1 / 0 | 5 / 6 | 1 / 1 / 1 | 2 | 2 | 1 / 1 / 1 | 1 | DC-in 12V |
| PH13CMI-Q470-ATX | Intel Q470E | 1 | 1 | 1 / 0 | 5 / 6 | 1 / 1 / 1 | 2 | 2 | 1 / 1 / 1 | 1 | ATX |
| PH13CMI-H420E-ATX | Intel H420E | 1 | 1 | 1 / 0 | 5 / 6 | 1 / 1 / 1 | 2 | 2 | 1 / 1 / 1 | 1 | ATX |
| PH13CMI (PH13CMI) Specifications | |||
|---|---|---|---|
| MECHANICAL | FORM FACTOR | Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm) | |
| SYSTEM | PROCESSOR | 10th Gen Intel® Comet Lake LGA1200 Socket Processor / 10core TDP Max 35W / 8ccore TDP 65W / (ATX support 6core 95W) | |
| CHIPSET | Intel® Q470E (Support RAID 0 / 1 / 5, VPro) / colay H420E | ||
| SYSTEM MEMORY | DDR4 2933/2666/2400MHz / 2 x 260-pin SO-DIMM / Max. 64 GB (Non-ECC) | ||
| GRAPHICS | Intel® HD Graphics | ||
| ETHERNET | Intel® I219-LM Giga LAN + Intel® I210-AT Giga LAN | ||
| AUDIO | Realtek® ALC662 / ALC888 | ||
| I/O CHIPSET | Nuvoton NCT6126D(eSPI) | ||
| TPM | Nuvoton NPCT750AAAYX TPM2.0 (Optional) | ||
| EXPANSION SLOT | 1 x M.2 2230 E key(PCIe / USB) / PCIe 3.0 X16 slot / M.2 2242 / 2280 M key (PCIe, SATA) / Mini PCIe Full size (PCIe / USB / SATA) | ||
| BIOS | AMI BIOS / 256 Mbit SPI | ||
| H/W MONITOR | Temperature Monitor / Voltage Monitor / Fan Monitor | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| SMART FAN CONTROL | CPU Fan / System Fan | ||
| GRAPHICS | 2nd DISPLAYPORT | - | |
| VGA | - | ||
| DVI | - | ||
| HDMI | Up to 4K (4096 x 2160) @30 Hz | ||
| DISPLAYPORT | Up to 4K (4096 x 2304) @60 Hz | ||
| LVDS | Up to 1920 x 1200 @60 Hz | ||
| eDP (Option) | Up to 4K (4096 x 2304) @60 Hz | ||

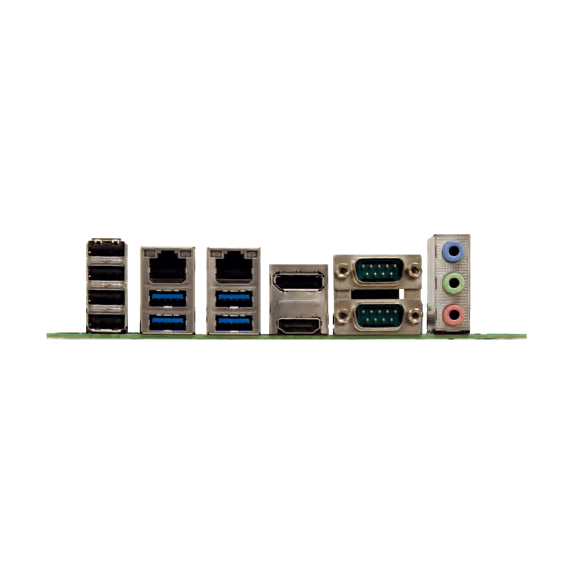

| REAR I/O | USB | 4 x USB 2.0 / 4 x USB 3.2 Gen 2 (Q470E) | |
| DISPLAY I/O | 1 x HDMI 1.4 / 1 x DisplayPort 1.2 | ||
| AUDIO I/O | 1 x Mic-in / 1 x Line-out / 1 x Line-in | ||
| LAN I/O | 2 x RJ-45 | ||
| SERIAL PORT | 2 x RS232 (one support RS422,/485) | ||
| PS/2 PORT | - | ||
| OTHERS | - | ||
| INTERNAL CONNECTORS | STORAGE | 2 x SATAIII | |
| USB | 1 x USB 3.0 / 2 x USB 2.0 | ||
| DISPLAY I/O | 1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector | ||
| AUDIO I/O | - | ||
| SERIAL PORT | - | ||
| PARALLEL PORT | - | ||
| GPIO | 1 x MiAPI Header (Programmable. Support 10-bit GPIO) | ||
| FAN | 1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header | ||
| POWER | 1 x ATX Power Connector / 1 x AT / ATX Mode Select Jumper / ATX 12V Power Connector (24-pin + 4-pin) | ||
| OTHERS | 1 x CMOS Jumper / 1 x Front Audio Header (Mic-in & Line-out) / 1 x panel power select header / 1x buzzer header / 1 x SPDIF | ||
| POWER REQUIREMENT | POWER INPUT | ATX 24-pin + 4-pin / 12V DC (3pin terminal connector via cable by connecting to ATX 24-pin + 4-pin ) | |
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 60°C (32 ~140°F) | |
| STORAGE TEMPERATURE | -40 ~ 85°C (-40 ~185°F) | ||
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | ||
| CERTIFICATION | CE / FCC Class B | ||
| OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) | |
| PACKING LIST | PACKAGE | 1 x Motherboard / 1 x 50 cm SATA Cable / 1 x Quick Installation Guide / 1 x I/O Bracket (Full Height) / 1x 3pin terminal connector female to 24p ATX + 4pin ATX + SATA power convert cable (12v sku) | |
