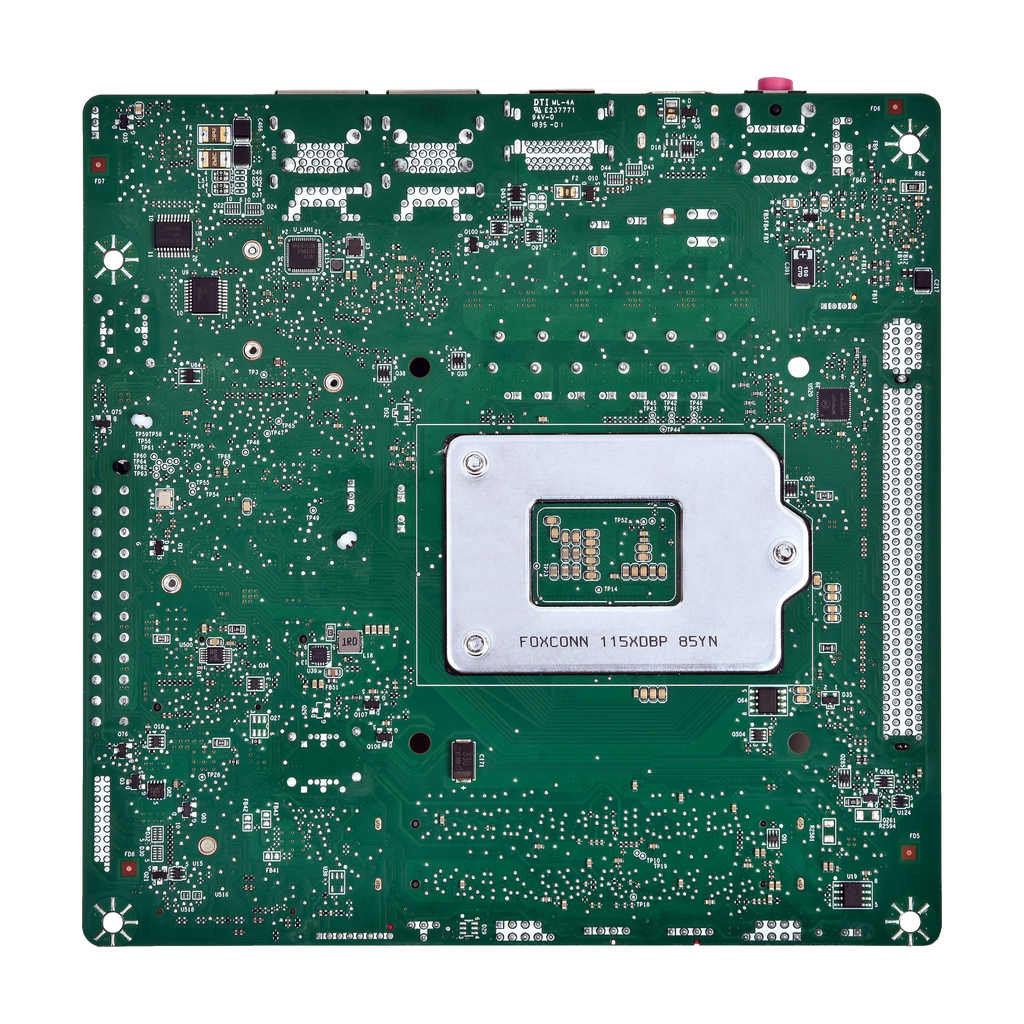

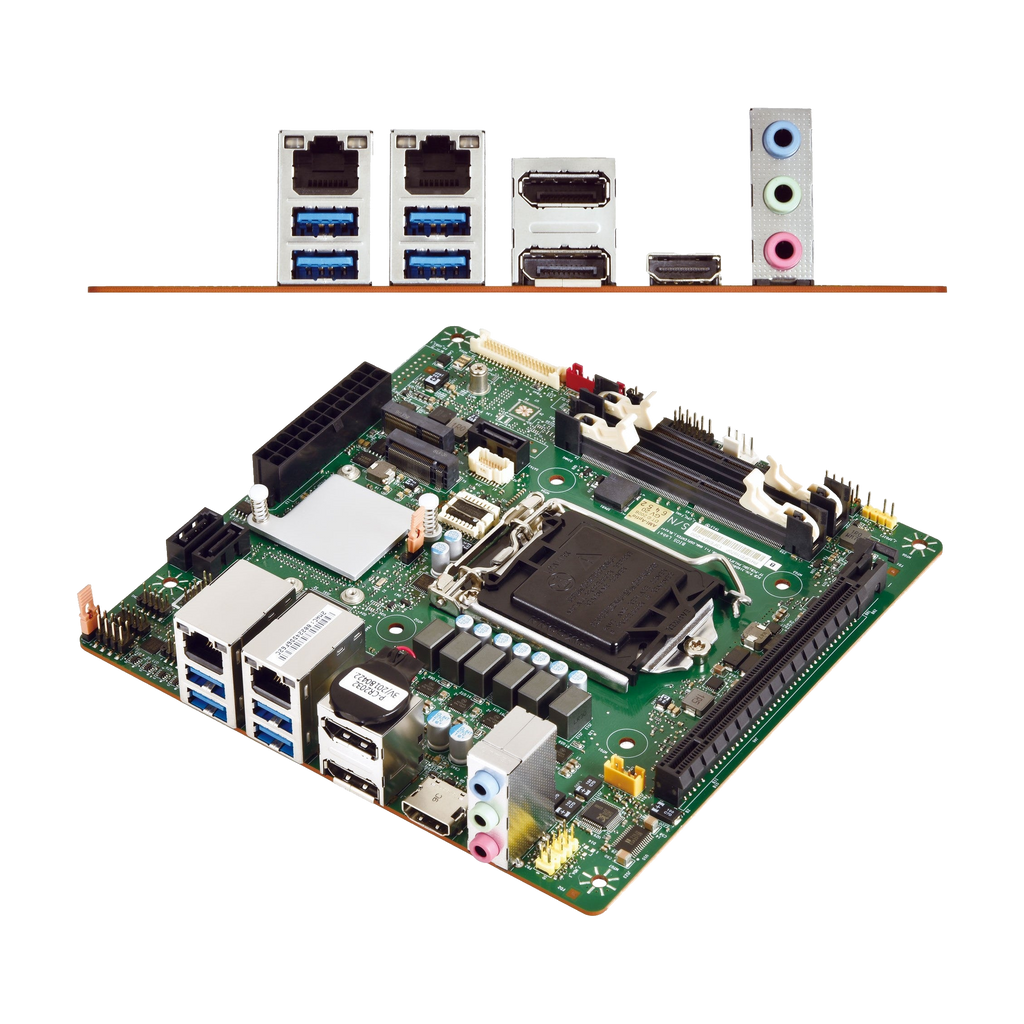

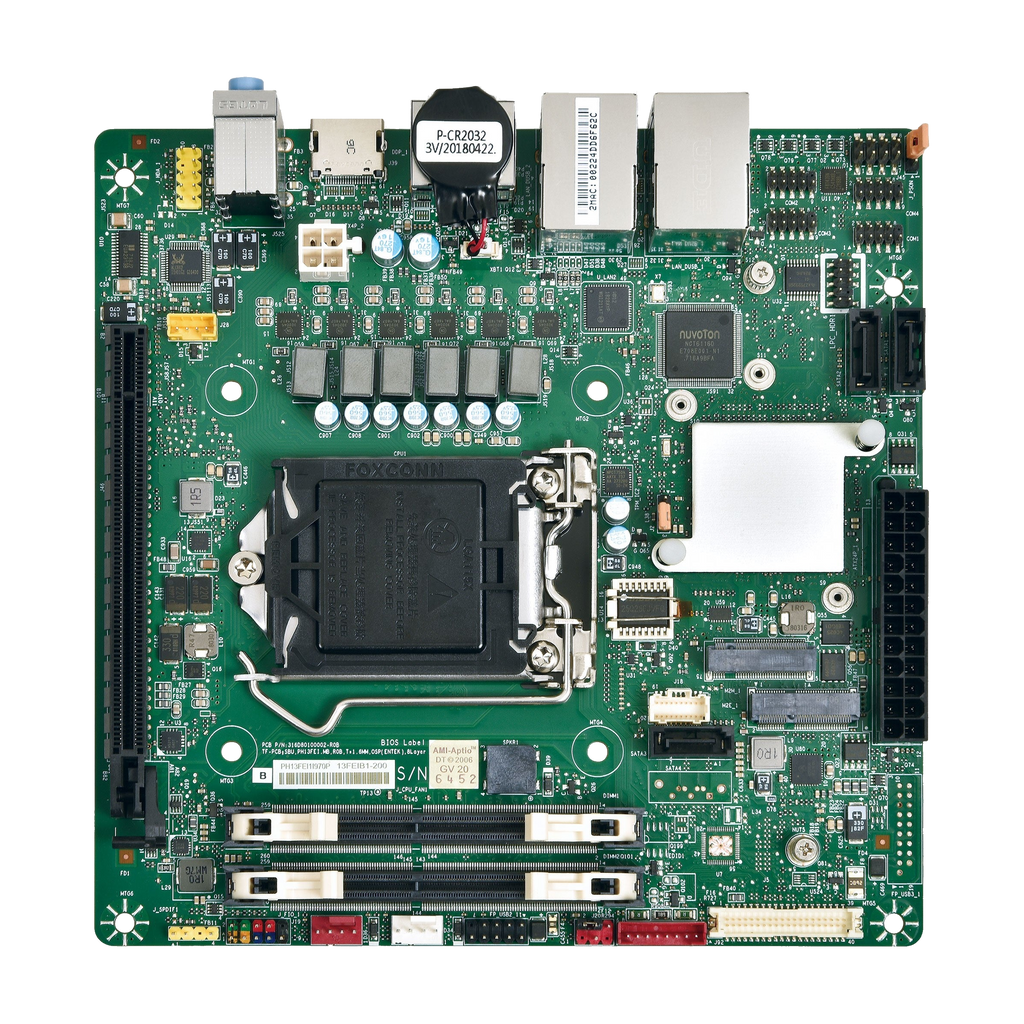

PH13FEI | |||
|---|---|---|---|
| MECHANICAL | FORM FACTOR | Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm) | |
| SYSTEM | PROCESSOR | 9th & 8th Gen Intel Coffee Lake LGA1151 Socket Processor, Core i7/i5/i3 6-core TDP Max. 95W, Core i9 8-core TDP Max 35W | |
| CHIPSET | Intel® Q370 (Support RAID 0 / 1 / 5 / 10) / Intel® H310 | ||
| SYSTEM MEMORY | DDR4 2666MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) | ||
| GRAPHICS | Intel® HD Graphics | ||
| ETHERNET | Intel® I219-LM Giga LAN + Intel® I211-AT Giga LAN | ||
| AUDIO | Realtek® ALC662 | ||
| I/O CHIPSET | Nuvoton NCT6116D | ||
| TPM | Nuvoton NPCT750AAAYX TPM2.0 (Optional) | ||
| EXPANSION SLOT | M.2 2260 / 2280 M key (PCIe X2, SATA) / PCIe 3.0 X16 slot / M.2 2230 E key (PCIe, USB 2.0) | ||
| BIOS | AMI BIOS / 256 Mbit SPI | ||
| H/W MONITOR | Temperature Monitor / Voltage Monitor / Fan Monitor | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| SMART FAN CONTROL | CPU Fan / System Fan | ||
| GRAPHICS | VGA | - | |
| DVI | - | ||
| HDMI | Up to 4K (4096 x 2160) @30 Hz | ||
| DISPLAYPORT | Up to 4K (4096 x 2304) @60 Hz | ||
| LVDS | Up to 1920 x 1200 @60 Hz | ||
| eDP (Option) | Up to 4K (4096 x 2304) @60 Hz | ||
| REAR I/O | USB | 4 x USB 3.0 (H310) / 4 x USB 3.1 Gen 2 (Q370) | |
| DISPLAY I/O | 1 x HDMI 1.4 / 2 x DisplayPort 1.2 | ||
| AUDIO I/O | 1 x Mic-in / 1 x Line-out / 1 x Line-in | ||
| LAN I/O | 2 x RJ-45 | ||
| SERIAL PORT | - | ||
| PS/2 PORT | - | ||
| OTHERS | - | ||
| INTERNAL CONNECTORS | STORAGE | 4 x SATAIII (Q370) / 3 x SATAIII(H310) | |
| USB | 2 x USB3.0 (Q370) / 2 x USB 2.0 (Q370) / 2 x USB 2.0 (H310) | ||
| DISPLAY I/O | 1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector | ||
| AUDIO I/O | 1 x Line-out | ||
| SERIAL PORT | 4 x RS232 (One supports RS232 / 422 / 485) | ||
| PARALLEL PORT | - | ||
| GPIO | 1 x MiAPI Header (Programmable. Support 10-bit GPIO) | ||
| FAN | 1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header | ||
| POWER | 1 x 24-pin ATX Power Connector / 1 x AT / ATX Mode Select Jumper / 1 x 4-pin ATX Power Connector | ||
| OTHERS | 1 x CMOS Jumper / 1 x Front Audio Header (Mic-in & Line-out) | ||
| POWER REQUIREMENT | POWER INPUT | ATX 24-pin + 4-pin | |
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 60°C (32 ~140°F) | |
| STORAGE TEMPERATURE | -20 ~ 80°C (-4 ~176°F) | ||
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | ||
| CERTIFICATION | CE / FCC Class B | ||
| OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) | |
| PACKING LIST | PACKAGE | 1 x Motherboard / 1 x 50 cm SATA Cable / 1 x Driver CD / 1 x Quick Installation Guide / 1 x I/O Bracket | |
