162.50€
Sku: PH14FEI-H310-12V
Boards Thin Mini-ITX
MiTAC

> Entrega Normal | 3 a 5 dias úteis

> Entrega Urgente | 1 a 2 dias úteis

*salvo ruptura de stock

ENVIOS RÁPIDOS

SUPORTE 24/7

PAGAMENTO ONLINE

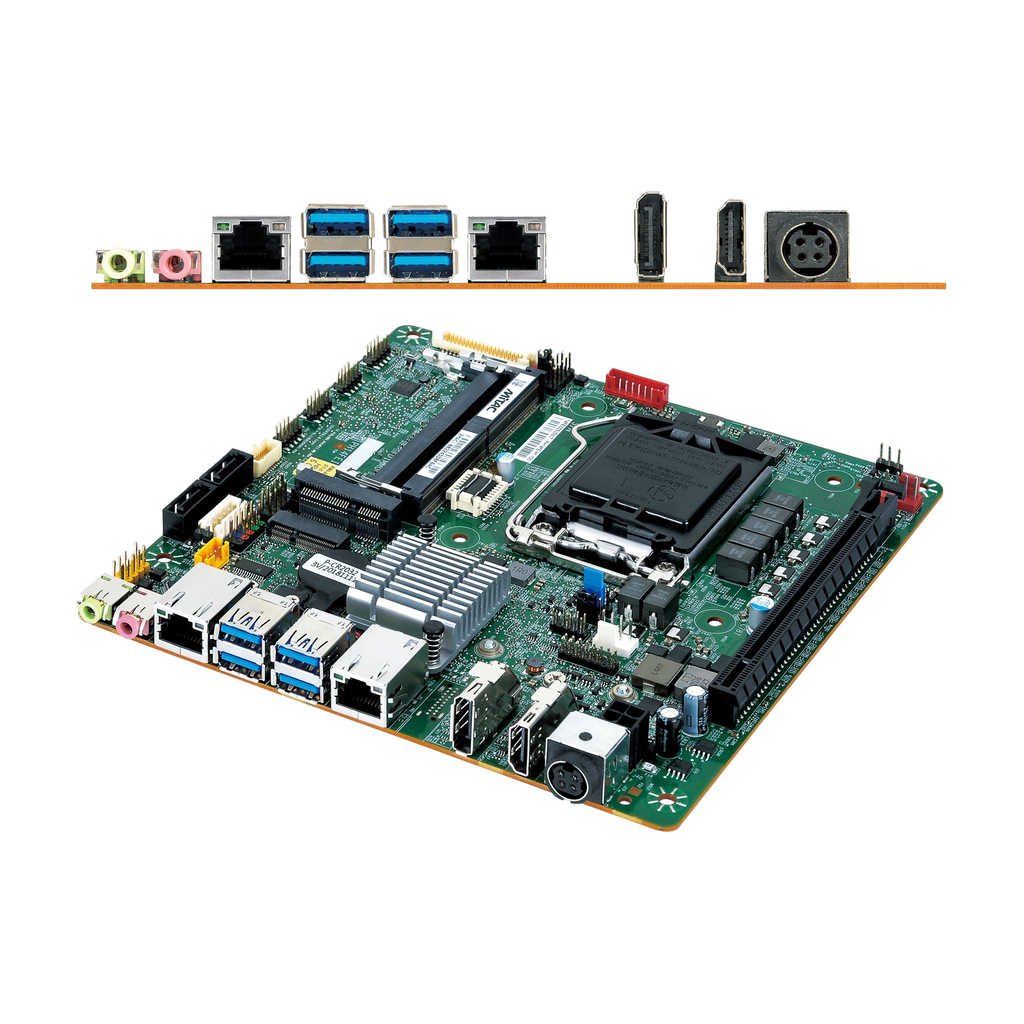

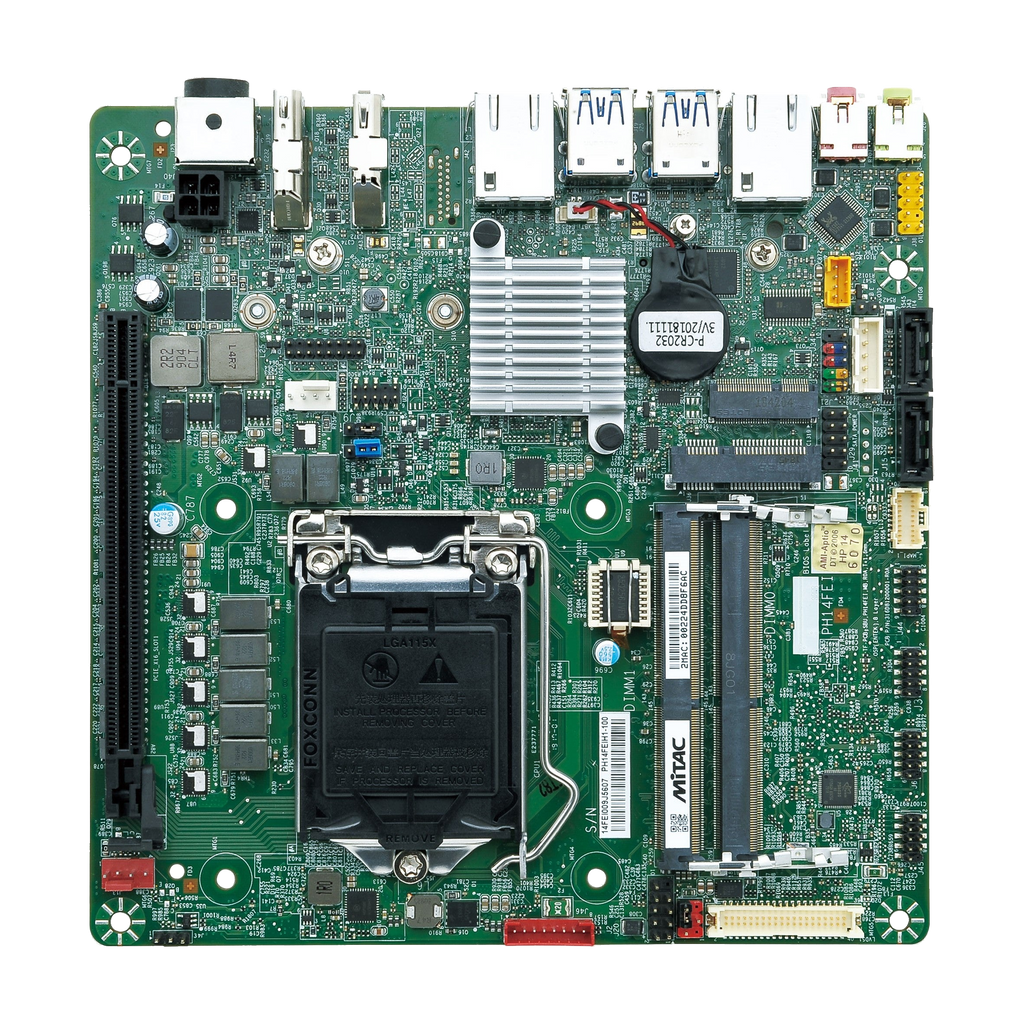

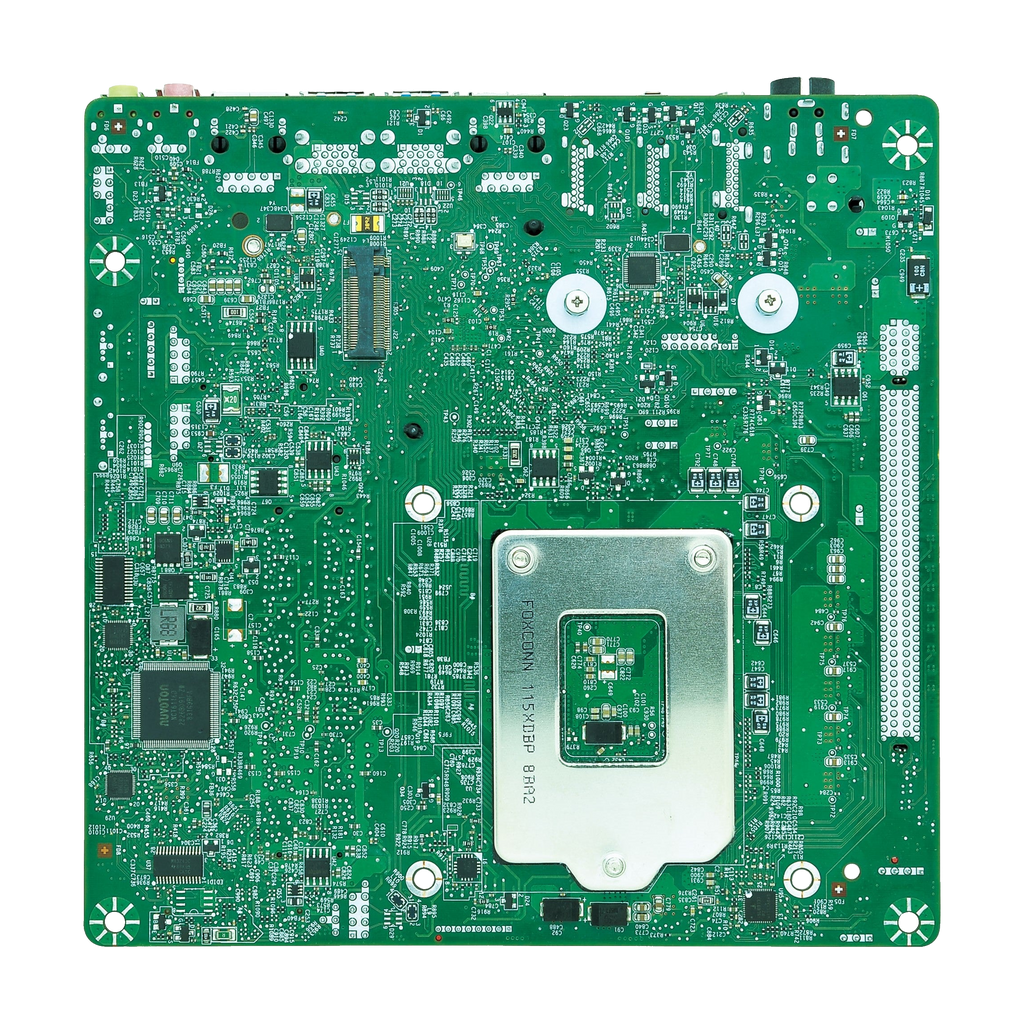

Board PH14FEI Thin Mini-ITX

  • Processadores até Coffee Lake-R 9th i9 35W & 8th i7 95W (6 cores)

  • Intel H310/Q370 Chipset

  • Intel vPro technology support (Q370)

  • 2 memórias DDR4 SO-DIMM até 23GB

  • 5 phase power design

  • Suporta tripla exibição independente: HDMI, DisplayPort e LVDS/eDP

  • 1 x M.2 M 2280, 1 x M.2 E 2230, 1 x mPCIe Full size, 1 x PCIe X16

  • 2 x Intel®Gigabit Ethernet

  • DC-in 12V (Optional: 12~24V SKU)

Caraterísticas

Support up to 95W Coffee Lake refresh

1.5X Efficient Work done faster

Premium UHD/4K content support
Seamlessly create, edit & share 4K UHD 360 video

Support Core i9 (8 cores 35W)

PH12LI-overview1

Wide-range power input

PH14FEI-overview2

Multi expansion slot

PH14FEI-overview3

PCIe X16 for graphic card application


M.2 M key 2280 for storage support SATA/PCIe


M.2 E key 2230 for wireless support USB/PCIe


Mini PCIe Slot for extra extend function Support mSATA/USB/PCIE

High-resolution Triple Display

PH14FEI-overview4
  • High resolution HDMI port and DisplayPort for different scenarios and applications
  • Triple display for main, secondary and third monitor can be set in clone or extension mode in operating system for multiple tasks
PH14FEI-overview5

PH14FEI I/O

PH14FEI-overview
Especificações

PH14FEI

MECHANICAL   FORM FACTOR Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm)
SYSTEM   PROCESSOR 9th & 8th Gen Intel Coffee Lake LGA1151 Socket Processor, Core i7/i5/i3 6-core TDP Max. 95W, Core i9 8-core TDP Max 35W
  CHIPSET Intel® H310 / Intel® Q370 (Support RAID 0 / 1 & vPro)
  SYSTEM MEMORY DDR4 2666MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
  GRAPHICS Intel® HD Graphics
  ETHERNET Intel® I219-LM Giga LAN + Intel® I210-AT Giga LAN
  I/O CHIPSET Nuvoton NCT6116D
  AUDIO Realtek® ALC662
  TPM TPM Header
  EXPANSION SLOT *H310 only support M.2 SATA SSD / PCIe 3.0 X16 slot / M.2 2230 E key (PCIe, USB 2.0) / M.2 2242 / 2280 M key (PCIe, SATA) / Mini PCIe Full size (PCIe / USB / SATA)
  BIOS AMI BIOS / 256 Mbit SPI
  H/W MONITOR Temperature Monitor / Voltage Monitor / Fan Monitor
  WATCHDOG TIMER 1~255 steps by software program
  SMART FAN CONTROL CPU Fan / System Fan
GRAPHICS   2nd DISPLAYPORT Up to 4K (4096 x 2304) @60 Hz
  VGA -
  DVI -
  HDMI Up to 4K (4096 x 2160) @30 Hz
  DISPLAYPORT Up to 4K (4096 x 2304) @60 Hz
  LVDS Up to 1920 x 1200 @60 Hz
  eDP (Option) Up to 4K (4096 x 2304) @60 Hz
REAR I/O   USB 4 x USB 3.0 (H310) / 4 x USB 3.1 Gen 2 (Q370)
  DISPLAY I/O 1 x HDMI 1.4 / 2 x DisplayPort 1.2
  AUDIO I/O 1 x Mic-in / 1 x Line-out
  LAN I/O 2 x RJ-45
  SERIAL PORT -
  PS/2 PORT -
  OTHERS DC-in 12V(DIN 4-pin)
INTERNAL CONNECTORS   STORAGE 2 x SATAIII
  USB 5 x USB 2.0 (Q370) / 4 x USB 2.0 (H310)
  DISPLAY I/O 1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector
  AUDIO I/O 1 x Stereo Speaker Header
  SERIAL PORT 4 x RS232 (Two supports RS232 / 422 / 485 select by BIOS)
  PARALLEL PORT -
  GPIO 1 x MiAPI Header (Programmable. Support 10-bit GPIO)
  FAN 1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
  POWER 1 x AT / ATX Mode Select Jumper / 1 x 4-pin ATX Power Connector
  OTHERS 1 x CMOS Jumper / 1 x Front Audio Header (Mic-in & Line-out) / 1 x panel power select header / 1 x backlight power select header, / 1x buzzer header
POWER REQUIREMENT   POWER INPUT *optional 12V-24V via DC to DC power board / DC-in 12V(DIN 4-pin)/ ATX 4-pin 12V
ENVIRONMENTAL   OPERATING TEMPERATURE 0 ~ 60°C (32 ~140°F)
  STORAGE TEMPERATURE -40 ~ 85°C (-40 ~185°F)
  OPERATING HUMIDITY 10% ~ 95% R/H (Non-condensing)
  CERTIFICATION CE / FCC Class B
OS   OS SUPPORT Windows® 10 64-bit / Linux (support by request)
PACKING LIST   PACKAGE 1 x Motherboard / 1 x 50 cm SATA Cable / 2 x I/O Bracket (Half and Full Height) / 1 x Driver CD / 1 x Quick Installation Guide
