Sku: POC-212
Tipo de Produto: EOL
Fabricante: Neousys

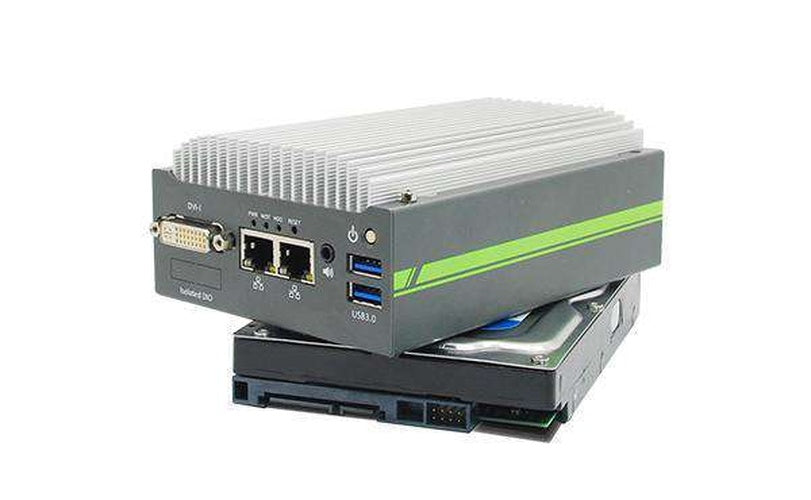

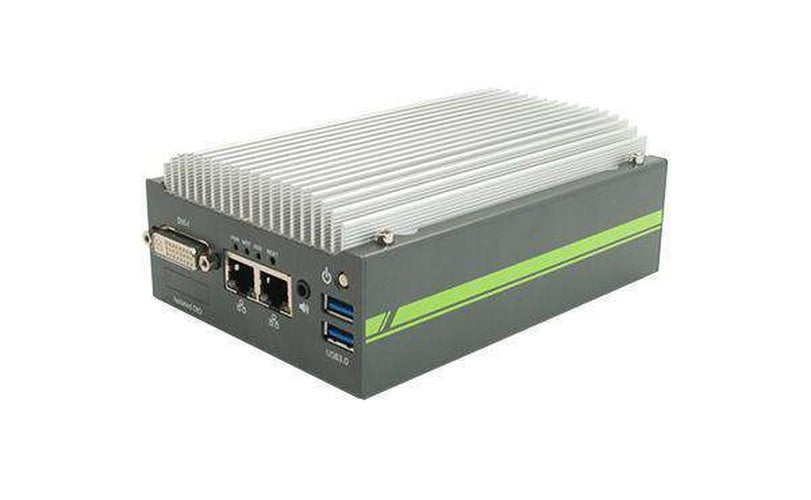

Ultra compacto Embedded PC robusto Atom™ Bay Trail-I

  • Ultra-compact 150 mm x 100 mm foot-print
  • Intel® Atom™ E3845 1.91GHz Quad-core processor
  • Rugged, wide temperature range from -25°C to 70°C fanless operation
  • Two 802.3at (25.5W) Gigabit PoE ports
  • Three USB 3.0 ports
  • Standard 2.5" SATA HDD/SSD accommodation and optional on-board eMMC
  • Up to two RS-232/422/485 ports and two RS-232 ports
Especificações
System Core
Processor Intel® Atom™ E3845 Quad-core processor
(POC-200/210/212)
Intel® Atom™ E3825 Dual-core processor (POC-222)
Graphics Integrated Intel® HD Graphics
Memory 1x SO-DIMM socket for DDR3L-1333
Panel I/O Interface

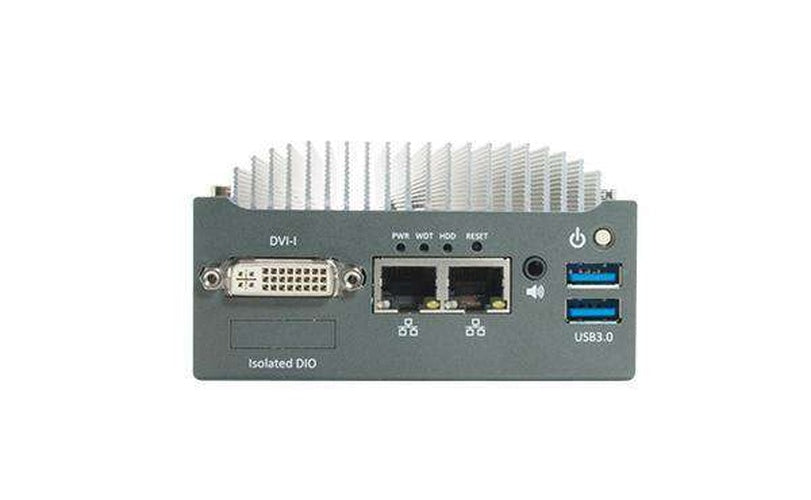

Ethernet 2x Gigabit Ethernet ports by Intel® I210
PoE IEEE 802.3at (25.5W PSE) (POC-200 only)
Video Port 1x DVI-I connector for both analog RGB and
DVI outputs

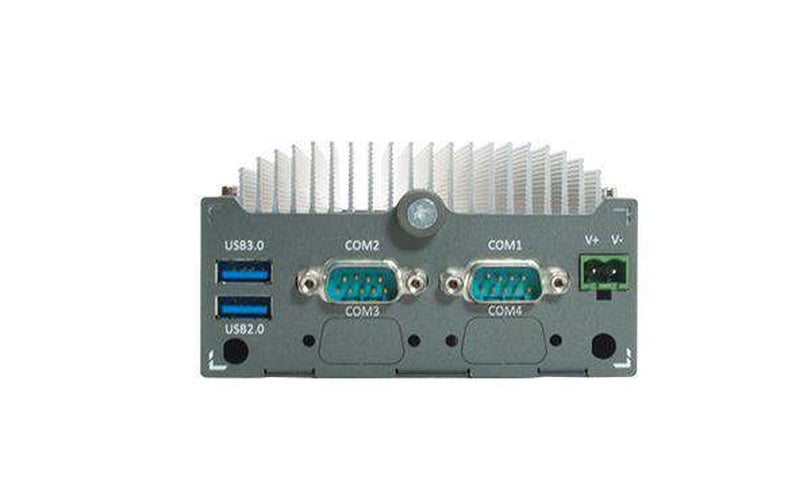

Serial Port 2x RS-232/422/485, 2x RS-232 (POC200/210)
1x RS-232/422/485, 1x RS-232 (POC212/222)
USB 3x USB 3.0 ports and 1x USB 2.0 port
Audio 1x Speaker-out
DIO
- POC-200
4-CH isolated DI + 4-CH isolated DO
DIO
- POC-210/212/222
8-CH 5V TTL GPIO (Standard)
4-CH isolated DI + 4-CH isolated DO (Optional)
Internal I/O Interface
Mini PCIe 1x mini PCI Express slot with USIM socket
Storage Interface
SATA HDD 1x SATA ports with 2.5” HDD/SSD (POC-200/210) 1x SATA ports with easy-swap HDD tray for 2.5” HDD/SSD(POC-212/222)
Power Supply
DC Input Built-in 8~35V DC input
Input Connector 1x 2-pin pluggable terminal block for DC input

* The CPU loading is applied using Intel® Thermal Analysis Tool. For detail testing criteria, please contact Neousys Technology.
** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.

Mechanical
Dimension 149mm (W) x 105 mm (H) x 57 mm (D)(POC-200/210)
149mm (W) x 105 mm (H) x 53 mm (D)(POC-212/222)
Weight 1.1 kg (including one 2.5” HDD)
Mounting Wall-mounting (standard) or DIN-Rail mounting
(optional)
Environmental
Operating Temperature -25°C ~ 70°C with SSD , 100% CPU loading */**
-10°C ~ 50°C with HDD, 100% CPU loading */**
StorageTemperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD,
according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/
SSD, according to IEC60068-2-27)
EMC CE/FCC Class A, according to EN 55022, EN55032 & EN 55024
Downloads
Opcionais
  • DIN-rail mounting kit

  • 60W AC/DC power adapter with 12V, 5A DC output
