Sku: POC-516
Tipo de Produto:
PCs Industriais
Fabricante:
Neousys
POC-516
AMD Ryzen™ embedded V1605B ultra-compact controller with 4x PoE+ ports, 4x USB 3.1 Gen1 ports and MezIO-R12
- AMD Ryzen™ embedded V1605B/ V1807B series quad-core 15W/ 45W CPU
- -25 °C to 70 °C rugged wide-temperature operation
- Four Gigabit PoE+ ports with screw-lock
- Four USB 3.1 Gen1 ports with screw-lock
- M.2 2280 M key NVMe (Gen3 x2) socket for fast storage access
- DP + VGA dual display outputs
- Front I/O access and DIN-rail mounting design
- MezIO™ compatible
Vista Rápida
Especificações
Downloads
Opcionais
Vista Rápida
POC-500 series is the next generation ultra-compact embedded controller offering performances never-seen-before in this form factor. Featuring AMD Ryzen™ Embedded V1605B/ V1807B 4-core/ 8-thread processor, it delivers up to 3x times the CPU performance over previous POC series. GPU performance wise, it delivers an unheard of 3.6 TFLOPS in FP16 for an ultra-compact form factor embedded controller. Another amazing feat is that it manages to incorporate an M.2 2280 NVMe SSD (PCIe Gen3 x2) to support 2x times the disk read/ write speed over typical 2.5" SATA SSDs.

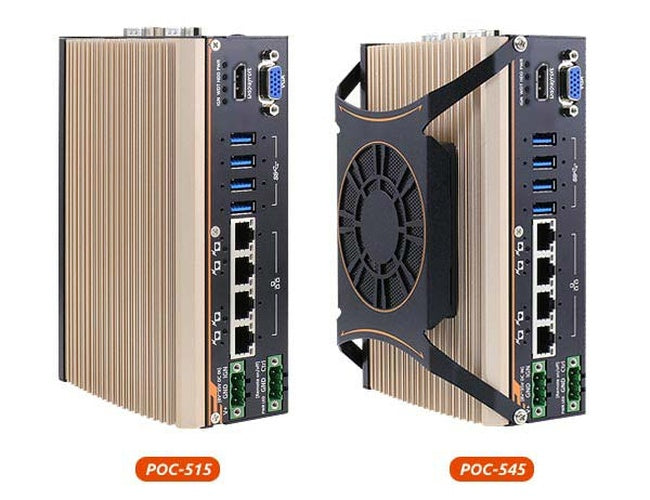

POC-500 series continues the POC series ingenious DIN-rail mounting mechanical design and offers plenty of front-accessible I/Os. Measuring just 63 x 176 x 116 mm (2.5" x 6.9" x 4.6"), it has 4x PoE+ ports, 4x USB 3.1 Gen1 ports and 4x COM ports. And best of all, all data ports come with screw-lock mechanism so you can be rest assured that cables are always secured. POC-500 series is available in two CPU variants, the V1807B (45W) variant is for high computing power demand and the V1605B (15W) variant is designed for rugged fanless operation.
The arrival of POC-500 series signifies a new breed of ultra-compact embedded controller; one with better I/O design, extraordinary ruggedness and significantly more CPU/ GPU oomph for versatile applications.
■ NEOUSYS MARKETING TEAM
Super Performance

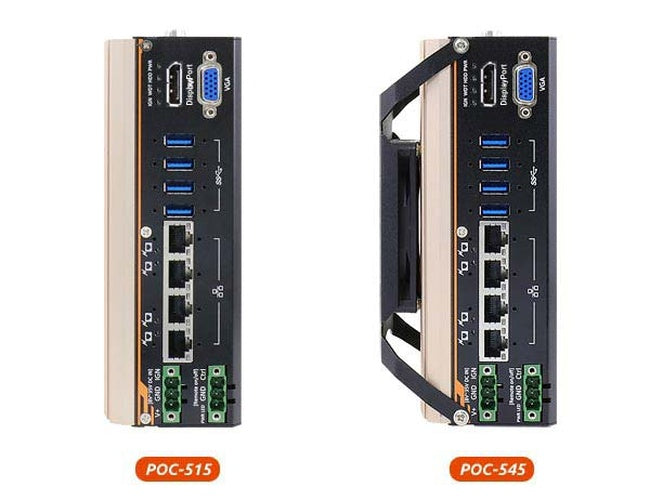

Front-accessible I/O Function
Compact Dimension
Rugged Wide-temperature Operation
Especificações
| POC-515 | POC-545 | |
|---|---|---|
| System Core | ||
| Processor | AMD Ryzen™ embedded V1605B CPU (4C/ 8T, 2M Cache, 2.0/ 3.6 GHz,12W - 25W TDP) |
AMD Ryzen™ embedded V1807B CPU (4C/ 8T, 2M Cache, 3.35/ 3.8 GHz,35W - 54W TDP) |
| Graphics | Vega GPU with 8 compute units | Vega GPU with 11 compute units |
| Memory | Up to 32 GB DDR4-2400 SDRAM by one SODIMM socket |
Up to 32 GB DDR4-3200 SDRAM by one SODIMM socket |
| TPM | Supports TPM 2.0 | |
| Panel I/O Interface | ||
| Ethernet | 4x Gigabit Ethernet ports by Intel® I350-AM4 controller with screw-lock | |
| PoE+ | IEEE 802.3at PoE+ on port #1~ 4 | |
| USB | 4x USB 3.1 Gen1 ports with screw-lock | |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2160 resolution |
|

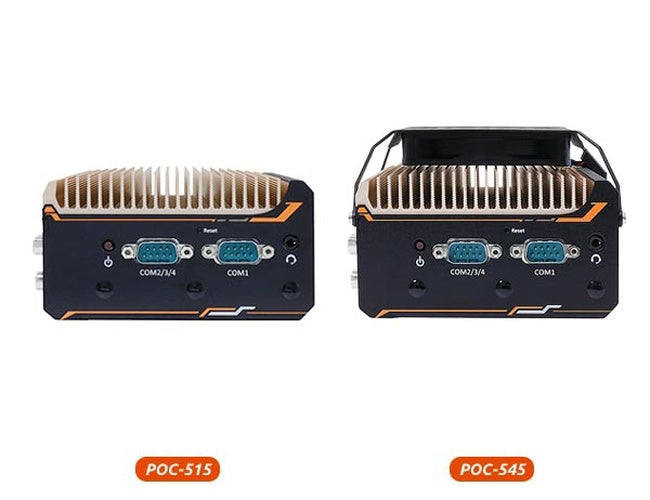

| Serial Port | 1x software-programmable RS-232/ 422/ 485 ports (COM1) 3x 3-wire RS-232 ports (COM2/ 3/ 4) or 1x RS-422/ 485 port(COM2) |
|
| Audio | 1x 3.5mm jack for mic-in and speaker-out | |
| Internal I/O Interface | ||
| Mini-PCIe | 1x full-size mini PCI Express socket with internal SIM socket | |
| Expandable I/O | 1x MezIO™ expansion interface for Neousys MezIO™ modules | |
| Storage Interface | ||
| M.2 NVMe | 1x M.2 2280 M key NVMe socket (PCIe Gen3 x2)for NVMe SSD installation | |
| POC-515 | POC-545 | |
|---|---|---|
| Power Supply | ||
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input | |
| Remote Ctrl.& LED Output | 1x3-pin pluggable terminal block for remote control and PWR LED output | |
| Mechanical | ||
| Dimension | 64(W) x116(D) x176(H) mm | 81(W) x118(D) x176(H) mm |
| Weight | 1.2kg | 1.4kg |
| Mounting | DIN-rail mount (standard) or wall-mount (optional) | |

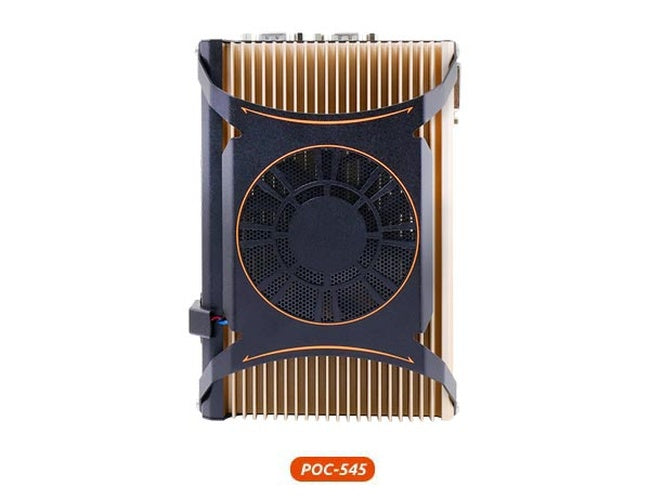

| Fan | - | External-accessible 80mm x 80mm fan for system heat dissipation |
| Environmental | ||
| Operating Temperature | -25°C ~ 70°C*/** | |
| Storage Temperature | -40°C ~85°C | |
| Humidity | 10%~90% , non-condensing | |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 | |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II | |
| Safety | EN62368-1 | |
| EMC | CE/ FCC Class A, according to EN 55032 & EN 55024 | |
** For POC-545, operating temperature is up to 70°C only if external-accessible fan is installed.
