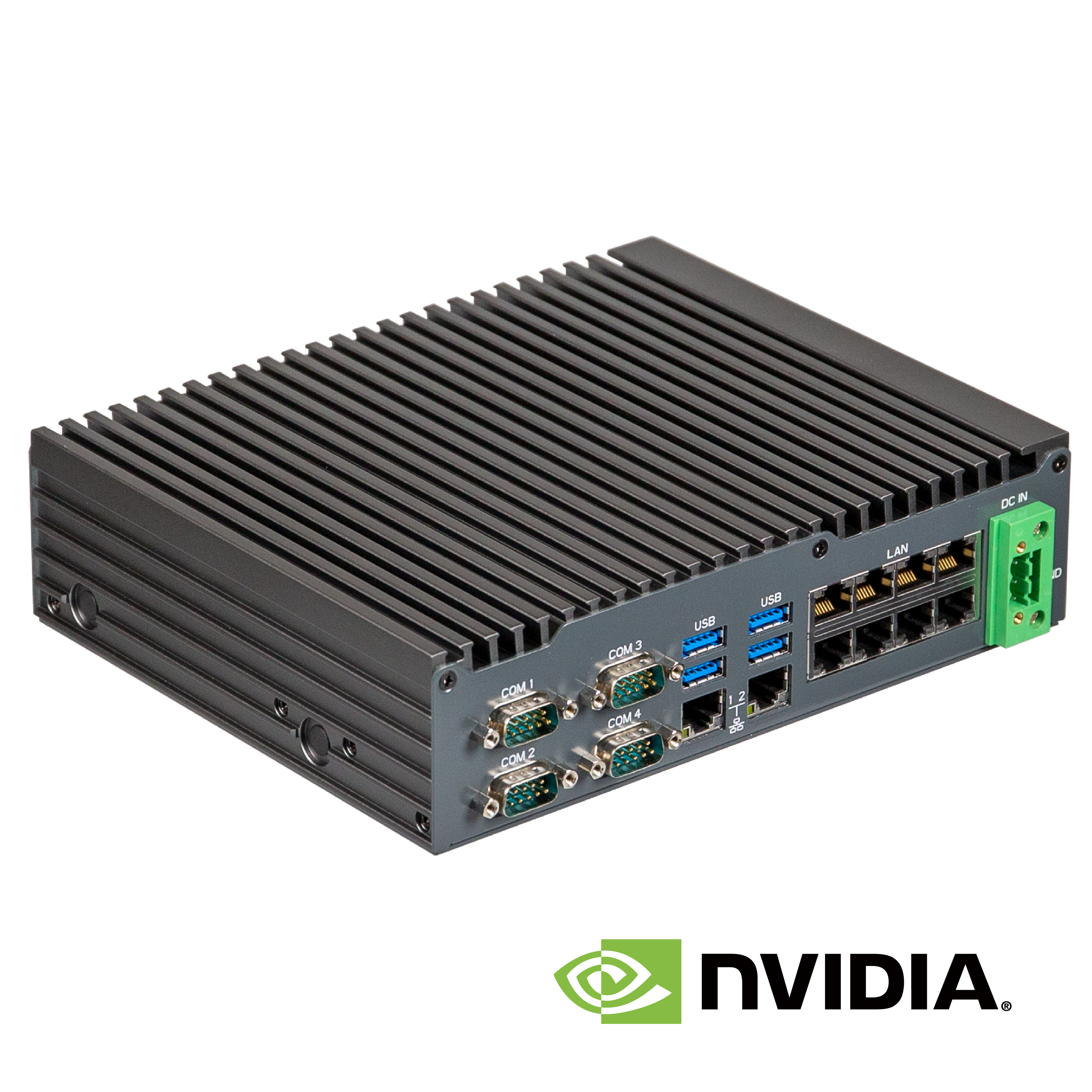

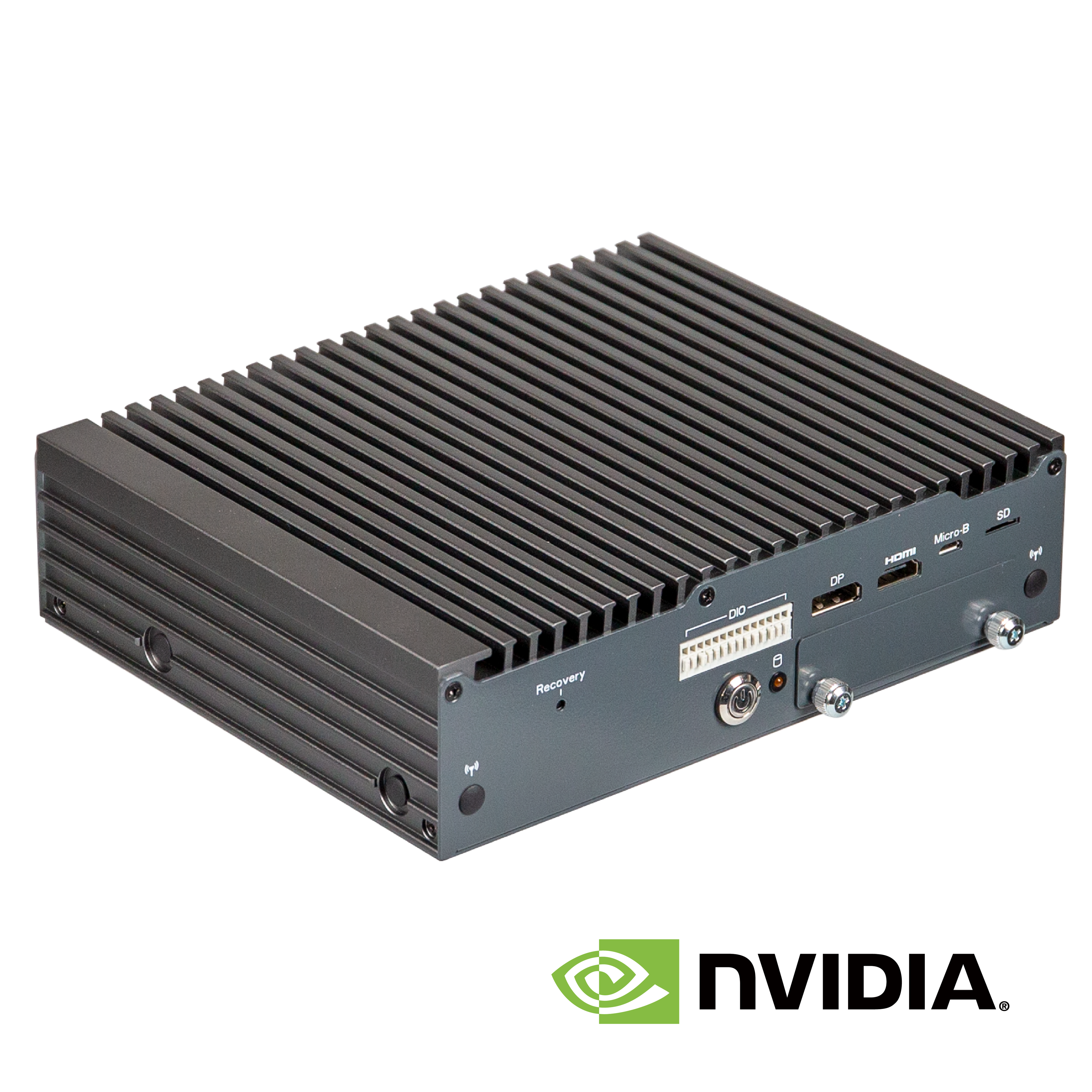

Embedded PC NVIDIA® Jetson Nano, ARM® Cortex®-A57, Maxwell GPU, 4GB LPDDR4, 16GB eMMC5.1
| Dimension | 210W x 169.8D x 55.2H (mm) |
| CPU | ARM® Cortex® A57 MPCore (Quad-Core) Processor with NEON Technology |
| Memory | 4GB 16-bit LPDDR4 DRAM 1600MHz (Module) |
| Ethernet | 8 x GbE LAN ports with PoE 15W/port, IEEE802.3af compliant, Total 120W 2 x GbE LAN ports |
| Graphic support | NVIDIA® Maxwell™ architecture with 128 NVIDIA® CUDA® cores 1 x HDMI port, supporting a maximum resolution of 3840x2160 @60Hz 1 x DP port, supporting a maximum resolution of 2500x1600 @60Hz |
| Storage | 1 x 16GB eMMC 5.1 (Module) 1 x SATA 6Gb/s (Support 2.5” HDD/SSD) |
| Expansion Slots | 1 x 3052 M.2 B-Key 1 x Mini PCIe slot 1 x 2230 M.2 E-Key 1 x SIM slot |
| Front I/O | 1 x Power button 1 x HDD LED 1 x DIO 1 x DP 1 x HDMI 1 x USB2.0 Type Micro B 1 x SD slot (Micro SD) 1 x Recovery button 2 x External Antenna hole (option) |
| Rear I/O | 4 x COM headers (RS232/422/485) 4 x USB3.0 ports 8 x GbE LAN ports with PoE 15W/port 2 x GbE LAN ports 1 x 3 pin Terminal Blcok |
| Side I/O | 4 x External Antenna hole (option) |
| Operating Temperature | Operating temperature: -20°C to 70°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Packaging Content | Box Packing Capacity: 4pcs Carton size: 523 x 297 x 339(mm) Content: 54V/180W adapter x 1 (P/N: 25EP4-101807-F3S) Power cord x 1 (By region) Screw for 2.5HDD/SSD, M3x4L x 4 (P/N: 25984G-1C014-S00) |
| Order Information | 9BQNNANOAMR-SI (Box Packing) |
