460.00€
Sku: QBiX-Pro-GLKA5005HD-A1
PCs Industriais
GIGAIPC

> Entrega Normal | 3 a 5 dias úteis

> Entrega Urgente | 1 a 2 dias úteis

*salvo ruptura de stock

ENVIOS RÁPIDOS

SUPORTE 24/7

PAGAMENTO ONLINE

DIN Rail PC industrial com processador Intel® Pentium® Silver J5005

  • 160W x 118D x 62.6H (mm)
  • CPU Intel® Pentium® Silver J5005
  • Single Channel DDR4 2400 MHz
  • 4x switchable COM ports (RS-232/422/485)
  • GPIO Port (8 Bits)
  • 2 x GbE LAN ports



Aplicações

  • Industrial Automation
  • Factory Automation
  • HMI
  • Embedded & Industrial Applications
  • DVR / Surveillance
QBiX-Pro-GLKA5005HD-A1
Caraterísticas

QBiX-Pro-GLKA5005HD-A1 is mainly designed for factory automation application with Intel® Pentium® Silver J5005 and DIN rail mounting design. DIN rail design helps users to deploy the device vertically or horizontally based on the layout of their operational environment. The two sides of aluminum extrusion enhance heat dissipation to avoid any damages from overheat. It is suitable for various environments with 9V~36V wide range power input and operating temperature of 0°C~50°C.
It's available with rich features of both HDMI & VGA output, good expandability with mini PCIe, M.2 M-key and M.2 E-key slot, dual LANs, 4 x USB 3.0, GPIO and 4 x switchable COM (RS-232/422/485) port to work with different peripherals of devices.
The system provides IEC 60068-2-64 vibration resistance of 5 Grms with SSD @5~500Hz, random, to meet industrial standard.

QBiX-Pro-GLKA5005HD-A1_aplications
Especificações
Dimension 160W x 118D x 62.6H(mm)
CPU Intel® Pentium® Silver J5005 Processor
14nm, 4 cores, 4 threads, up to 2.8 GHz,
TDP 10W
Memory 1 x DDR4 SO-DIMM socket, Max. Capacity 8 GB,
Support Single Channel DDR4 2400 MHz memory modules
Ethernet 2 x GbE LAN ports (Intel® I211AT)
Graphic Integrated Graphics Processor - Intel® UHD Graphics 605:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz

(2 independent display outputs)
Audio Realtek® ALC269
High Definition Audio
Storage 1 x 2.5” HDD/SSD (SATA 6Gb/s)
Expansion Slots 1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
1 x Vertical USB 2.0

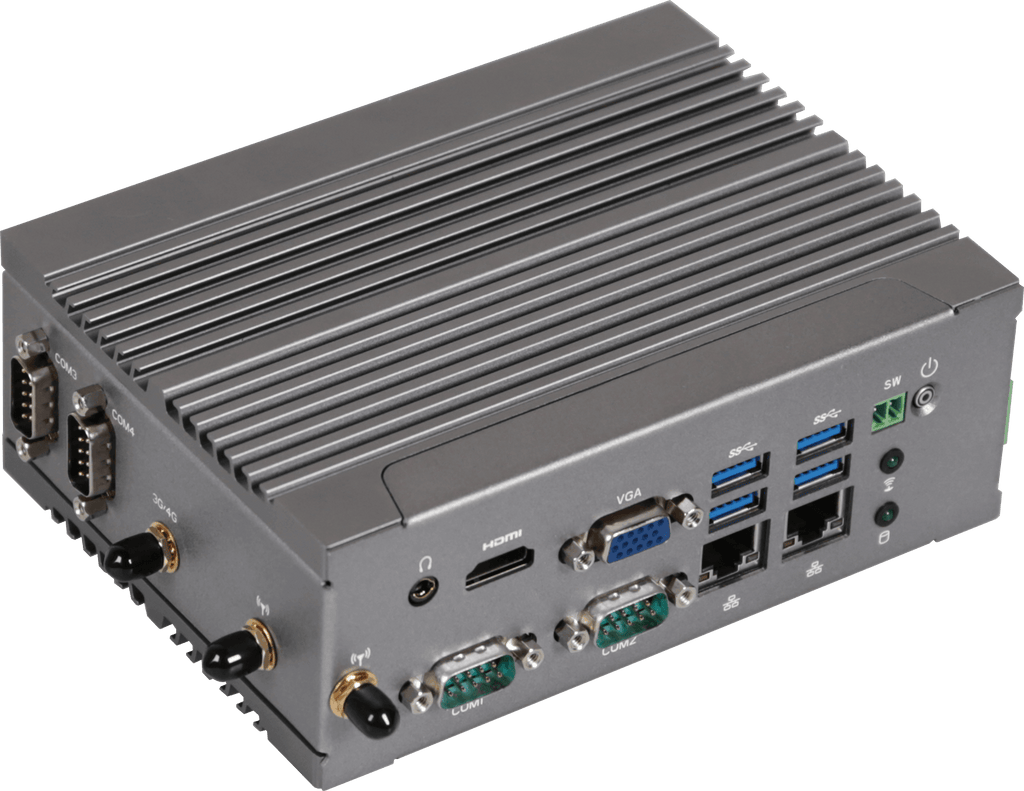

Front I/O 2 x RJ45 LAN ports
4 x USB 3.0
1 x HDMI
1 x VGA
2 x COM ports (RS-232/422/485 and RI/5V/12V)
1 x Power switch with LED
1 x WiFi/HDD LED
1 x Remote control pin
1 x Headphone Jack
1 x External Antenna Hole (Optional)

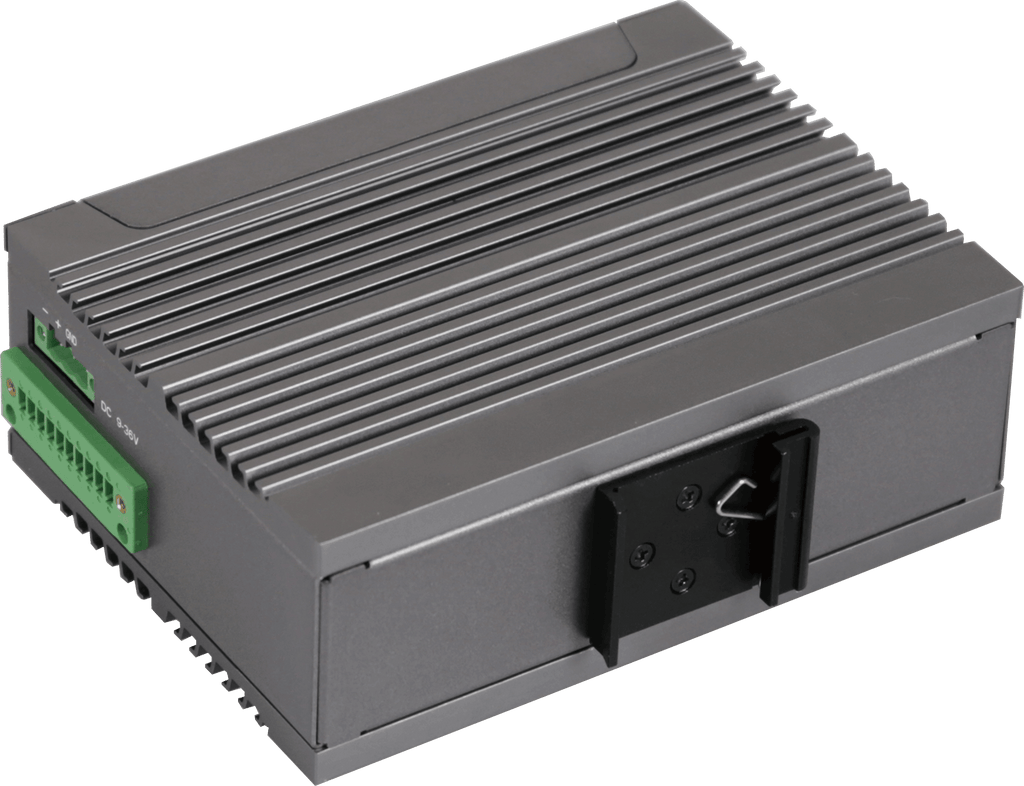

Rear I/O 1 x Din Rail Mounting Support
Side I/O 1 x GPIO (8 bit)
1 x 3-pin Terminal Block
2 x COM ports (RS-232/422/485)
2 x External Antenna Hole (Optional)
Power +9~36VDC (Full Range)
+9~48VDC (Optional)
Operation temperature Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging Content Box Packing Capacity: 6pcs
Carton size: 416x409x347(mm)
Content:
SCREW HDD M3x3L*4 (P/N: 25984G-1C014-S00)
TERMINAL BLOCKS MALE PLUG (P/N: 25IO0-5ESDV0-D2R)
TERMINAL BLOCKS 1*2P (P/N: 25IO0-EC3500-D2R)
TERMINAL BLOCKS 1*10P (P/N: 25IO0-EC3810-D2R)
Mounting DIN Rail
Wall mount (Optional)
Order Information 6BQP5005AMR-SI
