Sku: QBiX-Pro-KBLB3965H-A1
Tipo de Produto:
PCs Industriais
Fabricante:
GIGAIPC

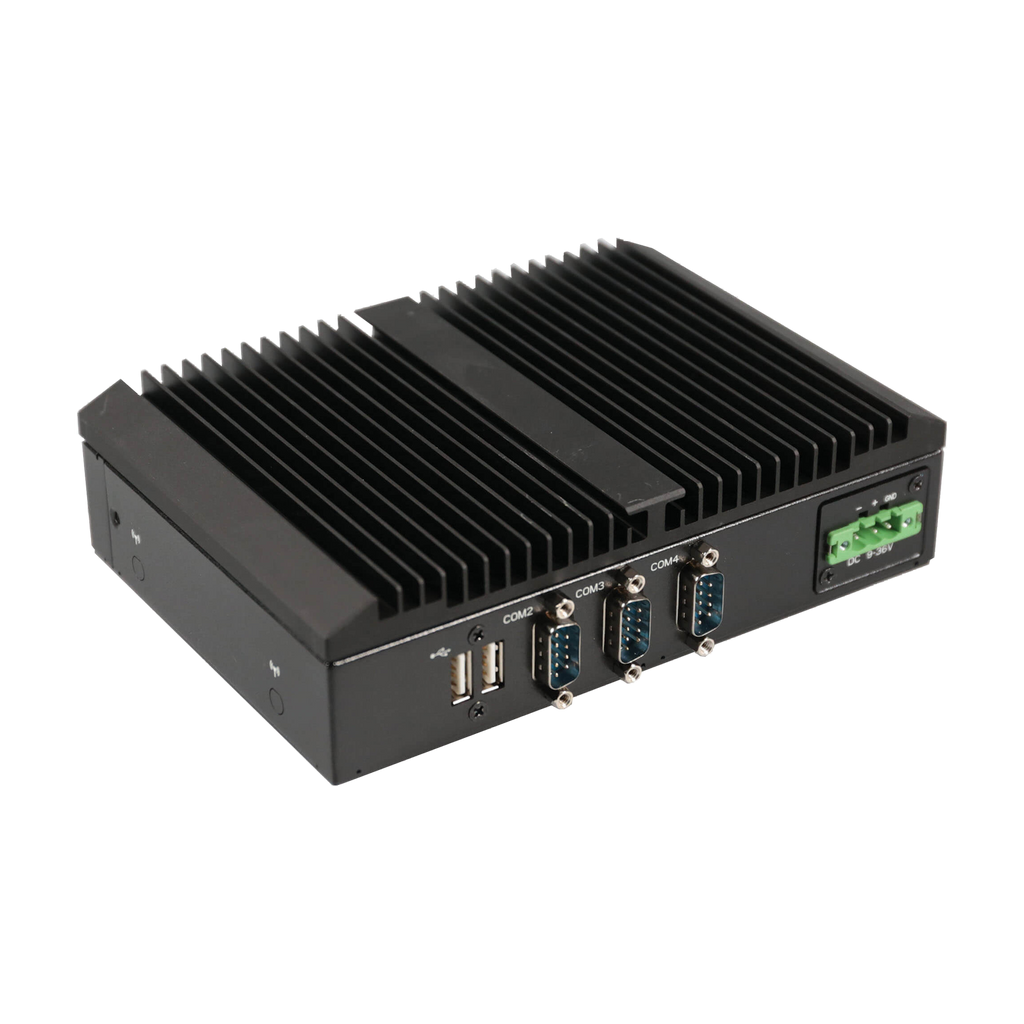

QBiX-Pro-KBLB3965H-A1
Embedded PC Intel® Celeron 3965U, DDR4 2133MHz até 32G
- 160W x 118D x 62.6H (mm)
- CPU Intel® Celeron 3965U
- Dual Channel DDR4, 2* SODIMMs
- HDMI e DisplayPort para dupla exibição
- 2* GbE LAN ports
Aplicações
- Embedded & Industrial
- Applications
- Factory Automation
- KIOSK / POS
- Healthcare
Caraterísticas
Especificações
Downloads
Caraterísticas
QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board). Its fan-less design reduces the risk of fan failure and maintainance efforts. The aluminium heatsink and ruggedized chassis enhanced the ability to work in harsh environment. The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems and IoT Gateway. Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for commercial market.
QBiX-Pro-KBLB3965H-A1 is powered by Intel® Celeron® 3965 processor, to support DDR4 2133MHz up to 32G. It is designed with full range 9-36V DC power inputs for operating temperature of 0°C~50°C and rich I/O interfaces and expansion M.2 slots to fit in various applications. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
Especificações
| Dimension | 178W x 125D x 52.7H(mm) |
| CPU | Intel® Celeron® Processor 3965U 14nm, 2 cores, 2 threads, up to 2.2 GHz TDP 15W 2 MB SmartCache |
| CHIPSET | SOC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual Channel DDR4 2133MHz memory modules |
| Ethernet | 2 x GbE LAN ports (Intel® i219V and Intel® i211AT) |
| Graphic support | Integrated Graphics Processor - Intel® HD Graphics 610: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @24Hz 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz (2 independent display outputs) |
| Audio | Realtek ALC269 High Definition Audio |
| Storage | 1 x 2.5” HDD/SSD (SATA 6Gb/s) |
| Expansion Slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |
| Front I/O | 2 x RJ45 LAN ports 4 x USB 3.0 1 x HDMI 1 x Display Port 1 x Power switch 1 x Power & HDD LED 1 x COM port (RS-422/485/232 and RI/5V/12V) |
| Rear I/O | 2 x USB 2.0 3 x COM Ports (RS-232) |
Downloads
