• Intel® BayTrail-M N2930
  • SO-DIMM DDR3L 8GB
  • 4 GbE, 1 pair ByPass GbE
  • M/B Slim Mini ITX
  • AC 90~240V_250W
com IVA
675.27€

sem IVA
549.00€
Sku: HBJC153F9HB-2930-B
Tipo de Produto: PCs Rackmount
Fabricante: Jetway

HBJC153F9HG-2930-B

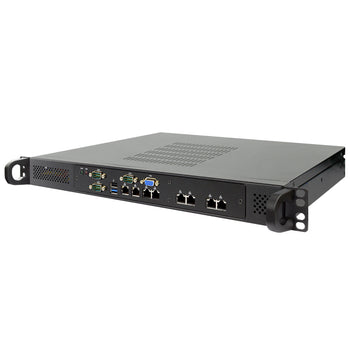

Intel® Bay Trail–M N2930 SoC Processor

  • Intel® BayTrail-M N2930 Quad Core Processor
  • 2 * SO-DIMM DDR3L 1333/1066MHz up to 8GB
  • 1 * USB3.0, 4 * RJ45 , 1 * VGA, 2 * COM, 1 * GPIO
  • M/B Form Factor: Slim Mini ITX (170x170mm)
  • AC 90~240V_250W FLEX Power

Caraterísticas

I/O Frontal

HBJC153F9HG-2930-B_Front_diagram

I/O Traseiro

HBJC153F9HG-2930-B_Rear_diagram

Dimensões

HBJC153F9HG-2930-B_size
Especificações

MB Model

– JNF9HG-2930 / MINI-ITX

Part No

Standard

Expansion 4 ports LAN PCI-E Card

2 Paris of Bypass LAN

– HBJC153F9HG-2930-B

– HBJC153F9HG-2930G4

– HBJC153F9HG-2930B4

BIOS

– AMI 64MB SMT Flash ROM

CPU/Chipset

– INTEL® Bay Trail – M/D/I Processor (2930)

Memory

– 2 * DDR3L 1333/1066MHz SO-DIMM up to 8GB

Storage

– 2 * 2.5” SATA HDD
– 1 * Full-size mSATA/mini-PCI Express shared slot

Expansion

– 1 * Full size Mini-PCIE
– 1 * SIM Card Slot
– Support TPM (optional)

Network

– 4 * Intel i211AT Gigabit LAN
– 1 * Full-size mini-PCIE slot (802.11 b/g/n + BT 4.0 installed in WIFI model)

Rear Panel I/O

– 1 * Power switch
– AC input

Front Panel I/O

– 4 * RJ45
– 1 * USB3.0
– 1 * VGA (Max.: 1920×1080@60Hz) (Not assembled when shipped, wire placed in the parts box)
– 2 * COM (1* option)
– 1 * PW LED, 1 * Alarm LED
– 1 * GPIO (Not assembled when shipped, wire placed in the parts box)
Expansion 4 ports LAN PCI-E Card: HBJC153F9HG-2930G4
Expansion 2 pairs of Bypass LAN PCI-E Card: HBJC153F9HG-2930B4

Power Source

– 1U FLEX 250W Power / AC 90~240V input
– MB : DC12V input

Compliance

– CE, FCC, RoHS

Temperature

– Operating Temperature: 0 ~ 50°C
– Storage Temperature: -40 ~ 85°C
– Humidity: 10%~95% @40°C (non-condensing)

Dimensions

– 430 (W) x 252 (D) x 44 (H) mm

Packing

– Net Weight: 4.2KG
– Gross Weight: 5KG
– Color Box dimension: 530 (W) * 353 (D) * 142 (H) mm

OS Support

– Windows 7, Windows 8.1, Windows 10, Linux

Warranty

– 2 Year limited warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
