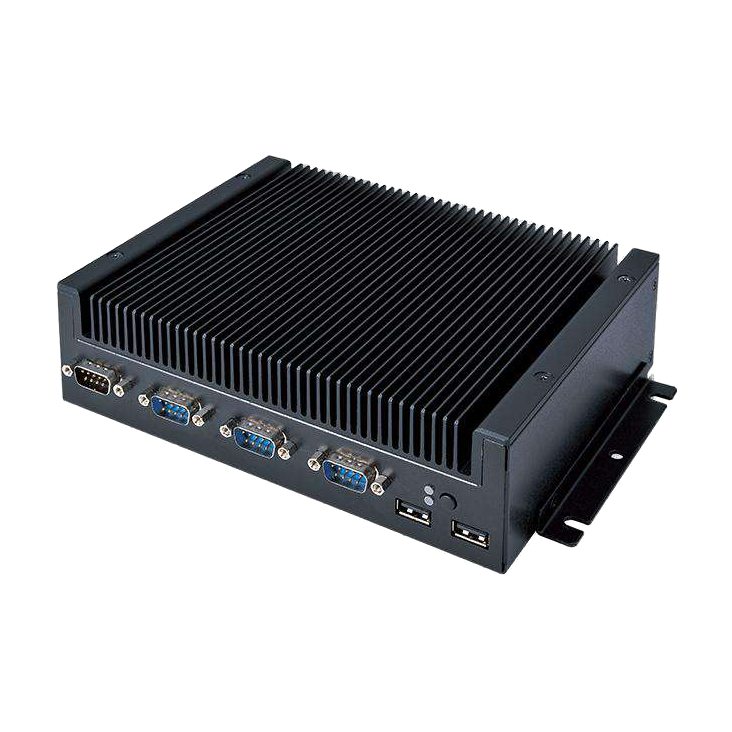

Mini Box PC S310-11KS da Mitac fanless, CPU Intel Kabylake i5-7300U. Painel I/O versátil capaz de se adaptar a diferentes ambientes e suportar um vasto leque de aplicações.
Período de vida anunciado até 2023 !
Para completar o sistema necessita adicionar:
- mSATA SSD ou 2.5" HDD/SSD
- RAM
| CPU | 7th Generation Kabylake Intel® Core™ i ULV Processor i5-7300U 2x 3.5Ghz) |
| CHIPSET | Intel® SoC integrated |
| SYSTEM MEMORY | DDR4 2133/2400, 260-pin SO-DIMM x 2, Max. 32 GB (Non-ECC) |
| GRAPHICS | Intel® HD Graphics |
| DISPLAY INTERFACE | DP, HDMI |
| STORAGE SLOT | 2.5 HDD/SSD x 1 (Default w/ SATA and SATA Power Cable in Accessories) mSATA x 1 |
| ETHERNET | Intel® I219LM Giga LAN + I211AT Giga LAN |
| AUDIO | Realtek ALC283 |
| I/O CHIPSET | Nuvoton NCT6104D |
| TPM | Nuvoton NPCT650ABCYX TPM2.0 |
| EXPANSION SLOT | Storage: PCI Express Full-Length Mini Card slot (USB / PCIe / SATA) Wireless: M.2 2230 E key (PCIe / USB) |

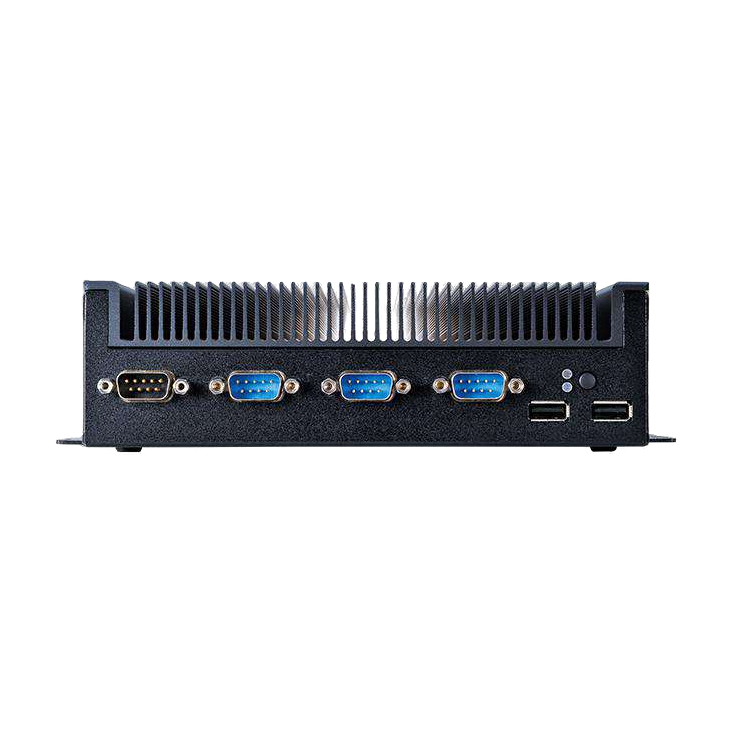

| FRONT I/O | GPIO x 8 (DB9 Connector) RS-232 x 2 RS-232/422/485 x 1 USB 2.0 x 2 Power Button, Power LED, HDD LED |

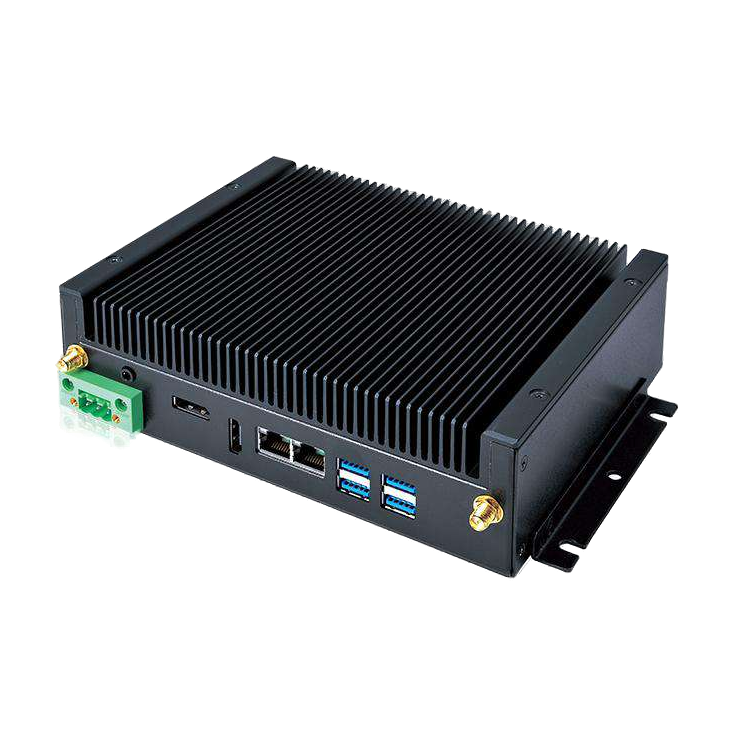

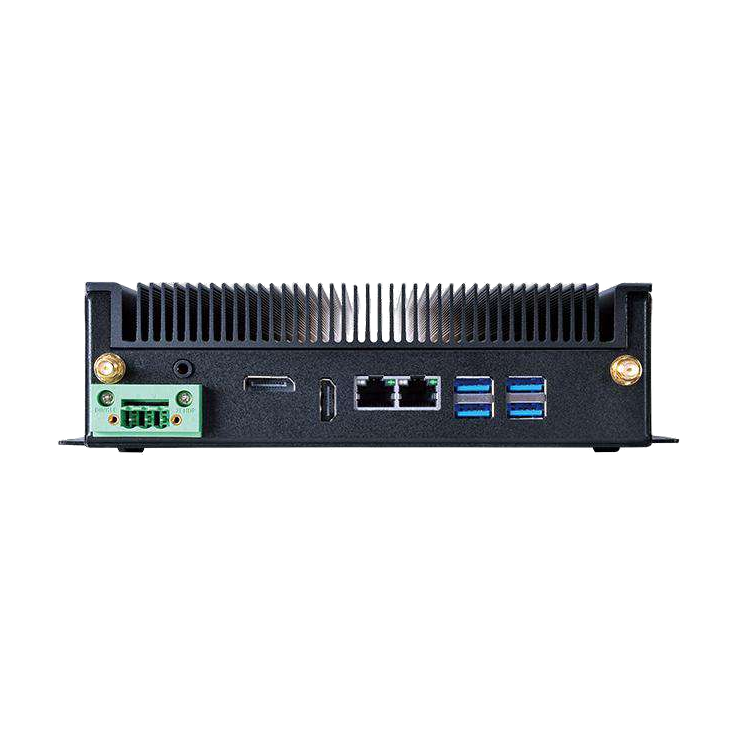

| REAR I/O | DC-in x 1 Audio Combo Jack (Mic-in and Line-out) x 1 DP x 1 HDMI x 1 RJ-45 x 2 USB 3.0 x 4 SMA Antenna (Option for WiFi function) |
| H/W MONITOR | Temperature Monitor, Voltage Monitor |
| WATCHDOG TIMER | 1~255 Steps by Software Program |
| INDICATOR | Power LED, HDD LED |
| POWER REQUIREMENT | |
| POWER INPUT | 8~24V Wide Rage DC-in Jack Connectivity (Default) 8~24V Wide Rage DC Input w/ Terminal Block Connectivity (Optional) |
| POWER ADAPTER | AC to DC, DC19V/ 3.4A, 65W adaptor |
| MECHANICAL | |
| THERMAL DESIGN | Fanless |
| MOUNTING | VESA / Wallmount Kit (Default in Accessories) |
| DIMENSIONS (W X D X H) | 7.4” x 5.8” x 2.2” (189.0mm x 147.4mm x 55.0mm) |
| MATERIAL | Top cover: Aluminum Alloy , Bezel and chassis: Steel |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -10~50°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM) 0~40°C with 0.7m/s Air Flow (w/ Standard Temp.) |
| STORAGE TEMPERATURE | -20~80°C |
| OPERATING HUMIDITY | 10%~90% (Non-condensing) |
| VIBRATION RESISTANCE | 5Hz~500Hz/ 2Grms/ 3Axis (Non-operating) |
| SHOCK RESISTANCE | 120G, 2ms Duration (Non-operating) |
| CERTIFICATION | CE & FCC |
| OS | |
| OS SUPPORT | KBL-U: Windows® 10, Linux support by request SKL-U: Windows® 10, Windows® 8.1, Windows® 7, Linux support by request |
