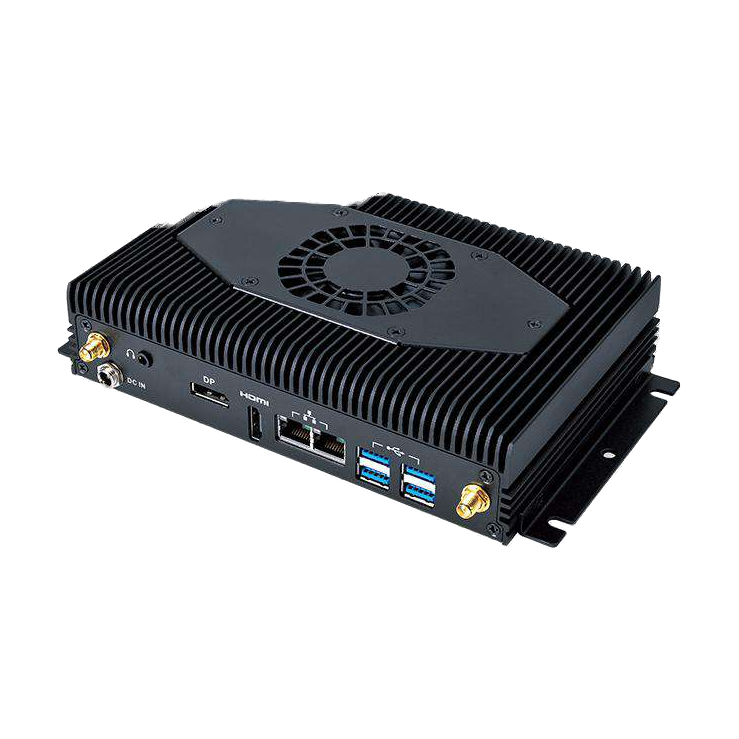

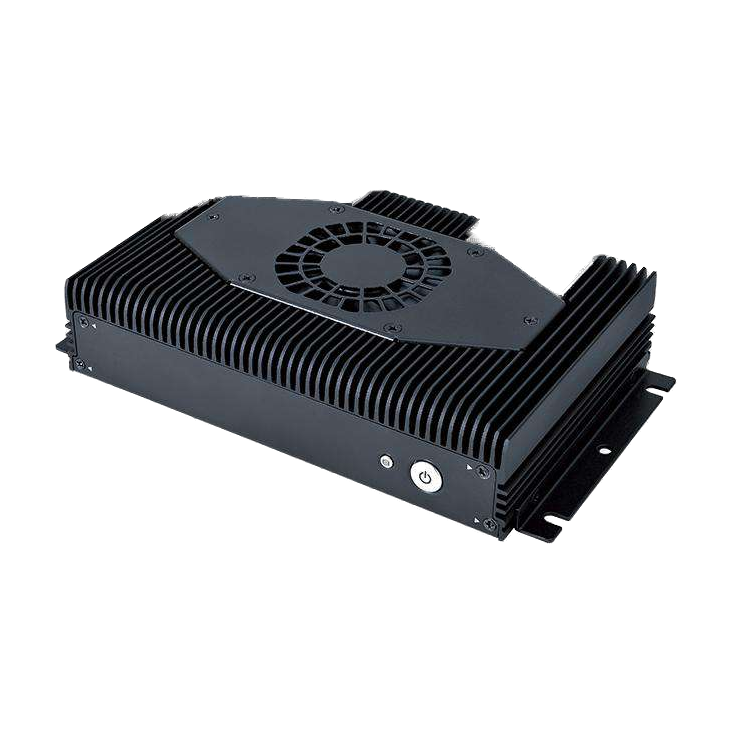

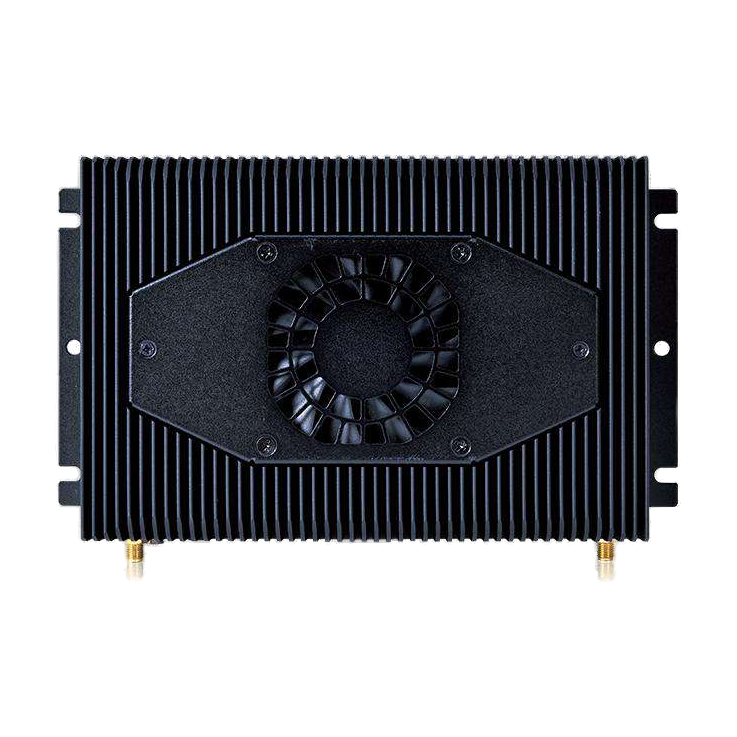

Compacto Embedded BOX PC com processador Intel® Kaby Lake / Skylake (até 3.9GHz)

Embedded PC compacto S320-11KS da Mitac, CPU Intel Kabylake 3965U. Painel I/O versátil capaz de se adaptar a diferentes ambientes e suportar um vasto leque de aplicações.

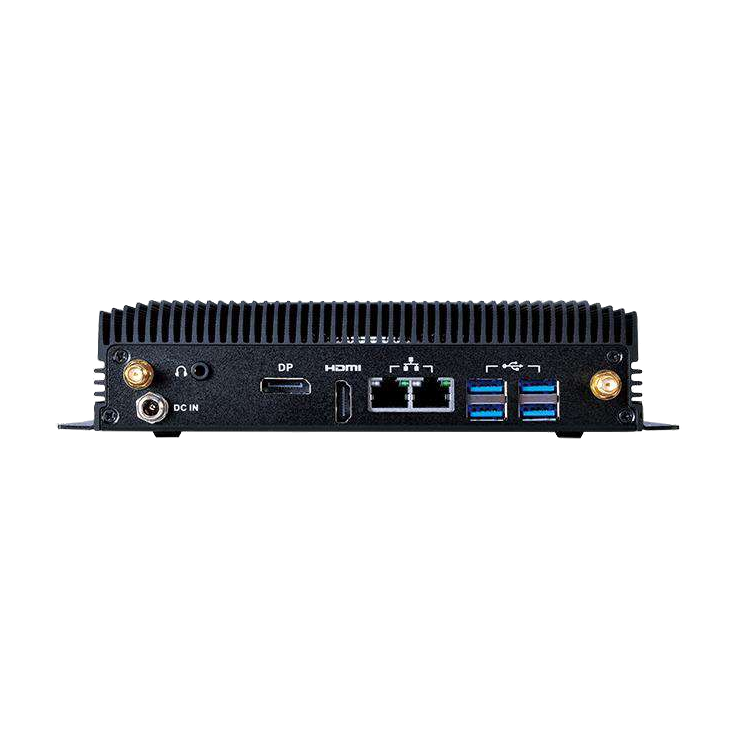

Conectores IO

S320-11KS-3965U_IO

Dimensões

S320-11KS_3965U_Dimension

Caraterísticas

  • Intel® Kaby Lake
  • Ultra Slim Fanless Design
  • Dual display
  • Dual LAN
  • mSATA
  • Certficação FC/CE

Período de vida anunciado até 2023 !

Para completar o sistema necessita adicionar:
- mSATA SSD
- RAM

Especificações

SYSTEM
CPU 7th Generation Kabylake Intel® Core™ i ULV Processor, Celeron 3965U)
CHIPSET Intel® SoC integrated
SYSTEM MEMORY DDR4 2133/2400, 260-pin SO-DIMM x 2, Max. 32 GB (Non-ECC)
GRAPHICS Intel® HD Graphics
DISPLAY INTERFACE DP, HDMI
STORAGE SLOT mSATA x 1
ETHERNET Intel® I219LM Giga LAN + I211AT Giga LAN
AUDIO Realtek ALC283
I/O CHIPSET Nuvoton NCT6104D
TPM Nuvoton NPCT650ABCYX TPM2.0
EXPANSION SLOT Storage: PCI Express Full-Length Mini Card slot (USB / PCIe / SATA)
Wireless: M.2 2230 E key (PCIe / USB)

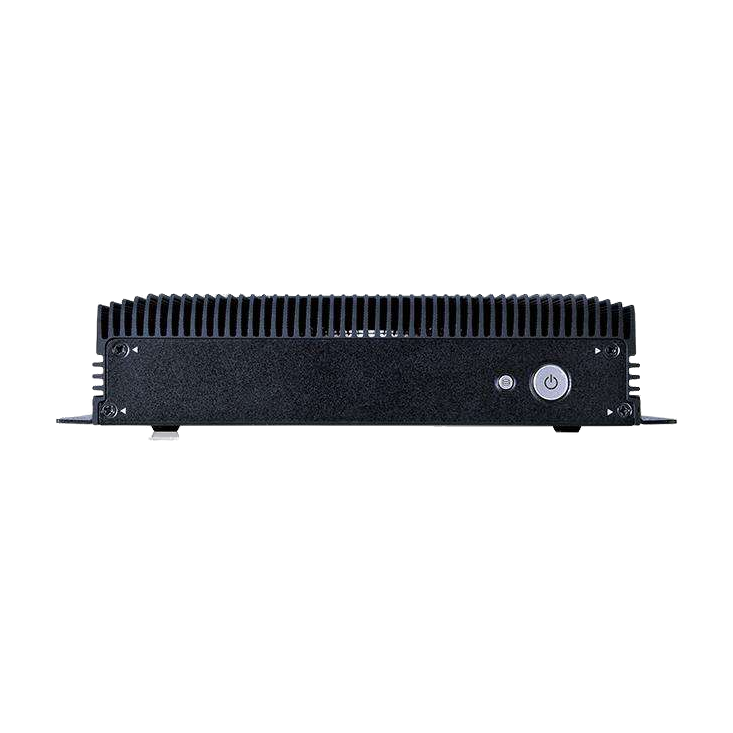

FRONT I/O HDD LED
Power Button w/ Power Indicator
REAR I/O DC-in x 1
Audio Combo Jack (Mic-in and Line-out) x 1
DP x 1
HDMI x 1
RJ-45 x 2
USB 3.0 x 4
SMA Antenna (Option for WiFi function)
H/W MONITOR Temperature Monitor, Voltage Monitor
WATCHDOG TIMER 1~255 Steps by Software Program
INDICATOR Power LED, HDD LED
POWER REQUIREMENT
POWER INPUT 8~24V Wide Rage DC-in Jack Connectivity (Default)
8~24V Wide Rage DC Input w/ Terminal Block Connectivity (Optional)
POWER ADAPTER AC to DC, DC19V/ 3.4A, 65W adaptor
MECHANICAL
MOUNTING Wallmount Kit (Default in Accessories)
DIMENSIONS (W X D X H) 7.3” x 4.9” x 1.8” (185mm x 125mm x 45mm)
MATERIAL Top cover: Aluminum Alloy , Bezel and chassis: Steel
ENVIRONMENTAL
OPERATING TEMPERATURE 0~50°C
STORAGE TEMPERATURE -20~80°C
OPERATING HUMIDITY 10%~90% (Non-condensing)
VIBRATION RESISTANCE 5Hz~500Hz/ 2Grms/ 3Axis (Non-operating)
SHOCK RESISTANCE 120G, 2ms Duration (Non-operating)
CERTIFICATION CE & FCC
OS
OS SUPPORT KBL-U: Windows® 10, Linux support by request
SKL-U: Windows® 10, Windows® 8.1, Windows® 7, Linux support by request

Downloads

Aplicações

Automação Industrial

Manufacturing_Automation

Quiosques Digitais

Digital_Kiosk

Máquinas de Vending

Vending_Machine

Sinaletica Digital

Digital_Signage

PCs Multi Display

MultiMedia_Player

Máquinas de Gaming

Gaming_Machine
