Sku: STM-601C
Tipo de Produto: Gateway Modbus
Fabricante: Antaira

ENVIOS RÁPIDOS

SUPORTE 24/7

PAGAMENTO ONLINE

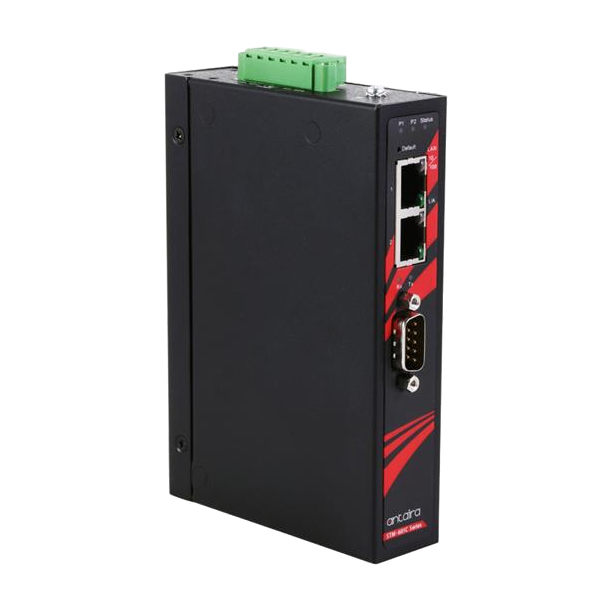

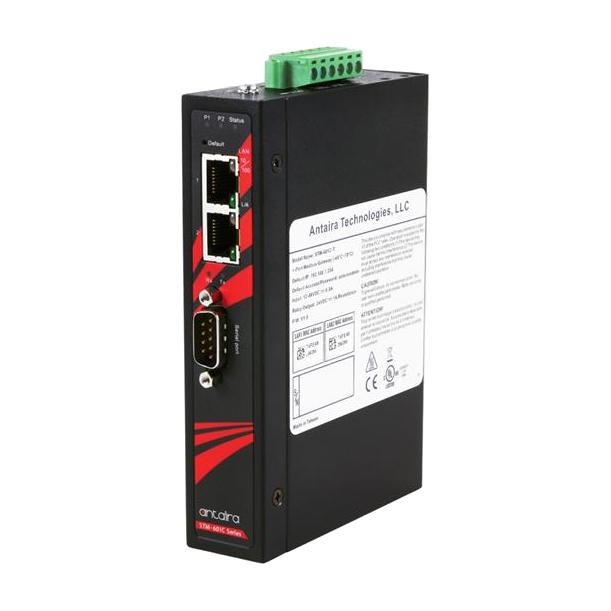

STM-601C - Gateway Modbus TCP para Serial RS-232/ 422/ 485

Certificados

Antaira Technologies’ STM-601C is an industrial MODBUS gateway that allows legacy MODBUS RTU/ASCII devices to operate on a MODBUS TCP network. It can be configured as either MODBUS serial master or slave to communicate with MODBUS TCP’s slave or master. The STM-601C features two independent Ethernet ports and MAC addresses to provide redundancy and reliability. These devices provide an economical way of connecting MODBUS RTU/ASCII devices to networks accessible anywhere in the world.



  • 2*10/100 Mbps Ethernet Ports for LAN Redundancy
  • Integrates Modbus TCP and Modbus RTU/ASCII Networks
  • Supports Up to 921.6 kbps and Any Baud Rate Setting
  • Software-selectable RS-232/422/485 Communication
  • Automatic RS-485 Data Flow Control
  • Redundant Power Input: 12~48VDC
  • Power Polarity Reverse Protection
  • Overload Current Protection
  • DIN-Rail or Wall Mountable
  • Wide Temperature Model
  • 5-Year Warranty
Caraterísticas
Humidity 5% to 95%, (non-condensing)
Ethernet Port 2 with independent IP and MAC addresses
Flow Control XON/XOFF, RTS/CTS
Housing Metal with solid mounting hardware
Input Voltage 12 to 48VDC, Redundant Inputs
LED Indicators Power, Ethernet Ports: Link / Act
Mounting DIN-Rail, Wall Mounting
Operating Temperature STD: -10° ~ 60°C
Storage Temperature -40° ~ 85°C
Power Consumption 3.2 W
Protocols ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP
Standards IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet
Warranty 5 Years
Weight 1.04 lbs (0.472 kg)
