LMX-1202G-SFP
LMX-1202G-SFP-T (EoT: -40~75C)

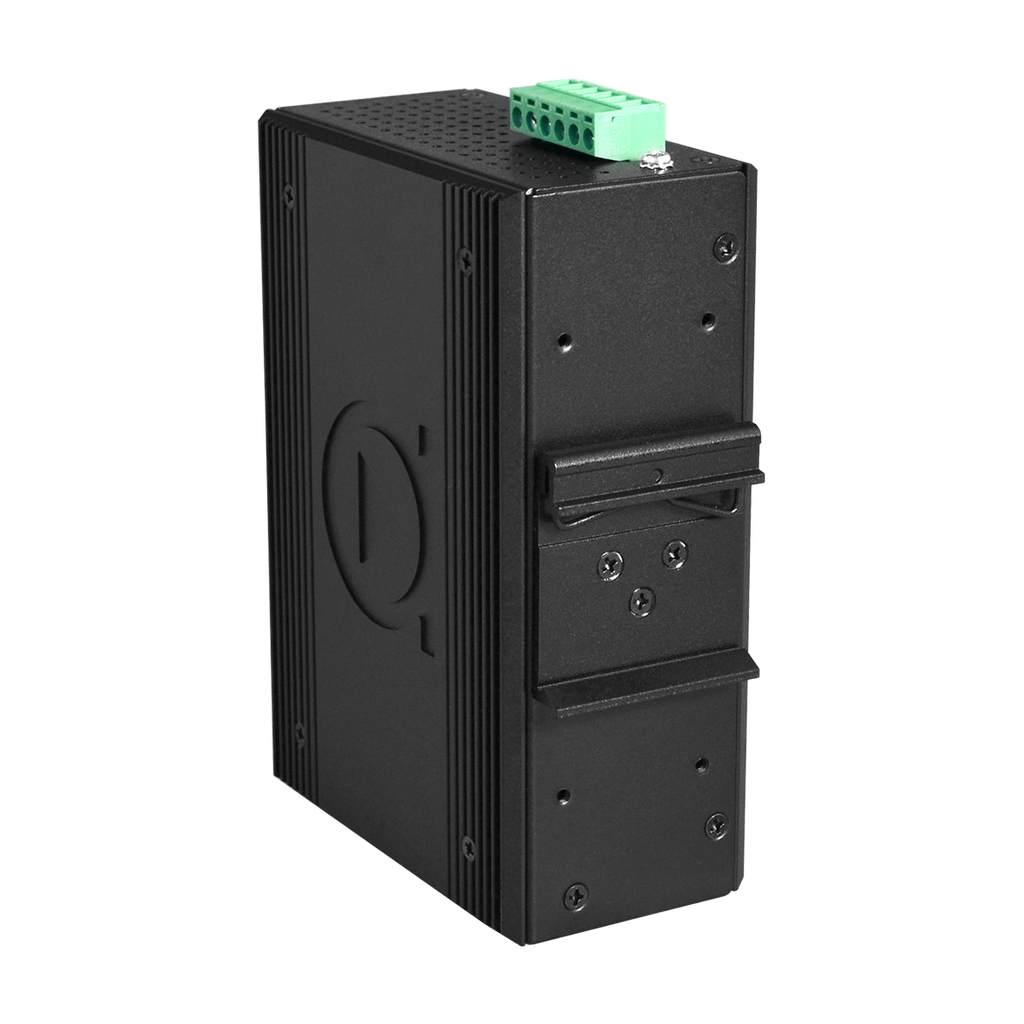

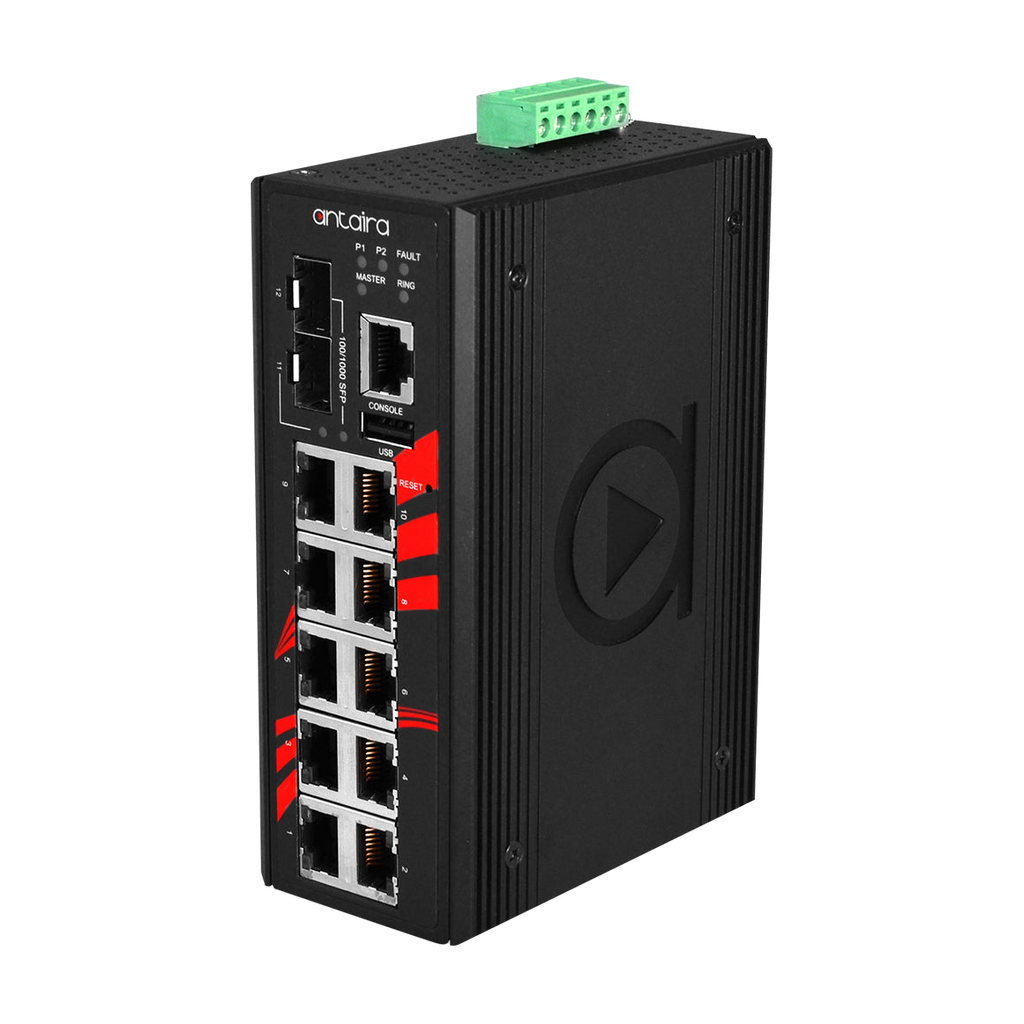

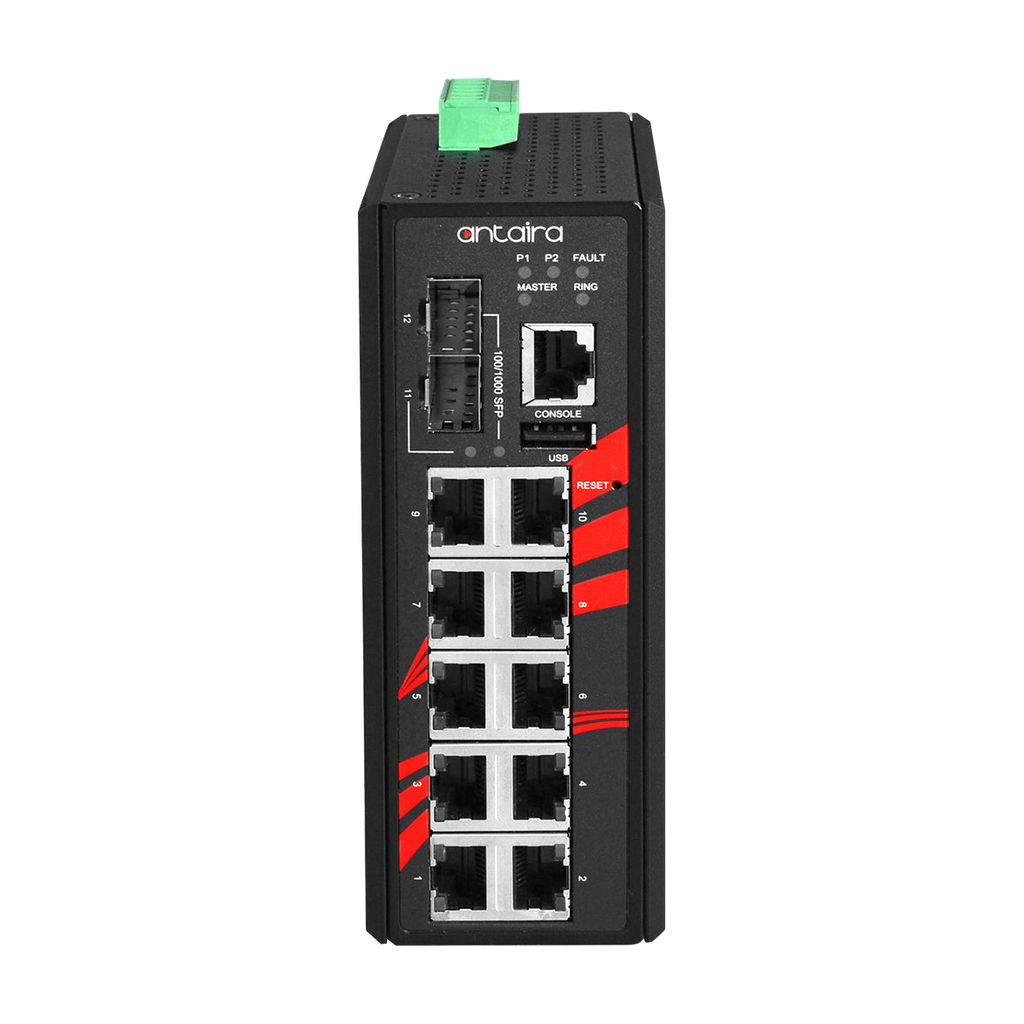

12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/10*10/100/1000Tx + 2*100/1000 SFP
Antaira’s LMX-1202G-SFP is a 12-port industrial gigabit managed Ethernet switch that is embedded with 10*10/100/1000Tx Fast Ethernet ports and two dual rate (100/1000X) SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2 network management software. It supports Jumbo Frame and wide bandwidth for data transmission and has sufficient port counts for any edge level connectivity solutions.
The LMX-1202G-SFP has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C or -40°C to 75°C (module LMX-1202G-SFP-T). It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.
- ATEX Certificate
- Supports 10*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
- System Warning Setting for Automatic Warning through E-Mai
- Redundant Power Input Design – 12~48VDC
- Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
- Standard Operating Temperature: -10°C to 70°C / EOT -40°C to 75°C
- 5-Year Warranty
Certifications | FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2, Class 1 Div 2, ATEX |
Dimensions | 54 x 142 x 99 mm |
EMI | FCC Class A |
EMS | IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4 |
Ethernet Port | 10*10/100/1000BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
Fiber Port | 2* 100/1000 SFP Slots |
Housing | Metal IP30 rated / DIN-Rail & Wall-Mount (optional) |
Input Voltage | 12~48VDC Redundant Input / 1 removable 6-contact terminal block |
Operating Temperature | STD: -10 to 70°C / EOT: -40 to 75°C |
Power Consumption | 15 Watts |
Free Fall / Shock / Vibration | IEC60068-2-27 / 2-6 / 2-32 |
Warranty | 5 Years |

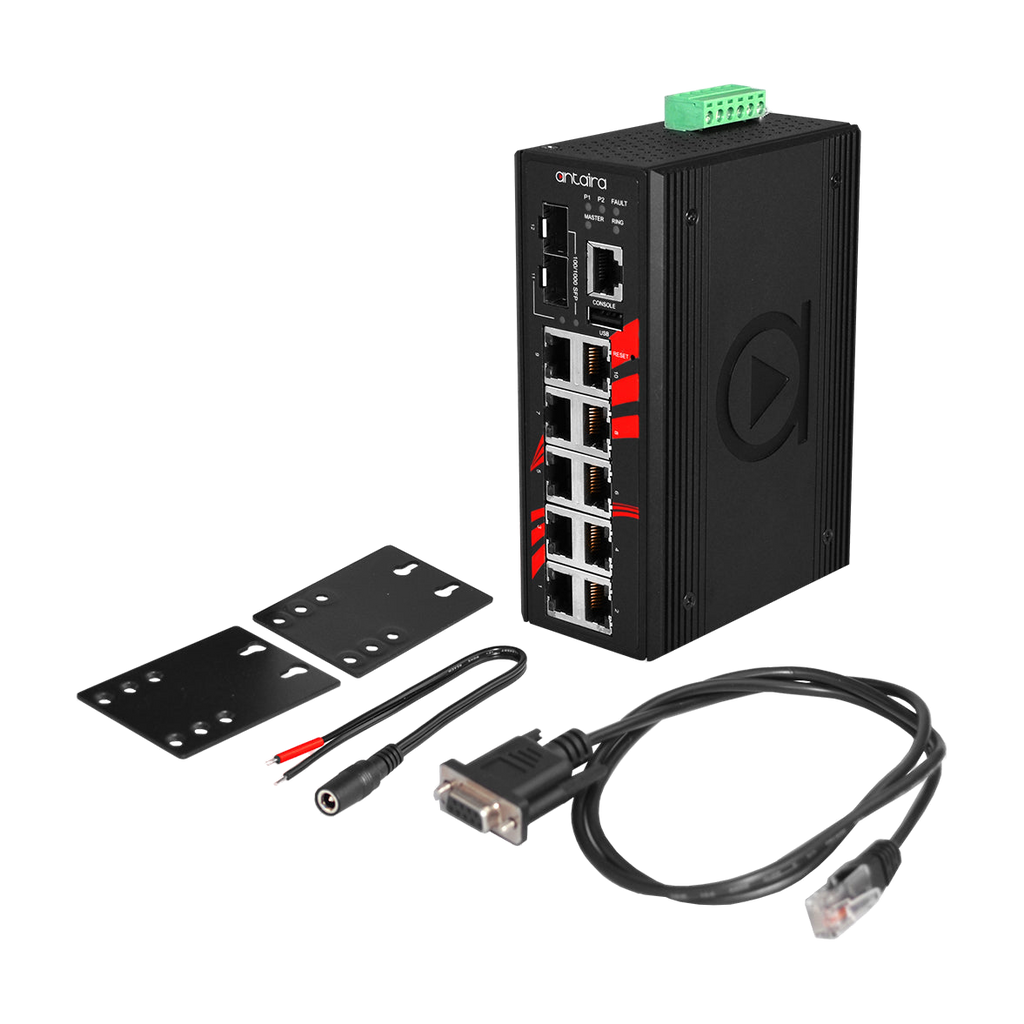

- 1 - LMX-1202G-SFP
- 1 - DC Cable - 18 AWG & DC Jack 5.5 x 2.1mm
- 1 - RJ45 to DB9 Serial Console Cables
- 2 - Wall Mounting Brackets and Screws
