Sku: LMX-0602-ST-M
Tipo de Produto: Switches Gerenciáveis
Fabricante: Antaira

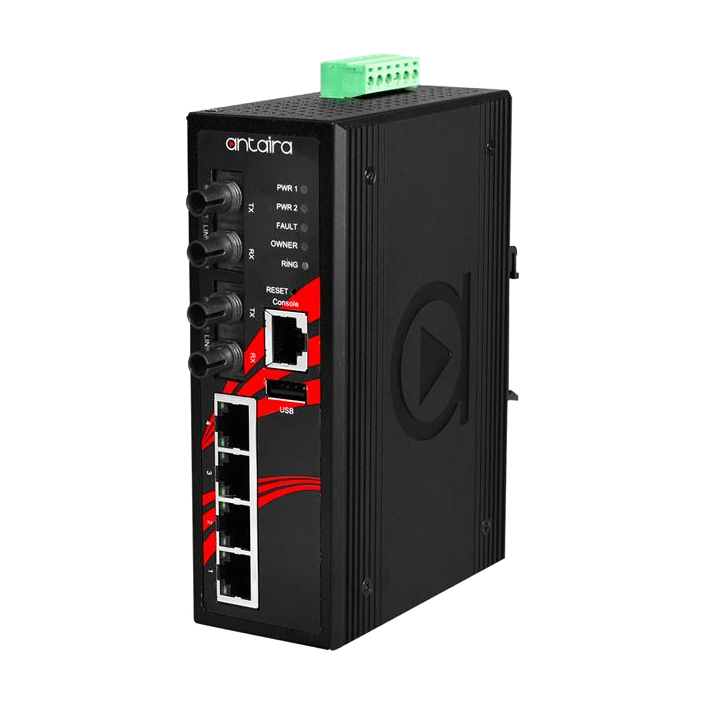

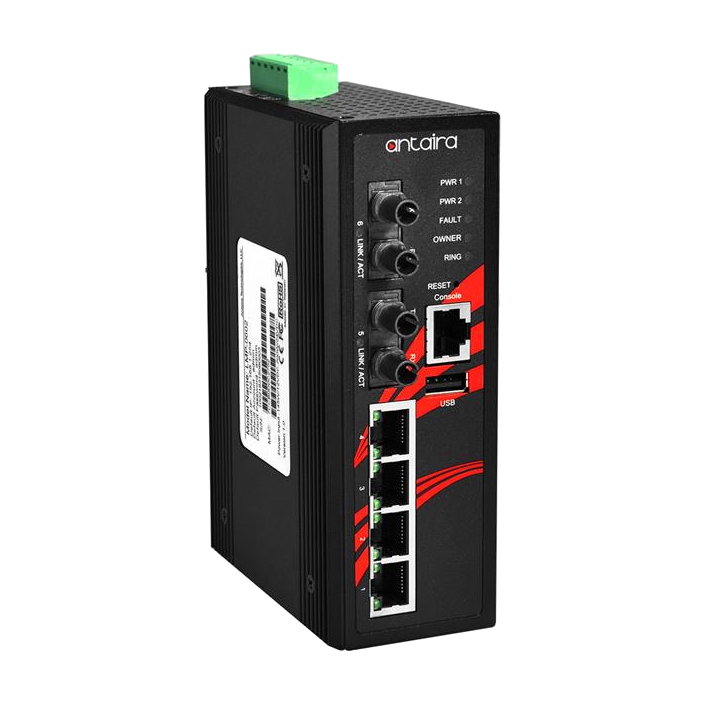

6-Port Industrial Managed Ethernet Switch w/4*10/100Tx + 2*100Fx Multi-mode 2Km, ST Connector


Antaira’s LMX-0602-ST-M is a 6-port industrial managed Ethernet switch that is embedded with 4*10/100Tx fast Ethernet ports and 2*100Fx ST fiber connectors with multi-mode 2Km support. It is a Layer 2 full manageable Ethernet switch pre-loaded with user friendly web management console design. It supports Ring Network Redundancy function with market open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol <50ms network recovery time. The advanced network Filtering and Security functions, IGMP, VLAN, QoS, SNMP, Port lock, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control network.

The LMX-0602-ST-M is a high performance industrial managed Ethernet switch with a compact size, IP30 rating, DIN-rail or wall mounting design, and standard operating temperature range from -10°C to 70°C. It provides high EFT and ESD protection for any industrial networking applications within Power/Utility, Water Wastewater, Oil/Gas/Mining, Factory Automation, ITS-Transportation, Security Surveillance and any other outdoor or harsh environment.

  • 4*10/100Tx RJ45 Ports and 2*100Fx ST Fiber Ports with Multi-Mode 2Km
  • Supports Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
  • Supports IPv4/IPv6, and DHCP Option 66/67/82
  • Supports Modbus/TCP Protocol for Device Management and Monitoring
  • Configuration: Web Console, Telnet, CLI Command
  • IGMP v1/v2 for Multicast Traffic Filtering
  • QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
  • IEEE802.1Q VLAN for Easy Network Planning
  • Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
  • Port Lock Function for Unauthorized Access Based on MAC Address Blocking
  • Auto Warning by Exception through E-mail, Relay Output
  • Support RMON Function for Efficient Network Monitoring
  • Support Port Mirroring for Online Diagnostic
  • Standard Operating Temperature: -10°C to 70°C
  • 5-Year Warranty
Certifications FCC, CE, UL 508 (Pending)
Dimensions 54 x 142 x 99 mm
EMS IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
Ethernet Port 4*10/100BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port 2*100Fx (ST); Multi-mode 2Km
Green RoHS Compliant

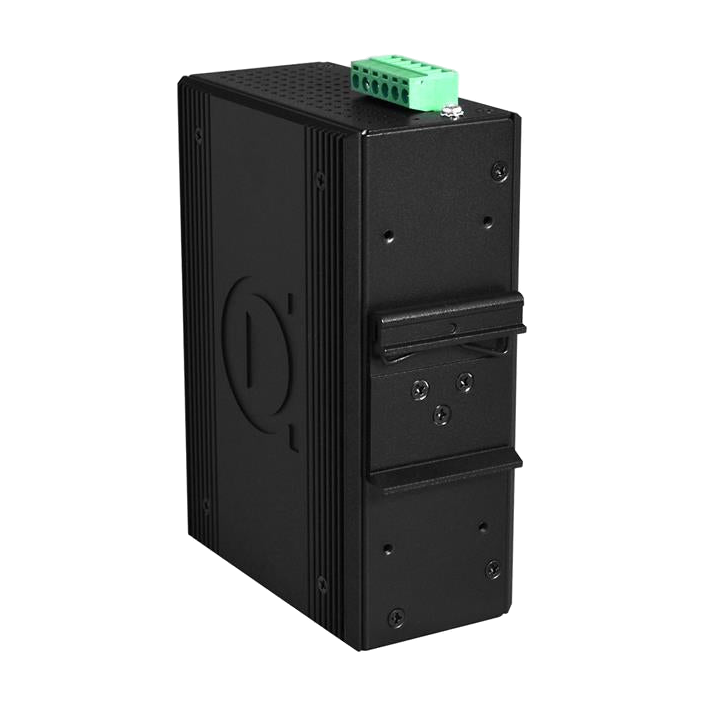

Housing Metal IP30 rated / DIN-Rail & Wall-Mount (optional)
IGMP 12~48VDC Redundant Input / 1 removable 6-contact terminal block
Input Voltage -10 to 70°C
Operating Temperature 10 Watts
Power Consumption Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC
Overload Current Protection IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82,
Protocols IEEE 802.3 / 802.3u / 802.3x / 802.3ad,
Standards Back-Plane (Switching Fabric): 10.0Gbps
Switching Architecture 1 ~ 4094
VLAN 5 Years
Warranty 1310nm
Wavelength Unit: 1.9lbs.; Shipping: 2.7 lbs.
Weight Liquid error: Index was outside the bounds of the array.

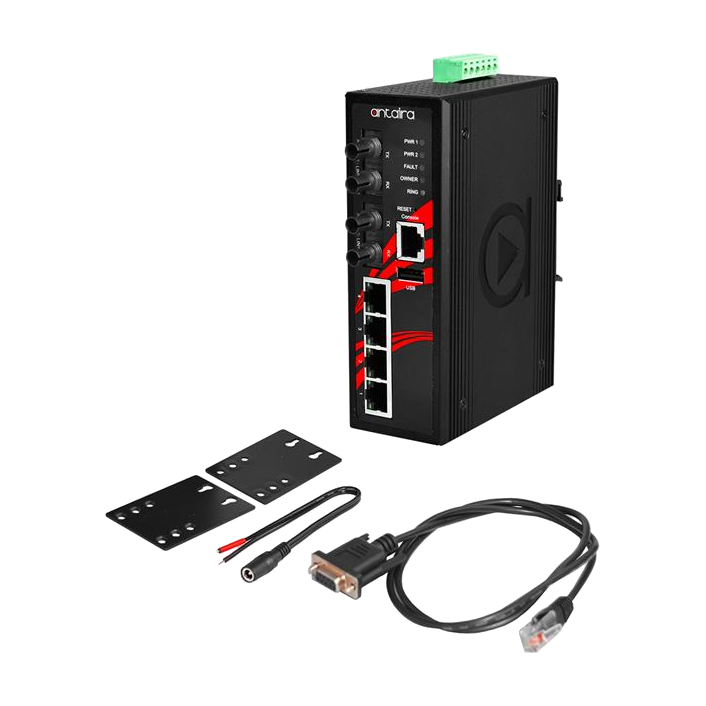

  • 1-LMX-0602-ST-M
  • 2-Wall Mounting Brackets and Screws
  • 1-RJ45 to DB9 Serial Console Cable
  • 1-DC cable - 18 AWG & DC Jack 5.5x2.1mm
