Sku: LMX-0802-ST-S3
Tipo de Produto:
Switches Gerenciáveis
Fabricante:
Antaira
LMX-0802-ST-S3
LMX-0802-ST-S3-T (EoT: -40~75C)
8-Port Industrial Managed Ethernet Switch, w/6*10/100Tx Ports + 2*100Fx (ST) Single-Mode 30Km Fiber Ports
Caraterísticas
Especificações
Downloads
Incluído
Caraterísticas
Antaira’s LMX-0802-ST-S3 is a 8-port industrial managed Ethernet switch that is embedded with 6*10/100Tx Fast Ethernet ports + 2*100Fx single-mode ST fiber ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2 network management software.
The LMX-0802-ST-S3 has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C or -40°C to 75°C (model LMX-0802-ST-S3-T). It also provides high EFT and ESD protection for industrial networking applications within factory automation, ITS, power/utility, water wastewater, security, or other outdoor/harsh environments.
- Network Broadcast Storm Protection
- Supports 6*10/100Tx Fast Ethernet Ports + 2*100Fx Single-Mode ST Fiber Ports
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
- Configuration: Web Console, Serial, CLI Command
- Supports IGMP v1/v2
- Supports QoS (IEEE 802.1p) and CoS/ToS
- Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
- Redundant Power Input Design 12~48VDC + Built-in Relay Output for Port Break Alarm
- System Warning Setting for Automatic Warning through E-mail
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C / - EOT: -40° to 75° C
- 5-Year Warranty
Especificações
| Certifications | FCC, CE, UL 61010-1, UL 61010-2-201 |
| Configuration | Web Console, Telnet, CLI |
| Dimensions | 54 x 142 x 99 mm |
| EMI | FCC Class A |
| EMS | IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4 |
| Ethernet Port | 6*10/100BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI connection |
| Fiber Port | 2*100Fx Multi-mode Fiber Ports with ST Connectors |
| Fiber Port | 2*100Fx Single-mode Fiber Ports with ST Connectors |
| Housing | Metal IP30 rated / DIN-Rail & Wall-Mount (Included) |
| Input Voltage | 12~48VDC Redundant Input / 1 removable 6-contact terminal block |
| Power Consumption | 15 Watts |
| Free Fall / Shock / Vibration | IEC60068-2-27 / 2-6 / 2-32 |
| Operating Temperature | STD: -10 to 70°C / EOT: -40 to 75°C |
Downloads

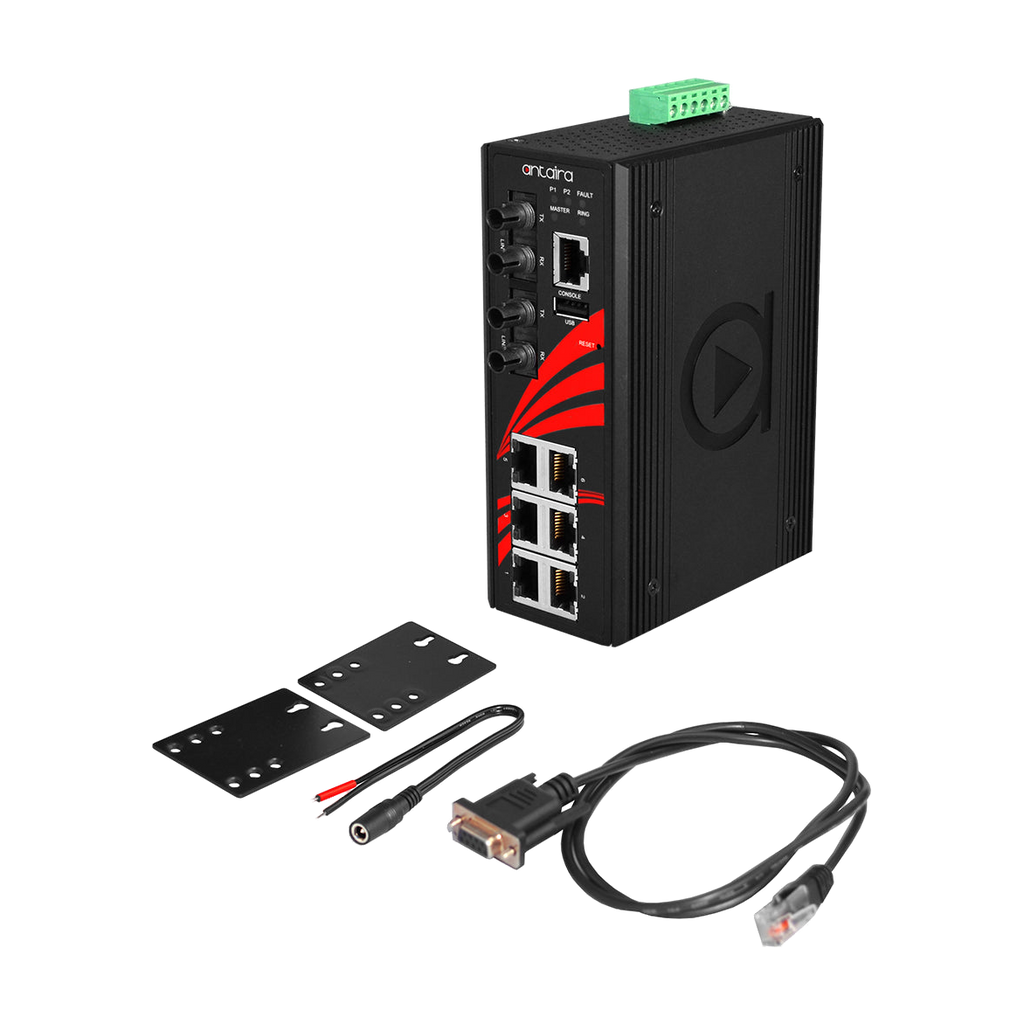

Incluído
- 1 - LMX-0802-ST-M
- 2 - Wall Mounting Brackets and Screws
- 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
- 1 - RJ45 to DB9 Serial Console Cable
