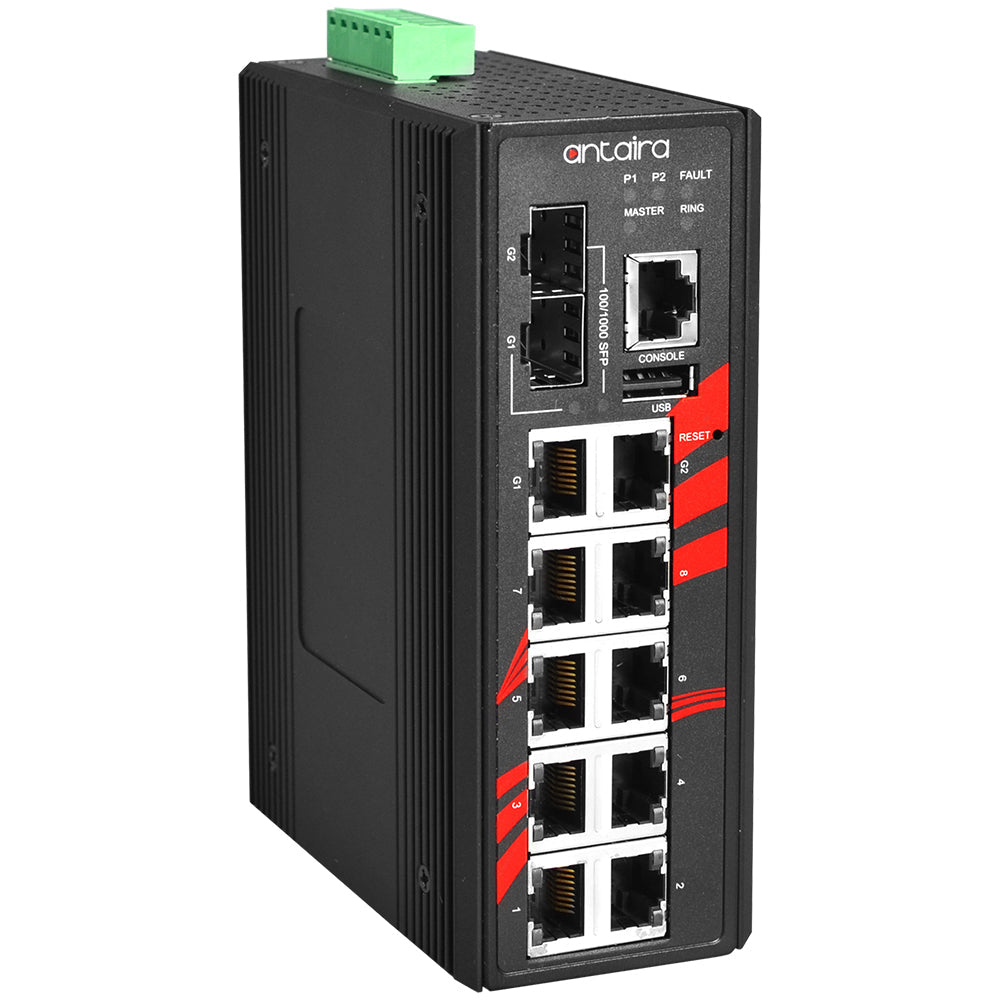

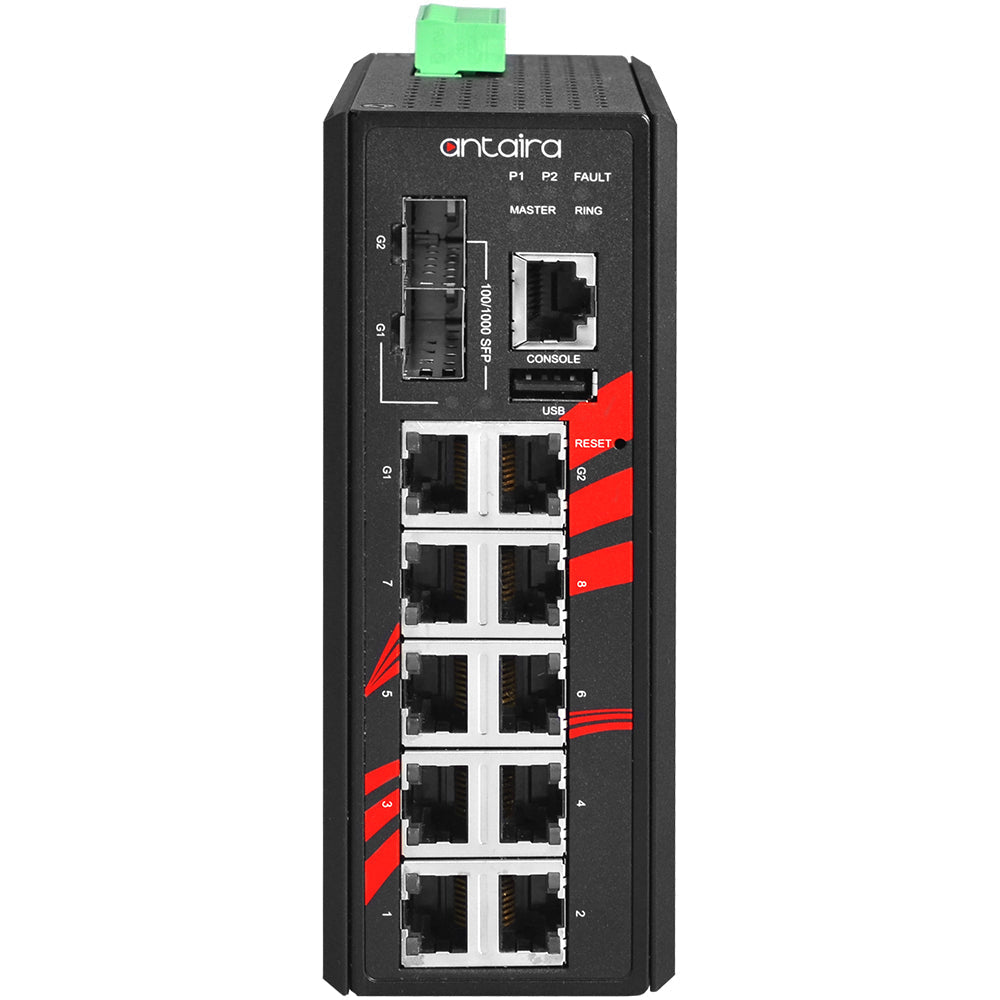

Switch PoE+ LMP-1202M-SFP-24 (8*10/100Tx+2*10/100/1000Tx+2*100/1000SFP)

LMP-1202M-SFP-24

LMP-1202M-SFP-24-T (EoT: -40~75C)

12-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, w/8*10/100Tx (30W/Port) , 2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots, 48~55VDC

Antaira’s LMP-1202M-SFP-24 is a 12-port industrial PoE+ Light Layer 3 managed Ethernet switch that is embedded with 8*10/100Tx Ethernet ports that support IEEE 802.3at/af for a maximum of 30W/port, 2*10/100/1000Tx RJ45 and 2*100/1000 Dual Rate SFP Slots for Gigabit Fiber. This series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The  ports provide flexibility to users for either 10/100 or 1000Tx Fast Ethernet or plug in SFP Modules for 100MB or Gigabit Fiber connection to achieve bandwidth or distance concern applications.

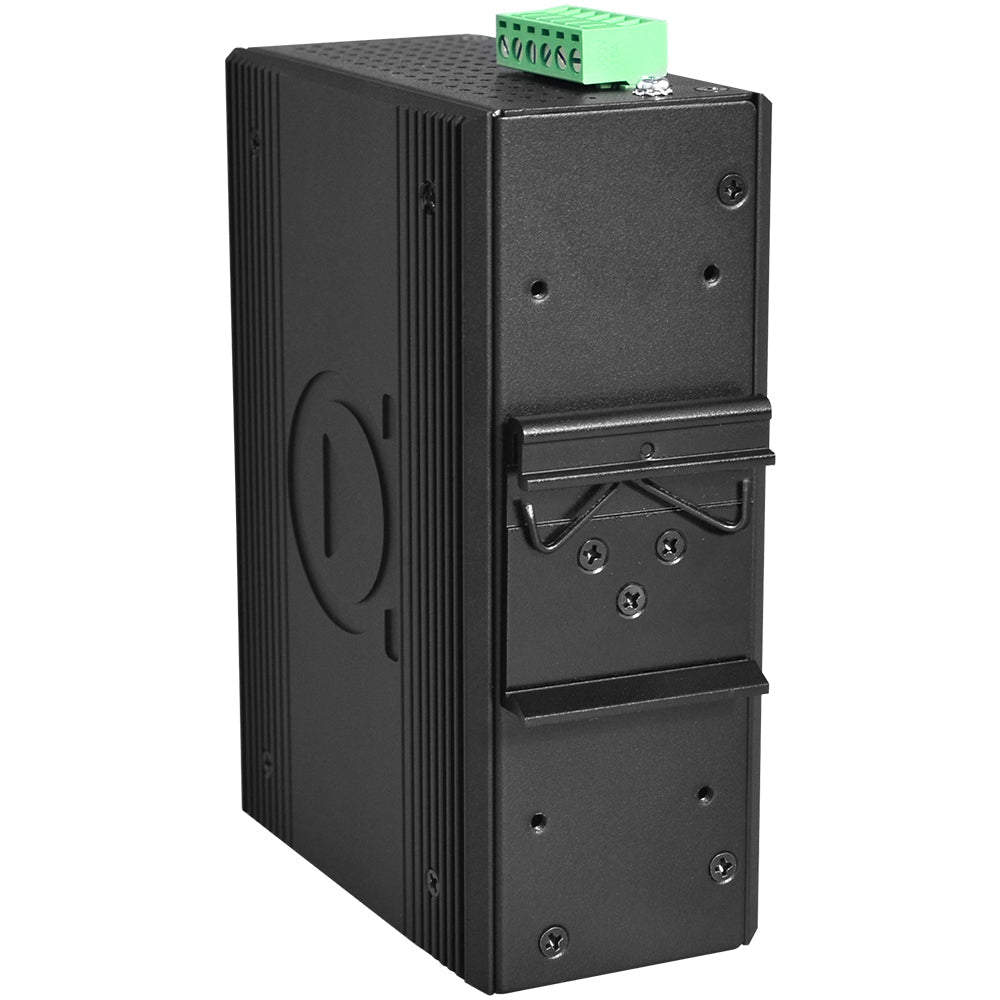

The LMP-1202M-SFP-24 has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C or -40°C to 75°C (model LMP-1202M-SFP-24-T). It provides dual power input with low voltage power input support of 12~36VDC with voltage booster. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.

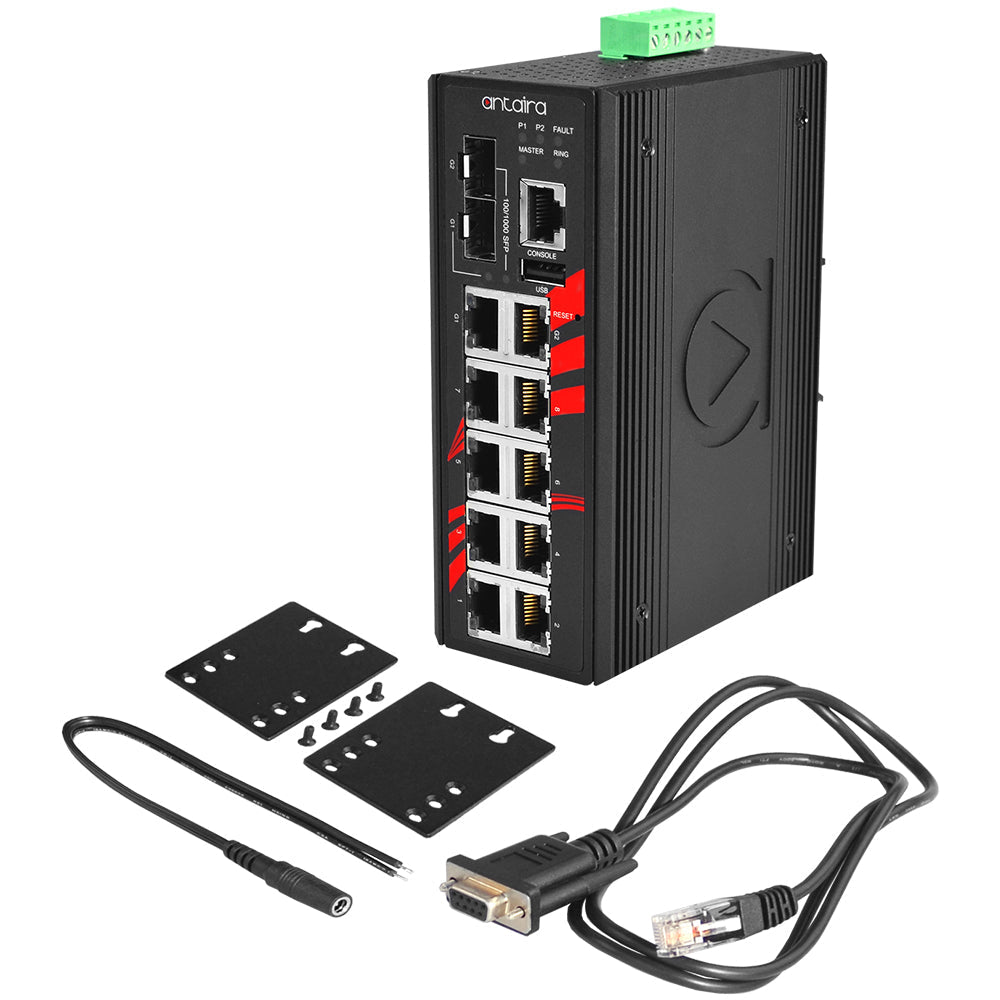

Incluído

• 1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• 1 - LMP-1202M-SFP-24
• 1 - RJ45 to DB9 Serial Console Cables
• 2 - Wall Mounting Brackets and Screws
