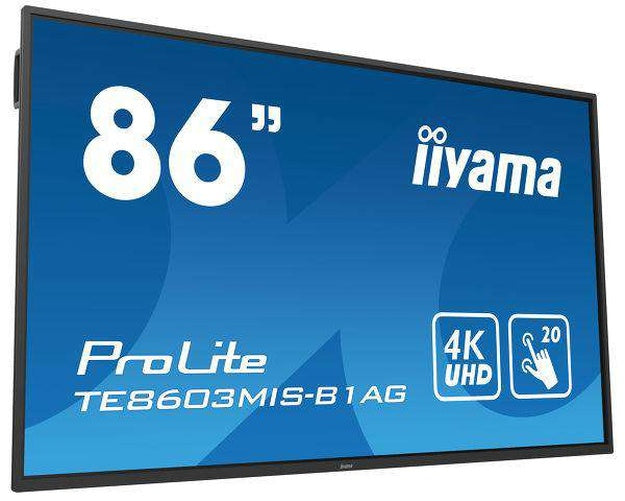

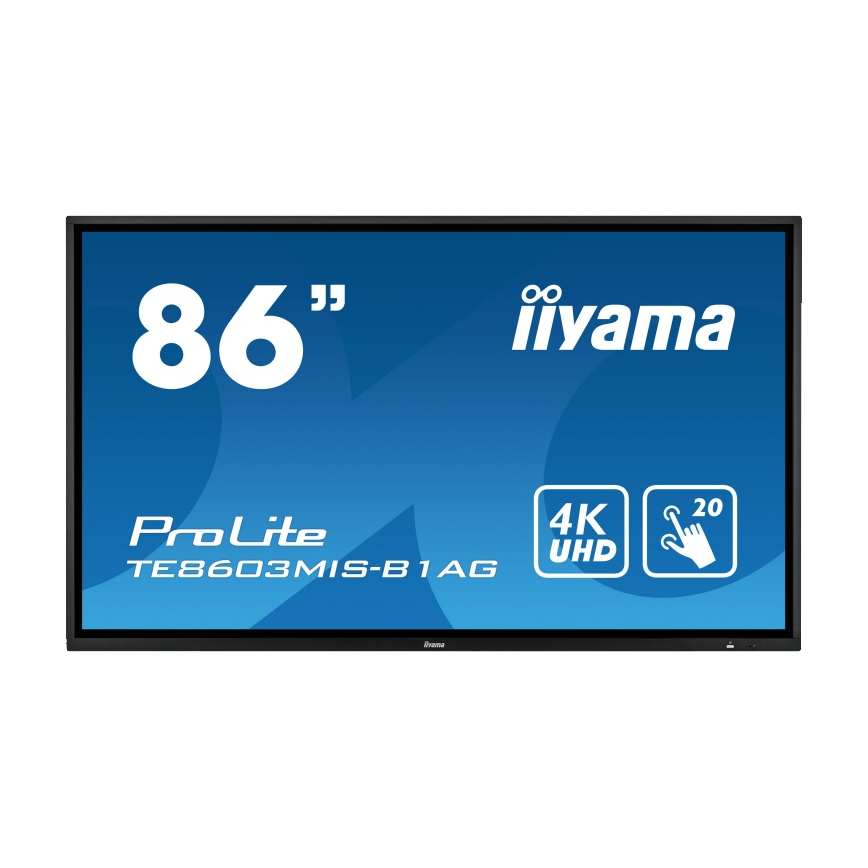

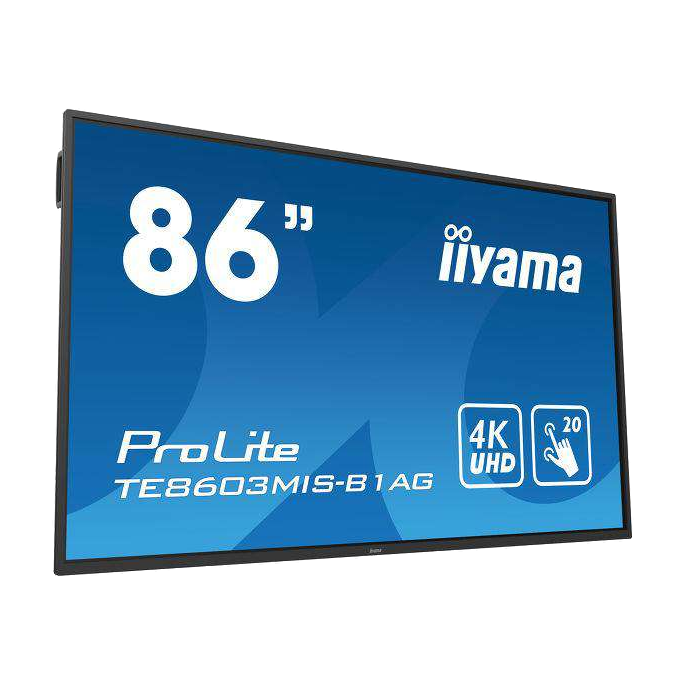

86’’ Interactive 4K UHD LCD Touchscreen with integrated annotation software
Share Your Vision with the ProLite TE8603MIS-B1AG; a perfect solution for educational and corporate use. Its 86’’ infrared 20-point touchscreen with iiWare 8.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro. It comes with dual touch pens, allowing users to annotate easily in 4K on files and on-screen content which can be saved directly on a USB device, 32gig internal memory or on a connected cloud drive. The display supports playback of presentations, high-resolution video and almost any other type of content.
The high-quality commercial IPS LCD screen with a 4K UHD resolution (3840 x 2160 - 8.3 megapixel), 350cd/m2 and a contrast ratio of 1200:1 for vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen has a 24/7 non-stop operating time and is equipped with an all-metal bezel, 4 mm thick hardened glass to ensure long durability in high-use environments such as classrooms or meeting rooms.
Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM001) and the ScreenSharePro app.
| Integrated software | iiWare 8.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro for wireless connection with Windows/iOS/Android devices |
| WiFi | yes |
| Hardware | Dual core A73+A53 CPU, Quad core Mali G51 GPU, 4 GB RAM, 32 GB internal memory, WiFi module (OWM001) |

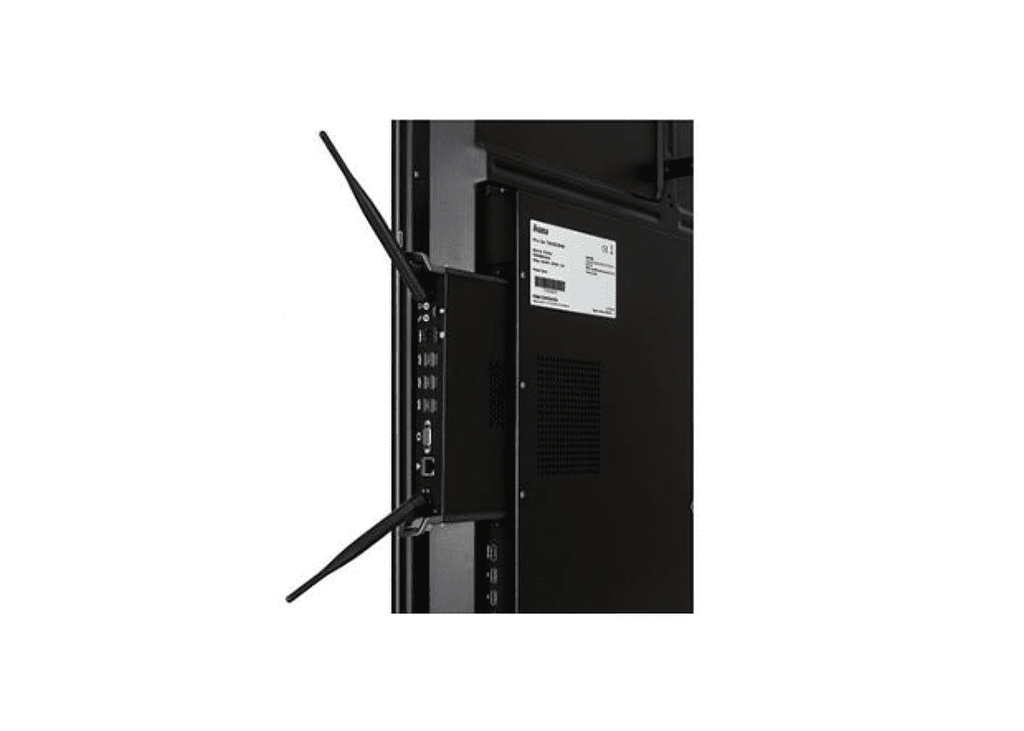

| Extra | slot PC, touch pen recognition, two touch pens |
| Kiosk mode | yes |
| Max. non-stop operating time | 24/7 |
| Media playback | yes |
| Glass thickness | 4mm |
| Glass hardness | 7H |
| Housing (bezel) | metal |
| OSD key lock | yes |
| Design | Thin bezel |
| Diagonal | 85.6", 217.4cm |
| Panel | IPS Direct LED, AG coated glass |
| Native resolution | 3840 x 2160 (8.3 megapixel 4K UHD) |
| Aspect ratio | 16:9 |
| Brightness | 350 cd/m² typical |
| Static contrast | 1200:1 typical |
| Light transmittance | 88% |
| Dynamic contrast | 4000:1 |
| Response time | 8ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07B 10bit |
| Horizontal Sync | 30 - 80KHz |
| Vertical Sync | 55 - 75Hz |
| Viewable area W x H | 1897 x 1068mm, 74.7 x 42" |
| Pixel pitch | 0.4935mm |
| Bezel colour and finish | black, matte |
| Cables | power, USB, HDMI |
| Touch pen | x4 (ø3 x2 & ø7 x2) |
| Guides | quick start guide, safety guide |
| Remote control | yes (batteries included) |
