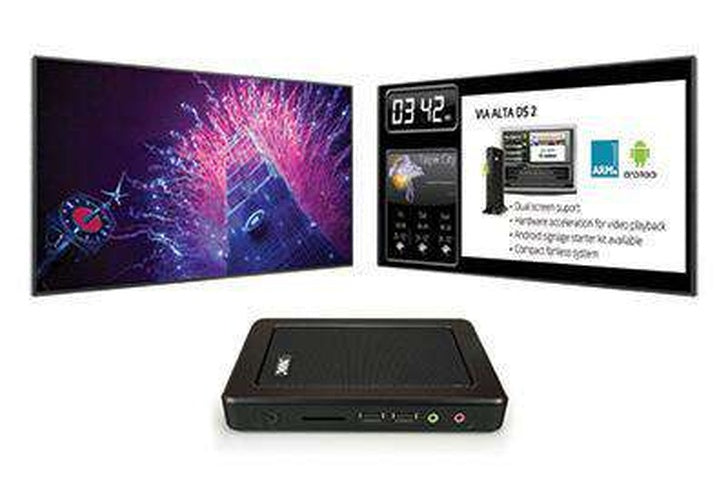

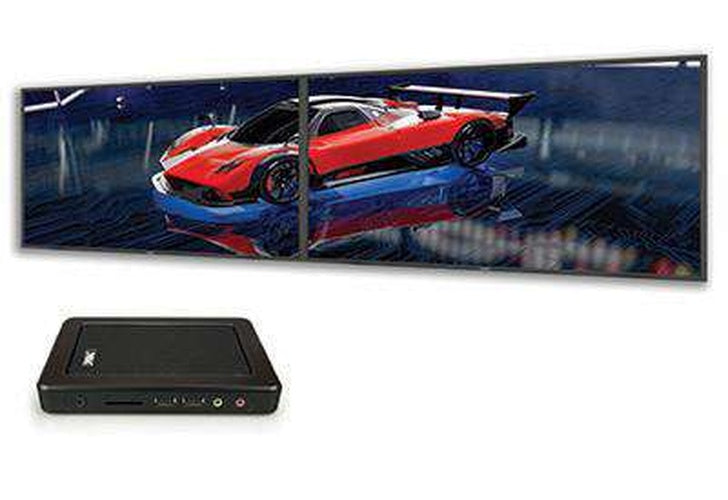

Mini PC Android ultra-compacto fanless de alto desempenho. VIA Elite E1000 Cortex-A9 SoC, 1.0GHz dual-core. Suporte para dupla exibiação independente para conteúdos de tela estendido. Certificado Android Capital Networks™ Audience™....

  • - Preços Sem IVA incluído.

  • - Valores sujeitos a alterações.

  • - Alguns dos valores requerem confirmação no acto da encomenda.

VIA Technologies
€228.00

Mini PC Android ultra-compacto fanless de alto desempenho. VIA Elite E1000 Cortex-A9 SoC, 1.0GHz dual-core. Suporte para dupla exibiação independente para conteúdos de tela estendido. Certificado Android Capital Networks™ Audience™. Incluido Android 4.4.2 BSP personalizado com VIA Smart ETK.



VIA-ALTA-DS-2- datasheet

 barebone-via-alta-ds-2



Model Name ALTA DS 2
Processor 1.0GHz VIA Elite E1000 Cortex-A9 dual-core SoC
System Memory 2GB DDR3 SDRAM onboard
Storage 4GB eMMC Flash memory
Up to 16GB eMMC (optional)
Supports 1 2.5" SATA HDD/SSD (Project-based only)
Bootloader 4MB SPI Flash ROM
Graphics 3 integrated, independent 2D/3D and video processing units
Graphics engine supporting OpenGL® ES 3.0 hardware acceleration
Supports MPEG-2, VC-1 and H.264 video decoding up to 1080p
LAN Realtek RTL8111G-CG
Audio Wolfson WM8960 Audio Codec
HDMI Integrated HDMI 1.4 transmitter
2nd from ADV7511

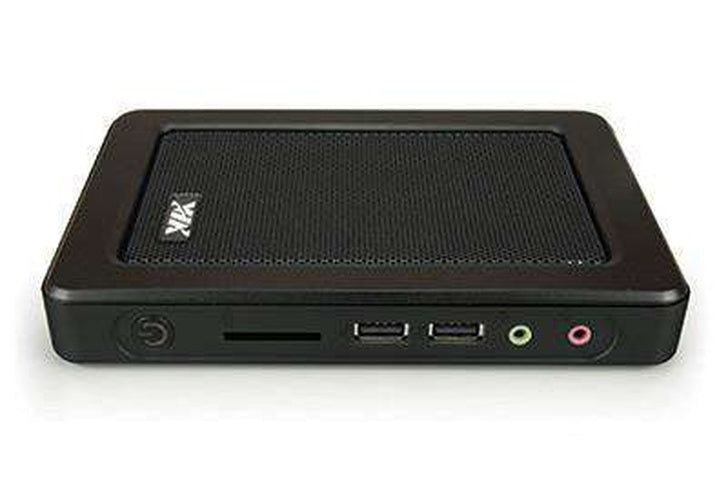

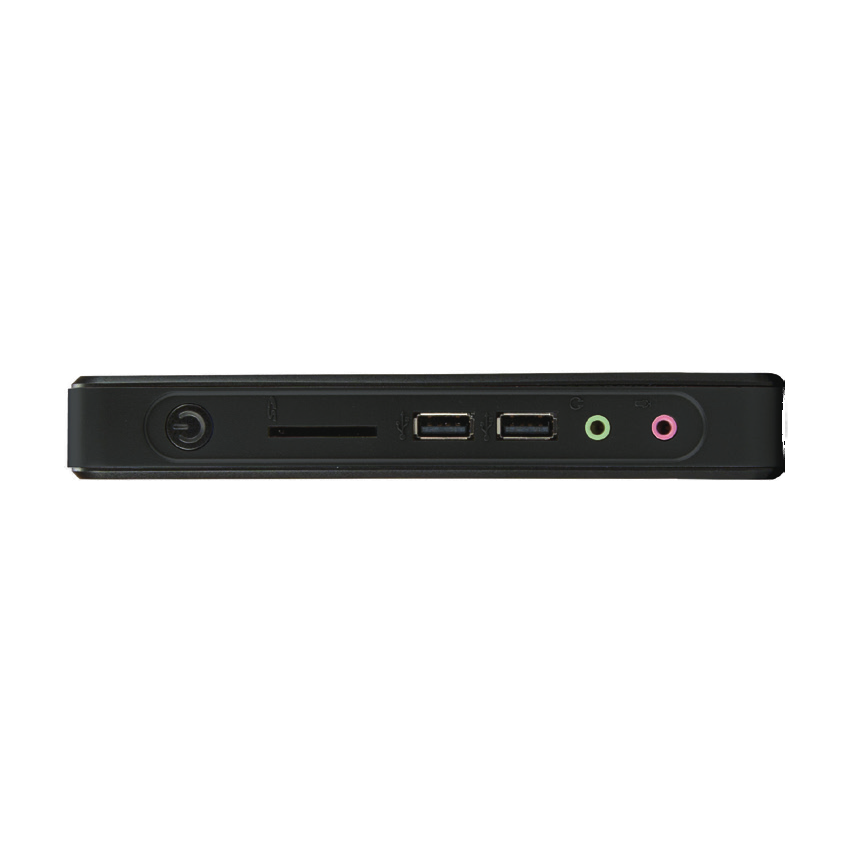

Front Panel I/O 2 USB 2.0 ports
1 SD card slot
2 Audio jacks: Line-out and Mic-in (shared with CIR, optional)
1 Power on/off button & power indicator LED

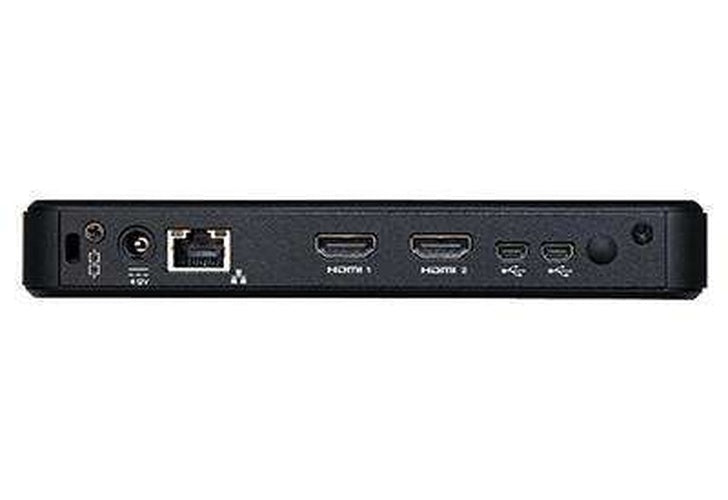

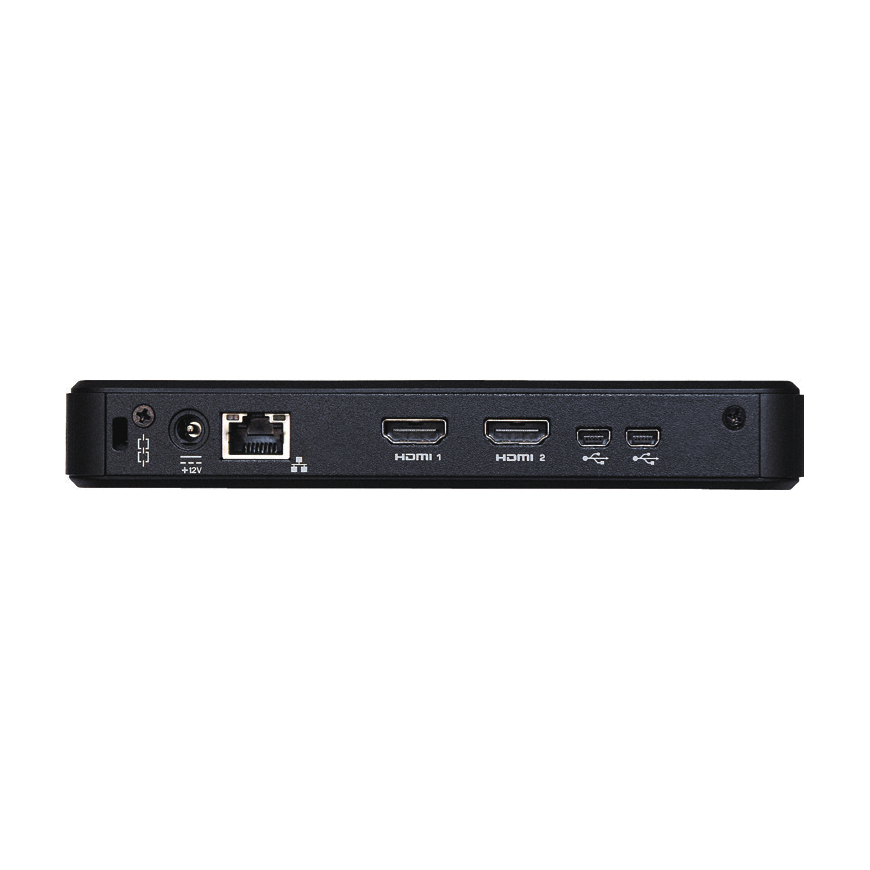

Back Panel I/O 2 Mini USB 2.0 ports (optional)
- 1 for Wi-Fi
- 1 for UART1 TX/RX
2 HDMI ports (1 optional)
1 Gigabit Ethernet port
1 DC-in jack
Power Supply 12V DC-in (typical: 5.12W)
Operating System Android 4.4.2, Kernel 3.10.0
Operating Temperature 0°C ~ 40°C
Operating Humidity 0 ~ 90% @ 40°C (non-condensing)
Storage Temperature -20°C ~ 70°C
Dimensions 175mm(W) x 25mm(H) x118(D) (6.88" x 0.98" x 4.64")
Weight 0.555kg (1.22lbs)
Compliance CE / FCC
