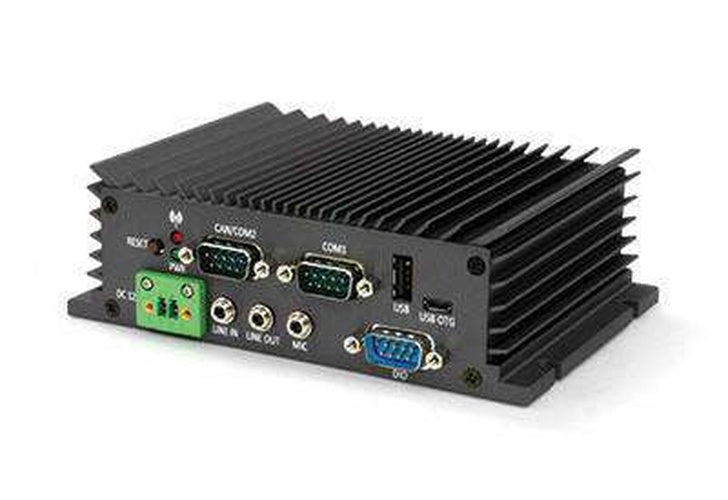

Fanless embedded Mini-PC com NXP i.MX 6QuadPlus ou 6Quad Cortex-A9 SoC 1.0GHz, 1GB DDR3 RAM, 4GB eMMC, 512KB SPI Flash ROM, HDMI, 3 USB 2.0, porta Micro USB 2.0 OTG,...

  • - Preços Sem IVA incluído.

  • - Valores sujeitos a alterações.

  • - Alguns dos valores requerem confirmação no acto da encomenda.

VIA Technologies
€349.00

Fanless embedded Mini-PC com NXP i.MX 6QuadPlus ou 6Quad Cortex-A9 SoC 1.0GHz, 1GB DDR3 RAM, 4GB eMMC, 512KB SPI Flash ROM, HDMI, 3 USB 2.0, porta Micro USB 2.0 OTG, 2 CAN bus, 2 COM, GPIO, Gigabit Ethernet, slot miniPCIe, RCA-in, DC-in 12V.

  • 1.0GHz NXP i.MX 6QuadPlus ou i.MX 6Quad Cortex-A9 SoC
  • Power over Ethernet (PoE) opcional
  • Opera numa ampla faixa de temperaturas, -20°C ~ 70°C
  • Suporta "I/O legacy" incluindo dual CAN bus, dual COM e GPIO
  • Inclui Linux e Android BSPs VIA Smart ETK



barebone-via-amos-820



Especificações:

Model Name AMOS-820-QP AMOS-820
Processor 1.0GHz NXP i.MX 6QuadPlus Cortex-A9 quad-core SoC 1.0GHz NXP i.MX 6Quad Cortex-A9 quad-core SoC
System Memory 1GB DDR3 SDRAM onboard
Storage 4GB eMMC Flash memory
Bootloader 512KB SPI Flash ROM
Graphics Vivante GC2000+ GPU Vivante GC2000 GPU
3 independent, integrated 3D/2D and video graphics processing units
Graphics engine supporting OpenGL® ES 2.0, OpenCL and OpenVG™ 1.1 hardware acceleration
Supports MPEG-2, VC-1 and H.264 video decoding up to 1080p
Supports SD encoding
LAN Micrel KSZ9031RNX Gigabit Ethernet transceiver with RGMII support
Audio NXP SGTL5000 low power stereo codec
HDMI Integrated HDMI 1.4 transmitter
USB SMSC USB2514 USB 2.0 high speed 4-port hub controllers
CAN TI SN65HVD1050 EMC optimized CAN transceiver
Expansion I/O 1 miniPCIe slot

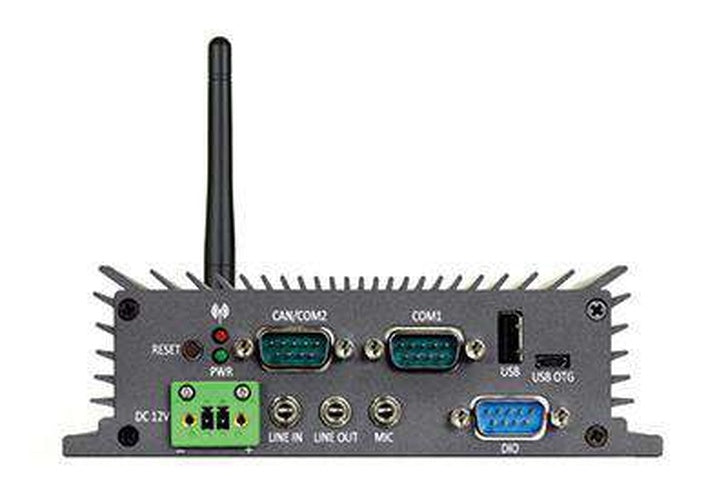

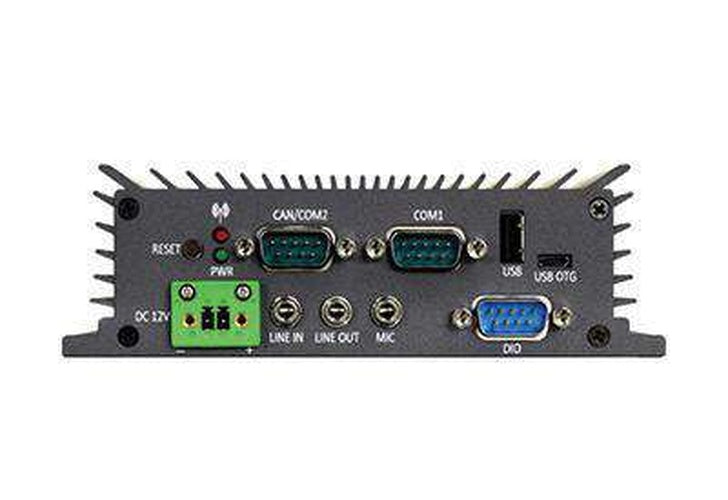

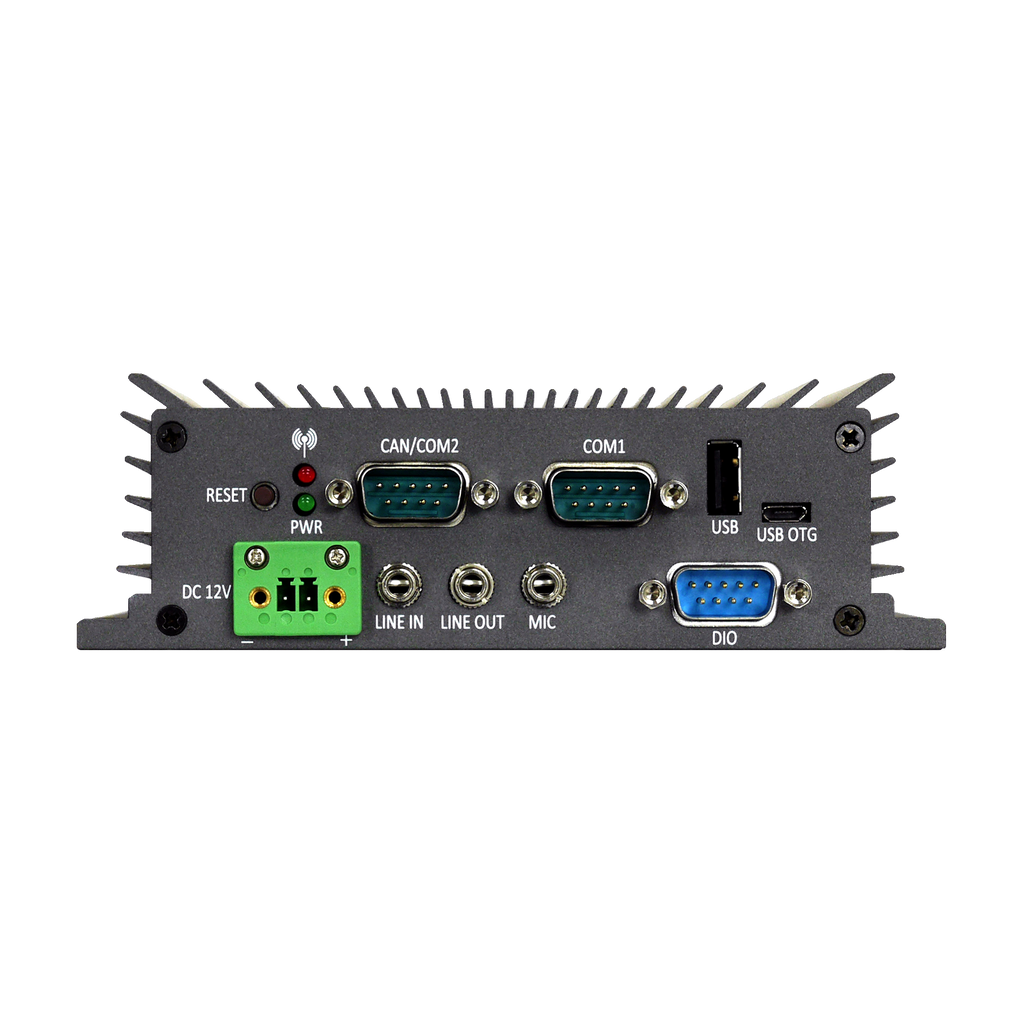

Front Panel I/O 1 USB 2.0 port
1 Micro USB 2.0 type B port supports OTG
1 COM (TX/RX) / 2 CAN bus port (supports CAN Protocol specification Version 2.0 B)
1 COM port supports 8-wire DTE mode
1 DIO port supports 8-bit GPIO (4 GPI + 4 GPO)
3 Audio jacks: Line-in, Line-out and Mic-in
1 Reset button
1 Power & WWAN/Wi-Fi LED
1 2-pole Phoenix DC jack

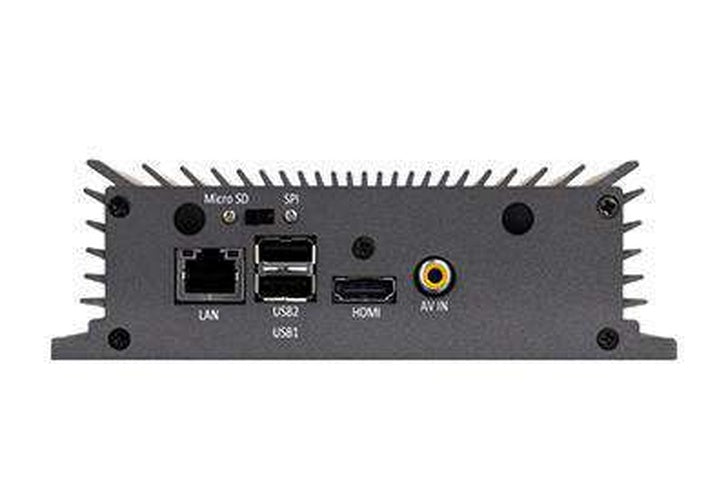

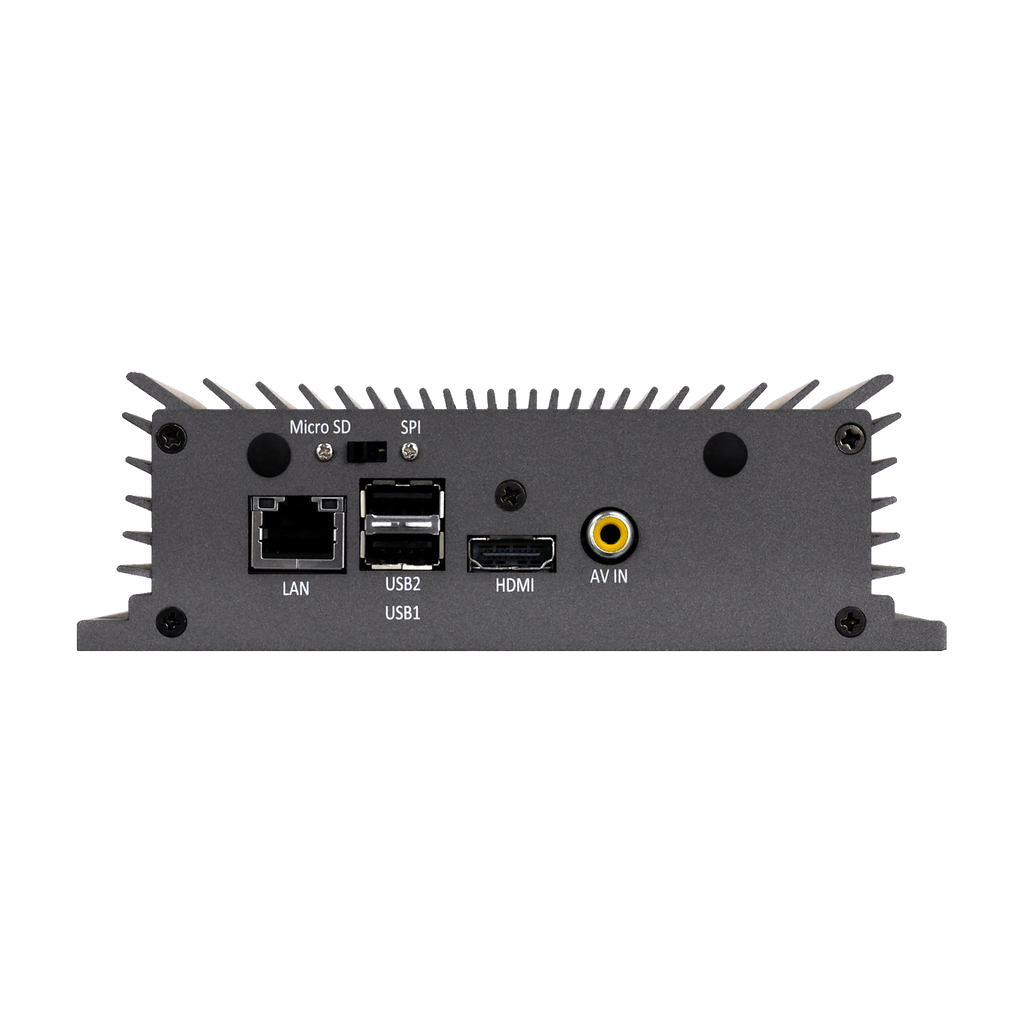

Back Panel I/O 1 HDMI port
1 Composite RCA jack
2 USB 2.0 ports
1 Gigabit Ethernet port (supports optional IEEE802.3 at type 2)
1 Micro SD/SPI boot switch
Watchdog Timer Integrated watch dog timer supports two comparison points. Each comparison point can interrupt ARM core, 2nd comparison point capable of generating external interrupts on WDOG line.
Power Supply 12V DC-in (typical: 4.3W)
Operating System Android 6.0, Linux Kernel 4.1.15 Android 5.0, Linux Kernel 3.14.28
Operating Temperature -20°C ~ 70°C (3G & Wi-Fi not included)
Operating Humidity 0% ~ 90% @ 45° C (non-condensing)
Vibration Loading During Operation With onboard eMMC
7Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis
Shock During Operation With onboard eMMC
70G, IEC 60068-2-27, half size, 11ms duration
PoE Function Supports IEEE802.3 at compliant (type2) PD (AMOS-820-2Q10A1, AMOS-820-6Q10A1)
Bottom Opening Covers Open window with removable door plate to access Micro SD and miniPCIe slots
Dimensions 150.5mm(W) x 48.1mm(H) x 103.3mm(D) (5.9" x 1.9" x 4.1")
Weight 0.673kg (1.48lbs)
