Sku: FT86A311D2OB
Tipo de Produto:
Monitores Grande Formato
Fabricante:
Faytech
FT86A311D2OB

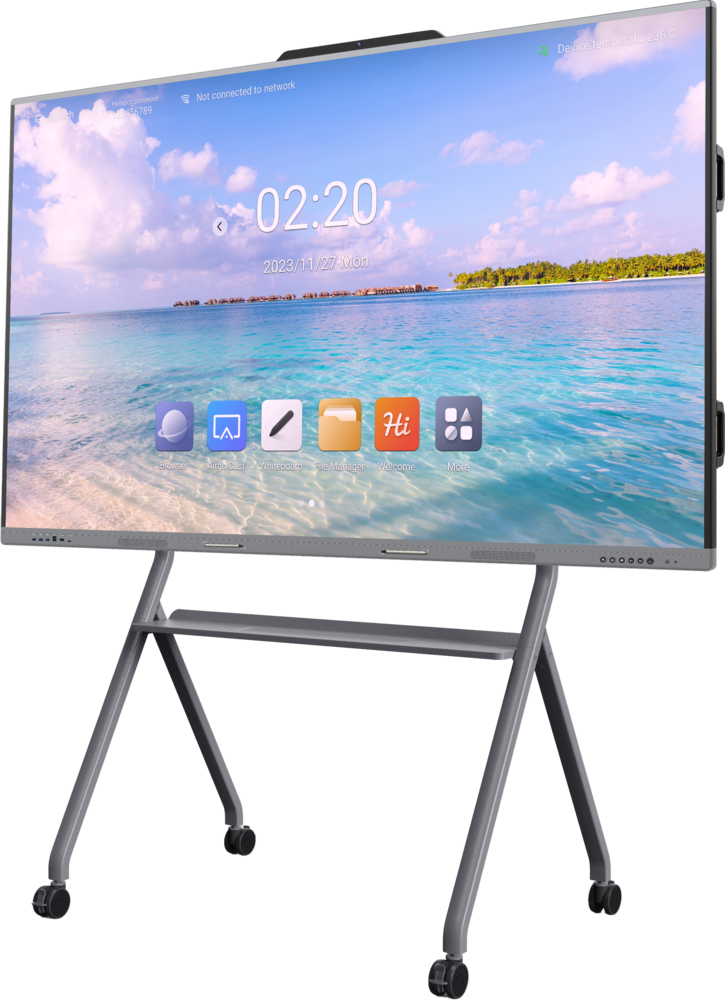

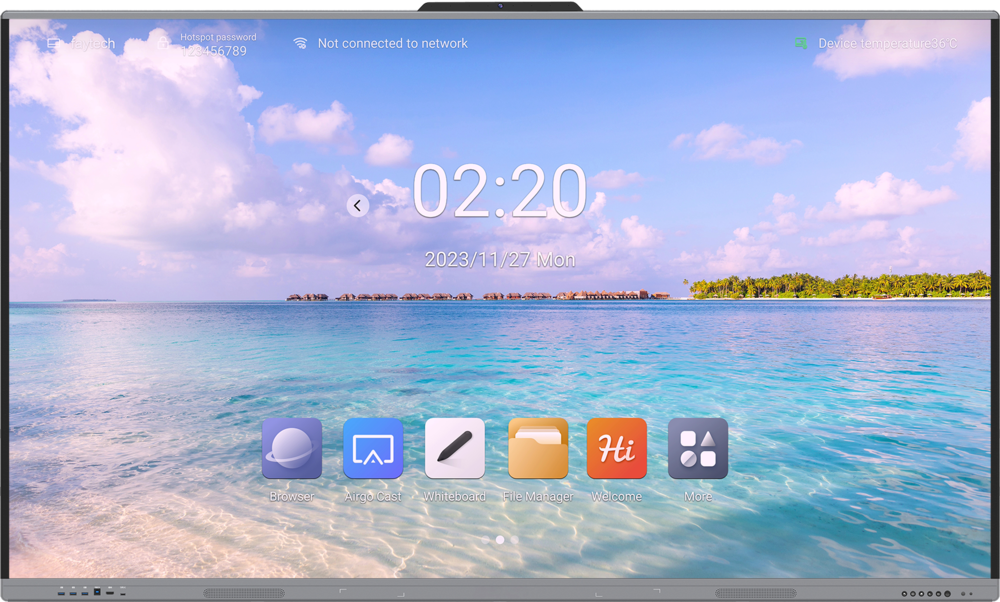

86" Interactive Whiteboard (Android 13)
- Resolução 4K (3840 × 2160) e 1,07b cores exibidas
- Android 13 OS com possibilidade de Windows 10/11 via OPS
- 40 pontos de touch infravermelho e caneta (incluído)
- True Living Optical para uma imagem de exibição mais vívida
- Microfone e câmara perfeitos para meetings
- Vidro temperado à prova de quebra
- Montagem da VESA para facilitar a instalação ou suporte
- Longa vida útil, construído para uso extensivo em escritórios e salas de aula
Caraterísticas
Especificações
Downloads
Opcionais
Caraterísticas
Especificações
PRODUCT DETAILS
Product Name | 86" Interactive Whiteboard (Android 13) |
Article Code | FT86A311D2OB |
DISPLAY
Size | 86 inch |
Type | a-Si TFT-LCD |
Aspect Ratio | 16:9 |
Backlight | LED |
Resolution | 3840×2160 |
Refresh Rate | 60Hz |
Brightness | 450nits |
Contrast Ratio | 4000:1 |
Viewing Angle (V/H) | 178°/178° |
Colors | 1.07B (10 bits) |
LED Lifetime | ≥30,000H |
Touch Area (L*W)/mm | 1914*1088.6 |
Display Area (L*W)/mm | 1897.04*1067.96 |
Glass Material | AG (anti-glare chemical etching) tempered glass Reflectivity <1% |
Glass Thickness | 3.2mm |
Glass Hardness | Mohs 7 |
Bonding | True Optical bonding |
CONNECTORS
Front | 3x Public USB-A 3.0 |
1x Touch USB-B 3.0 (for front HDMI 2.0) | |
1x HDMI 2.0 in | |
1x Type-C out (DP 1.2+Touch USB 2.0+PD 15W+100Mbps) | |
Rear | 1x USB-C 3.0 |
1x RS232 (DB9) | |
1x Touch USB-B 3.0 (for DP in) | |
1x DP 1.2A in | |
1x HDMI 2.1 in | |
1x HDMI 2.0 in (ARC) | |
1x USB Type-C*1: ·Device mode: DP 1.2 in+Touch+PD 100W+USB 2.0, optional 100Mbps ·Host mode: USB 2.0 |
|
1x Android USB-A 2.0 | |
1x Public USB-A 3.0 | |
1x OTG USB-A 2.0 | |
2x WiFi antenna (2.4GHz+5GHz, supports wifi6) | |
1x Bluetooth 5.0 | |
1x Earphone out | |
1x Coaxial or SPDIF out | |
1x HDMI 2.1 out | |
2x RJ45(10/100/1000Mpbs) |
CPU / OS
Version | Android 13 |
CPU | Amlogic A311D2 4x Cortex-A73 at 2.2GHz 4x Cortex-A53 at 2.0GHz |
GPU | Arm Mali-G52 MP8 (8EE) |
RAM | 8G LPDDR4 |
ROM | 128G |
TOUCH
Performance | Technology: Infrared Minimum Touch Object: 3mm Touch Precision: 2mm Writing Precision: ±0.5mm Resolution: 32767x32767 Response Time: 3.3ms |
Points | 40 point touch/drawing, 20 point writing |
Tools | Fingers, pens, or other untransparent objects |
Compatibility | Windows XP/7/8/10/11; Linux; Chrome OS; Mac OS; Android |
Features | Dual color writing, palm as eraser |
Light Resistance | Works normally under 80,000 lux illumination (Full daylight ≈ 100,000 lux) |
DIMENSIONS & WEIGHT
Physical Dimensions (L*W*T)/mm | 1952.9*1155.1*88 (without wall mount) 1952.9*1155.1*114.2 (with wall mount) |
Bezel Width/mm | Top/Left/right:19.5 Bottom:47 |
Packed Dimensions (L*W*H)/mm | 2154*230*1354 |
VESA mount installation position | 800*600mm |
Net Weight | 66Kg±1Kg |
Gross Weight | 84Kg±1Kg |
OTHER
Speaker | 2x 20W |
Power (Type-C not included) | AC:100-240V;60/50Hz; 550W(Max); 341.6W(Standard); 166.9W(ECO)≤0.5W(Standby) |
Environmental Requirement | Operation temperature: 0~40℃ Operation humidity: 20%~80%RH |
In the Box | 2x Pen 1x Remote control 1x 3M Power cable 1x 3M HDMI cable 1x 3M A-B USB cable 2x Manual (1 for All-in-one touch panel, 1 for wall mount) 1x Installation guide 1x Warranty card 1x Qualified certificate 1x Packing list |
Wall Mount | Standard included |
Webcam | Standard included |

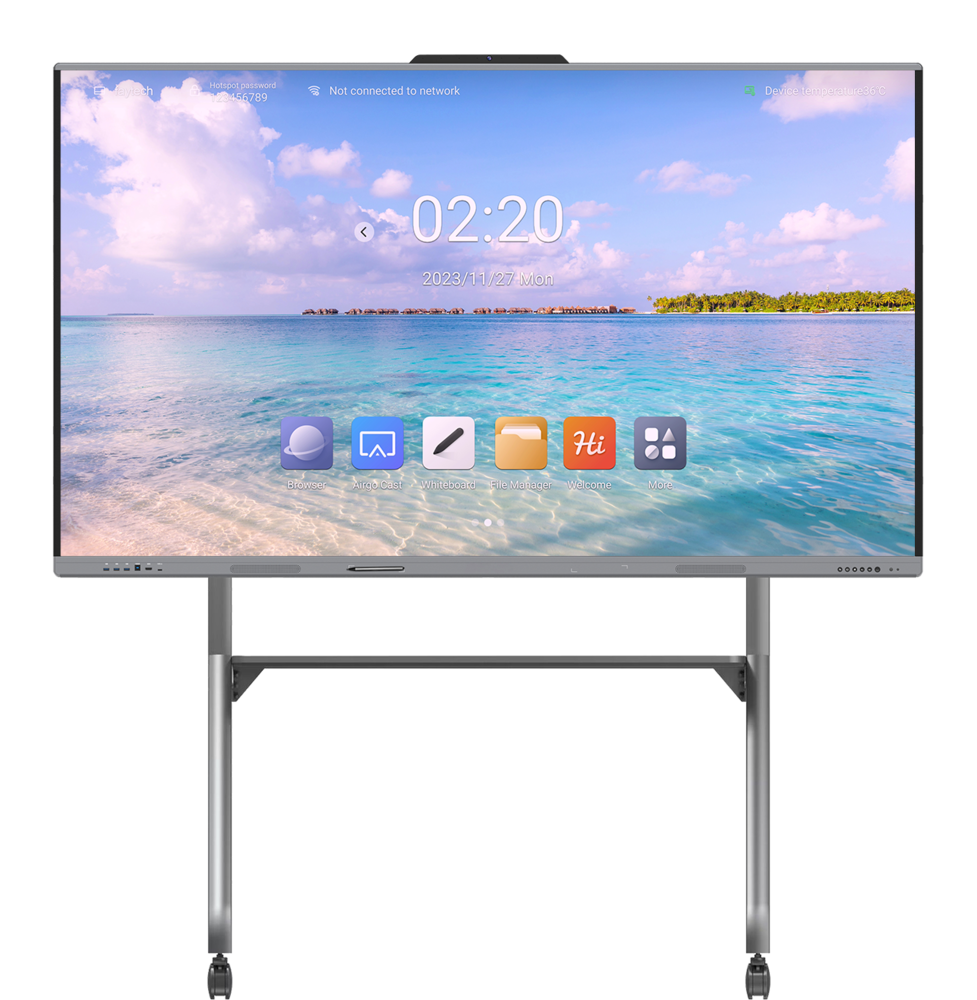

Mobile Floor Stand | Optional |
Warranty | Touch panel/OPS & accessories: by sales contract. Software upgrade: free for lifetime. |
WEBCAM SPECIFICATIONS (INCLUDED)
Model | FTMP48 (with microphone) |
Sensor | 48MP Sensor for 12Mp Tetra Bayer with 1/2 optics in |
Pipe Size | 0.8x0.8u |
Working Voltage | 5V |
Working Current | 1A |
Frequency | 50Hz |
Interface | USB 2.0 |
Infrared Filter | / |
Lens Structure | / |
Interface Speed | / |
Video Format | YUV / MJPG |
Supported Resolutions | 15fps@mjpg 4208X3120 30fps @mjpg/h264/h265 3840x2160 2560x1440 1920x1080 1280x720 1024x768 640x480 640x360 320x180 10fps@YUY2 1280x720 30fps@YUY2 640x480 320x240 |
Focus Mode | Fixed focus |
Focusing Speed | / |
Microphone | 8MIC |
MIC plate size | 130x6mm |
MIC spacing | 40mm |
Signal to Noise Ration (SNR) | 64.5db |
Sensitivity | -26db |
Acoustic Overload Point (AOP) | 120 db SPL (Sound Pressure Level) |
Pick-up Distance | 10m |
Indicator | Yes |
Algorithm | Face Tracking, Sound Source Localization, echo cancellation |
Field of View (FOV) | D: 114.9 H: 110. V: 85.7 ±3° |
Total Track Length (TTL) | 7.18mm ± 0.15mm |
Effective Focal Length (EFT) | 2.59mm |
F/NO (Infinite) | 2.2 ± 5% |
TV-distortion | <1.5% |
Focus Distance | 0.4 - 10m |
Effective Depth of Field | 0.4 - 10m |
Thread Specifications | / |
Sampling Ra | / |
Sampling Bits | / |
Wire | FFC |
Support Function | 1. Acoustic Echo Cancellation (AEC) 2. 180° horizontal plane pickup, beamforming 3. Adaptive Environment Noise Reduction 4. Reverberation Removal 5. Sound Source Localization 6. Adaptive Voice Enhancement 7. Automatic Gain Control (AGC) |
