Sku: Nuvo-9501
Product Type:
PCs Industriais
Vendor:
Neousys

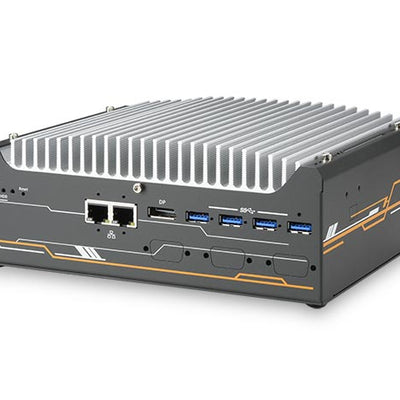

Nuvo-9501
Intel® 13th/12th-Gen Core™ compact fanless computer with 2x 2.5GbE and 4x USB3.2
- Intel® 13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
- Compact 212 x 165 x 80 mm footprint
- Rugged, -25°C to 60°C fanless operation (Nuvo-9505D only)
- Up to 32GB DDR4 3200 SODIMM
- 2x 2.5GbE and 4x USB3.2 Gen 1 with screw-lock
- Supports 1x M.2 2280 Gen4 x4 NVMe and 1x 3.5"/2.5" SATA HDD/SSD storage
- 4-CH isolated DI and 4-CH isolated DO (Nuvo-9505D only)
- VGA + DP dual display outputs
Caraterísticas
Especificações
Downloads
Opcionais
Caraterísticas
Nuvo-9501 is a cost-effective compact fanless embedded computers based on the Intel 13th/12th-Gen platform. Built on the advanced Intel 7 process, Intel 13th Gen processors offer up to 24 cores/ 32 threads to deliver up to 2x the performance when compared to previous Intel 10th or 11th Gen platforms. Nuvo-9501 is a cost-effective, compact and yet powerful fanless embedded computer that offers the ultimate computing for various industrial applications.
Nuvo-9501 offers essential I/O functions for general industrial needs including dual 2.5GbE ports, dual display ports and four USB3.2 ports. In addition, it features a Gen4 x4 M.2 NVMe slot for the latest NVMe SSDs with read/ write speeds up to 7000 MB/s. Also, it supports a 2.5” or 3.5” HDD storage for high capacity storage needs such as data collection or surveillance applications. It also offers two mPCIe and one M.2 E key slots for installing WiFi or 5G/ 4G wireless communication modules.
As a cost-effective and compact embedded computer, Nuvo-9501 delivers excellent computing performance and offers essential necessary I/O connectivityons to meet customers’ needs and cost. It is suitable for a variety of industrial applications.
■ NEOUSYS MARKETING TEAM
Especificações
| System Core | ||
|---|---|---|
| Processor | Supporting Intel® 13th-Gen Core™ CPU[1] (LGA1700 socket, 65W/ 35W TDP) - Intel® Core™ i9-13900E/ i9-13900TE - Intel® Core™ i7-13700E/ i7-13700TE - Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE - Intel® Core™ i3-13100E/ i3-13100TE |
Support Intel® 12th-Gen Core™ CPU (LGA1700 socket, 35W/ 65W TDP) - Intel® Core™ i9-12900E/ i9-12900TE - Intel® Core™ i7-12700E/ i7-12700TE - Intel® Core™ i5-12500E/ i5-12500TE - Intel® Core™ i3-12100E/ i3-12100TE - Intel® Pentium® G7400E/ G7400TE - Intel® Celeron® G6900E/ G6900TE |
| Chipset | Intel® H610E platform controller hub | |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU) | |
| Memory | Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot) | |
| TPM | Supports fTPM 2.0 | |
| I/O Interface | ||
| Ethernet Port | 2x 2.5GBASE-T Ethernet ports by Intel® I226-V GbE controllers (Nuvo-9501) 2x 2.5GBASE-T Ethernet ports by Intel® I226-IT GbE controllers (Nuvo-9505D) |
|
| USB | 4x USB 3.2 Gen1 (5 Gbps) ports 2x USB 2.0 ports |
|
| Video Port (Integrated Graphics) |
1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
|
| Serial Port | 1x software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
|
| Audio | 1x 3.5 mm jack for mic-in and speaker-out | |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO (Nuvo-9505D only) | |
| Internal Expansion Bus | |
|---|---|
| Mini PCI Express | 2x full-size mini PCI Express sockets with internal SIM sockets |
| M.2 E key | 1x M.2 2230 E key socket for WiFi5, WiFi6 or Google edge TPU module |
| Storage Interface | |
| SATA HDD | 1x internal SATA port for 3.5" HDD or 2.5" HDD/ SSD |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Power Supply | |
| DC Input | 1x 3-pin pluggable terminal block for 8-35V DC input with remote on/off control |
| Mechanical | |
| Dimension | 212mm (W) x 165 mm (D) x 80 mm (H) |
| Weight | 2.5kg |
| Mounting | Wall-mount (optional) or DIN-rail mount (optional) |
| Environmental | |
| Operating Temperature |
With 35W CPU -10°C to 60°C [2][2][2]/[3] (Nuvo-9501) -25°C to 60°C [2]/[3] (Nuvo-9505D) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
Downloads
Opcionais
Power Backup Modules:
Optional Accessories
PA-160W-OW
160W AC-DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30°C to 70°C.
PA-280W-ET2
280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.(recommended for 65W CPU)
Wmkit-Nuvo9501
Wall mount assembly for Nuvo-9501 series
DINRAIL-31
DIN-rail mounting assembly for Nuvo-9501 series
AccsyBx-FAN-Nuvo9531_9501
Fan kit with 92mm x 92mm fan for Nuvo-9501 serie
