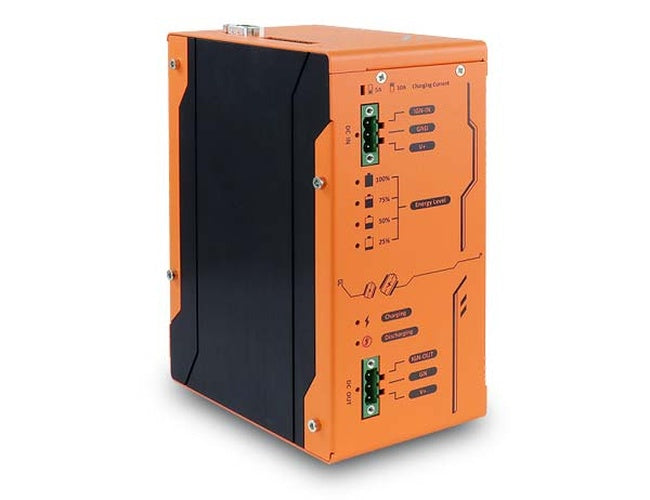

UPS Module PB-4600J-SA 4600 w.s Standalone Intelligent Supercap

PB-4600J-SA

4600 w.s Standalone Intelligent Supercapacitor-Based Uninterruptible Power Backup Module

• Universal standalone power backup module compatible with all box-PCs
• Supercapacitor-based wide-temperature operation from -25 to 65°C
• 4600 watt-second energy capacity
• Maximum 180W output power for the connected back-end system
• Over 10 years of service life and 500,000 charging / discharging cycles
• Patented CAP energy management technology*
  • Extends backup time in the event of an unforeseen power outage
  • Energy and power-consumption monitoring to extend operating time for safe system shutdown

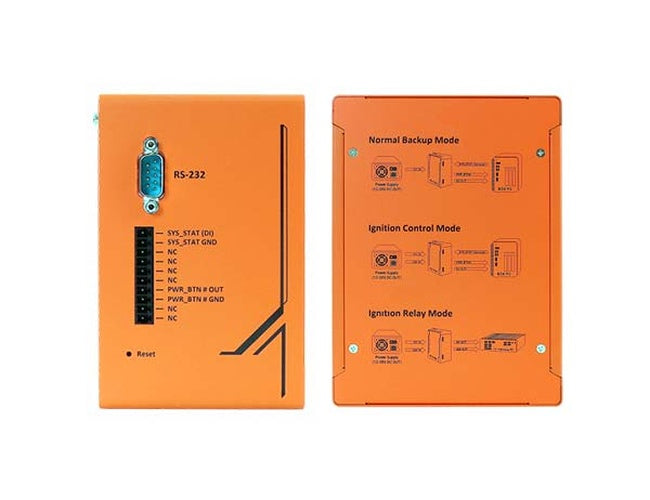

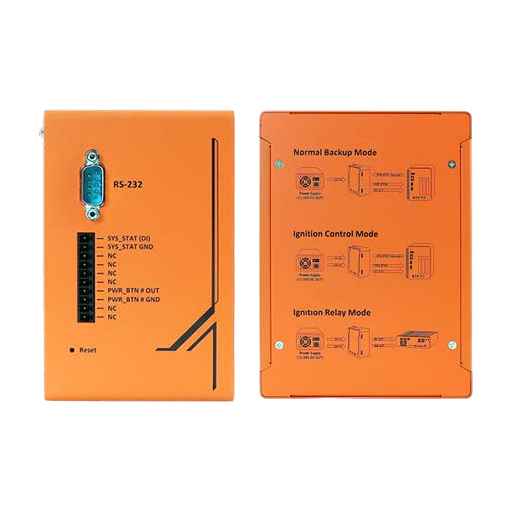

• Versatile operating modes
  • Normal backup mode
  • Ignition control mode for standard box-PCs and in-vehicle controllers
• EN50155 certification
• *R.O.C. Patent No. I598820

The PB-4600J-SA is a standalone power backup module that protects a box-PC against power outages. Using state-of-the-art supercapacitor technology, it can operate in harsh environments from -25 to 65°C and offers extremely high durability, with a service life of over 10 years.

The PB-4600J-SA comprises four 370F/ 3.0V supercapacitors, which offer a much longer service life than their 2.7V counterparts, and stores 4600 watt-second of energy to provide extended additional operating time for system backup. Thanks to Neousys' patented CAP energy management technology, it can reliably supply 180W of power to the back-end system and automatically manage startup and shutdown without installing additional drivers / software. In addition to its UPS-like power backup mode, it also offers two advanced ignition control modes for in-vehicle use. The PB-4600J-SA can operate with either a standard box-PC or an in-vehicle controller to provide a stable power supply and implement a user-configurable power-on / power-off delay according to the IGN signal input.

Featuring multiple operating modes, automatic shutdown control and up to 180W output power, the PB-4600J-SA can operate with most off-the-shelf box-PCs. With features such as maintenance-free energy storage and uninterruptible power supply, the PB-4600J-SA can prevent data loss in the connected back-end system during power outages in harsh industrial environments!

■ NEOUSYS MARKETING TEAM

Daisy-Chainable

Rugged Wide-Temperature Operation
