com IVA
1,168.50€

sem IVA
950.00€
Sku: TF3238MSC-B1AG
Product Type: Monitores Grande Formato
Vendor: iiyama

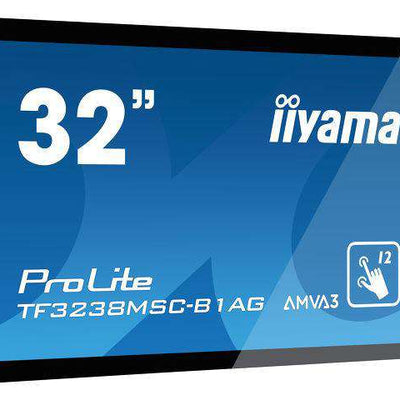

TF3238MSC-B1AG

32" 12pt Open Frame PCAP interactive large format display

  • Touch technology - Capacitive
  • Open frame LFD
  • 24/7
  • AG Coting
  • Ball-drop-test proof
Caraterísticas

32" 12pt Open Frame PCAP interactive large format display

The Full HD (1920x1080) Open Frame TF3238MSC is the ideal interactive display solution for education, kiosks, interactive Digital Signage and in-store communications. It can be installed in landscape, portrait and face-up orientation for maximum flexibility and accessibility. The Projective Capacitive (PCAP) touch technology with 12 touch points ensures a seamless and accurate touch response. With its AMVA3 LED panel, it offers exceptional colour performance, high contrast and wide viewing angles. Featuring a metal housing with a 60950-1 ball-drop proof, scratch-resistant, edge-to-edge glass, this display can be installed in the most demanding environments and build in different set-ups as a result of its Open Frame side mounting holes.

Especificações

DISPLAY CHARACTERISTICS

Design Edge to edge glass, Open Frame
Diagonal 31.5", 80cm
Panel AMVA3 LED, Anti-glare coated glass
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Brightness 420 cd/m² with touch
Light transmittance 84%
Static contrast 3000:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Horizontal Sync 30 - 83kHz
Viewable area W x H 698.4 x 392.8mm, 27.5 x 15.5"
Pixel pitch 0.3637mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 12 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input DVI x1 (v1.0)
HDMI x2 (v.1.4)
DisplayPort x1 (v1.2)
Audio input Mini jack x1
Monitor control input RS-232c x1 (Get/Set Command)
RJ45 (LAN) x1
IR x1
Audio output Mini jack x1
Speakers 2 x 8W
HDCP yes

FEATURES

Kiosk mode yes
Max. non-stop operating time 24/7
Glass thickness 3mm
Glass hardness 7H
60950 Ball drop test yes
Water and dust protection IP54 (front)
Housing (bezel) metal
OSD key lock yes
Remote control lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, RU, NL, PL
Control buttons Power, Left/Volume-, Right/Volume+, Scroll Up, Scroll Down, Menu, Enter/Input Select
User controls picture (picture mode, backlight, contrast, brightness, chroma, phase, sharpness, color temperature, reset), sound (treble, bass, balance, volume, mute, speaker, audio source, reset), screen (aspect, adjust screen, touch feature), setting (language, schedule, power save, control settings, network settings, advanced, information, reset all)
Plug&Play DDC2B

MECHANICAL

Orientation landscape, portrait, face-up
VESA mounting 400 x 200mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C

ACCESSORIES INCLUDED

Cables power, USB, HDMI, DP, IR-Extender
Guides quick start guide, safety guide
Cable cover yes
Remote control yes (batteries included)

POWER MANAGEMENT

Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 60W typical, 1.0W stand by, 1.0W off mode

SUSTAINABILITY

Regulations CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, cULus, REACH
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 748.5 x 450 x 68mm
Weight (without box) 14.5kg
EAN code 4948570115778
Opcionais
  • Universal wall mount, max 438x400mm. 125kg
  • Tip & Touch stand on wheels (electrical tip function) max. 65 inch, 60 kg
  • Floor lift on wheels for (touch) flat screens max 120 kg with lockable lid for protection
